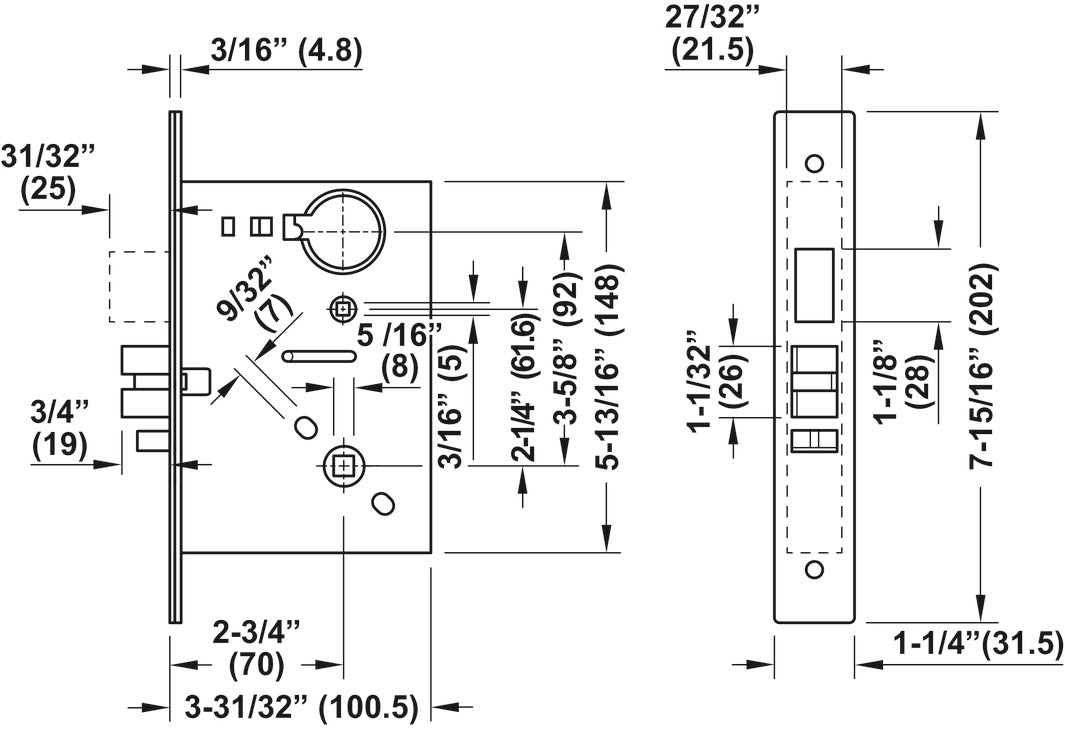

Mortise Lock, DT 750
*Free Standard Ground Shipping on Orders over $199
- Features: Electrically coupled
- Forend width: 31.5 mm
- Forend design: Flat forend edged
- Door construction: Rebated
- Backset (mm): 70 mm
- Functioning principle:
Determination of the comfort function
The door can open inwards or outwards, irrespective of the mounting side
The side with the comfort function is marked with a label.Emergency opening function
Emergency opening function is monitored (feedback)
Opening of the door from the outside: the deadbolt and latchbolt are retracted with the round cylinder (change).
Opening the door from the inside: the deadbolt and the latchbolt are retracted by operating the lever handle. - Version : With deadlocking latchbolt and deadbolt, Connection cable for electrical coupling and sensors for connection with DT 750 interior module
- Functionality : With comfort function, With emergency opening function, With feedback (sensors for latchbolt/deadbolt position)
- Application : Fire resistant and smoke control doors
-
Material
:
Forend: Stainless steel
latchbolt and lock case: Steel
lever follower: Malleable cast - Prepared for : Round cylinder
- Deadbolt throw : 1 turn
- Lever follower : 8 mm
- Entfernung : 92 mm
-
Standard
:
tested in accordance with ANSI grade 1 - A156.13 UL 10C Fire 90 min.
-
Supplied with
:
1 mortice lock
1 square forend, satin stainless steel, polished, polished brass coloured or satin black, î ‚2 fixing screws
1 flanged striking plate, satin stainless steel, polished, polished brass coloured or satin black
