• Extension lead, Häfele Loox5 from LED-Band monochrome 8 mm 12 V, AWG 18
1 5

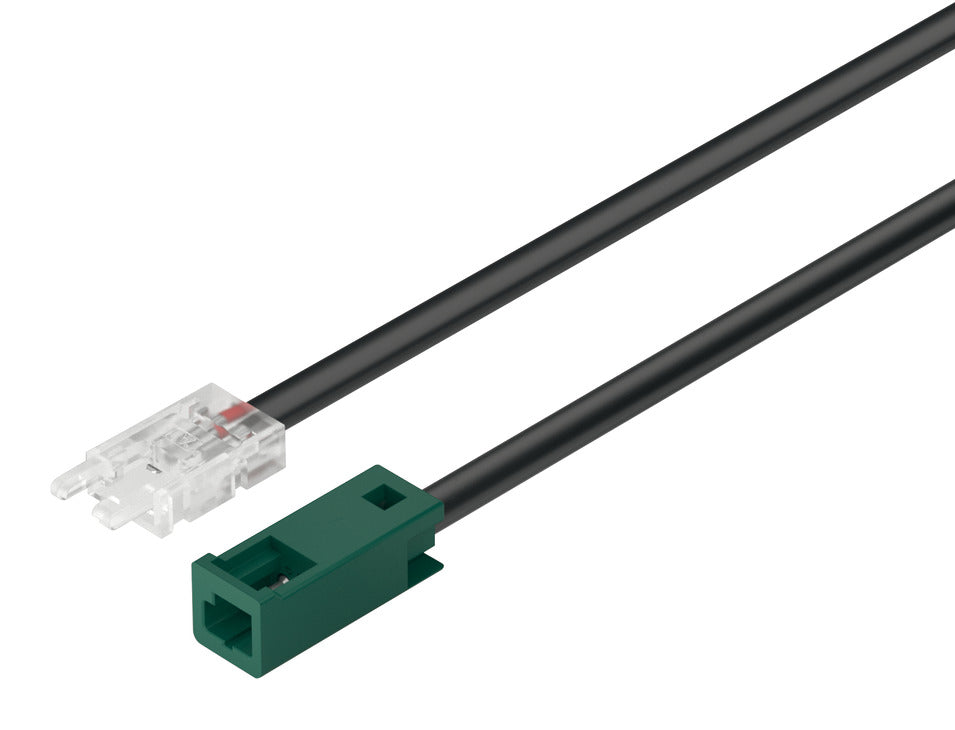

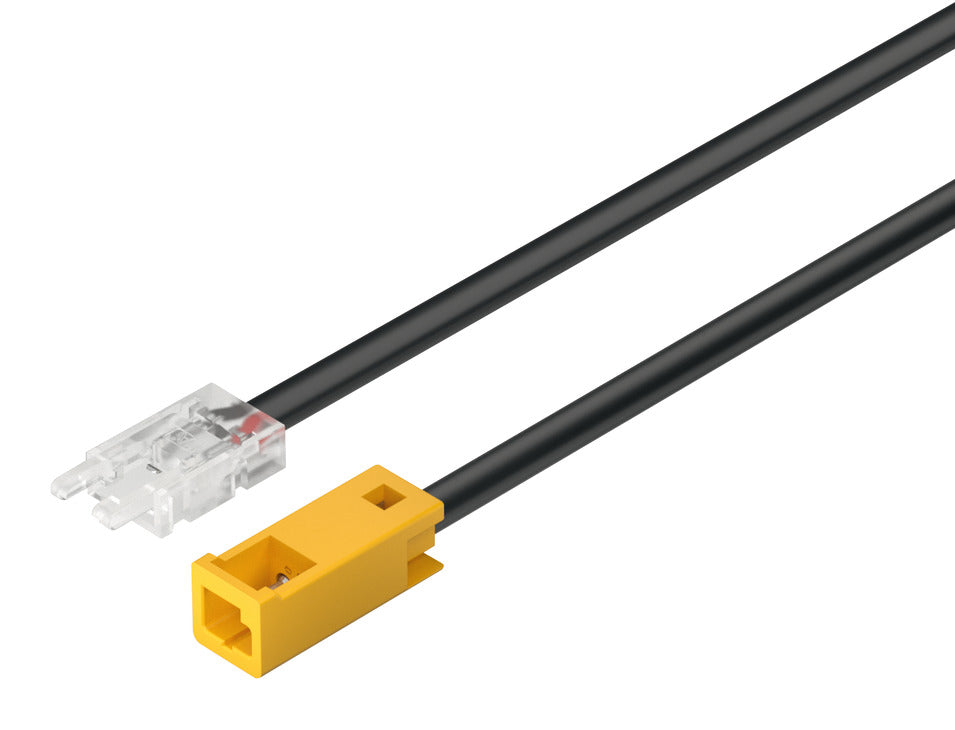

Extension lead, Häfele Loox5 from LED-Band monochrome 8 mm 12 V, AWG 18

$9.00 CAD
$9.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Allows connection of several linear lights during final assembly

  • Color system: monochrome
  • Input ports: 1 x Clip, Loox5 LED strip light 8 mm monochrome
  • Cable length: 100 mm
  • Clip width: 10 mm
  • Current carrying capacity: 5 A
  • Wire cross section AWG: 18
  • Material : Plastic
  • Number of leads : 2

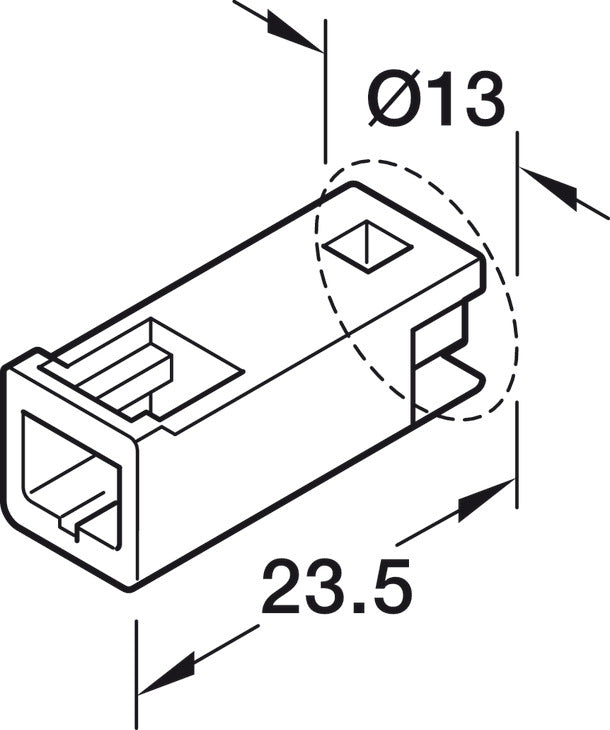

  • Socket drill hole Ø : 13 mm

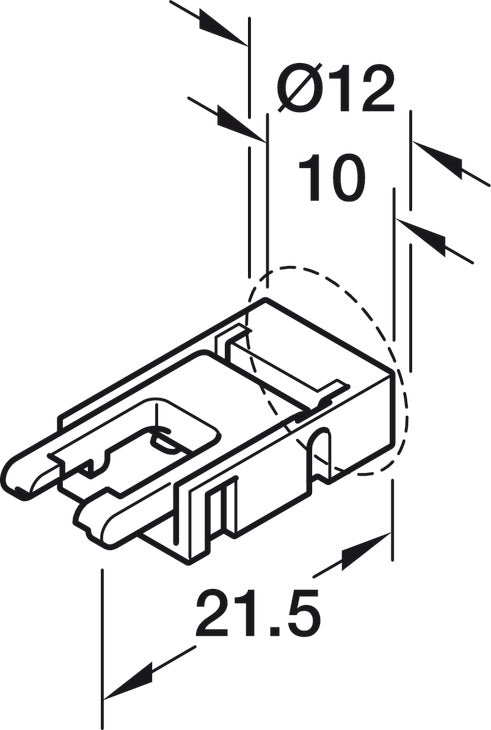

  • Clip drill hole Ø : 12 mm
  • Installation reference :

    Conceal cable guide in the furniture or in a cable channel!

  • Area of application :

    Production of an LED strip light with a connecting socket at the end of the strip, e.g. with individually manufactured linear lights in an aluminium profile. The combination of several lights into a combined switched strip light takes place using the practical plug-in connection during final assembly of the furniture.

  • Supplied with :

    1 extension lead socket/clip
