• Distributor, Häfele Loox5, 6-way, with switching function, with 3 switches
1 6

Distributor, Häfele Loox5, 6-way, with switching function, with 3 switches

$61.00 CAD
$61.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Multi-switching function for up to 3 switches
    Box to box plug-in connection
    Permanent soft on/off function, independent of the switch that is used
    The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
    Observe maximum wattage!

  • Control input ports: 3 x sockets, Loox switch
  • Area of application :

    For switching on/off and dimming (0-100%)

  • Material : Plastic
  • Color/finish : Black
  • Dim. (L x W x H) : 120 x 50 x 16 mm
  • Switching function : With multi-switching function
  • Installation : for glue fixing, For screwing
  • Operation modes :

    Operating modes
    3 operating modes:

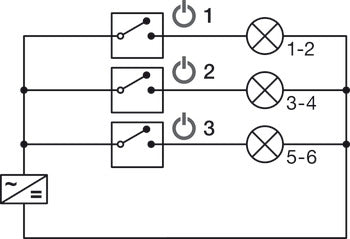

    Group connection (red feedback LED)
    Switch 1 = outputs 1 and 2
    Switch 2 = outputs 3 and 4
    Switch 3 = outputs 5 and 6

    OR circuit (blue feedback LED)
    Switching on using switch 1, 2 or 3. To switch off, all switches that are switched on are operated again
    No dimmer may be used in the OR circuit operation mode!

    Digital cross-circuit (green feedback LED)
    Operate one switch (1, 2 or 3) to switch all outputs on/off

  • Supplied with :

    1 Distributor incl. fixing material (adhesive tape and screws)
