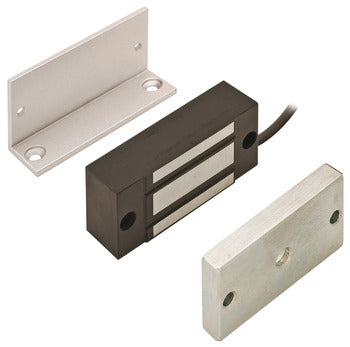

Magnetic Cabinet Lock, MCL1 Nano

$154.00 CAD
$154.00 CAD
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • A compact medium load locking mechanism that uses electromagnetic energy to capture and hold an armature plate. The armature is released when power is turned off. The MCL1 is strong enough for structural applications and can be remotely triggered by push button, RF Remote, and Dialock® Terminals.

  • Product type: Magnetic Cabinet Lock
  • Area of application :

    Maintenance access panel lock
    Security cabinets and drawers
    Display showcases
    Sliding doors
    For use with self-closing doors (hinges) and drawers (slides)
    For use on doors 3–50 mm (1 1/8"–2") thick

  • Material :

    Lock and armature plate: Steel
    L-bracket: Aluminum

  • Color/finish : Black/chrome-plated
  • Supplied with :

    Male AMP connector and 2 pins
    Armature plate
    L-bracket
    Mounting screws
    Instructions
