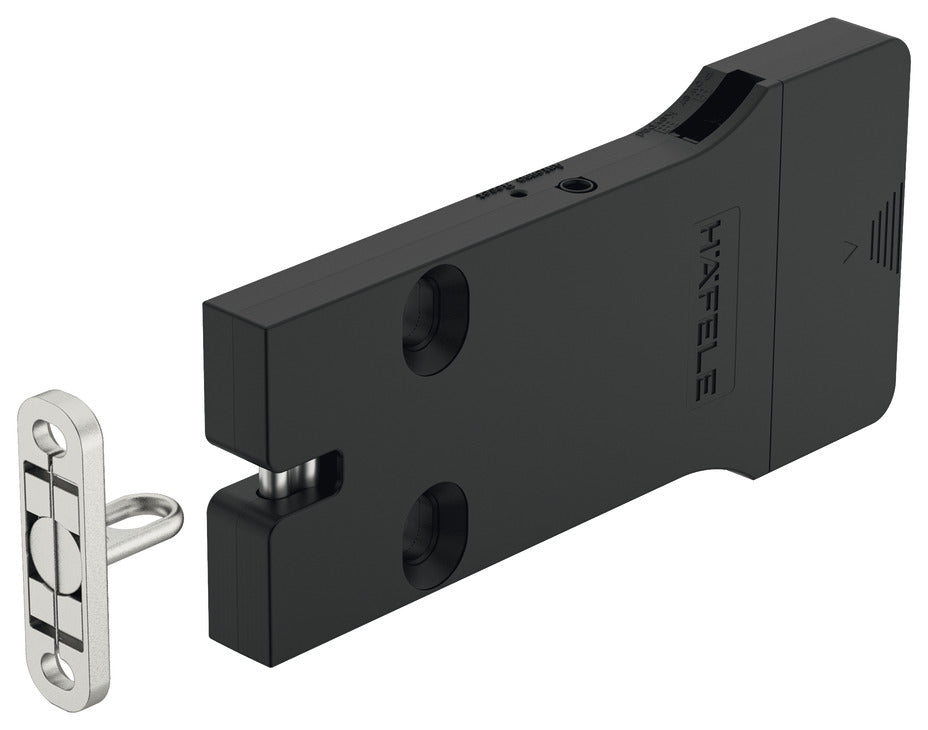

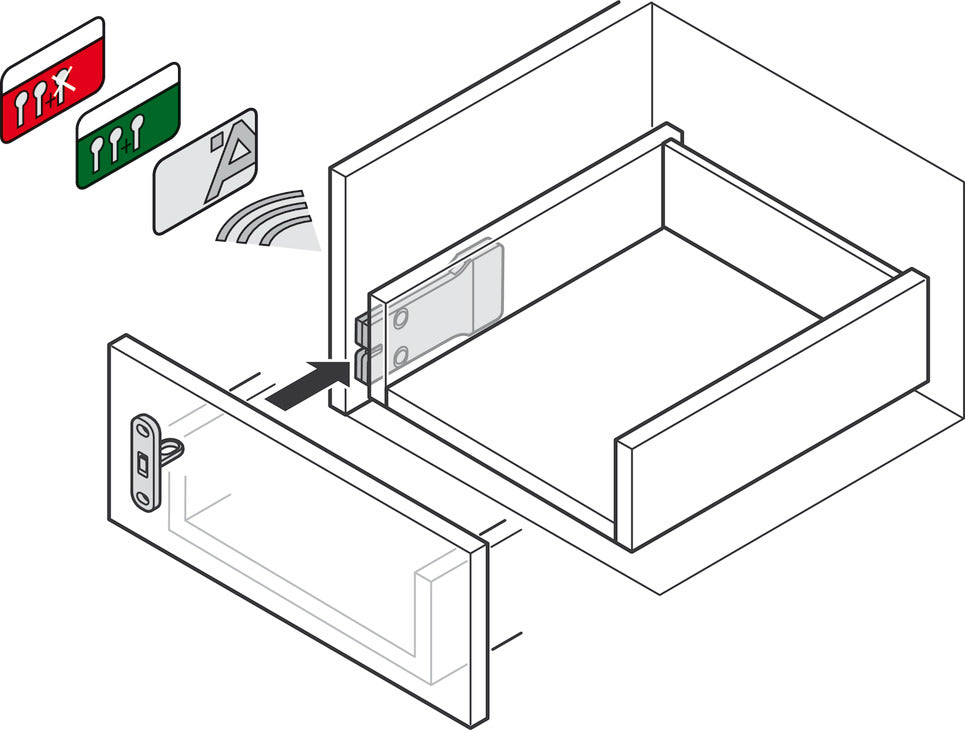

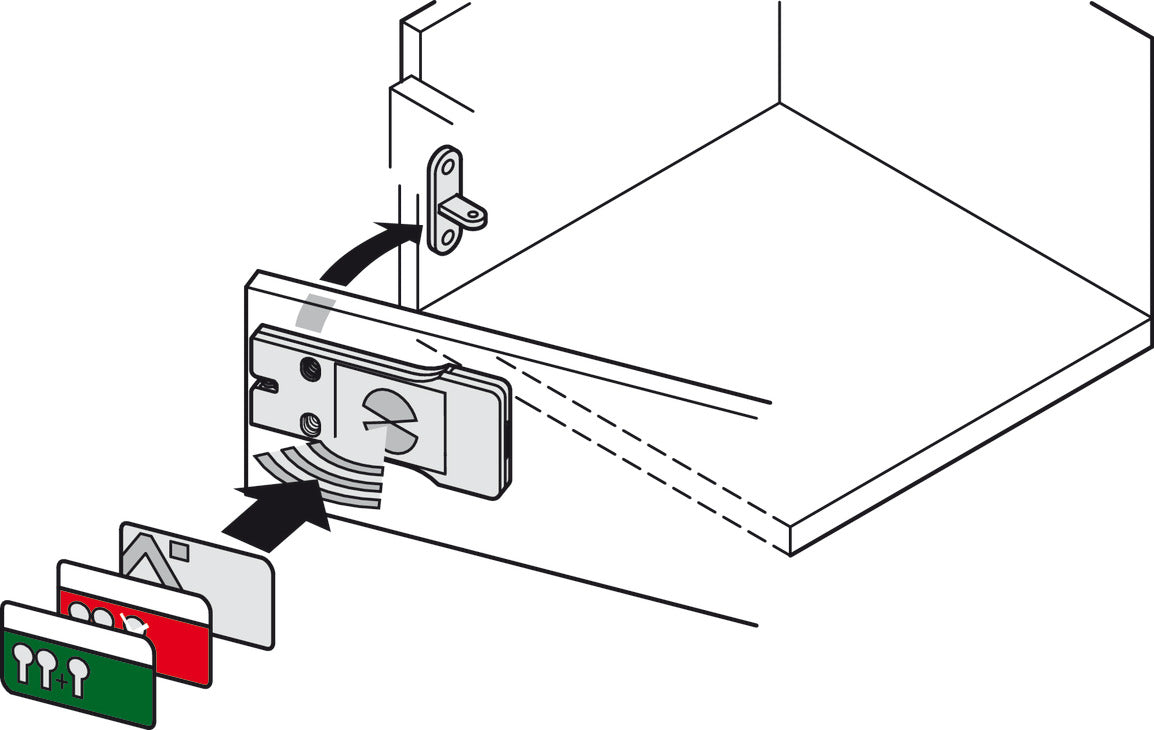

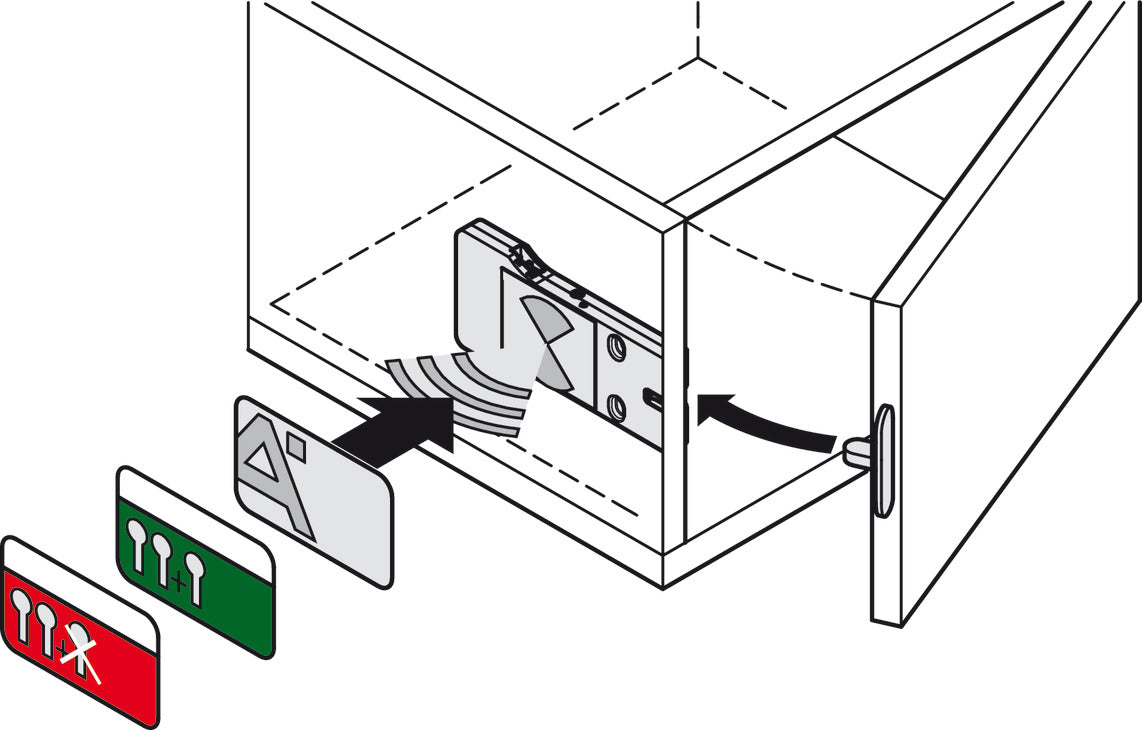

Battery-operated, intelligent locker lock for indoor use: For wardrobes, lockers, compartment cabinets, lockers with doors made from wood, for sliding doors or drawers.

BLE (Bluetooth 5) integrated for commissioning and configuration with the Häfele Dialock Manager app for smartphones (available for iOS and Android).

Standard mode
User keys are given a fixed assignment to one or several (optional) locks for locking and unlocking.
The lock remains open for 3 seconds after opening, and locks again automatically.
The door status (locked/unlocked) can be identified with feedback contact and additional macro with which an alarm can be triggered.
The open time can be adjusted to 1–30 seconds in the basic operation mode using the programming transponder.

Free choice of locker
Every user key can lock an open locker. When doing this, the user key is assigned to the selected locker, meaning that only this user key can unlock the locker again. When the locker is unlocked again, the assignment is deleted. The cabinet number is not stored on the user key.

Toggle mode (deadbolt lock function)
The lock is unlocked and remains unlocked when presenting an authorised transponder. The lock is locked again when the user key is presented again.

Housing: Plastic
Locking bolt and locking component: Zinc alloy

The EFL 30 / EFL 30c can be configured and operated in the stand-alone mode via the Dialock Manager app or as locking point in the Dialock Software using the programming card and clearing key card.
Notes on operation:

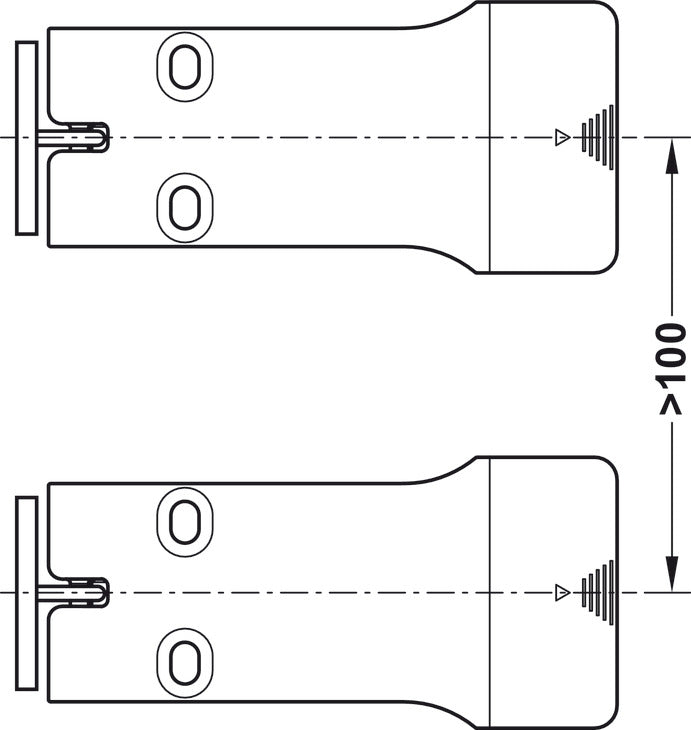

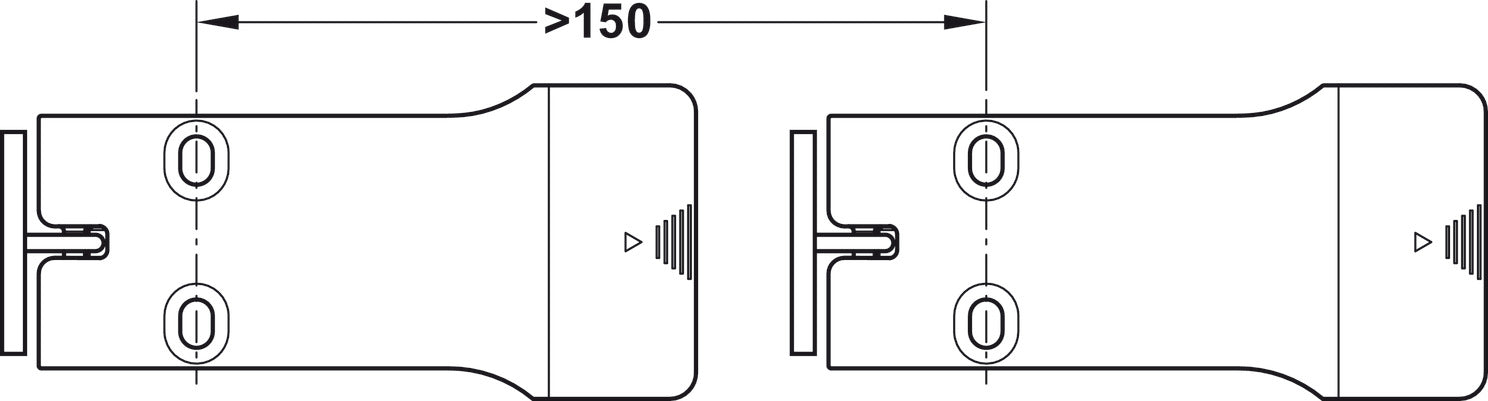

Minimum distance EFL 30 to EFL 30: 100 mm (vertical), 150 mm (horizontal).
When using the Dialock software, please contact your responsible Häfele employee.

In order to avoid interference between locks, a minimum distance of 100 or 150 mm must be maintained when installed. If the distance is less than the minimum, continuous communication will take place between the locks, which will drain the battery. In order to avoid unnecessary battery draining, do not insert the batteries until start-up takes place.
For applications where a smaller distance is required, the FT 200 with EFL 3 can be used as an alternative.

Particularly suitable for furniture constructions with soft closing and self closing mechanisms and installation in vehicles or trailers. Not suitable for drawers and hinged doors with Push-to-Open function.
If the batteries are completely discharged, the EFL 30 can no longer be opened. The EFL 30 can be programmed not to lock at a certain battery voltage. Please contact a Dialock technician to do this.

Please order batteries (Cat. No. 910.54.986) separately.
Please order programming and clearing key card, Dialock Manager app licence or software licence separately.
