• Base Pull-Out, 2-Tier, 45°
1 9

Base Pull-Out, 2-Tier, 45°

$327.26
$327.26
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • For cabinet width: 150 mm
  • For internal cabinet width: min. 112 mm
  • For internal cabinet depth: 481 mm
  • For internal cabinet height: 540 mm
  • Color/finish: Chrome plated, Chrome

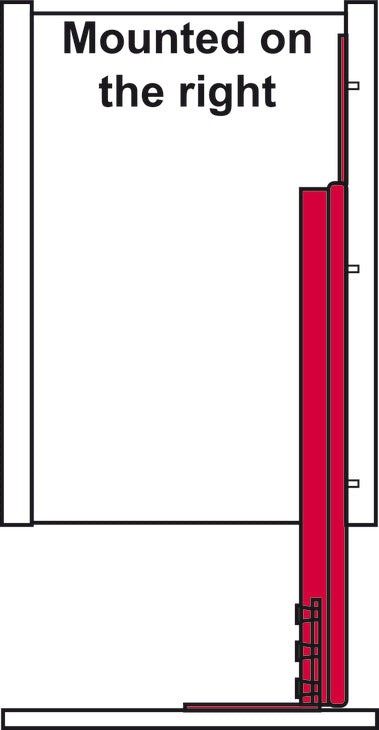

  • Mounting:

    Right-mounted

  • Version:

    Classic

  • Version: Classic
  • Dim. A: 38 mm
  • Width: 104 mm
  • Depth: 473 mm
  • For internal cabinet height: min: 22 1/4"
  • For internal cabinet depth min.: 19 1/2"
  • For internal cabinet width: Min. 4 1/2"
  • Type of pull out : Full extension
  • Load bearing capacity : 12 kg
  • Installation depth : 505 mm
  • Material :

    Steel

  • Installation :

    For screw fixing to side panel

  • Soft closing mechanism : Yes
  • Features :

    with 2 curved separators, with structured metal bases
    With clip-on interval connection of track and front bracket to carrier frame

  • Supplied with :

    Textured surface metal trays
    Full extension slides
