Appliance Lift, Hardware Mechanism

$324.66
$324.66
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Internal cabinet depth: 330 mm
  • Internal cabinet height: 608 mm
  • Internal cabinet height: 23 61/64"
  • Internal cabinet width: Platform surface + 2 1/2”
  • For internal cabinet depth max.: 13”
  • Material :

    Steel

  • Color/finish : Platinum
  • Load bearing capacity : 13 kg
  • Mounting :

    Lift can be positioned at two different levels: flush with counter or 2” below counter

  • Installation :

    Can be outfitted with a custom block platform or a quality pre-made maple wood platform
    Install 1/2" down and 1/2" back from upper Face Frame

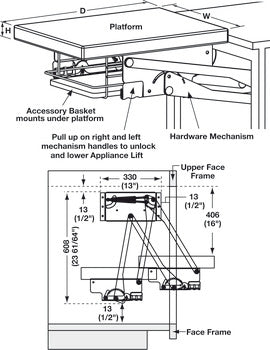

  • Installation reference :

    Internal cabinet width = Platform surface + (2 1/2”) 64 mm
    Internal cabinet depth = Maximum platform depth or (13”) 330 mm

  • Supplied with :

    1 right arm
    1 left arm
