• Waste Bin Pull-Out, Häfele Matrix, Double
1 7

Waste Bin Pull-Out, Häfele Matrix, Double

$292.75
$292.75
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Add your door thickness for inset applications

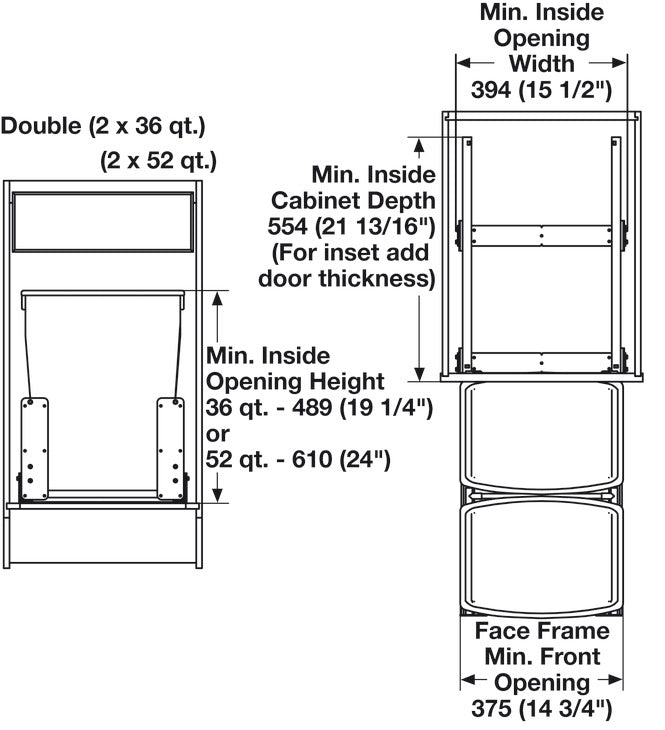

  • For internal cabinet depth: ≥554 mm
  • Material/finish: Frame: Steel Bottom & back: Particle board Bin: Plastic
  • Suitable for: Soft & silent Minimum Opening Width: • 375 mm (14 3/4") Face Frame • 394 mm (15 1/2") Frameless • 413 mm (16 1/4") with door brackets reversed for Full Overlay 5 piece doors
  • Number of bins: 2
  • For internal cabinet depth min.: 21 13/16"
  • Internal cabinet width: 14 3/4 - 16 1/4"
  • Area of application :

    Bottom mount unit designed for Face Frame or Frameless cabinets

  • Version :

    Soft & silent
    Minimum Opening Width:
    • 375 mm (14 3/4") Face Frame
    • 394 mm (15 1/2") Frameless
    • 413 mm (16 1/4") with door brackets reversed for Full Overlay 5 piece doors

  • Type of pull out : Full extension progressive action runners
  • Mounting :

    Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  • Installation :

    Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)

  • Supplied with :

    Mounting screws
    Mounting instructions
