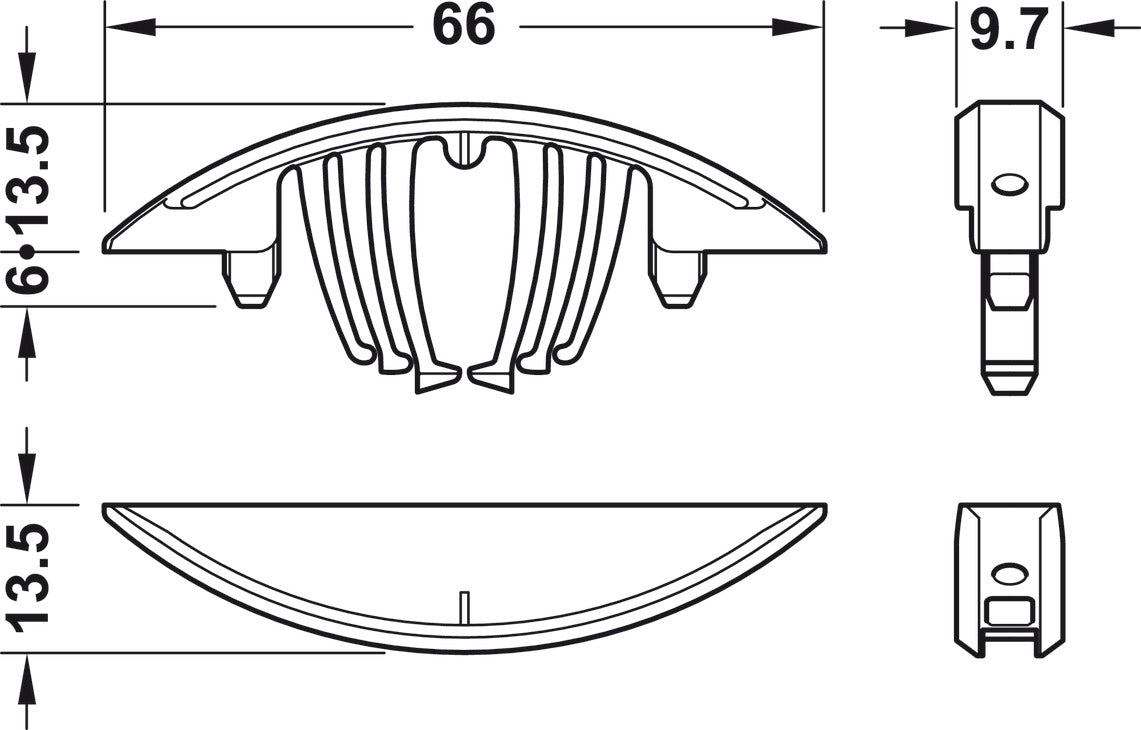

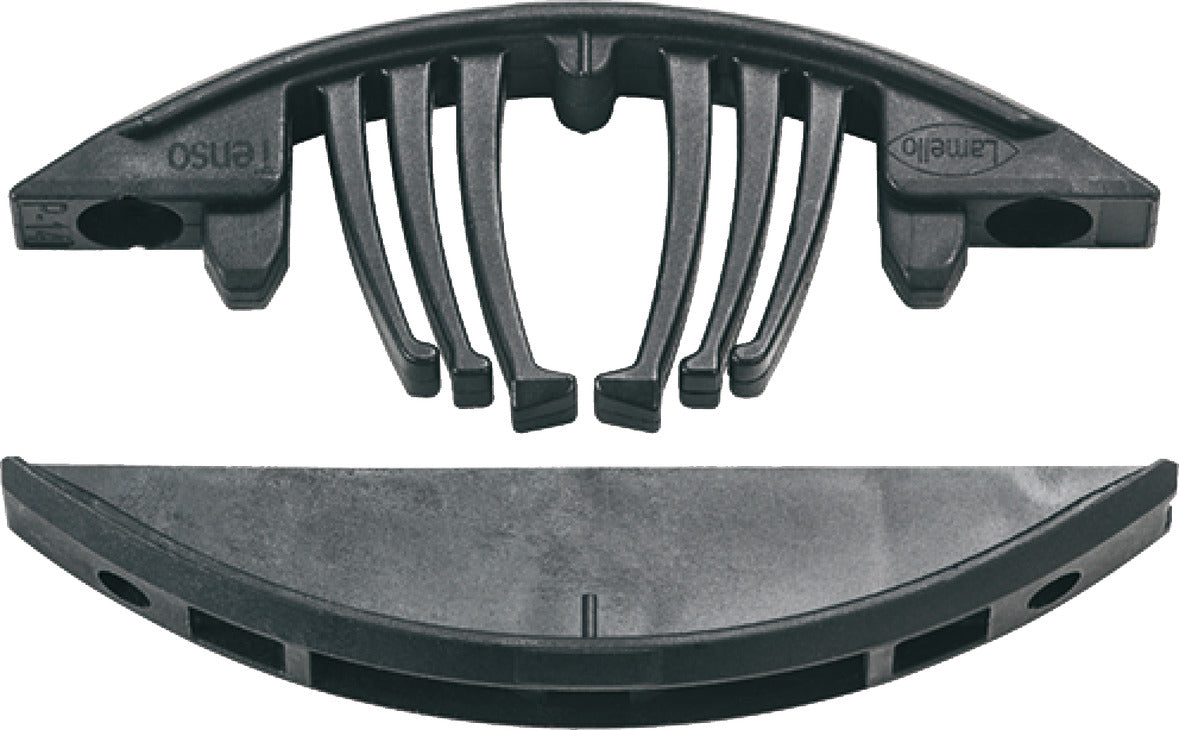

Biscuit Connector, Lamello Tenso P-14

$1.63
$1.63
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With pre-loaded facility
    Joins and clamps during insertion for perfectly closed joints
    Insertion of shelves after transport for lower transport weight
    Efficient machining and installation with a Zeta based on the P-System
    Narrow element for the use in material of at least 13 mm thickness

  • The ideal gluing aid:
    Without using screw-clamps or pressing devices
    For concealed applications
    Facilitated storage and transport of the workpieces
    New pre-stress clip features:
    Little effort: Only briefly applying pressure is needed for engaging the fitting
    Easy connection of workpieces, even with several connectors
    The pre-load clip is easily pushed in using the installation tool

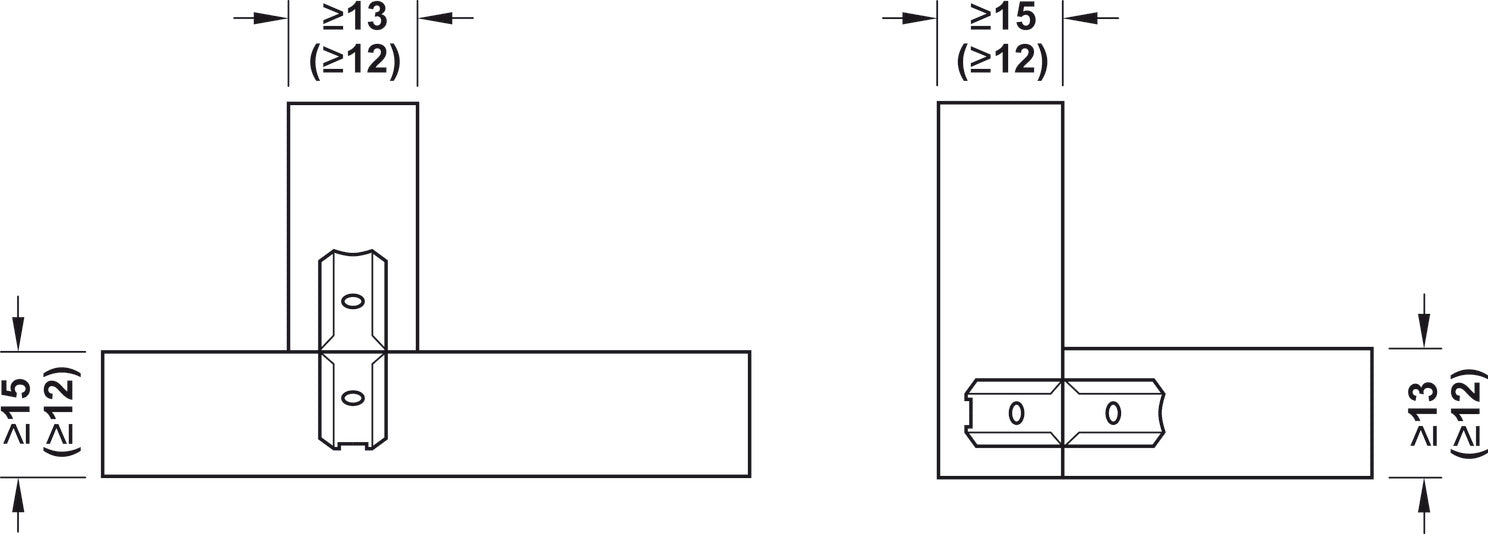

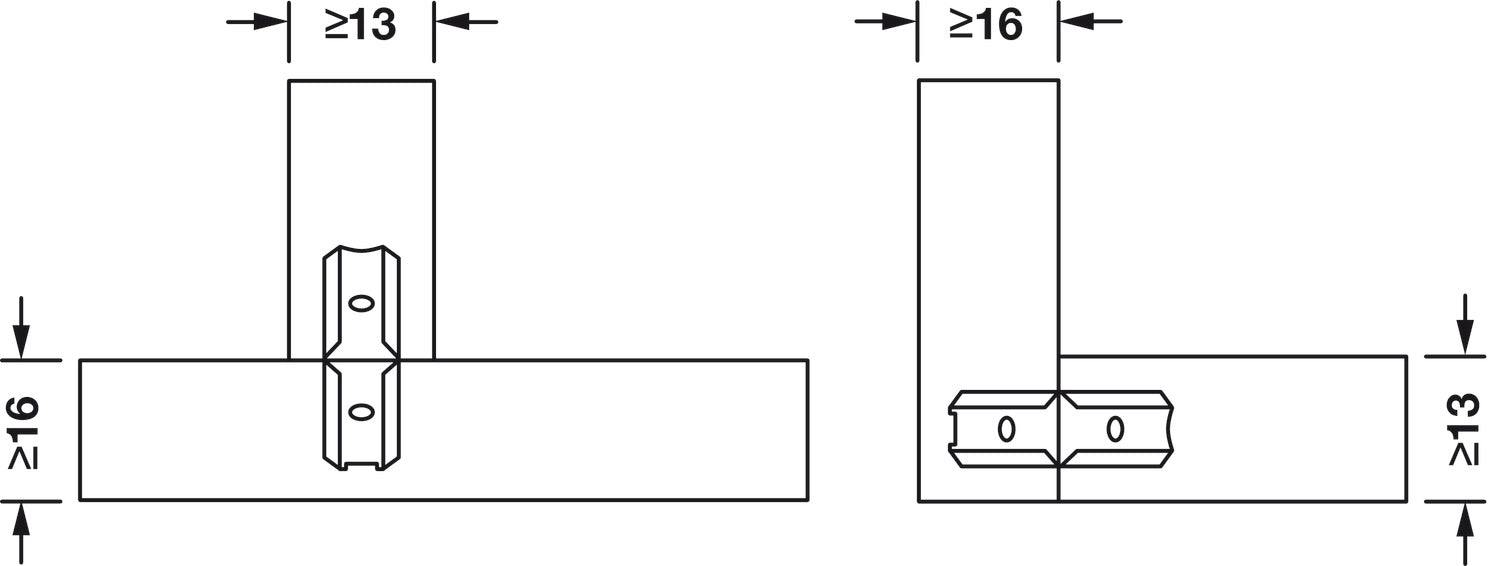

  • For wood thickness min.: 15 mm
  • Routing depth: 14 mm
  • Area of application :

    For cabinets with centre panels and intermediate shelves
    or column claddings in stores
    for drawers, installation of front panels, plug fitting onto plinths, ceiling panels, covers and handle profiles

  • Material : Plastic
  • Adjustment facility : Lateral: ±1 mm, sliding tolerance: ±2 mm
  • Pull force :

    Pull force: approx. 15 kg/connector
    Tensile strength: approx. 25 kg/connector

  • Version :

    With pre-loading facility

  • Installation :

    Pull force: approx. 15 kg/connector
    tensile strength: approx. 25 kg/connector

  • Installation description :

    Mill lengthways groove for connector
    Mill P-system groove
    Slide in connector
    Knock in fixing pin using installation tool
    Drill Ø 8 mm for connecting bolt
    Knocking in connecting bolt
    Slide in shelf
    Concealed, positive-fitting connection

  • Order reference :

    1 piece = 1 pair
