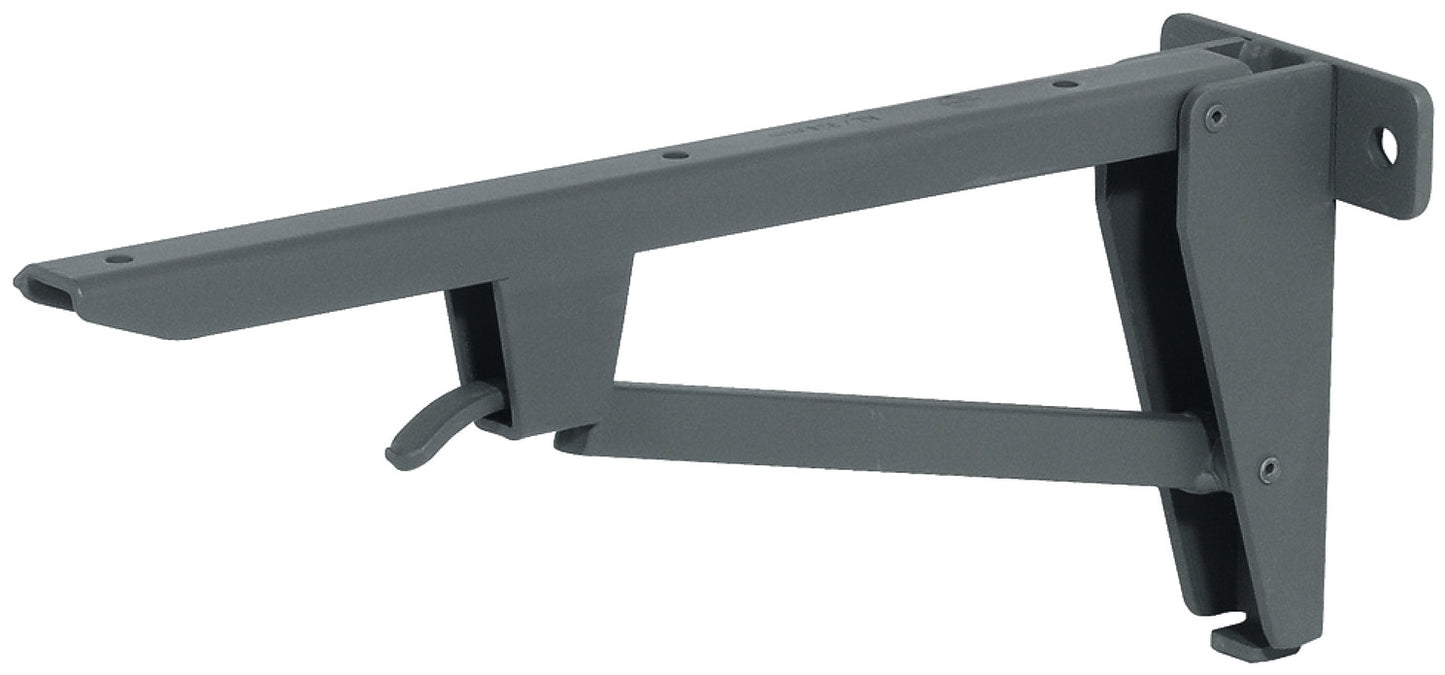

Folding Table Bracket, Hebgo, Light-Duty

$141.92
$141.92
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • The specified load bearing capacity applies:
    Only when used in pairs
    With even load distribution (surface loads)
    With proper and reliable mounting on the wall
    The mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall (use other fixing material if necessary).

  • Load bearing capacity per pair: 150 kg
  • Material: Steel
  • Color/finish: Gray, primed

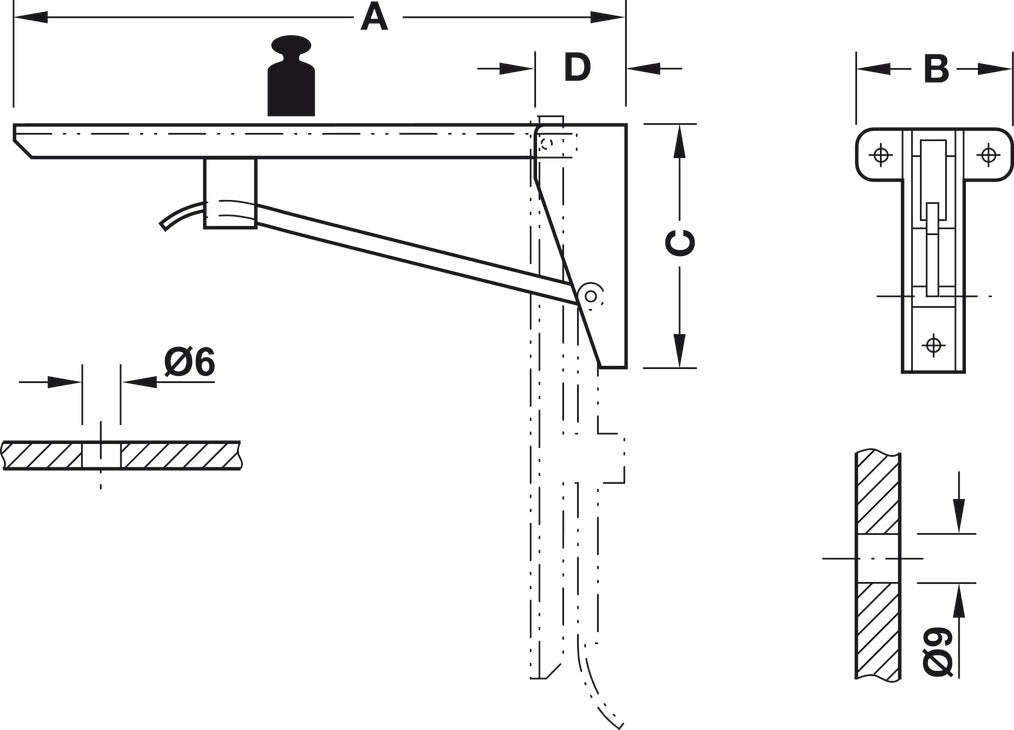

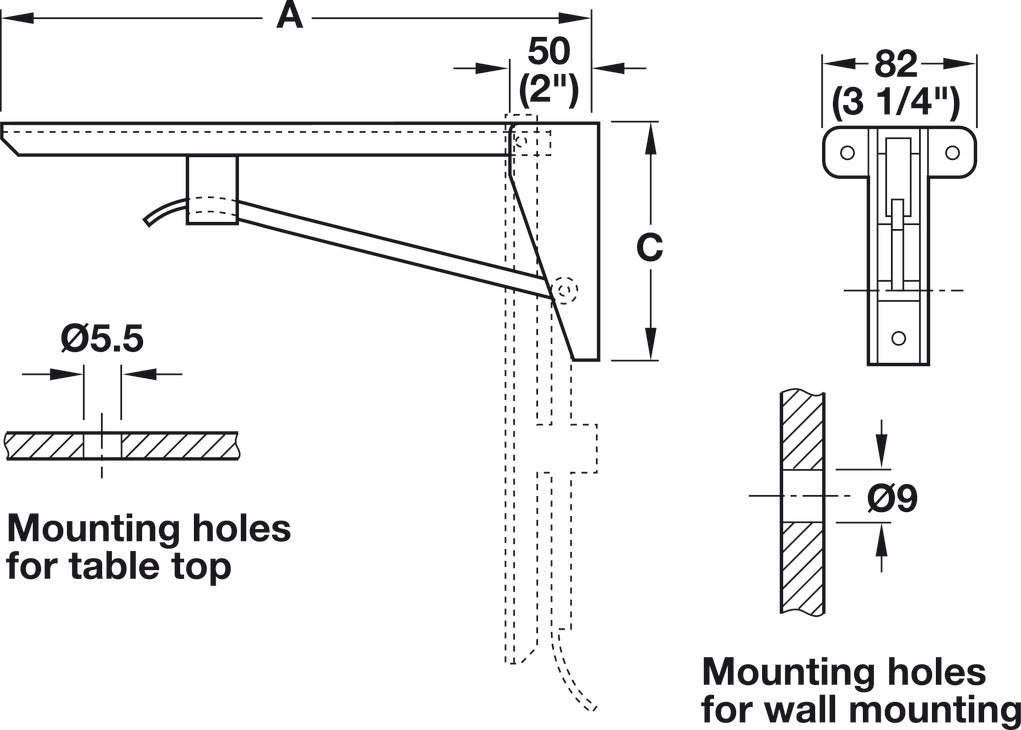

  • Width: 82 mm
  • Dim. D: 50 mm
  • Version :

    Folding
    With locking mechanism

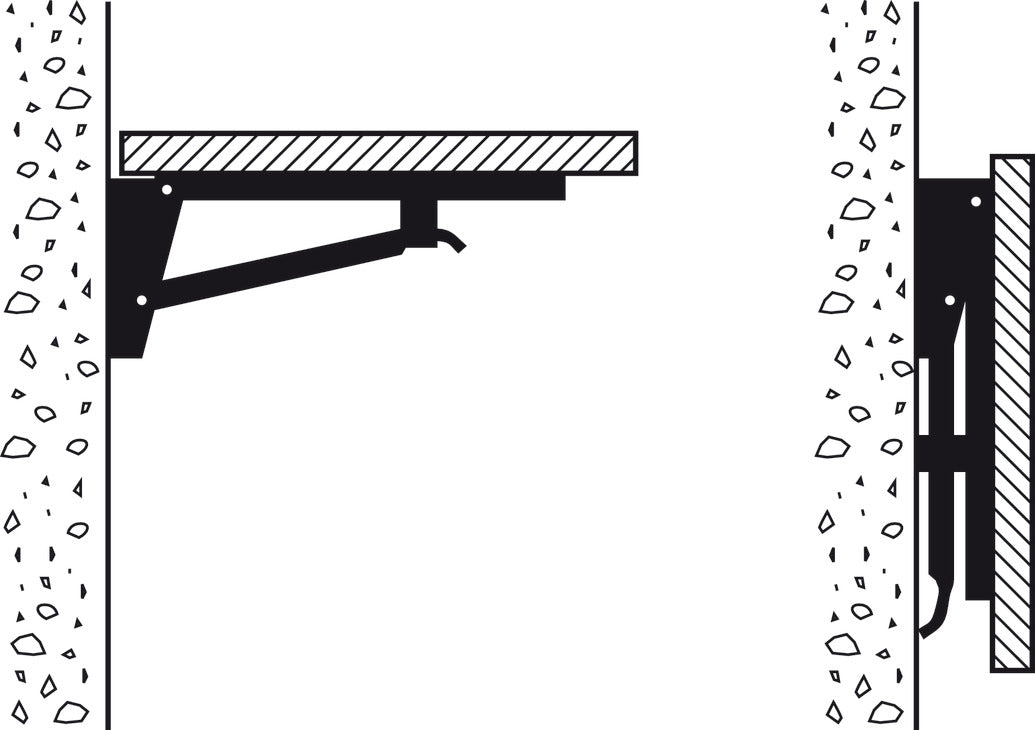

  • Functionality :

    To raise bracket lift support arm and allow to engage automatically.
    To fold down bracket lift support arm and release locking mechanism.

  • Installation :

    For screw fixing

  • Installation reference :

    Load capacities are approximate figures and can change depending on application. These figures were determined by static testing distributing the weight evenly over the surface, but not extending the length of the bracket.

  • Load bearing capacity information : tested to DIN EN 16337:2013-08 with 1.7 kg plate for impact test, i.e. 150 kg load bearing capacity with surface load and 2 supports. Shelf size must suit the respective bracket. The specified load bearing capacity applies only with even load distribution (surface load) and proper and reliable mounting on the wall.
