• Cabinet Hanger, Heavy Duty, Dowel Mounted, 528 lb. Load Capacity
1 8

Cabinet Hanger, Heavy Duty, Dowel Mounted, 528 lb. Load Capacity

$6.78
$6.78
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • The cabinet hangers are concealed within the cabinet and are not visible when installed creating a floating appearance
    Cabinet hangers take up minimal space inside the cabinet and will not interfere with drawers
    Wall plate includes a safety feature to lock the cabinet hangers in place

  • Color/finish: Zinc plated
  • Product version:

    Cabinet hanger for base unit

  • Area of application :

    For base unit

  • Load bearing capacity : 60 kg
  • Load bearing capacity per pair : 120 kg
  • Material : Steel
  • Installation reference :

    The cabinet hanger must be fitted in accordance with the installation instructions for safety reasons.
    Only use hand screwdriver for adjustment.

  • Standard :

    The recommended max. load bearing capacity of 120 kg/piece is the result of tests that have been carried out in compliance with the DIN EN 14749, DIN EN 14688 and DIN ISO 7170 standards.

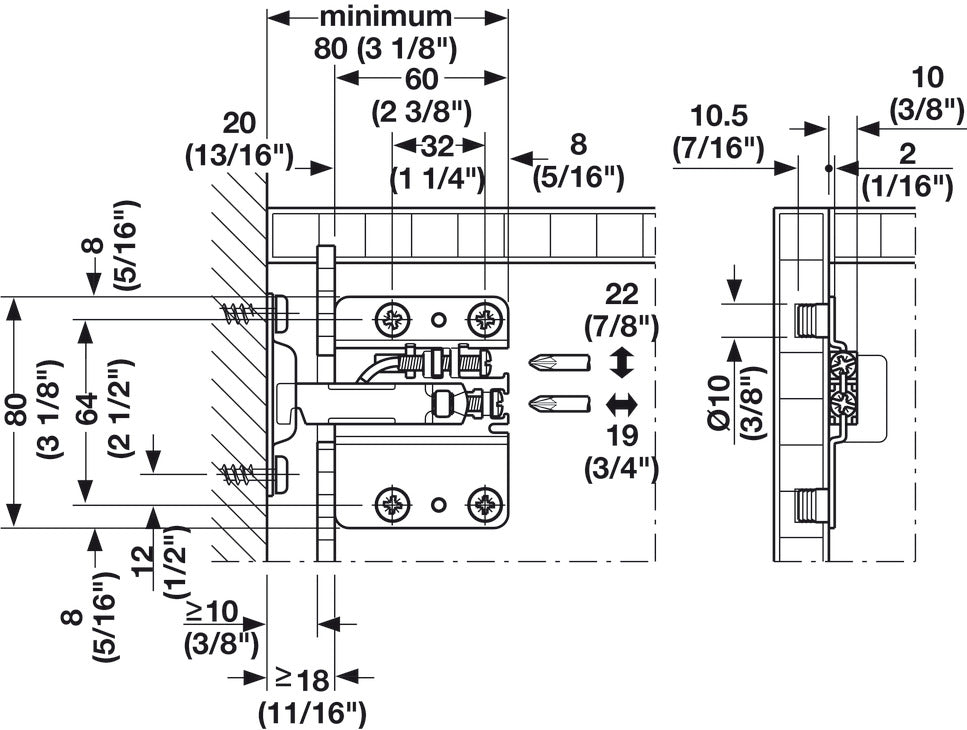

  • Adjustment facility : Height adjustment facility: <22 mm, Depth adjustment facility: <19 mm
  • Order reference :

    Please note the safety information for cabinet hangers.
