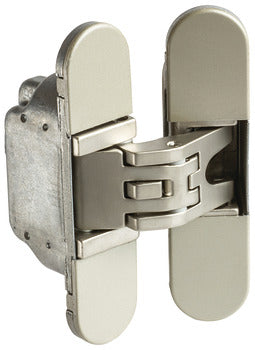

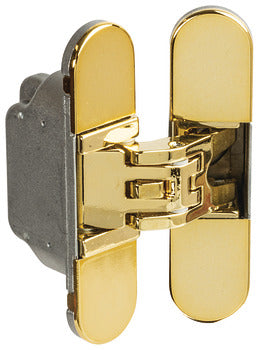

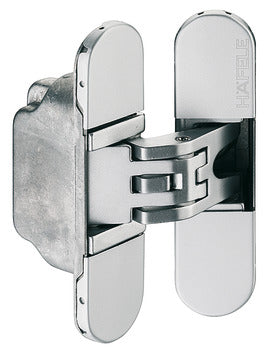

• Door Hinge, Startec® H2
1 8

Door Hinge, Startec® H2

$94.05
$94.05
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

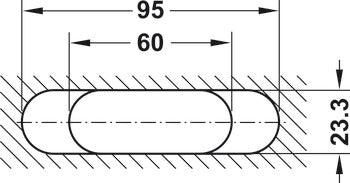

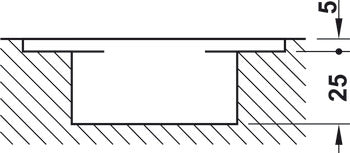

  • When using the receiving element the milling dimensions may change.

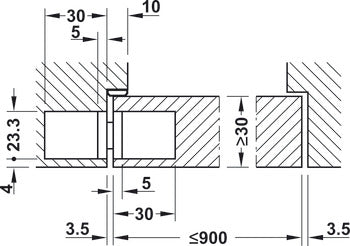

  • Door width max.: 900 mm
  • Flange shape: rounded

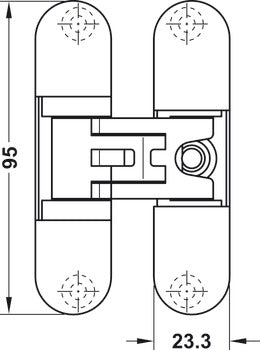

  • Flange width: 23.3 mm
  • Material: Zinc alloy
  • Model: H2

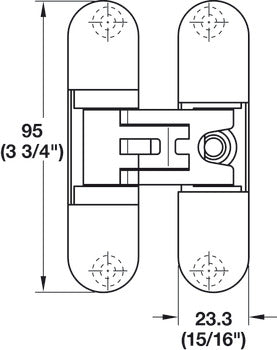

  • Flange height: 95 mm
  • Door height min.: 82 11/16” with 4 hinges
  • For door width (inches): ≤ 35 7/16"
  • For door thickness min.: 1 1/4"
  • Model series : H2
  • Area of application :

    For flush interior wood doors - 3D Adjustable

  • For door type : Wooden door leaf
  • For frame type : Wooden frame
  • Max. door weight for 2 hinges : 45 kg
  • Max. door weight for 3 hinges : 60 kg
  • Opening angle : 180 °
  • Door height max. : 2000 mm
  • Door height max. : 78 3/4"
  • Door thickness : ≥32 mm
  • Adjustment facility : 3D Continuous, Side: -2 / +3 mm, Height: ±2.5 mm, Closing pressure: ±1 mm
  • Standard : Certified in compliance with EN 1935:2002
  • Grade : 2|7|2|1|1|4|0|7
  • Order reference :

    Fixing material supplied
