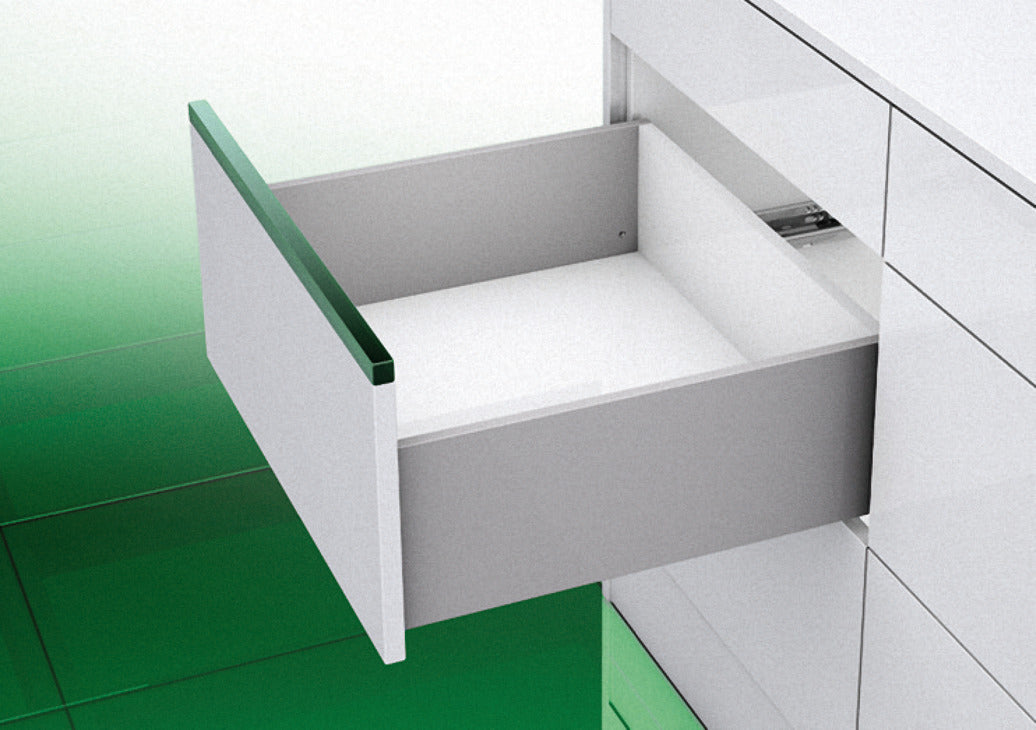

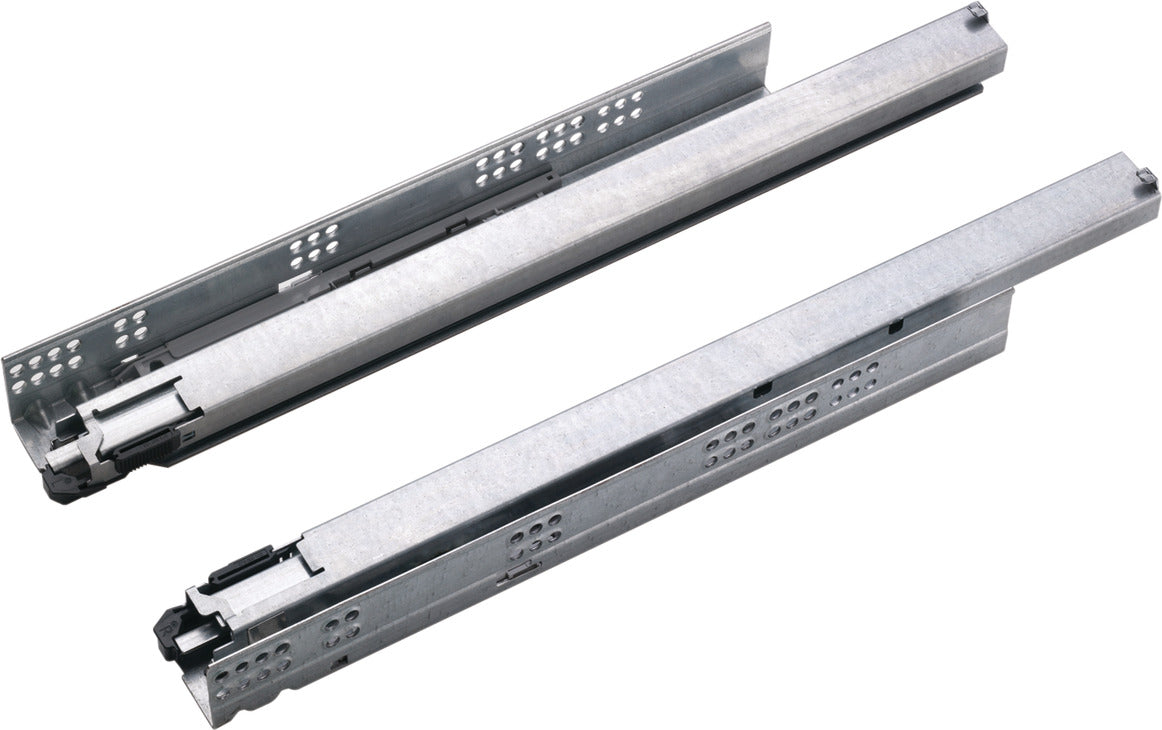

Grass Dynapro 16 Full Extension Slide, 100 lbs.

$79.76
$79.76
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Model series : Grass Dynapro - 16
  • Type of pull out : Full extension
  • Features :

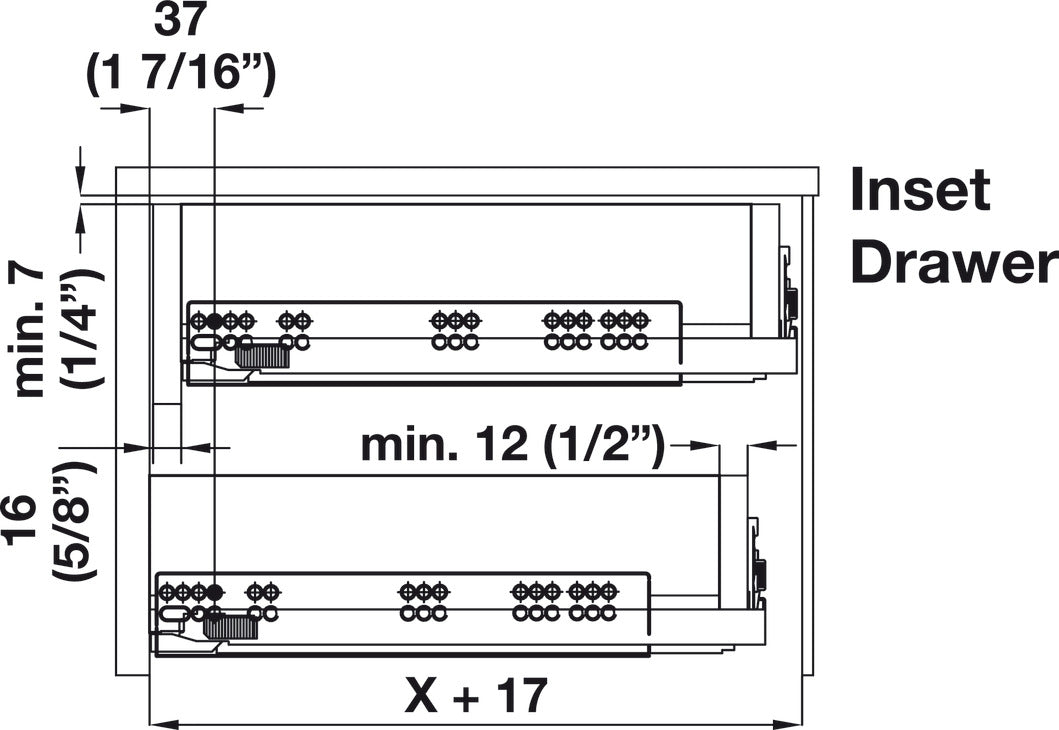

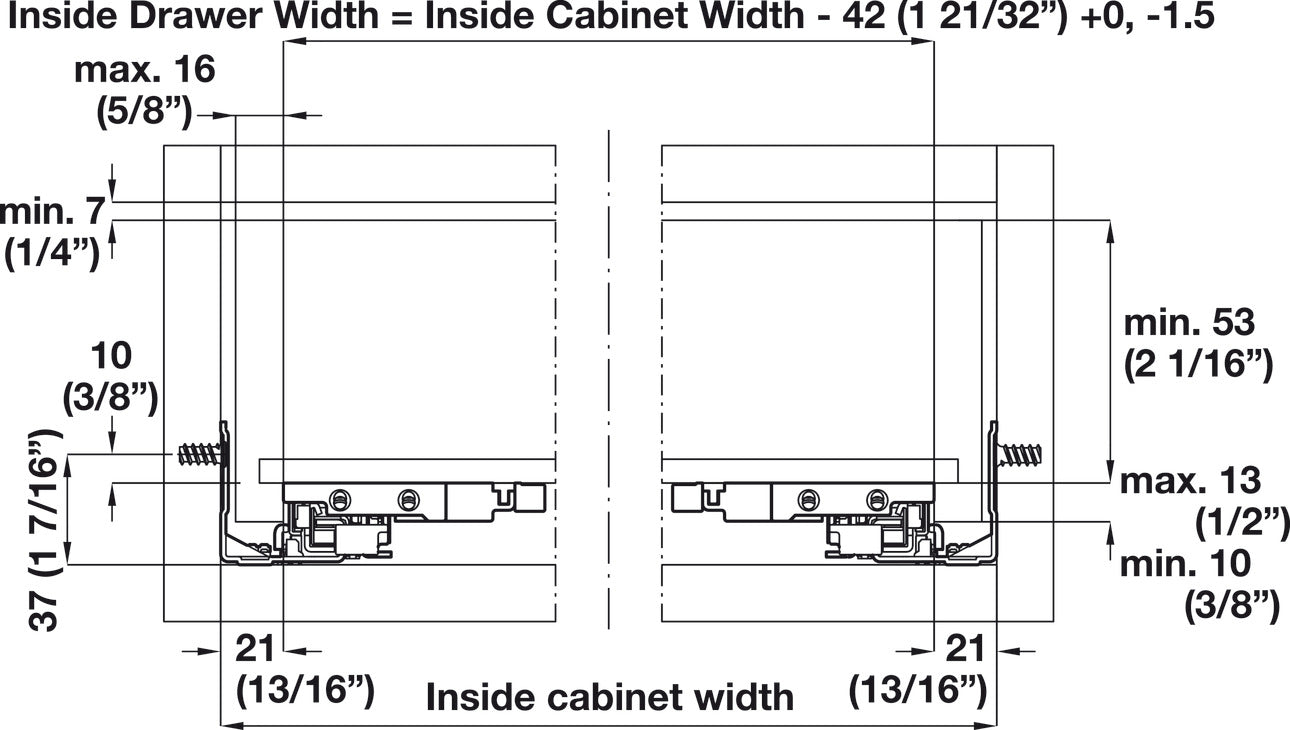

    For 12.7 - 16 mm (1/2 - 5/8") drawer box

  • Comfort functions opening/closing : Soft close fluid damped
  • Load bearing capacity : 45 kg

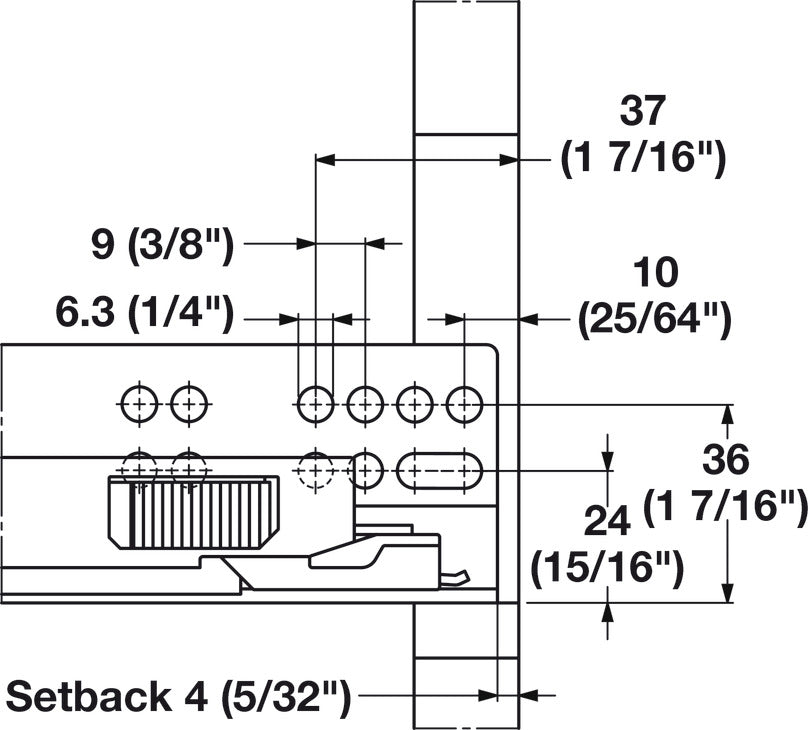

  • Adjustment facility :

    Height adjustment + 3 mm
    Side adjustment ± 1.5 mm
    Tilt adjustment + 4 mm

  • Further adjustment facility :

    Features side to side, depth, height and tilt adjustment for perfect drawer alignment
    Tool-less integrated height adjustment +3.5 mm (9/64”)
    Tool-less adjustment adapter for side adjustment ±1.5 mm (1/16”) and depth adjustment +3 mm (1/8")

  • Material :

    Steel

  • Color/finish : Zinc-plated

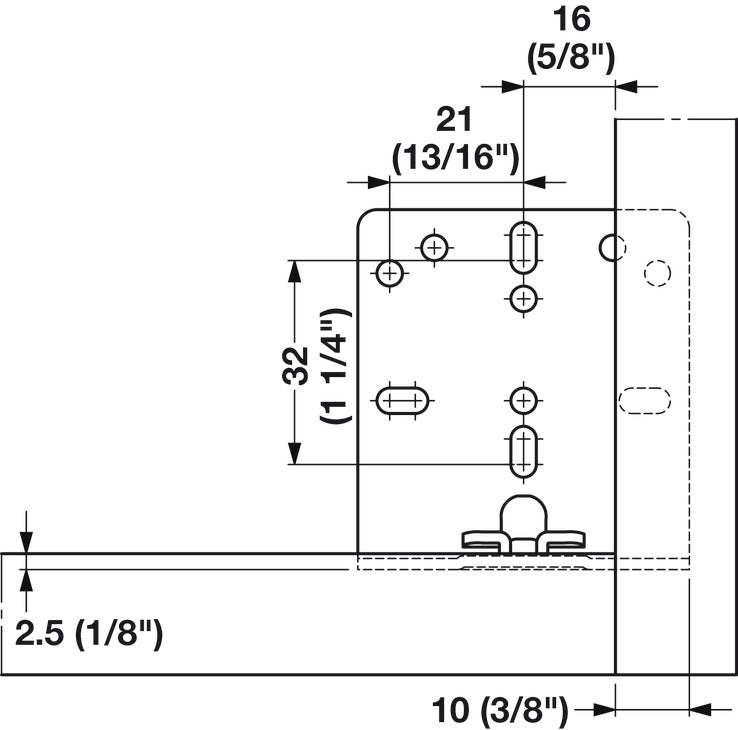

  • Order reference :

    Front locking devices must be ordered separately. (Please order a right and left.)
