• Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs
1 7

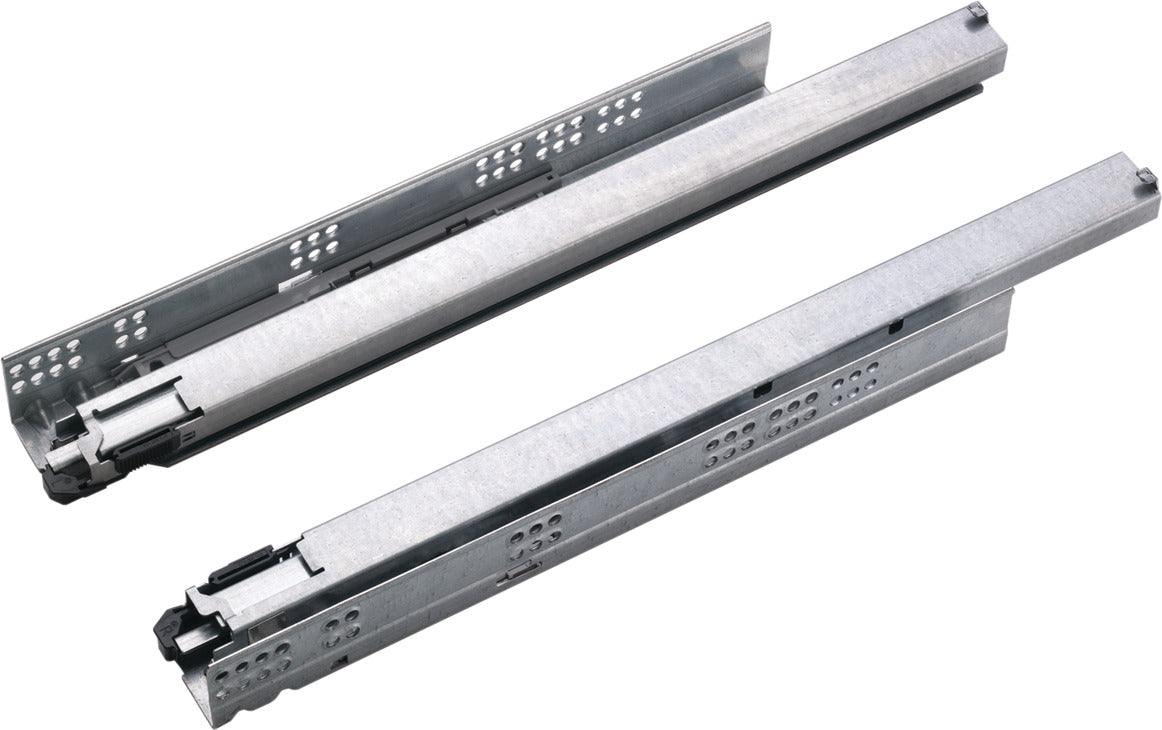

Grass Heavy Duty 3D Dynapro 16 Slide, Full Extension, 132 lbs

$138.70
$138.70
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • 3-D adjustable version adds tilt adjustment +4 mm (11/64”)
    Slide-on mounting

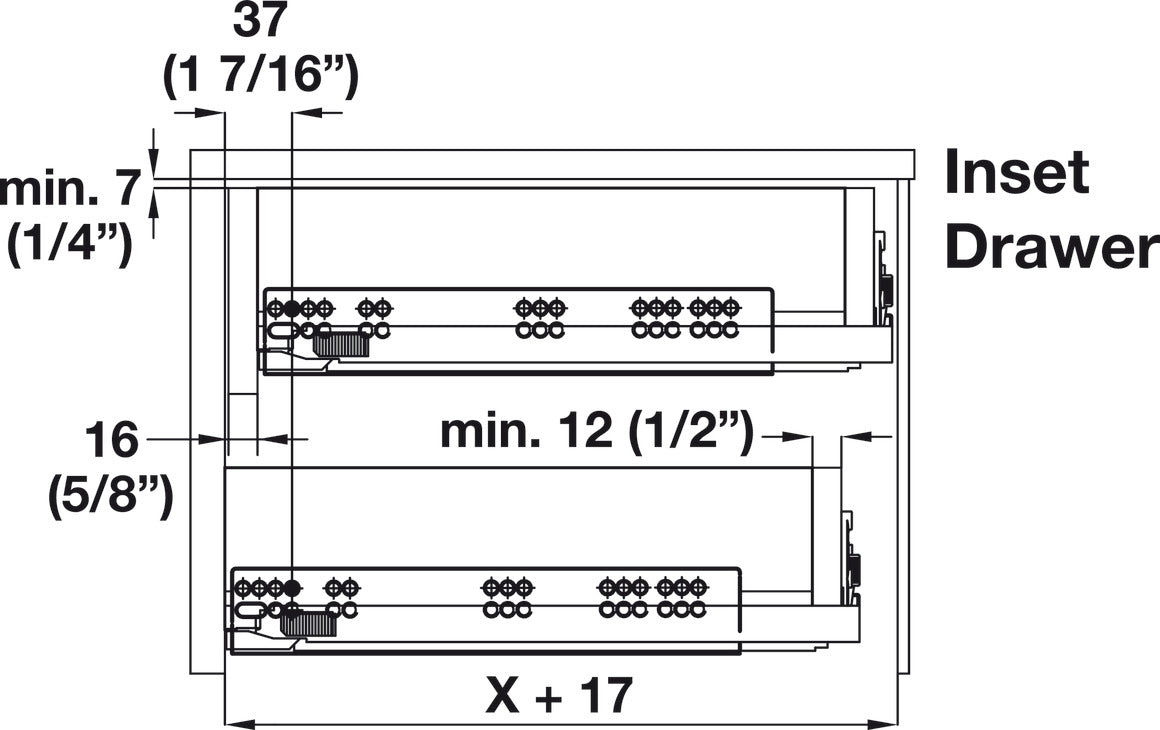

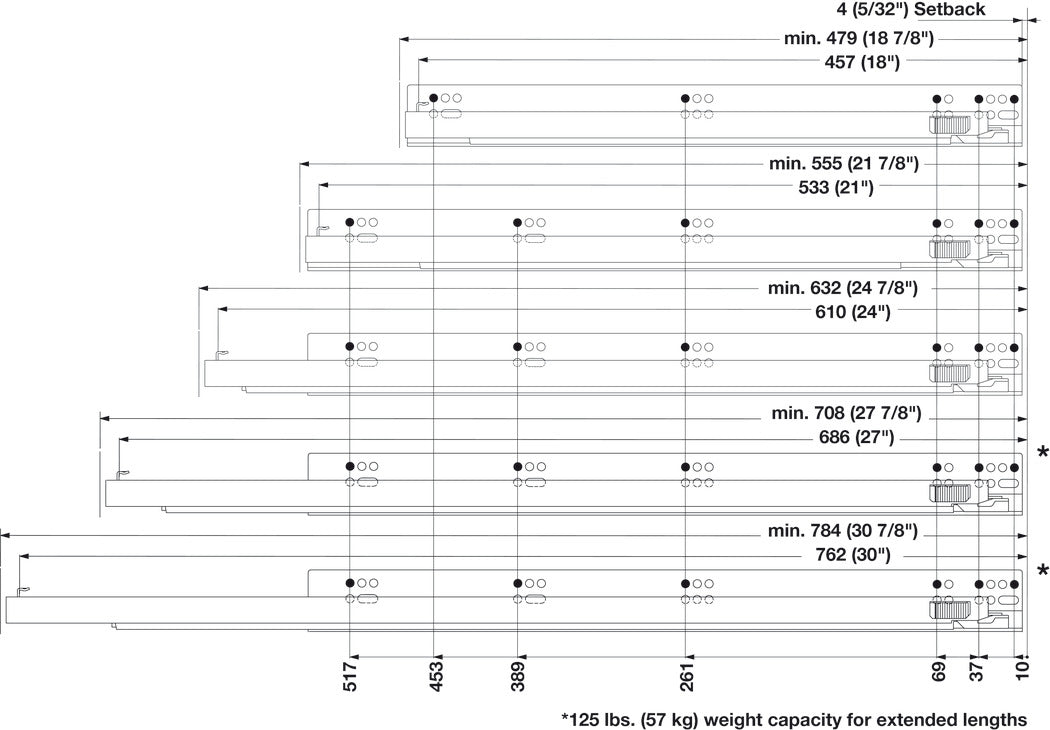

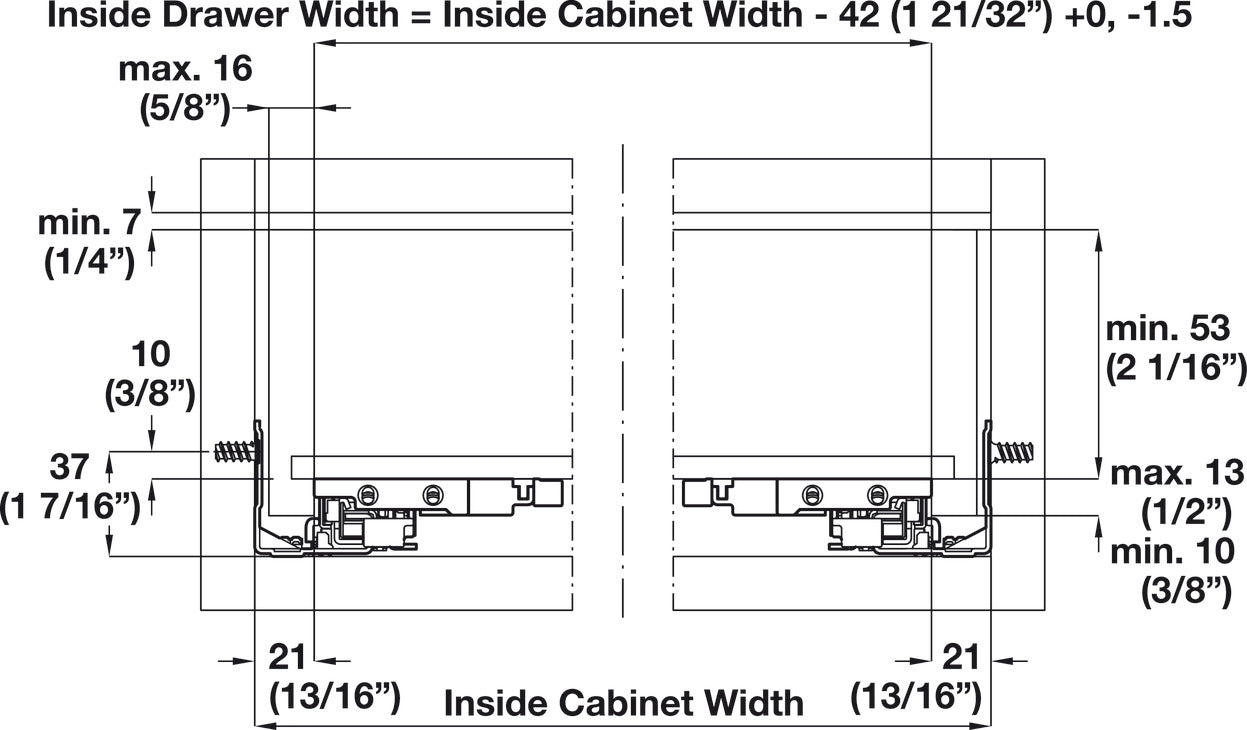

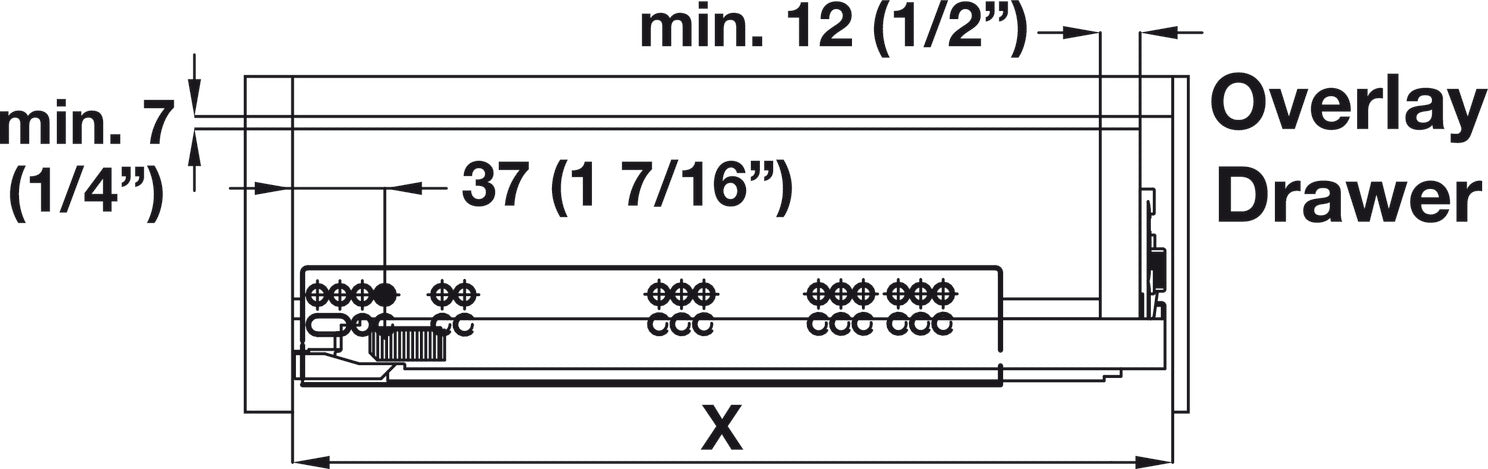

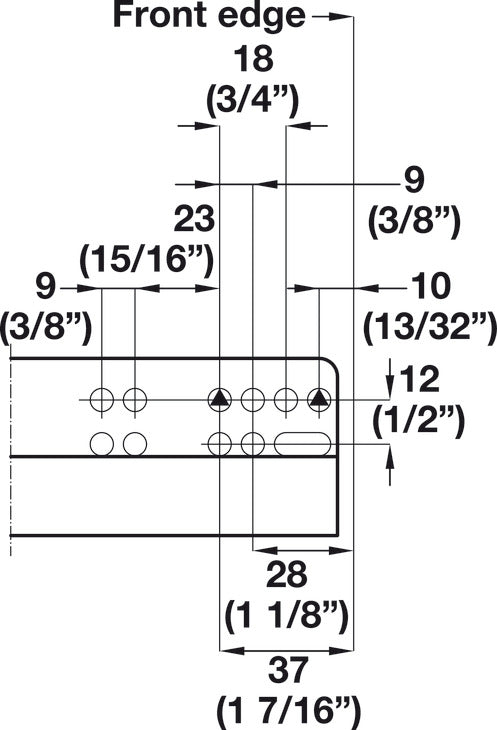

    In drawings, X represents installation length

  • Model series : Grass Dynapro 16 3D
  • Type of pull out : Full extension
  • Comfort functions opening/closing : Soft close fluid damped
  • Load bearing capacity : 60 kg
  • Adjustment facility :

    Height adjustment + 3.5 mm
    Side adjustment ± 1.5 mm
    Tilt adjustment + 4 mm

  • Material :

    Steel

  • Color/finish : Zinc
  • Order reference :

    Front locking devices must be ordered separately
