• Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity
1 5

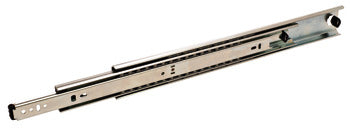

Accuride 3634 Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 200 lbs Weight Capacity

$82.46
$82.46
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Includes hold-in detent to help hold drawers in a closed position
    In-and-out stops silenced for quiet operation
    1” over travel for full access to drawer contents
    Accommodates drawers up to 42” wide to expand potential applications
    .78” cross-section width
    Lever disconnect allows for easier drawer removal and reinsertion

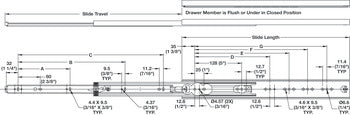

    Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2” or 3/4” side space.
    Slides are unhanded, which also helps speed and ease of installation
    RoHS compliant
    Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening
    Side space: .78 + .000/-.02 [19.8 mm +0/-.5]
    Disconnect: Handed lever disconnect

  • Installation length: 508 mm
  • Extension length: 533 mm
  • Mounting:

    Side or flat mount

  • Color/finish: Zinc-plated
  • Holding function : Hold-in
  • Removing the running track : with release lever
  • Material :

    Steel

  • Bearing : Ball bearing
  • Width : 19.8 mm
  • Width (inch) : .78"
  • Height : 53.1 mm
  • Height (inch) : 10 3/8"

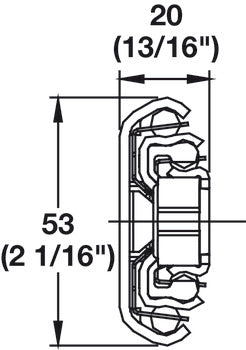

  • Dim. (W x H) : 19.8 mm x 53.1 mm
  • Installation :

    Side or flat mount

  • Order reference :

    D Pack - Polybag includes one pair of slides with moutning screws.
    P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
