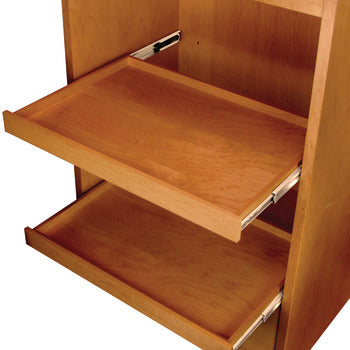

• Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity
1 6

Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 150 lbs Weight Capacity

$111.13
$111.13
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Easy-close feature brings drawers to a smooth, gentle close. This mechanism is a more robust design intended for wider drawers and heavier loads up to 150 lbs.
    Out stop silenced for quiet operation.
    1” over travel for full access to drawer contents
    Accommodates drawers up to 42” wide to expand potential applications
    .78” cross-section width
    Lever disconnect allows for easier drawer removal and reinsertion
    Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2” or 3/4” side space.
    Slides are unhanded, which also helps speed and ease of installation
    RoHS compliant
    Side space: .78 + .000/-.02 [19.8 mm +0/-.5]
    Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening
    Disconnect: Handed lever disconnect
    Easy-close feature brings drawers to a smooth, gentle close
    14” is full travel

  • Extension length: 356 mm
  • Mounting:

    Side or flat mount

  • Color/finish: Zinc-plated
  • Removing the running track : with release lever
  • Material :

    Steel

  • Bearing : Ball bearing
  • Width : 53.1 mm
  • Width (inch) : .78"
  • Height : 19.8 mm
  • Height (inch) : 10 3/8"
  • Dim. (W x H) : 53.1 mm x 19.8 mm
  • Installation :

    Side or flat mount

  • Order reference :

    D Pack - Polybag includes one pair of slides with moutning screws.
    P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
