• Soft-Close Magnetic Catch, for Single Doors
1 4

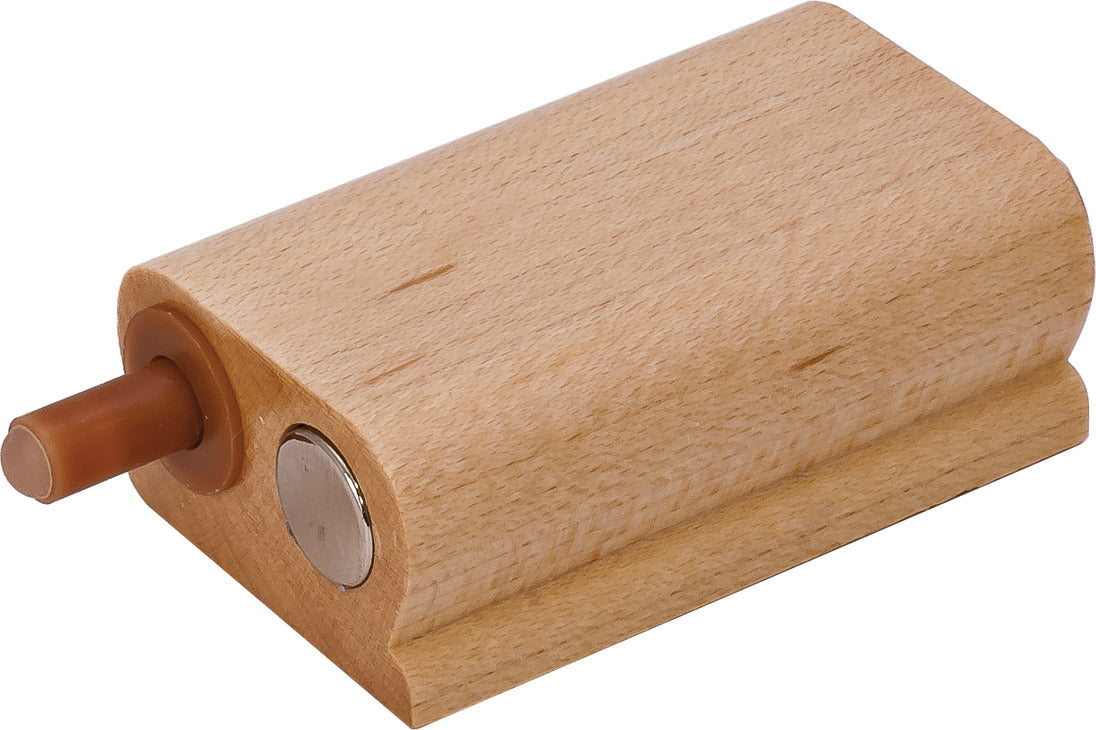

Soft-Close Magnetic Catch, for Single Doors

$38.10
$38.10
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Can be used on Frameless or Face Frame Construction
    Free-swinging hinges must be used
    Single blocks are supplied in pairs; L/H and R/H. For appearance sake, they look better if top and bottom magnet align. They also tend to work better if magnet is closest to the hinge side.

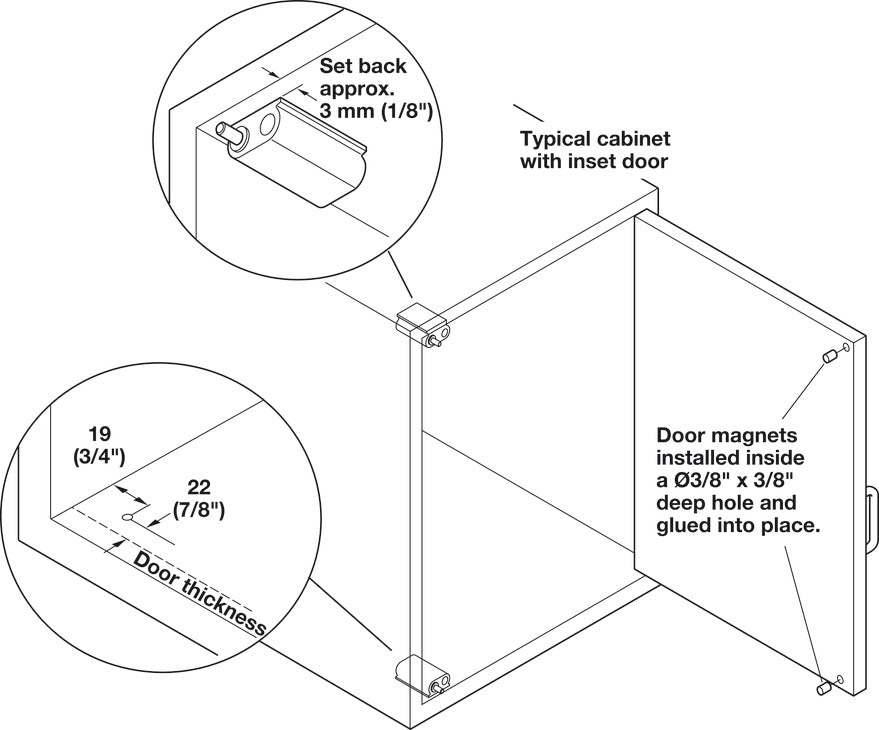

    Recommended pilot hole location for keyhole screw: 19 mm (3/4”) from side panel or edge of style on face frame cabinets. Set back from front edge; door thickness + 22 mm (7/8”). For face frame construction, please provide your own shims if cabinet floor is not flush with top of rail.

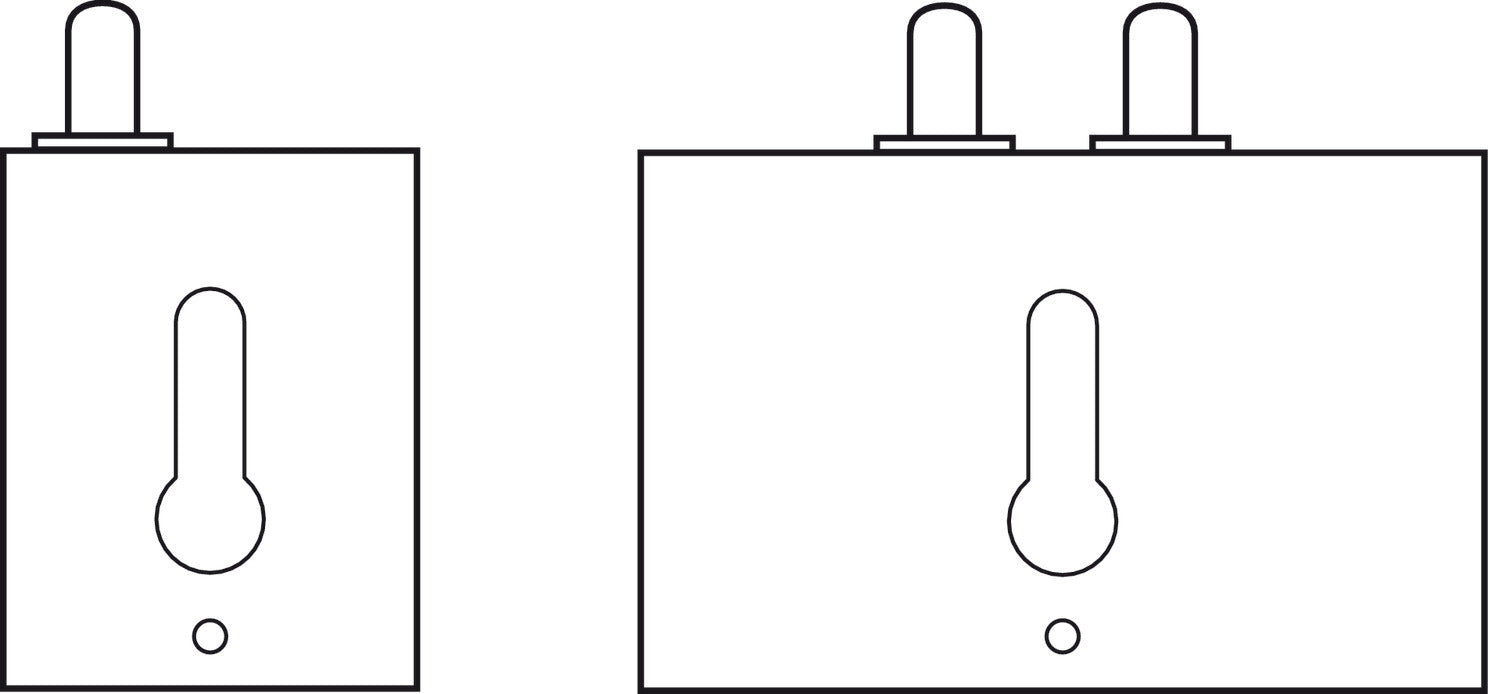

    Easy to install keyhole slot in bottom offers approx. 1/2” of front to back adjustment. When proper location is established, install additional 5/8” screw via hole in back.

  • Version:

    Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closed
    Magnets are separated by a rubber bumper, so door closes quietly
    Available for single or double-door applications
    2 units per door are recommended; 1 on top and 1 on bottom
    Magnets are strong enough to pull in warped doors (up to 1/4" approx.)
    Can be used on Frameless or Face Frame Construction
    Free-swinging hinges must be used
    Recommended pilot hole location for keyhole screw:19 mm (3/4") from side panel or edge of style on face frame cabinets
    Recommended pilot hole location for keyhole screw:set back from front edge; door thickness + 22mm (7/8")
    Recommended pilot hole location for keyhole screw:for face frme construction; please provide your own shims

  • Area of application :

    For single

  • Suitable for :

    Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closed
    Magnets are separated by a rubber bumper, so door closes quietly
    Available for single or double-door applications
    2 units per door are recommended; 1 on top and 1 on bottom
    Magnets are strong enough to pull in warped doors (up to 1/4" approx.)
    Can be used on Frameless or Face Frame Construction
    Free-swinging hinges must be used
    Recommended pilot hole location for keyhole screw:19 mm (3/4") from side panel or edge of style on face frame cabinets
    Recommended pilot hole location for keyhole screw:set back from front edge; door thickness + 22mm (7/8")
    Recommended pilot hole location for keyhole screw:for face frme construction; please provide your own shims

  • Material :

    Maple Wood

  • Supplied with :

    L/H & R/H with Smoves & magnets installed
    Mounting screws
    2 door magnets with matching mounting screws
    2 door bumpers
