PIN Code Lock, Advanced Security

$276.53
$276.53
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Color/finish: Keypad: Frame and handle, stainless steel coloured Push buttons: Black Lock case: Black, Keypad: Bright nickel with black keys lock housing: Black

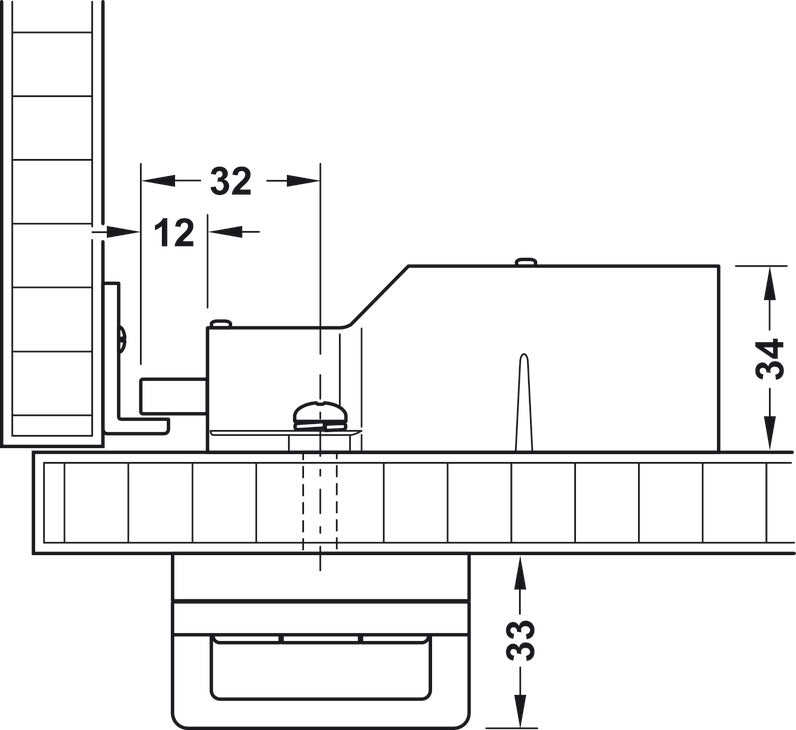

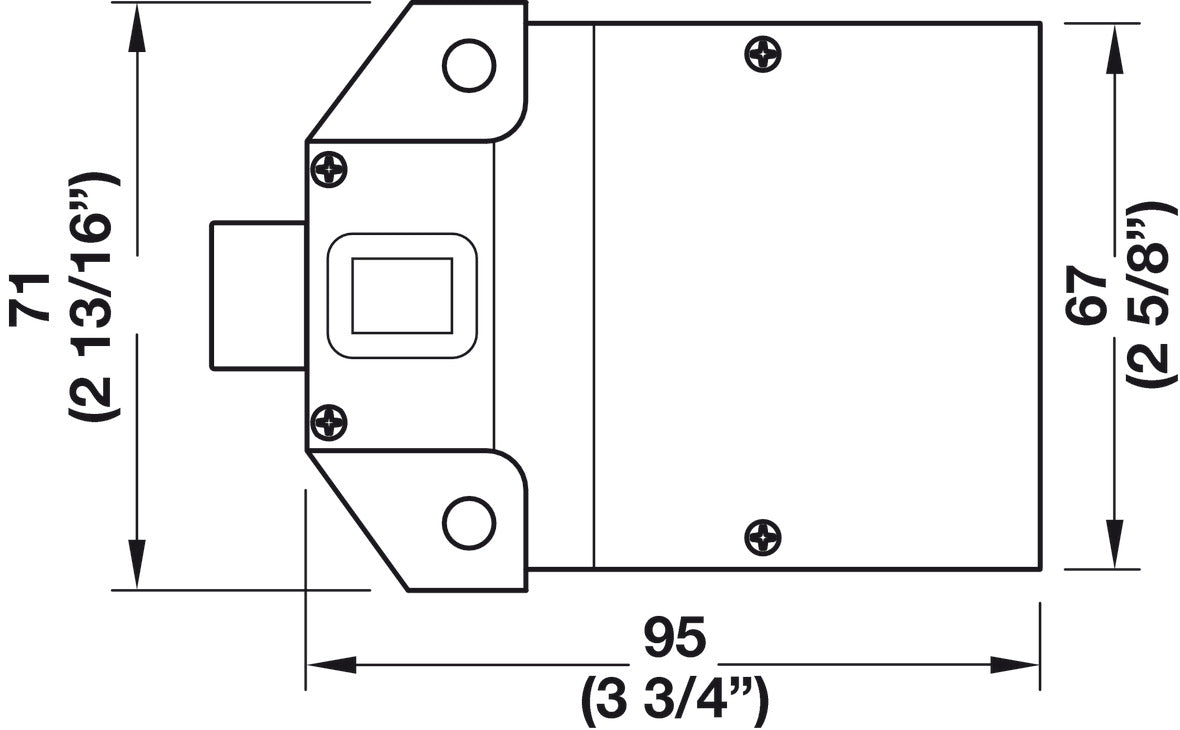

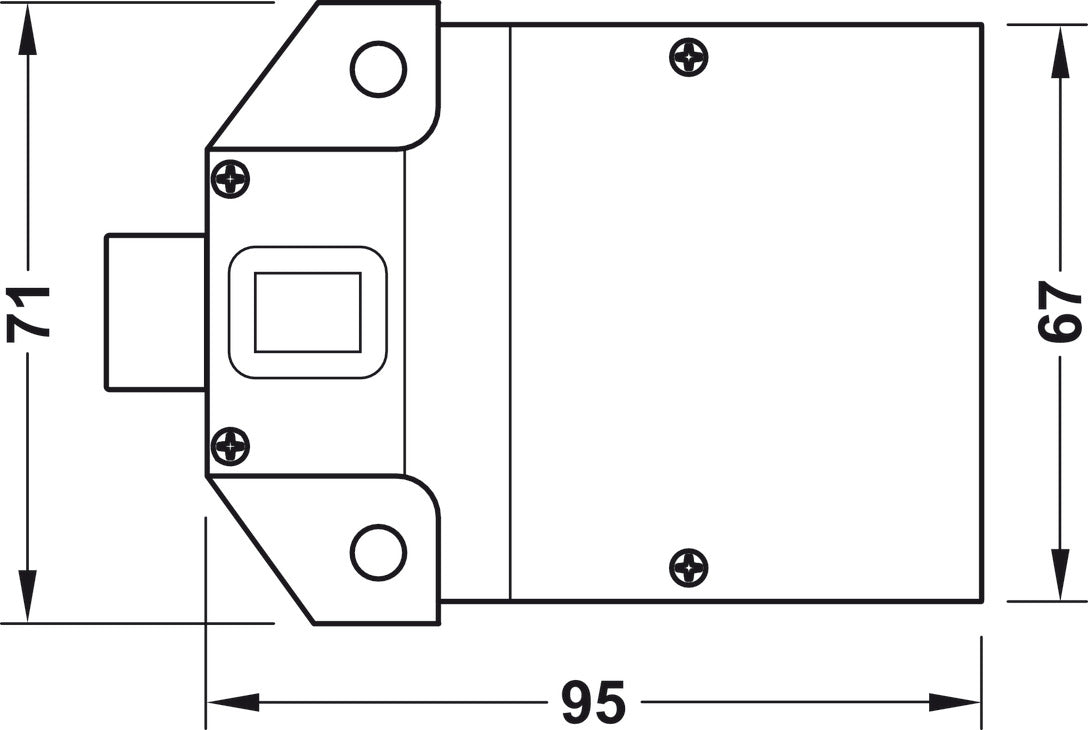

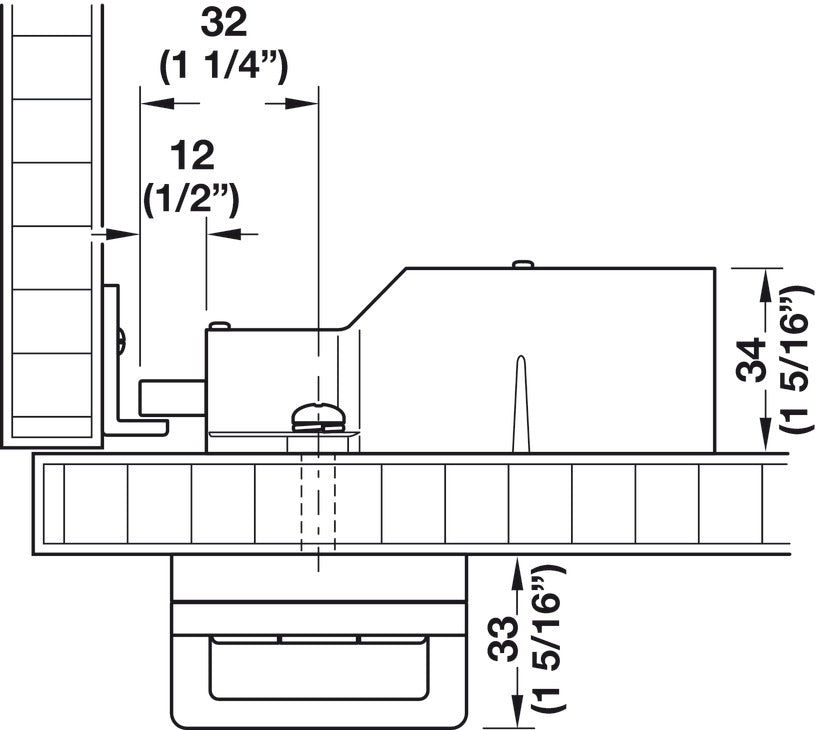

  • Dim. (L x W x H): 98 x 54 x 33 mm
  • Installation:

    for screw fixing

  • Mounting:

    Left hand or right hand

  • Length (inch): 3 7/8"
  • Width (inch): 2 1/8"
  • Height (inch): 1 5/16"
  • For door thickness min.: 11/16"
  • For door thickness max.: 7/8"
  • Area of application :

    For lockers, dressing room cabinets with doors made from wood

  • Material :

    Keypad: Zinc alloy
    Lock housing: Steel

  • Functionality :

    Locking and unlocking with freely selectable PIN code
    latchbolt or deadbolt function
    optical (red LED flashes when locked) and acoustic (during locking action) occupancy indicator, with tamper resistance
    alarm when battery is low (external voltage supply possible with master key)
    locking with individual 4-digit code for every individual locking action (free choice of locker) or permanently allocated 4-digit code for all locking actions (fixed locker allocation)

  • For door thickness : 17.5–21.7 mm
  • Installation reference :


  • with key : No
  • Order reference :

    At least one programming key is required for initial programming/start-up.

  • Supplied with :

    Keypad
    Lock
    4 AA batteries
    Mounting screws
    Instructions
