• Cabinet Drawer Cam Lock, C8103 Series, Keyed Alike
1 5

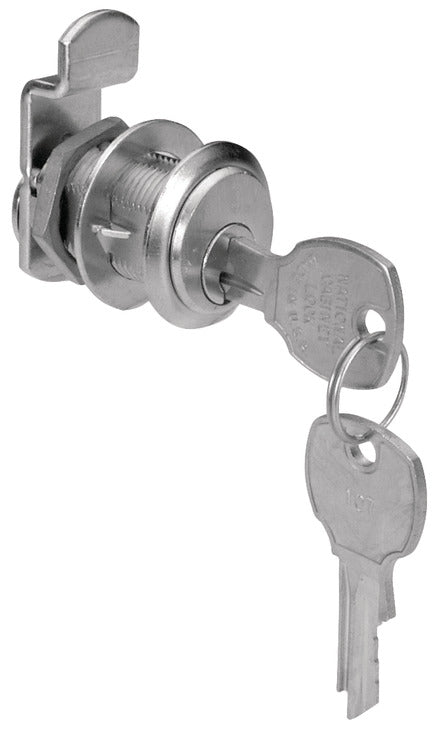

Cabinet Drawer Cam Lock, C8103 Series, Keyed Alike

$35.90
$35.90
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

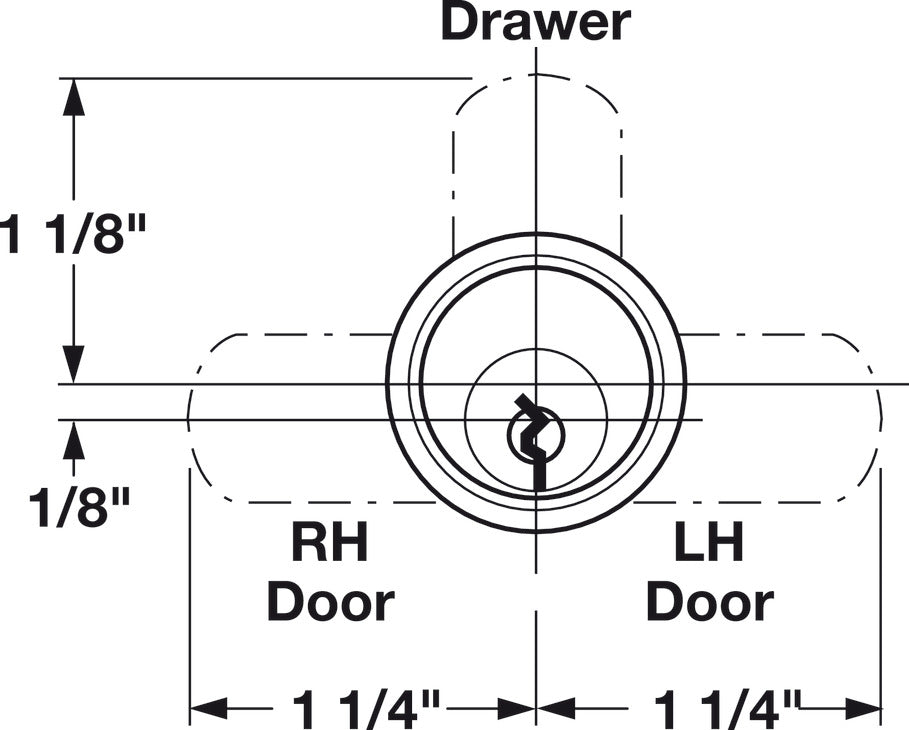

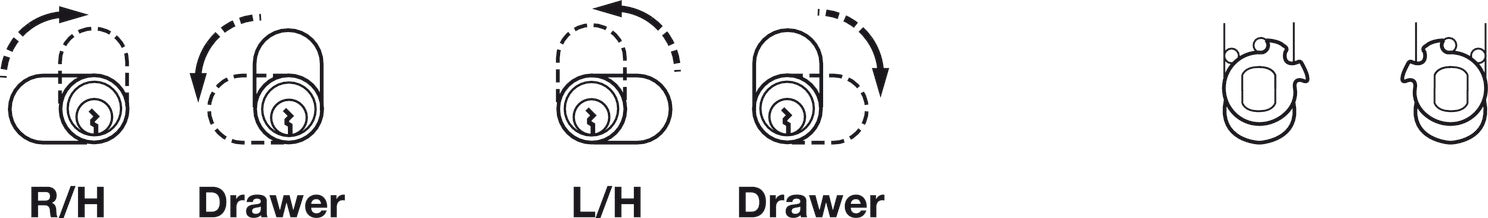

  • Through the use of a shifter, the 360° key travel turns the cam 90° in either direction. Actual application determines which cam position is the locked position. Each lock is furnished with an alternate cam for opposite cam turn.

  • Material thickness: 7/8"
  • Area of application :

    For drawer, left, or right hand applications

  • Material :

    Lock and Keys: Brass-plated
    Strike: Brass-plated

  • Cylinder length : 1 3/16"

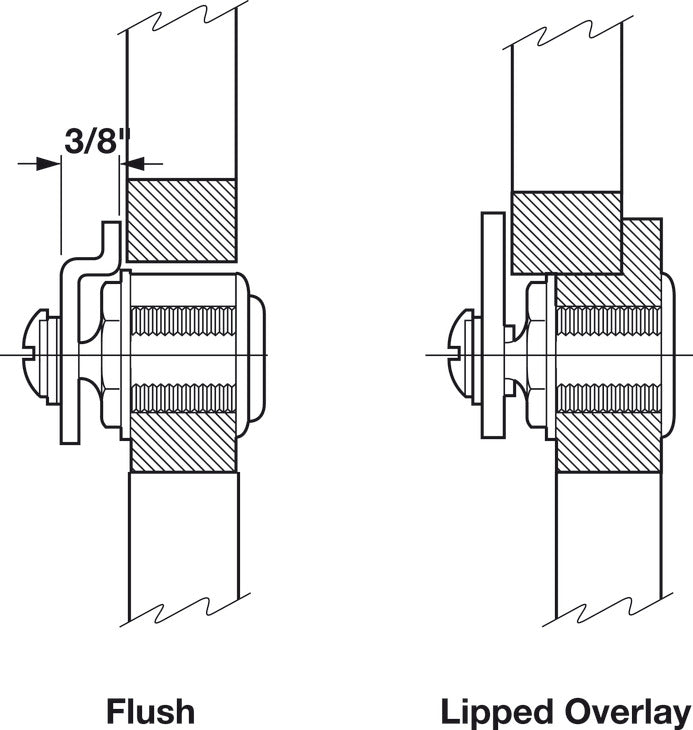

  • Installation :

    Lipped/Overlay

  • Supplied with :

    2 keys
    Strike plate
    Screws
