• Keypad Lock, Safe-O-Tronic® LS200
1 6

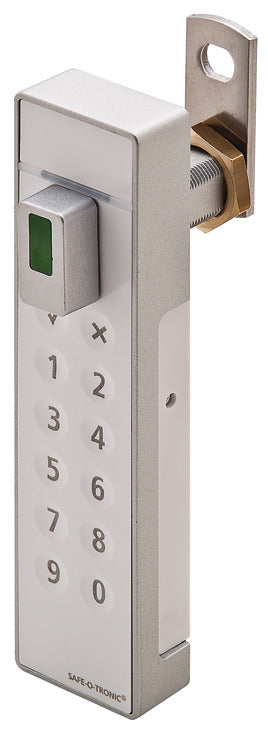

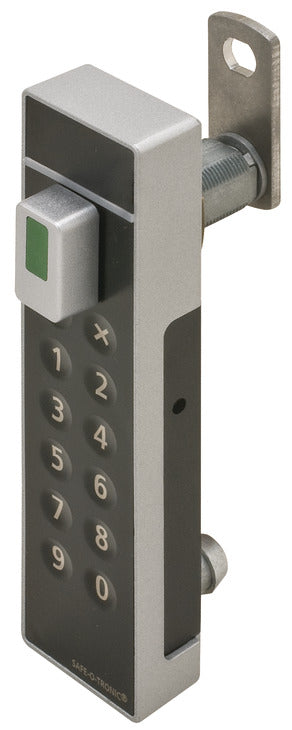

Keypad Lock, Safe-O-Tronic® LS200

$218.32
$218.32
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Tecnical Data
    Tensile load limit 1000 N. (225 lbf.)
    Environmental Operating temp. -10° C to 65° C (14º F to 150º F)
    Humidity (operating) 0 to 90%, non-condensing
    Protection IP 43
    Electrical Supply voltage 4.5 VDC
    Connections Battery pack, self-contained
    Battery Life 32,000 lock cycles
    Standards Compliance CE

  • Day Use Mode:
    - Allows the user to choose their code at time of operation
    - Recommended for share lockers or cabinets in a typical fitness locker room
    Fixed Use Mode:
    - Allows management to set user codes
    - 99 user codes per lock possible
    - Assigned locker applications

  • Operation modes: Day Use Mode, Fixed Use Mode

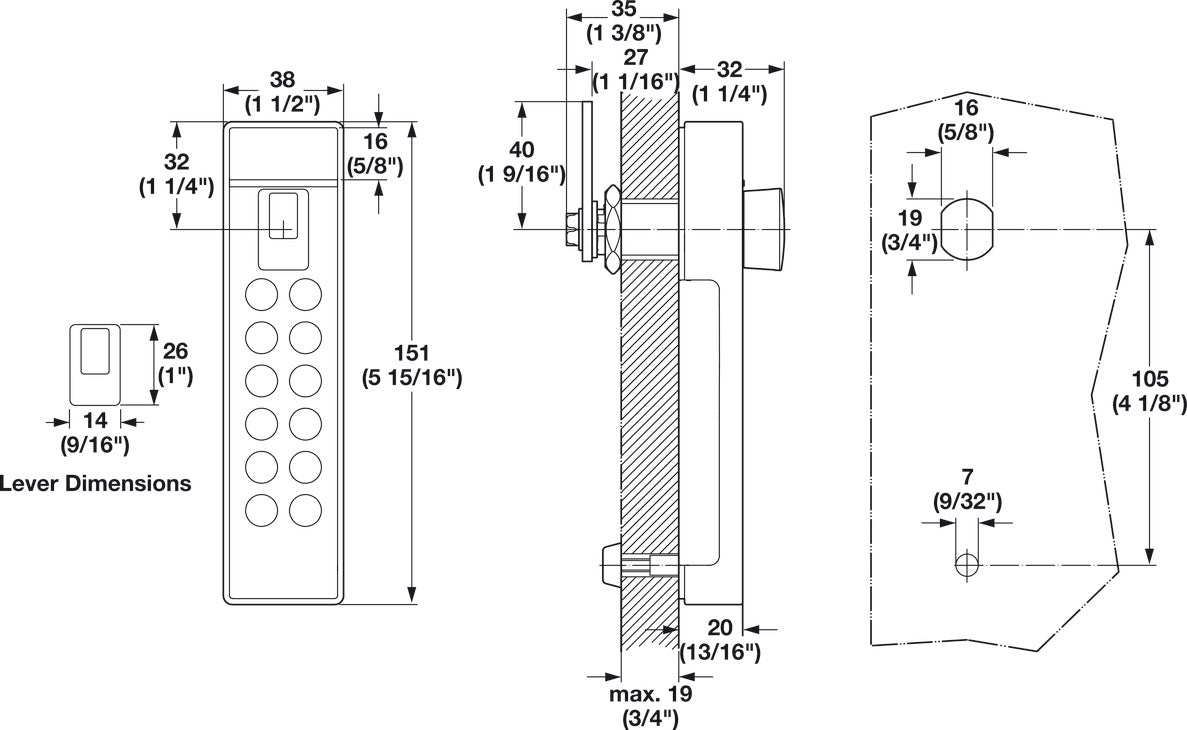

  • Dim. (L x W x H): 151 x 38 x 33 mm
  • Model series: LS200
  • Area of application :

    For installation in wood, laminate, plastic and metal doors and drawers

  • Material :

    Lock body: Aluminum
    Face plate: Plastic
    Cam: Steel

  • For door thickness : ≤19
  • Installation reference :

    SAFE-O-TRONIC® access LS 200 is a lock used to electrically control cabinet doors, drawers and lockers. This lock operates in a day use mode. Lock is electrically eleased with a correct PIN code entered on the keypad.

    Lock complies with ADA standards for door locks
    Lock is easily programmed by user with easy to use keypad

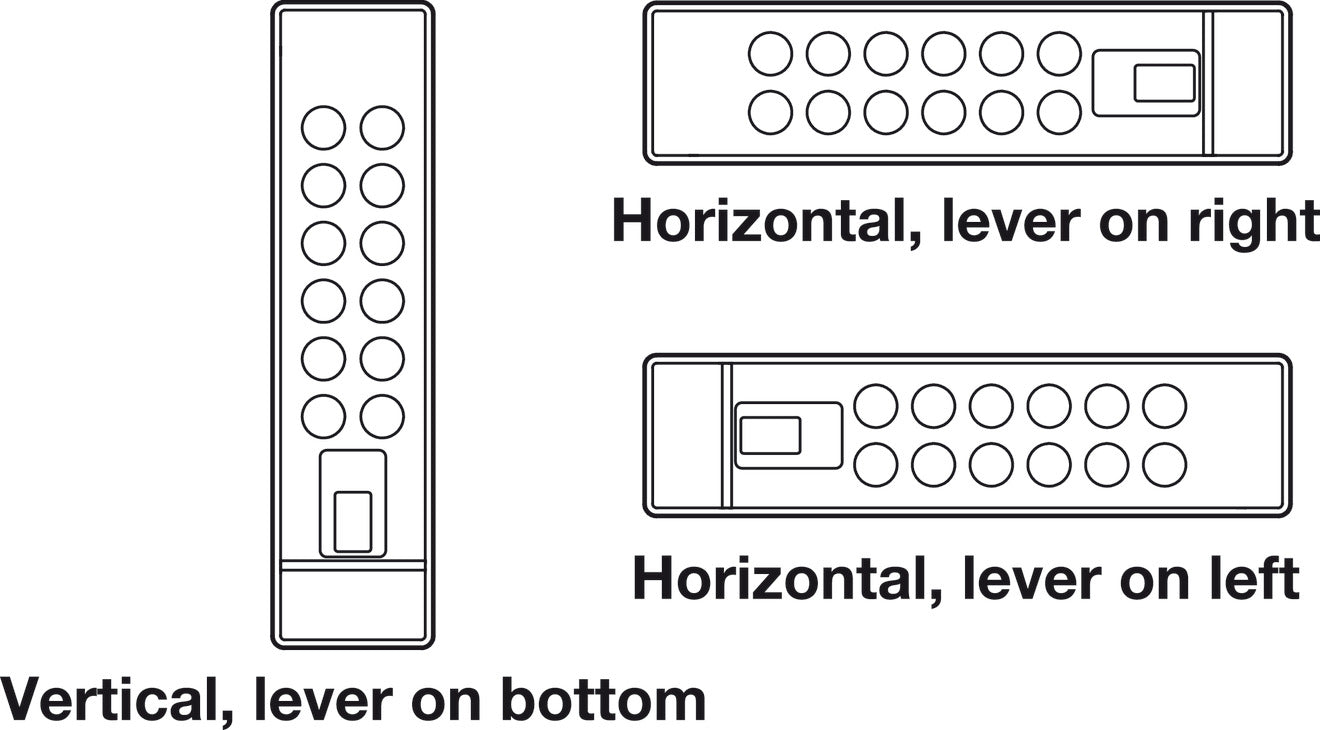

    Lock mounts vertically for raised panel doors
    Lock powered by a 3-AAA battery pack (included)(item 231.98.210)
    Low battery indicator via external LEDs
    Designed to pass the ANSI/BIFMA 50 lbf. pull strength specification
    Long battery life (10 lock cycles per day for four years)
    Easy installation with only two drill points
    One programming key set required for project

  • Supplied with :

    Nut
    Straight cam
    Mounting screw
    Spacers
    Instructions
    3-AAA battery pack
