Sliding Door Hardware, Hawa Aperto 40/F, set

$833.94
$833.94
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Number of doors: 1
  • Running gear version: Straight running gear for Infront installation
  • Running position: top
  • Number of rollers: 2
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 1"
  • For door height (inches): ≤ 102 3/8"
  • For cabinet width: 15 3/4" - 35 7/16"
  • For door width (inches): 15 3/4 - 35 7/16"
  • For door thickness min.: 3/4"
  • Height adjustment: ± 5/64"
  • Length (inch): 2' 1 19/32"

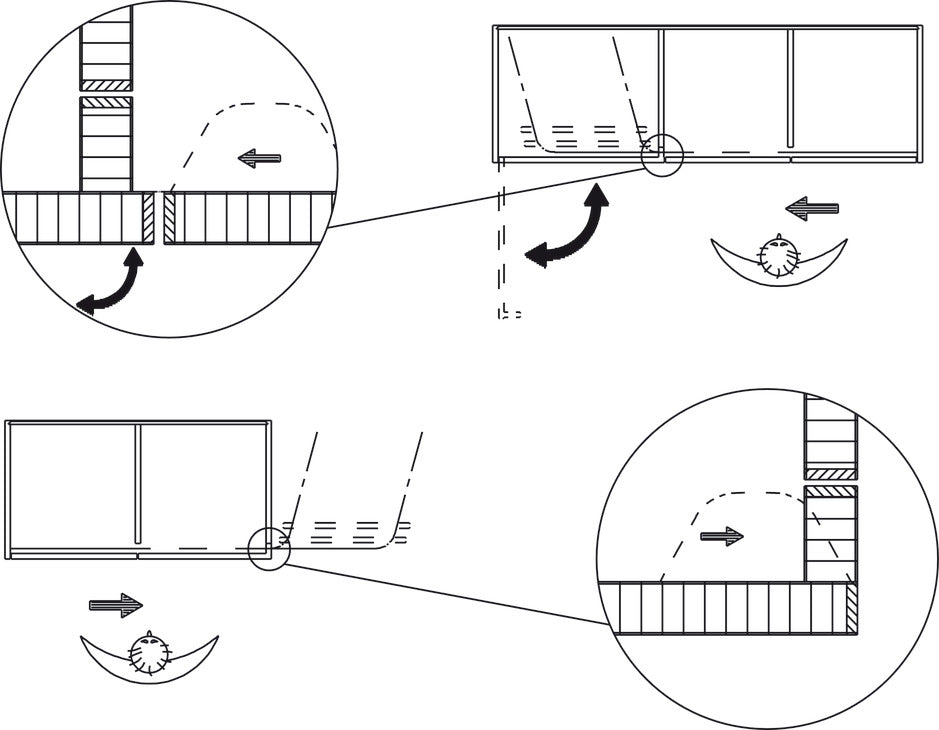

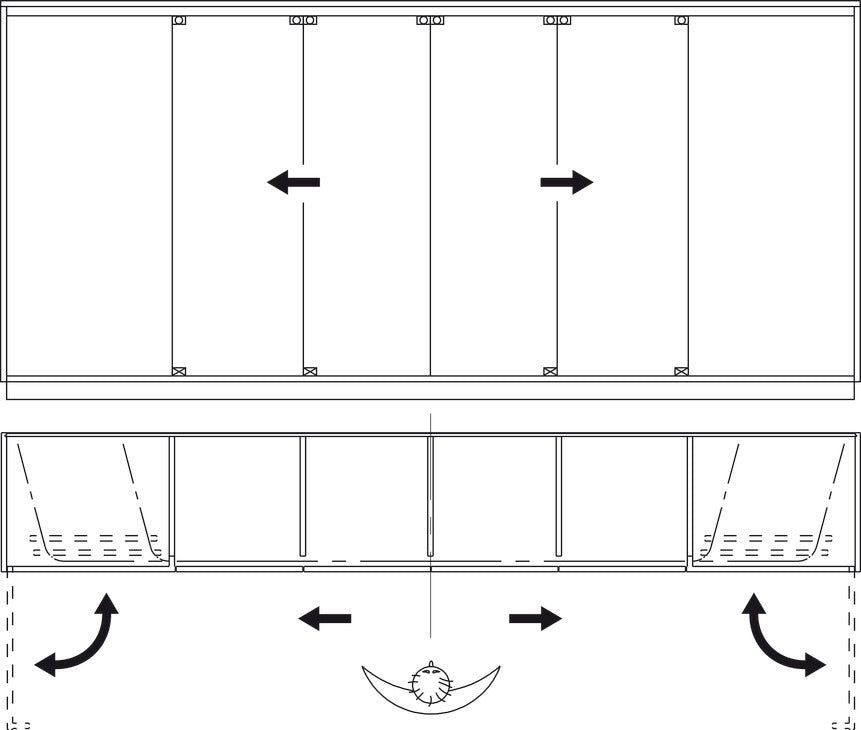

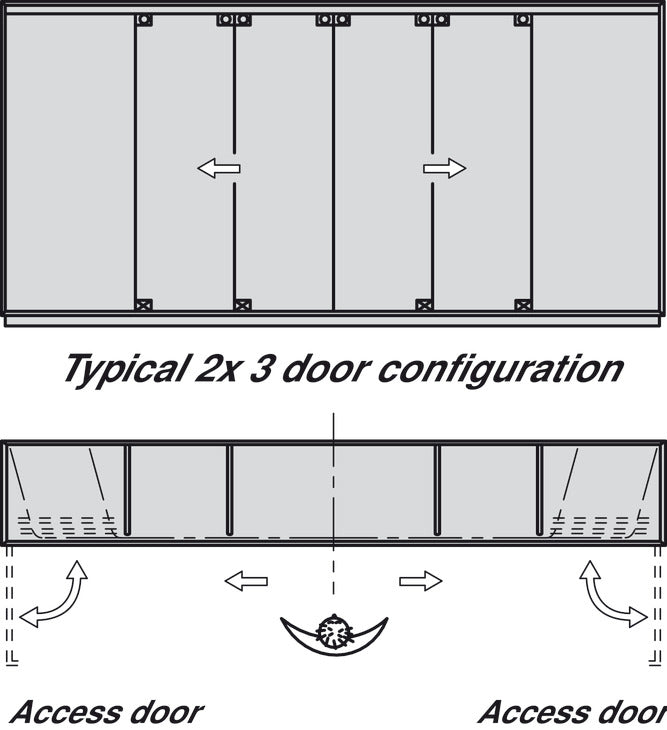

  • Cabinet version : with parking area, with stackable door panels per parking area
  • Model series : Aperto
  • Set : Set without tracks
  • Area of application :

    For 1 doors

  • For door height : ≤2,600 mm
  • Material/finish : Running gear: Zinc alloy Mounting plate: Zinc alloy Rollers: Plastic
  • Adjustment facility : Height adjustment ±2 mm on running gear using screw
  • Installation : Running gear and guide for screw fixing
  • Door processing : for screw fixing
  • Number of doors per system max. : 7
  • Order reference :

    Please order guide and running track separately.
    Order Planofit straightening fitting to stabilise the doors.
    110° Concealed hinges for door mounting in parking area are not supplied. Please order separately.

  • Supplied with :

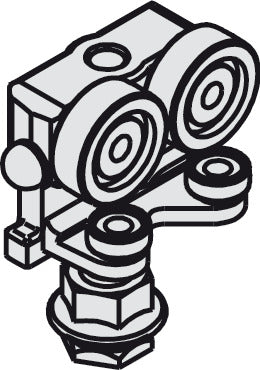

    2 Running gears

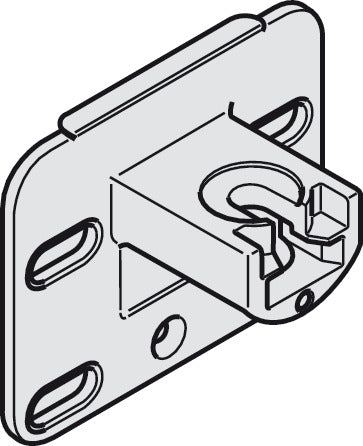

    3 screw-on plates
    3 cover caps
    2 suspension bolts
    1 set of spacers
    1 alignment bracket
    1 guide
    Installation instructions
