• Sliding Door Hardware, Hawa Clipo 16 HM IF, set
1 13

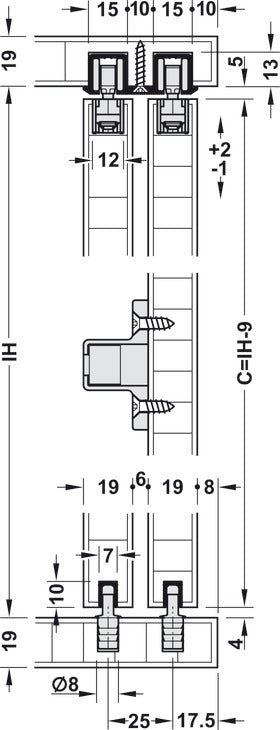

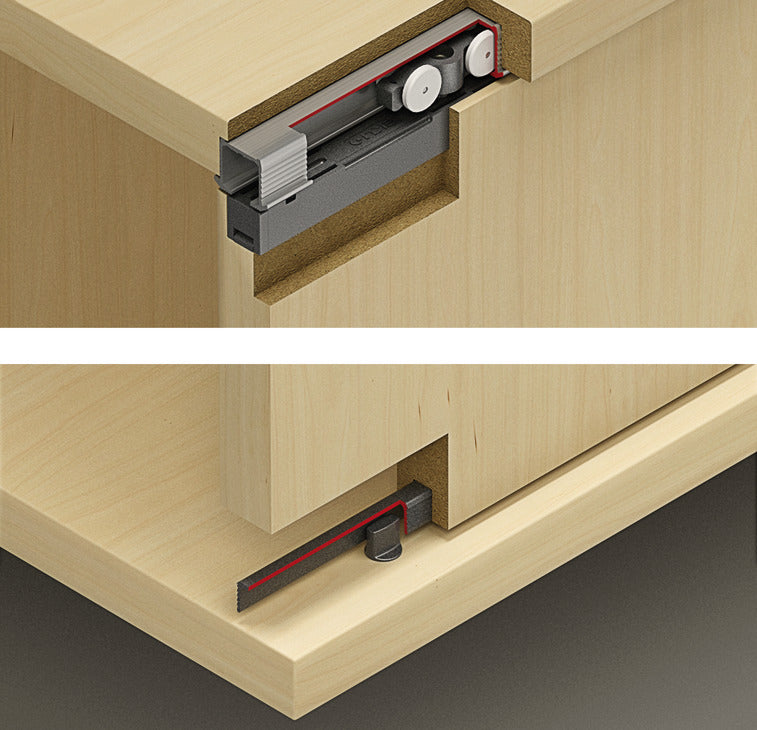

Sliding Door Hardware, Hawa Clipo 16 HM IF, set

$76.02
$76.02
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Number of doors: 1
  • Soft closing mechanism: with clip-in door stopper
  • For door thickness: ≤19 mm
  • For door width: ≤1,000 mm
  • For door weight: ≤16 kg
  • Running position: top
  • Number of rollers: 4
  • Height adjustment facility: -1 – 2 mm
  • Running gear guided by: Friction bearing
  • For door material: aluminum frame
  • For door thickness max.: 3/4"
  • Door width max.: 39 3/8"
  • Height adjustment: 1/8"
  • Door height min.: 55 1/8"
  • Cabinet version : with narrow doors
  • Model series : Clipo
  • Set : Set without tracks
  • Area of application :

    For 1 door

  • For door height : ≤1,400 mm
  • Door stopper :

    Top clip-in door stopper, for sliding into running track

  • Material/finish : Plastic Rollers: Plastic Axis: Steel
  • Adjustment facility : Height adjustment facility: -1 – 2 mm, Height +2/-1 mm

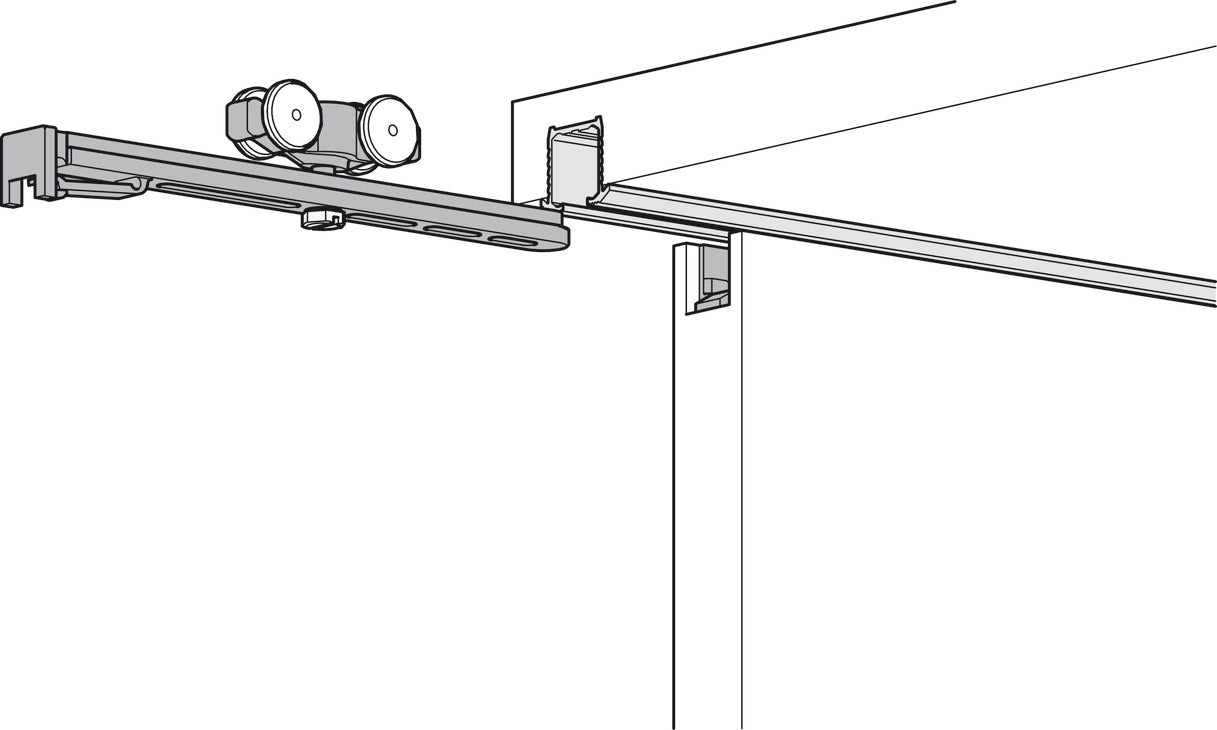

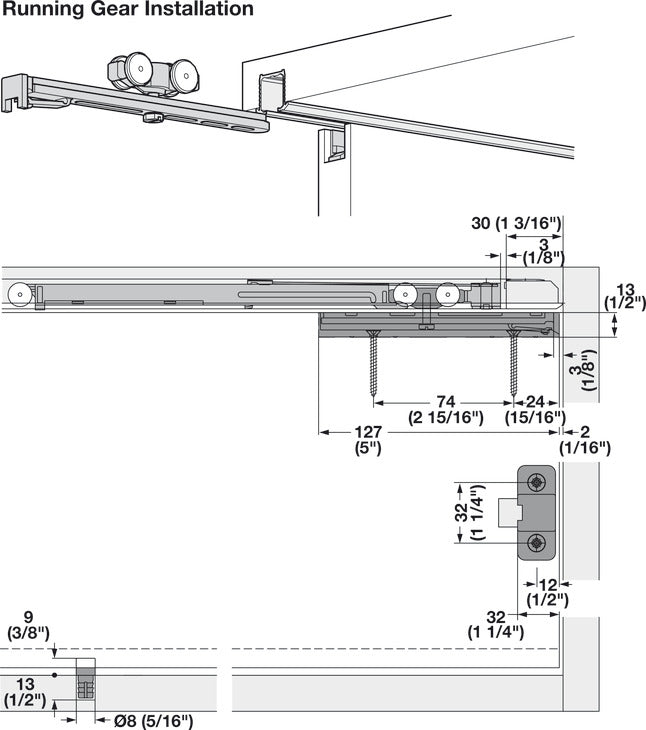

  • Installation : Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
  • Type of opening : linear
  • Number of doors per system max. : 1 to 2
  • Order reference :

    Please order running and guide tracks separately.

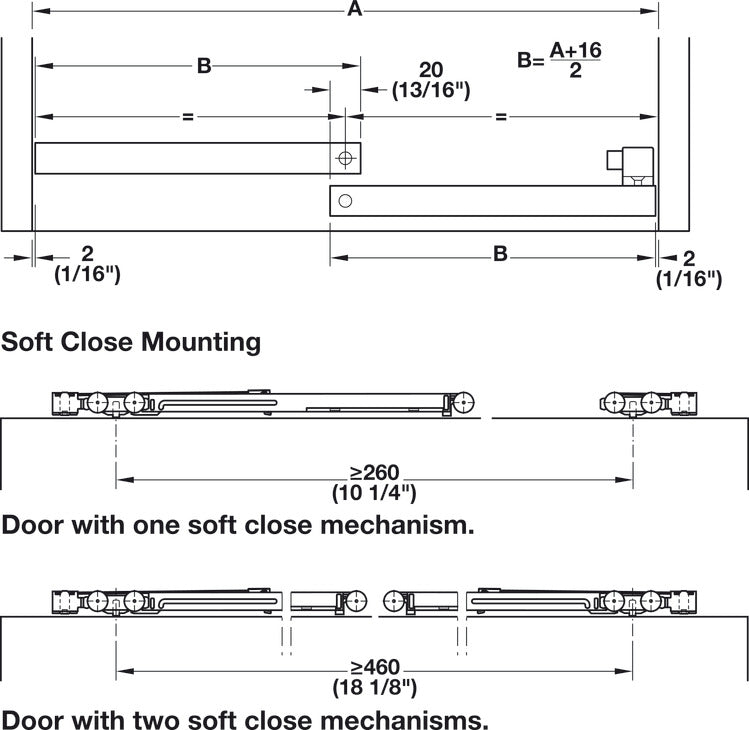

    Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism separately.

  • Supplied with :

    2 Running gears
    2 housing unites
    2 track stoppers
    1 floor guides
