Sliding

$532.38
$532.38
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

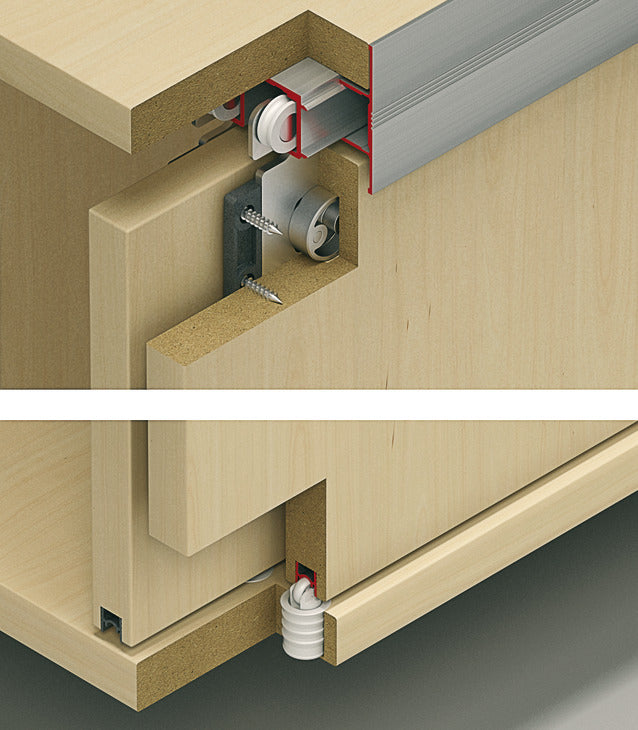

  • Tool-less door mounting via spring guide bolt
    Elegant clip-on aluminum fascia
    Recommended door overlay: 30 mm (1 3/16”)

  • Soft closing mechanism: with clip-in door stopper

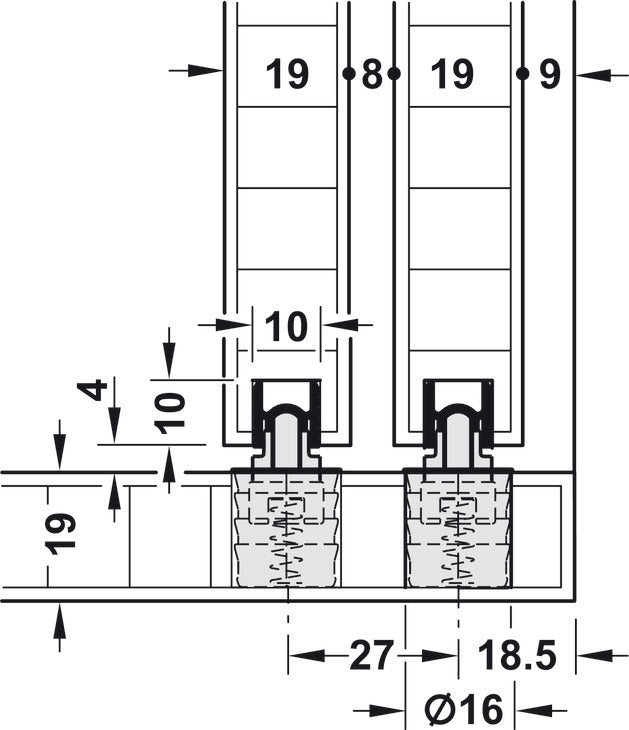

  • For door thickness: 19 mm
  • For door width: ≤1,200 mm
  • Model series : Combino
  • Set : Set without tracks
  • Area of application :

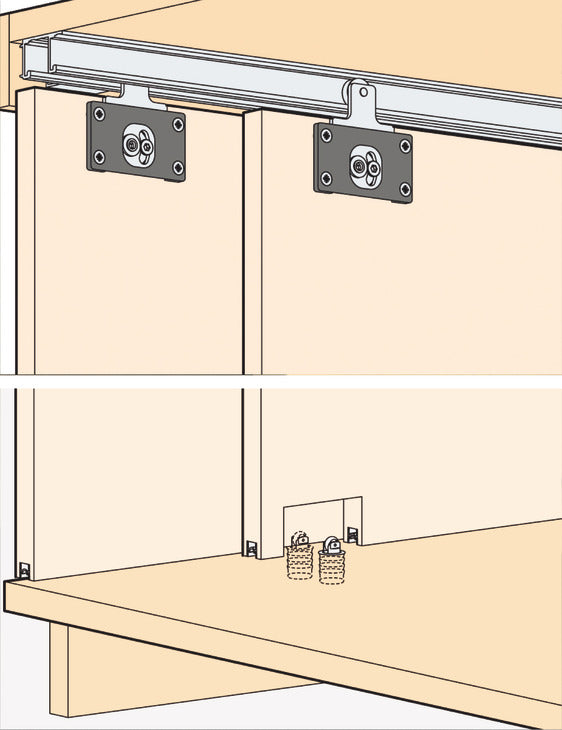

    For top running doors

  • For door height : ≤2,200 mm
  • Door stopper :

    Top clip-in door stopper, for sliding into double or single running track

  • Material/finish : Running gear: Steel Guide: Plastic Rollers: Plastic Axis: Steel
  • Running position : top
  • Running gear guided by : Ball bearing

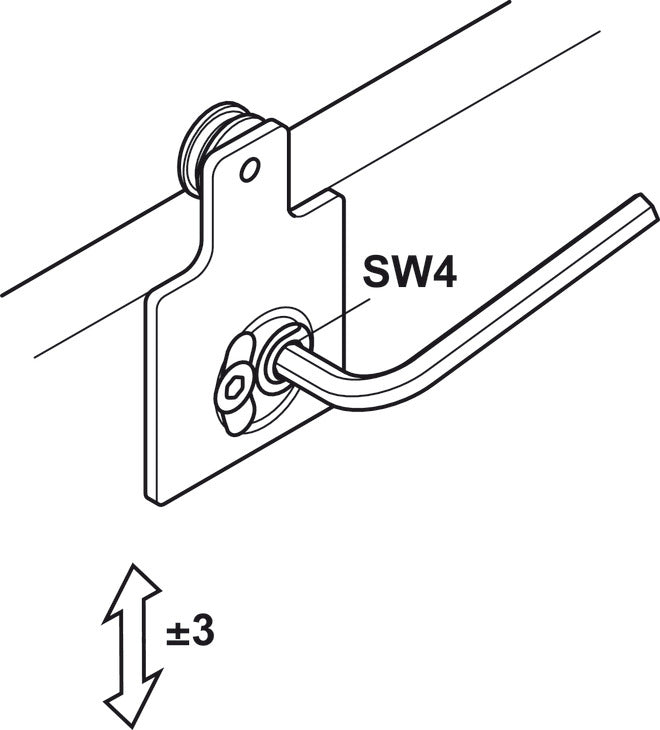

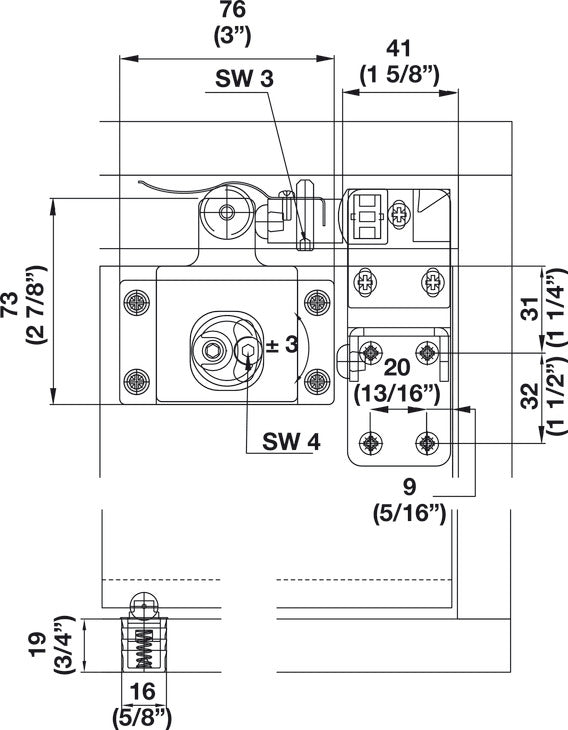

  • Adjustment facility : Height adjustment facility: ±3 mm, ±3 mm on running gear using eccentric screw
  • Door adjustment via : eccentric screw

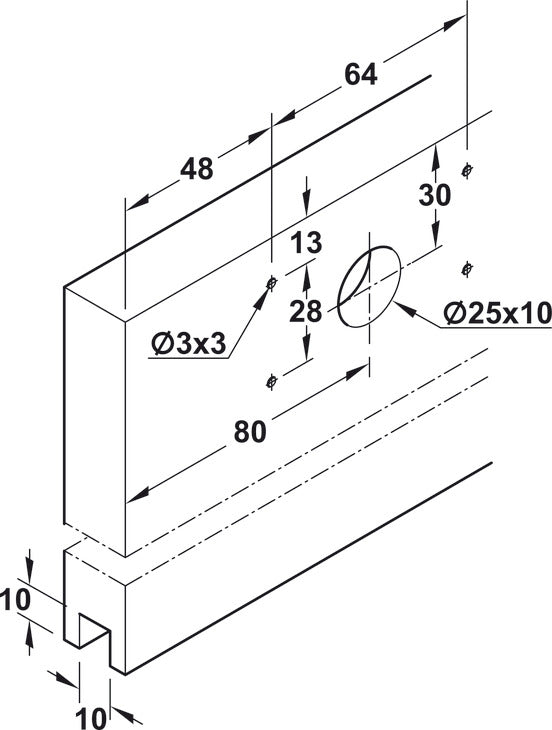

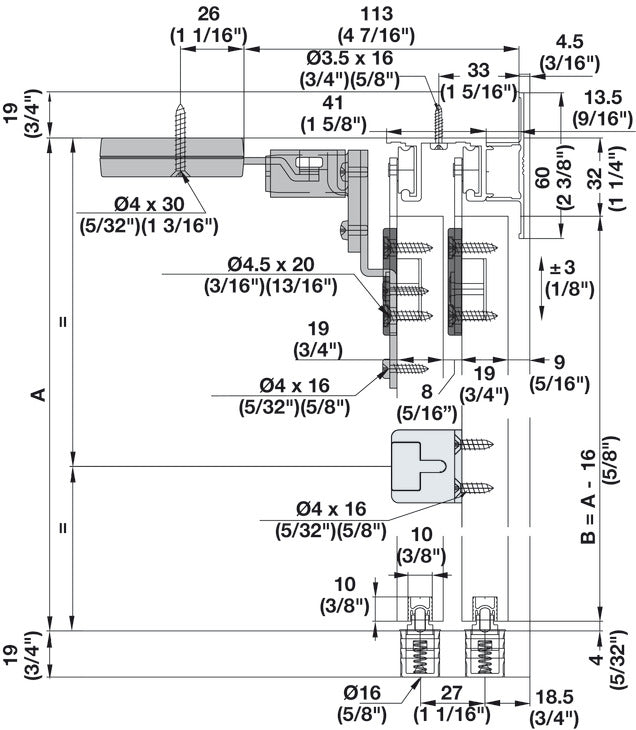

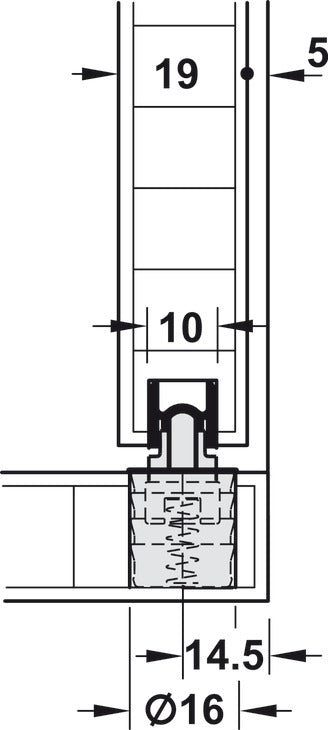

  • Installation : Guide for press fitting into a drill hole, Running gear for screw fixing, Backlash-free spring-loaded floor guide for press fixing
  • Type of opening : linear
  • Number of doors per system max. : 2 to 3
  • Running position : top
  • Order reference :

    Please order guide and running track separately.

  • Supplied with :

    Set Components Include:
    Running gear
    Mounting bracket
    Track stopper with retainer
    Track stopper
    Guide
    Buffer (2 different types)
    Mounting screws
