• Sliding Door Hardware, HAWA Dorado 40 Infront, Set
1 16

Sliding Door Hardware, HAWA Dorado 40 Infront, Set

$582.83
$582.83
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

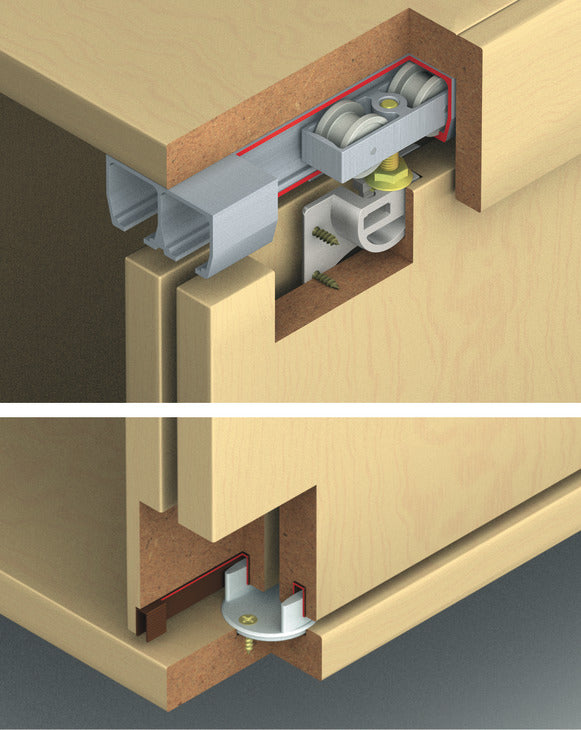

  • For bypassing cabinet or closet sliding doors

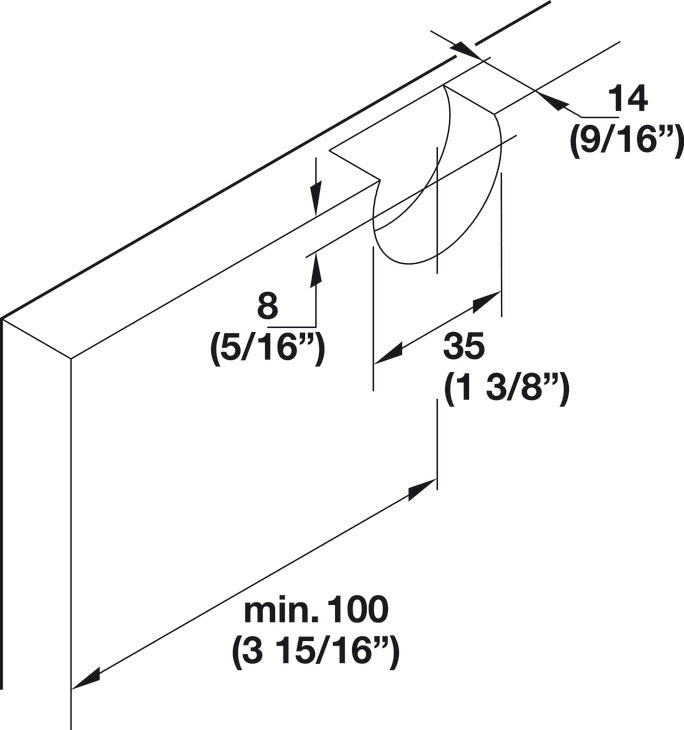

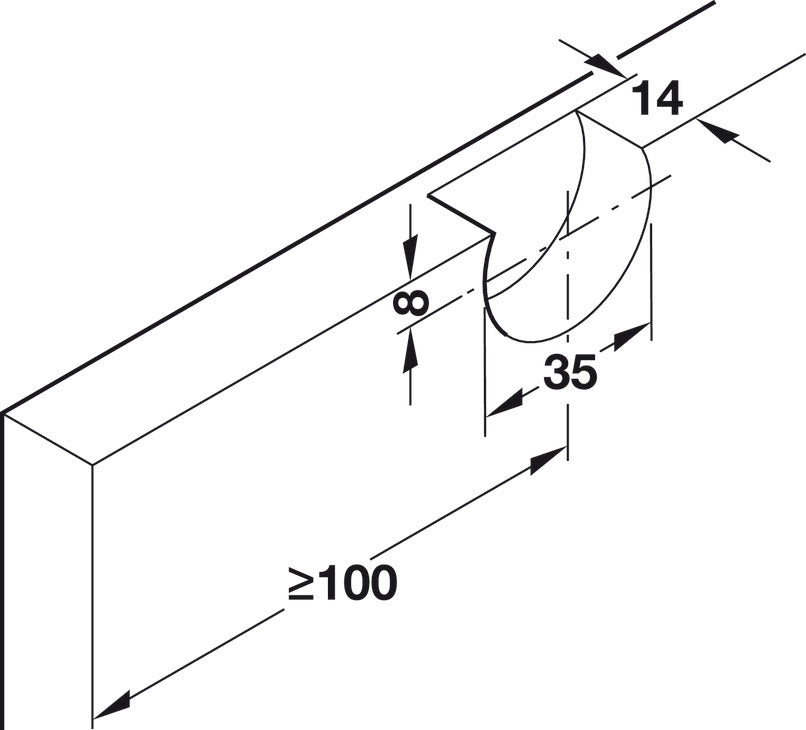

    All 35 mm (1 3/8”) drilling
    Smooth operation
    Simple installation
    Vertically adjustable

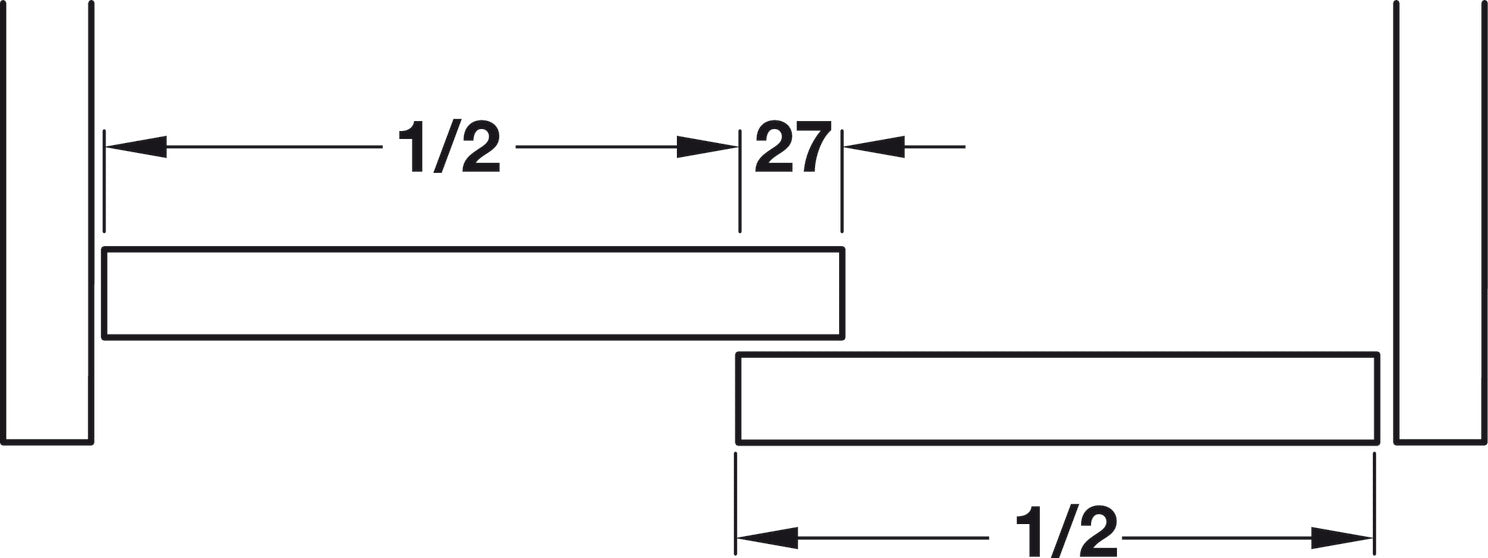

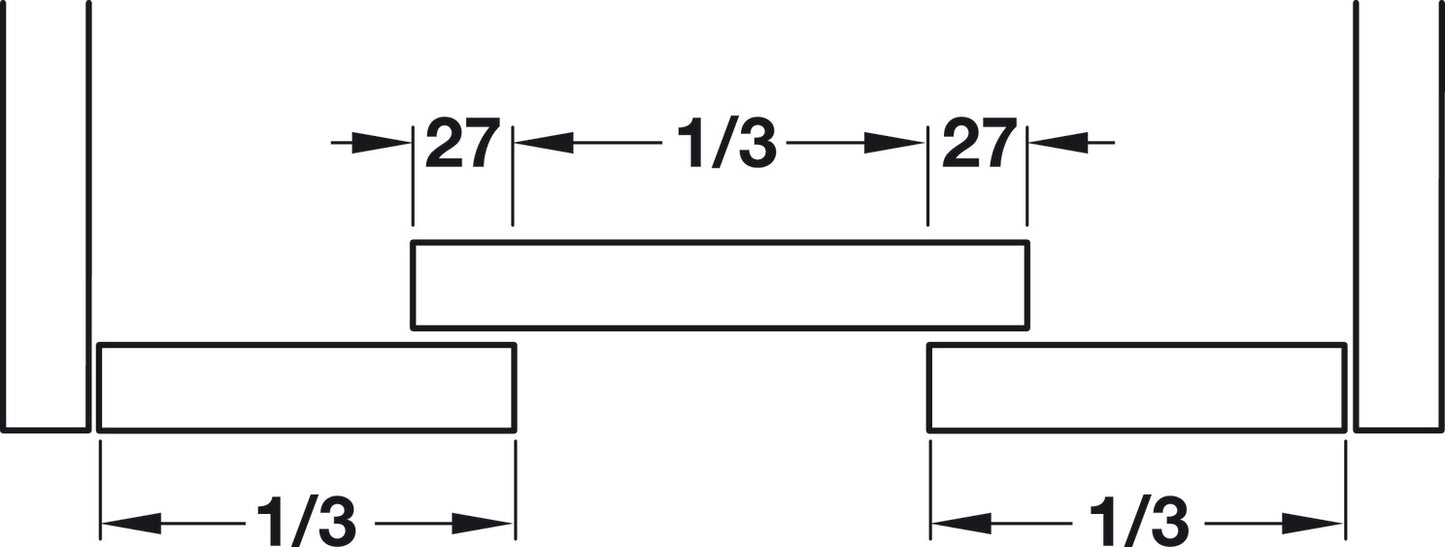

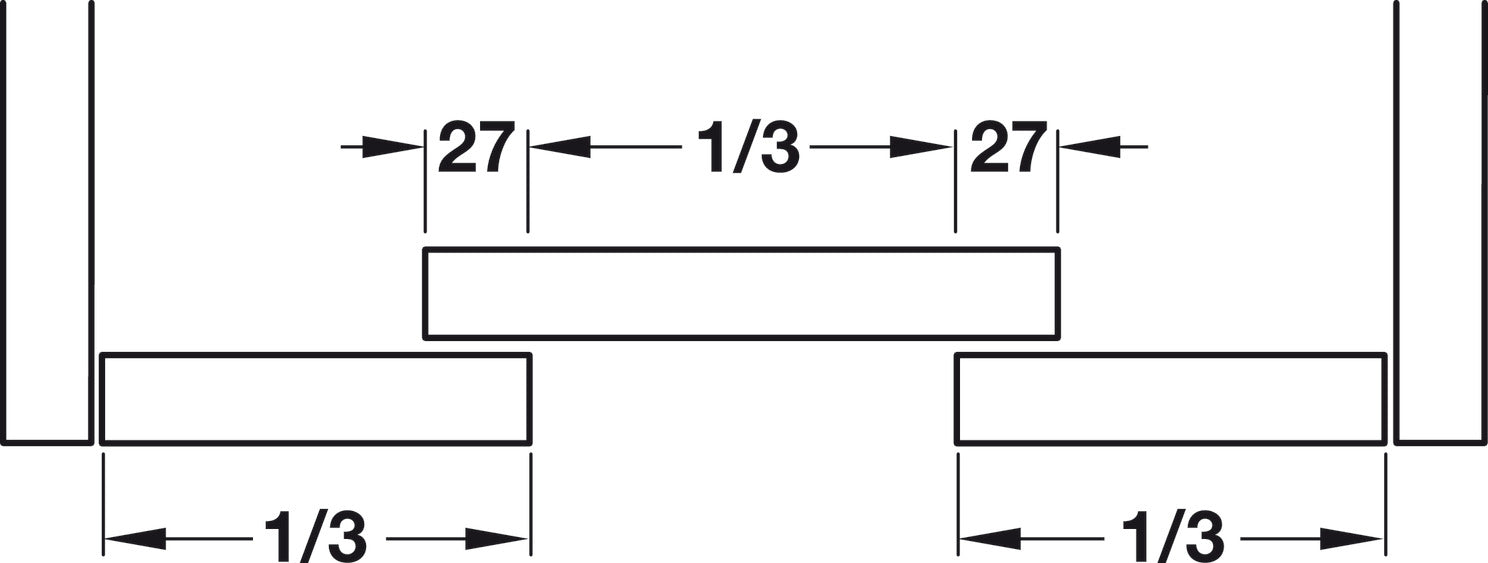

    Multiple door layouts

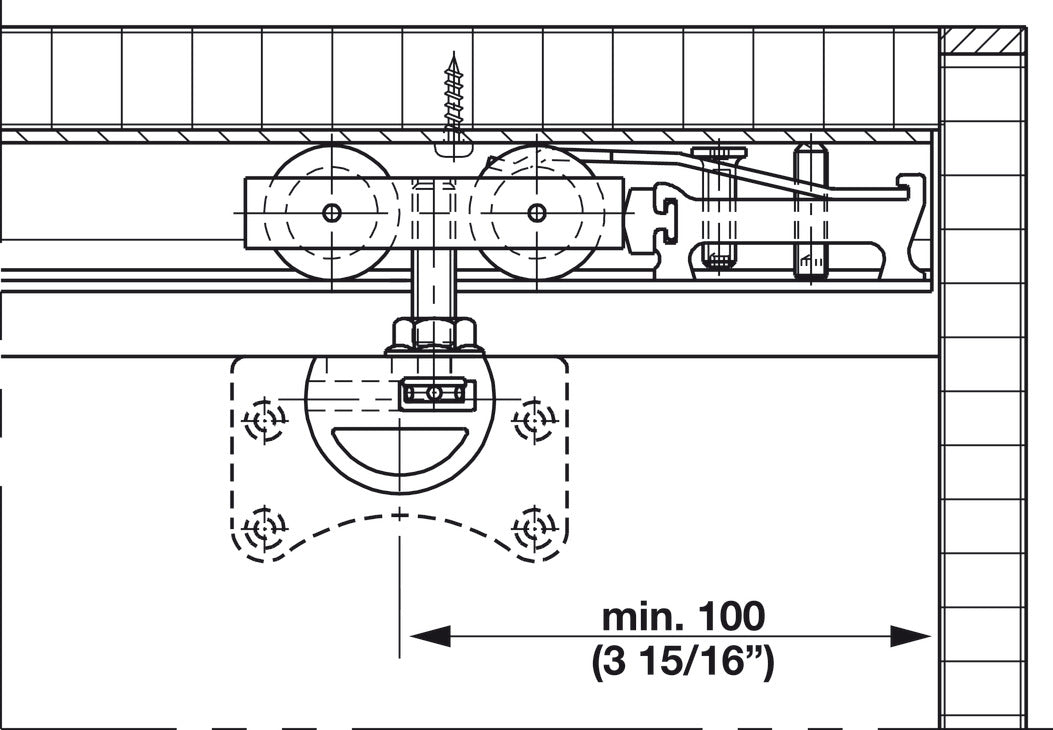

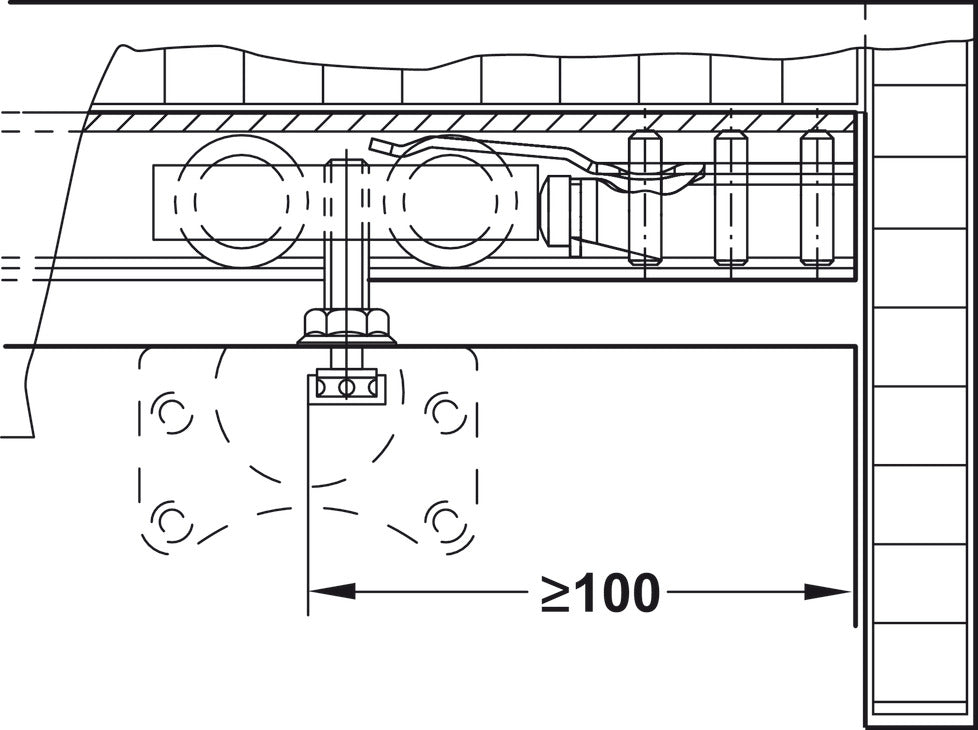

    Door stop with adjustable retention spring

  • Soft closing mechanism: with clip-in door stopper

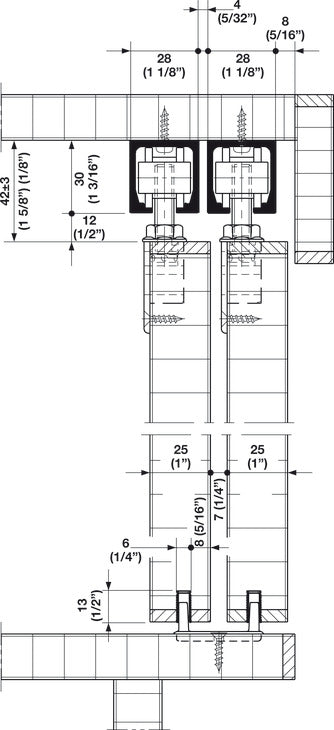

  • For door thickness: 19 – 25 mm
  • For door weight: ≤40 kg

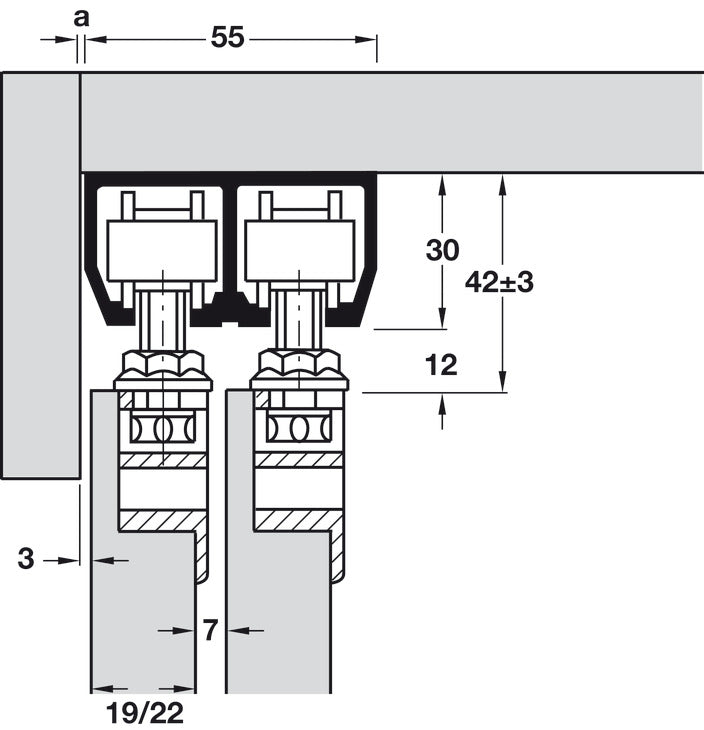

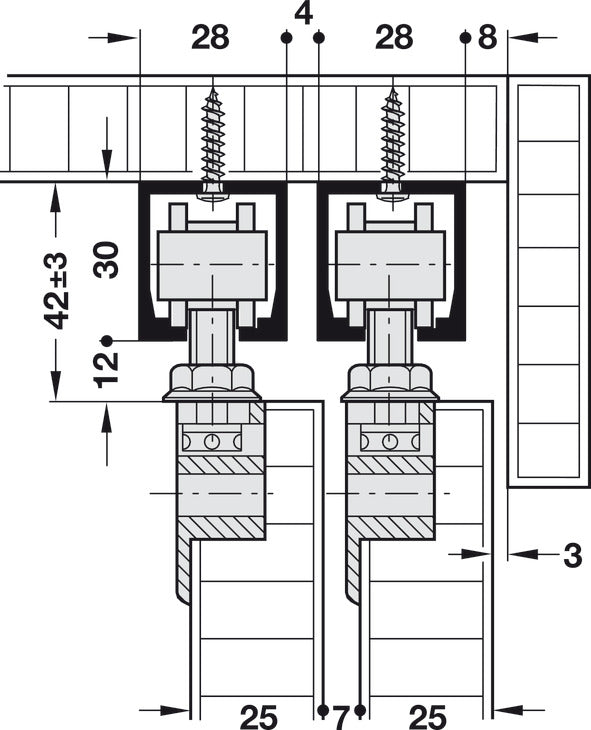

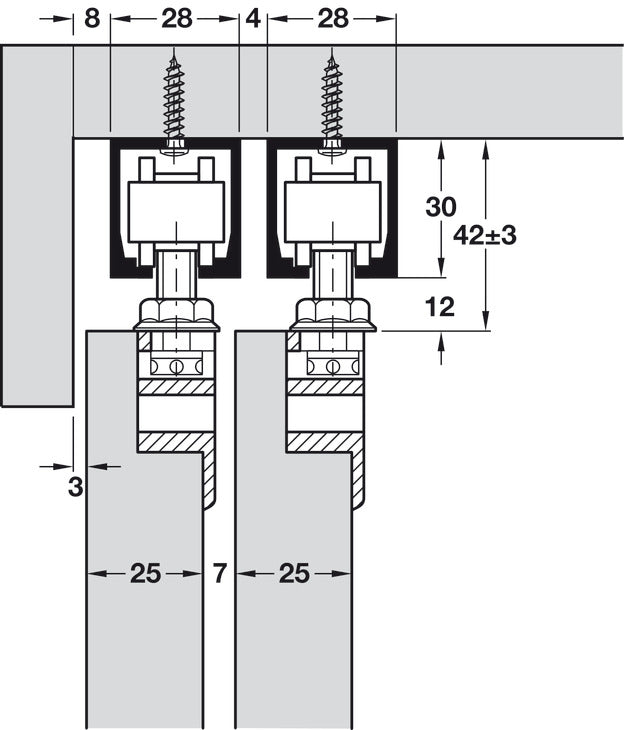

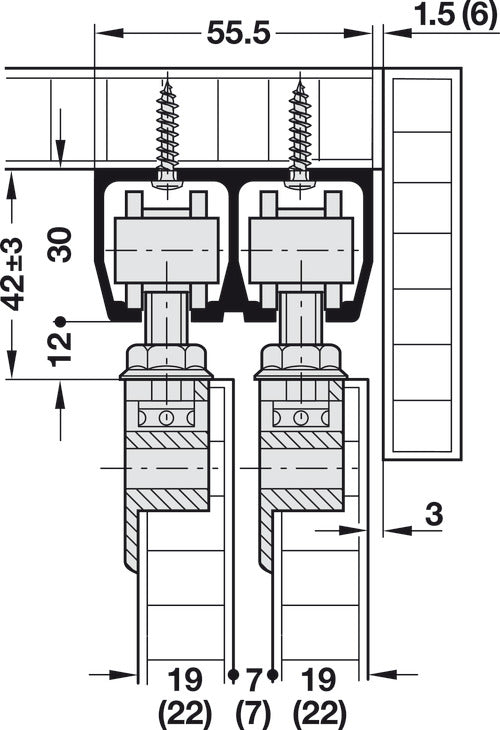

  • Running position: top
  • Number of rollers: 2
  • Height adjustment facility: ±3 mm
  • Running gear guided by: Friction bearing
  • For door material: wood
  • For door thickness max.: 1”
  • For door thickness min.: 3/4”

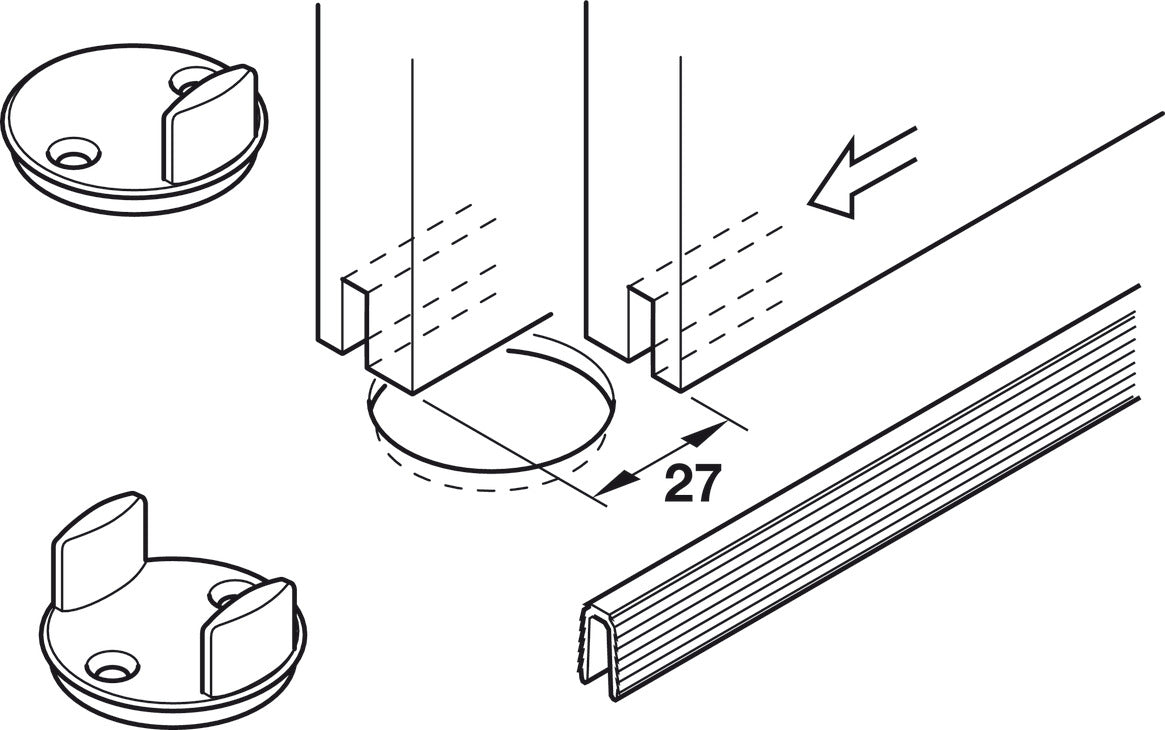

  • Cabinet version : with pin guided wooden doors
  • Model series : Dorado
  • Set : Set without tracks
  • Area of application :

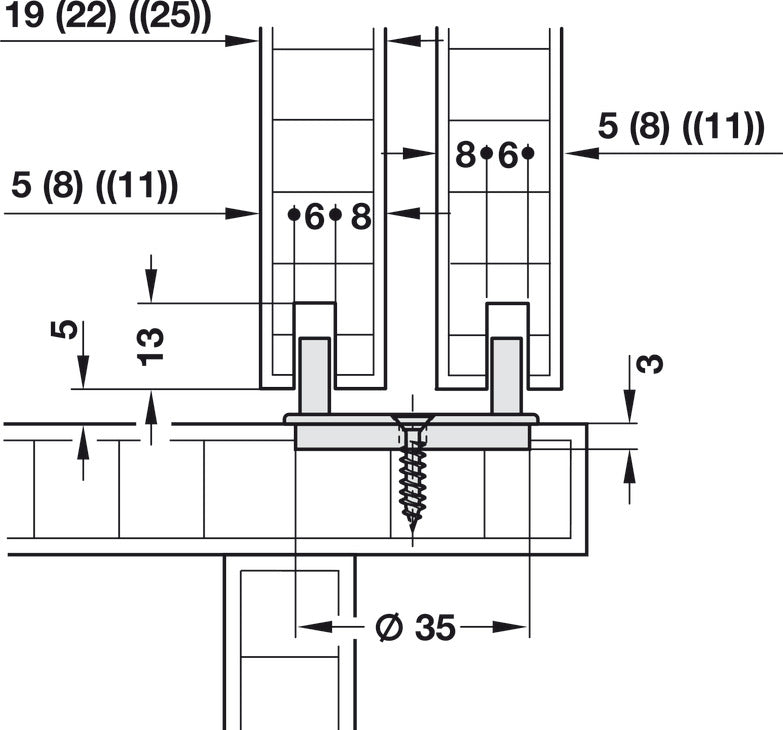

    For bolt guided doors

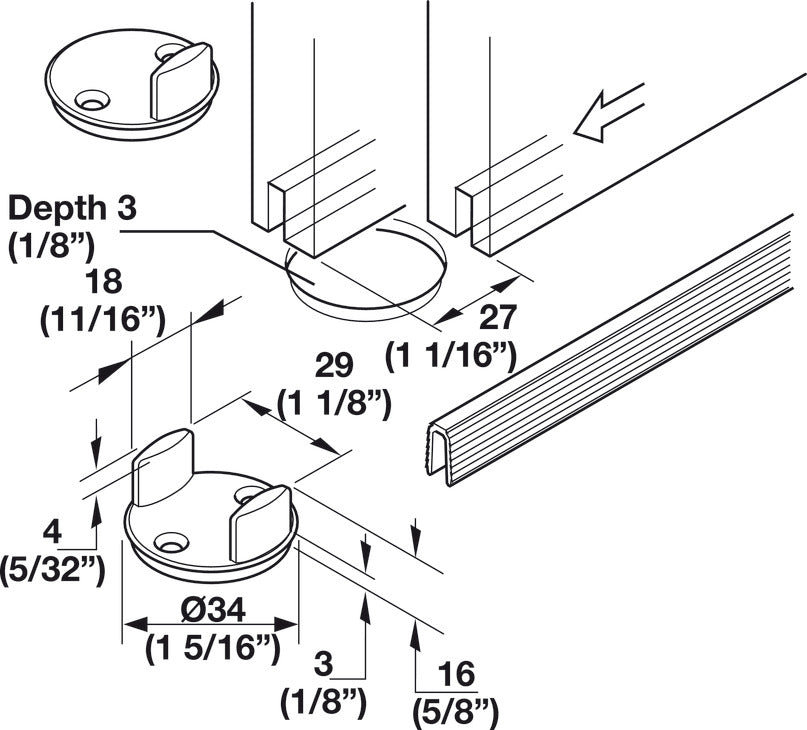

  • Door stopper :

    Top clip-in door stopper

  • Material/finish : Running gear: Aluminum Fixing element: Zinc alloy Guide: Plastic Rollers: Plastic
  • Adjustment facility : Height adjustment facility: ±3 mm, Height: ±3 mm on hanger bolt, without removing the doors
  • Door adjustment via : suspension screw
  • Installation : Assembly and removal of the door leaves with fixed or detached panel, Running gear and guide for screw fixing
  • Type of opening : linear

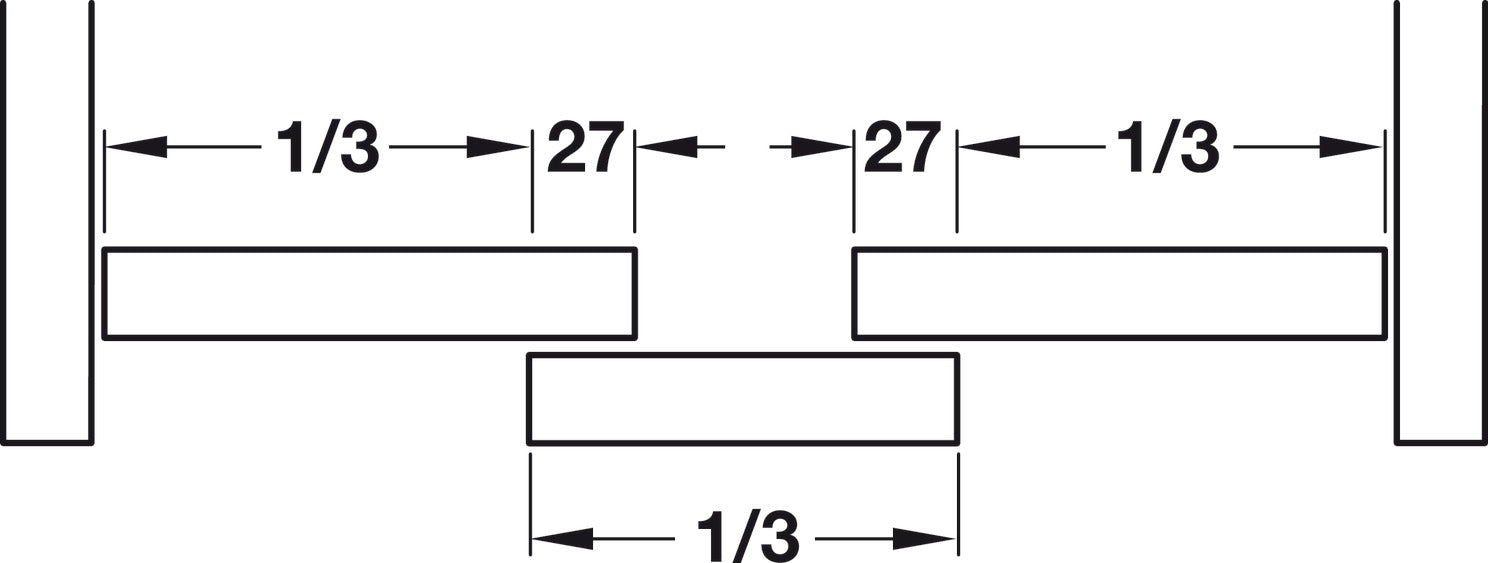

  • Number of doors per system max. : 2 to 3
  • Note :

    Height adjustment possible without removing the door leaves

  • Order reference :

    Please order guide and running track separately.
