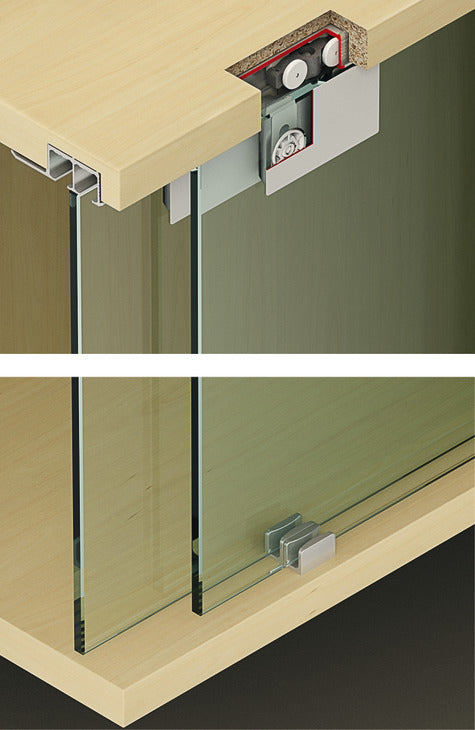

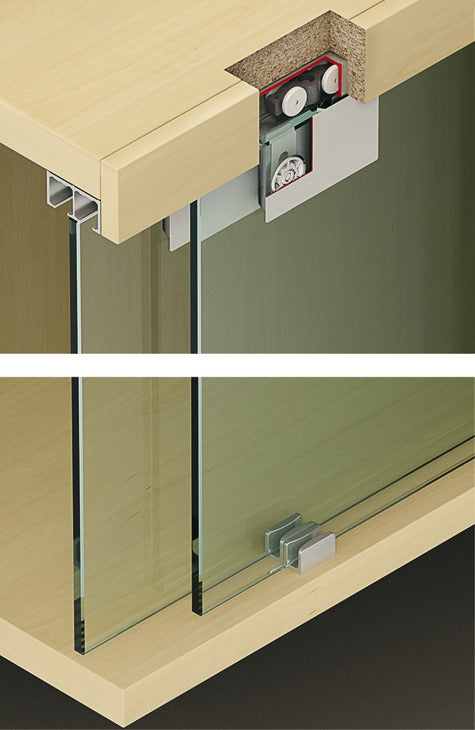

• Sliding Door Hardware, Hawa Clipo 16 GS IF, set
1 12

Sliding Door Hardware, Hawa Clipo 16 GS IF, set

$246.88
$246.88
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Number of doors: 2
  • Soft closing mechanism: with clip-in door stopper
  • For glass thickness: 6 mm
  • For door width: ≤1,000 mm
  • For door weight: ≤16 kg
  • Running position: top
  • Number of rollers: 4
  • Height adjustment facility: -1 – 2 mm
  • Running gear guided by: Friction bearing
  • For door material: glass
  • Door width max.: 39 3/8"
  • Door height min.: 55 1/8"
  • Cabinet version : with top running glass doors
  • Model series : Clipo
  • Set : Set without tracks
  • Area of application :

    For 2 doors

  • For door height : ≤1,400 mm
  • Door stopper :

    Top clip-in door stopper, for sliding into single running track

  • Material/finish : Plastic Zinc alloy Rollers: Plastic Axis: Steel
  • Adjustment facility : Height adjustment facility: -1 – 2 mm, Height +2/-1 mm
  • Installation : Screw-on guide, Running gear without tools (quick fixing system)
  • Door processing : With glass preparation
  • Installation reference :

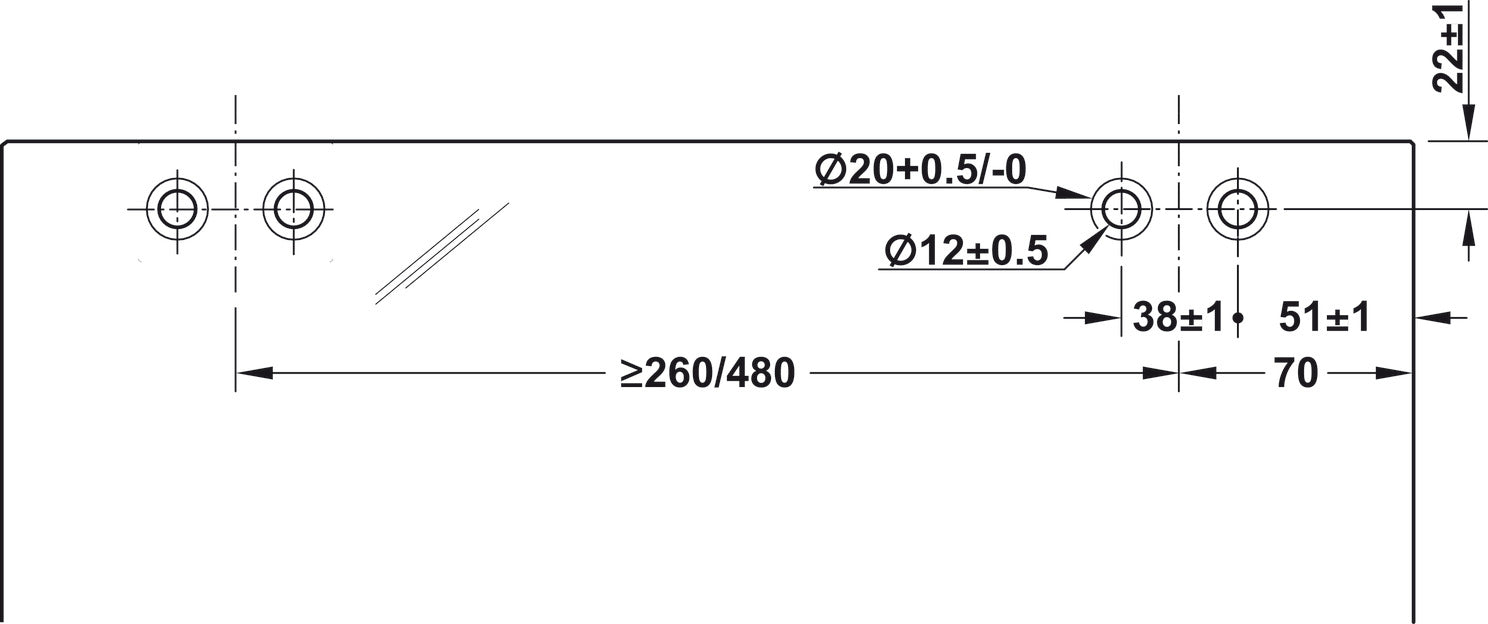

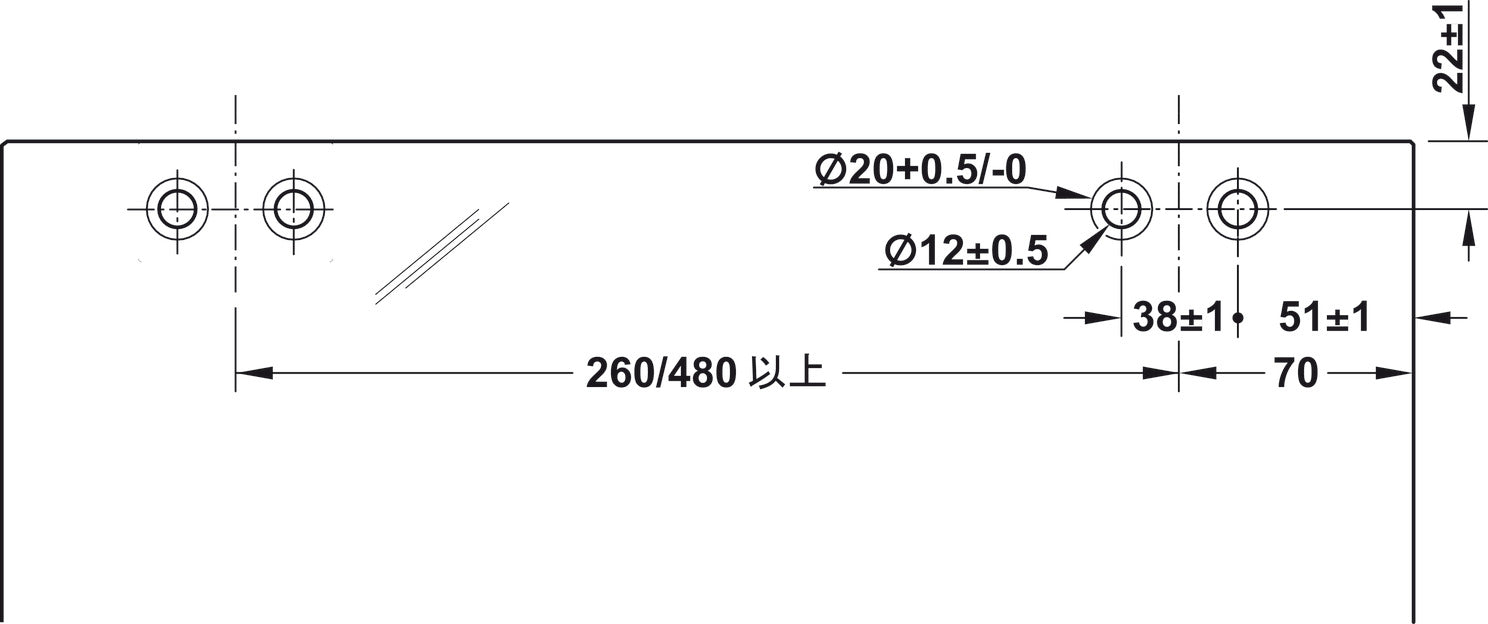

    Note the conical design of the drill hole in the glass

  • Number of doors per system max. : 2
  • Order reference :

    Please order running and guide tracks separately.

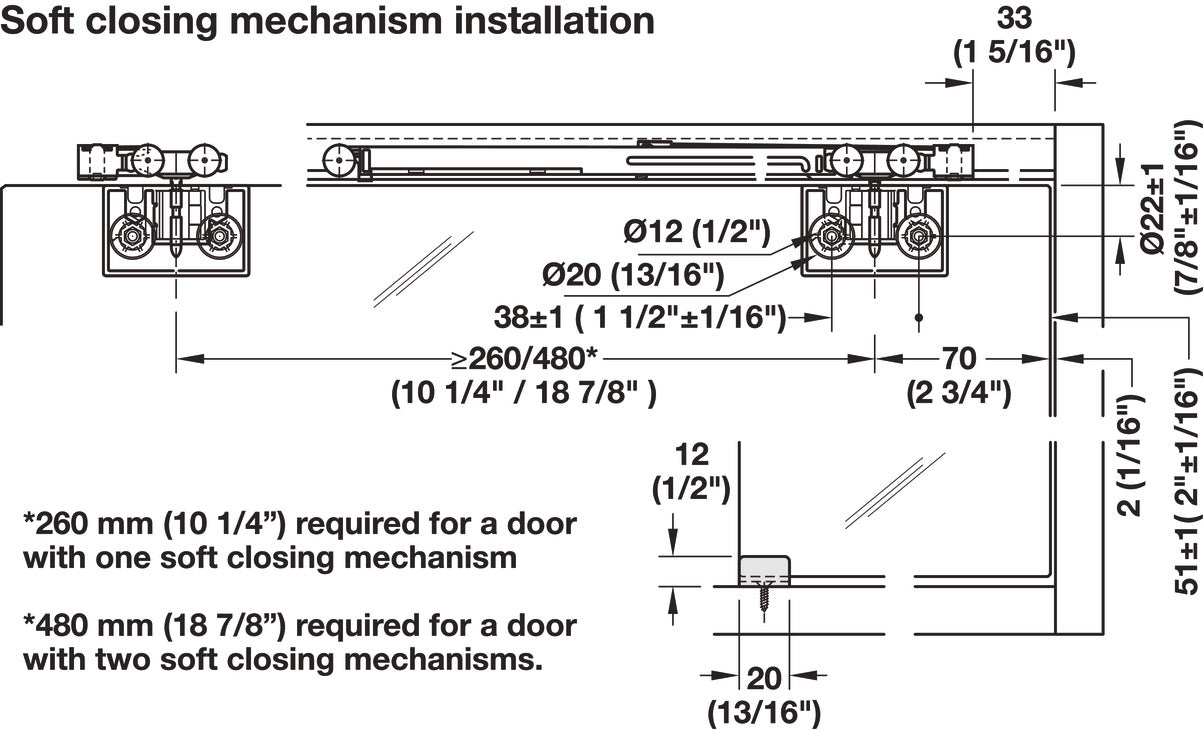

    Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.

  • Supplied with :

    4 Running gears
    2 door stoppers with clip-in door stopper
    4 covers for glue fixing
    8 counterpieces for glass
    2 floor guides
    1 door follower
