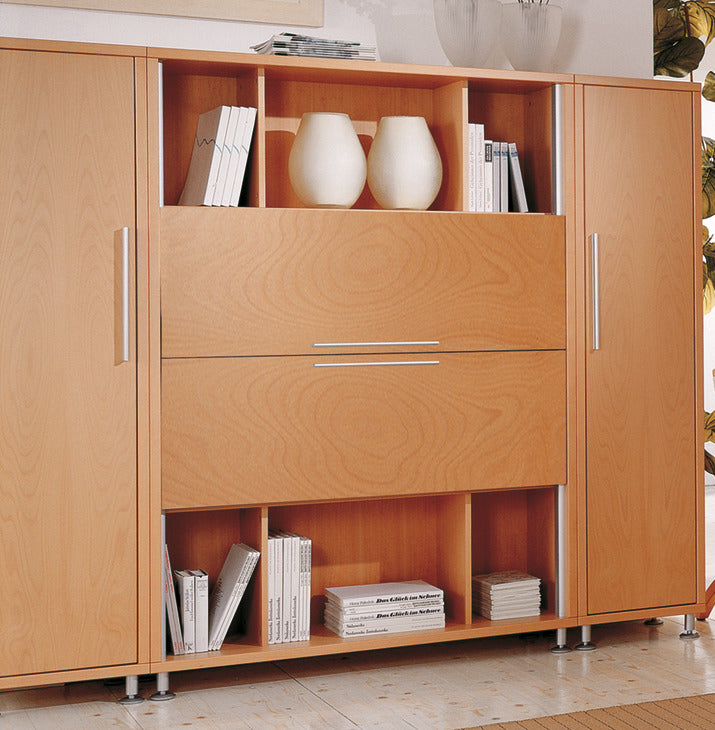

• Sliding Door Fitting, Hawa Libra 20 H IF/VF, set
1 12

Sliding Door Fitting, Hawa Libra 20 H IF/VF, set

$681.65
$681.65
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Number of doors: 1
  • For door thickness: ≥16 mm
  • For door width: ≤1,600 mm
  • For door weight: ≤20 kg
  • Running position: bottom, top on the side
  • Number of rollers: 1

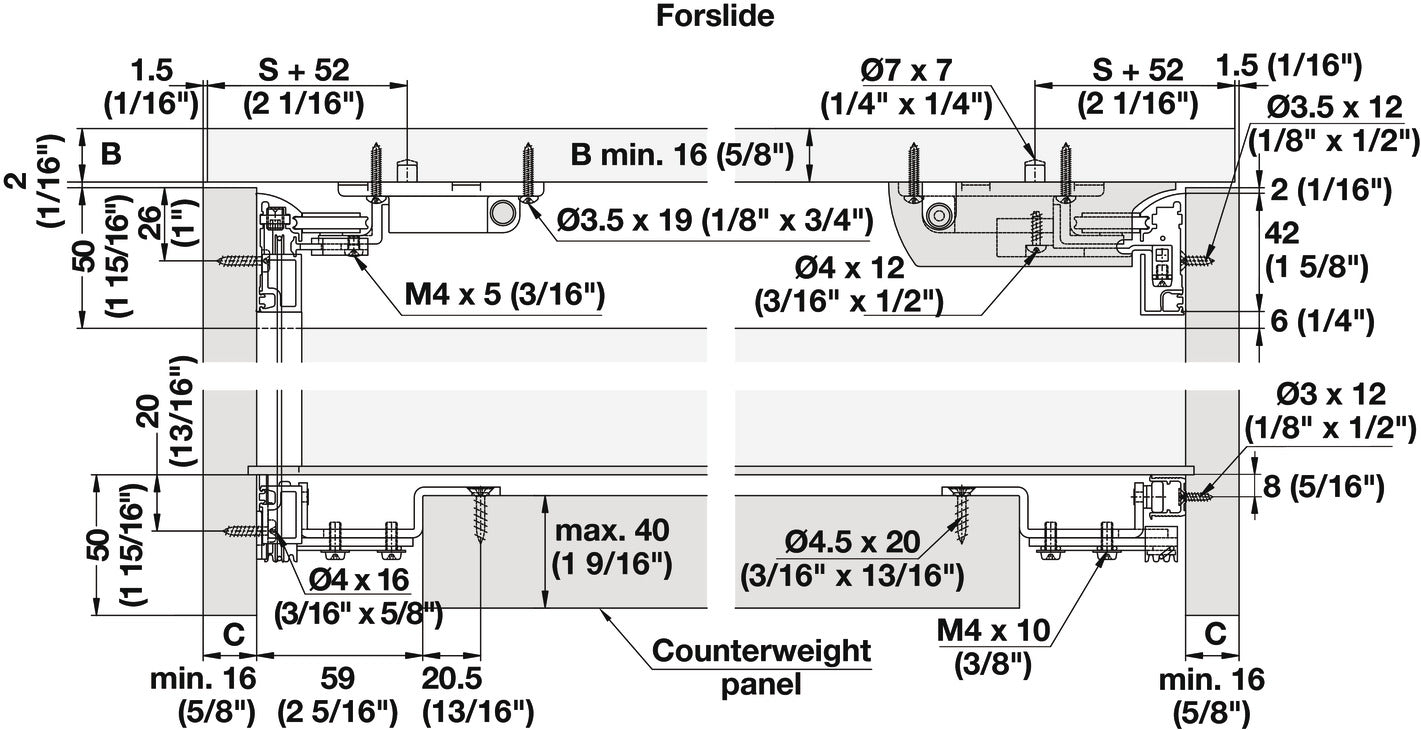

  • For side panel thickness: min 16 mm
  • For door material: wood
  • Door width max.: Max. 63"
  • For door thickness min.: 5/8"
  • Side panel thickness min.: 5/8"
  • Model series : Libra
  • Set : Set without tracks
  • Area of application :

    For door weights up to 20 kg (44 lbs.), for 1 door

  • For door height : ≤1,000 mm
  • Door stopper :

    Top and bottom stopper, for sliding into single guide track

  • Material/finish : Rollers: Plastic
  • Installation : Running gear and guide for screw fixing

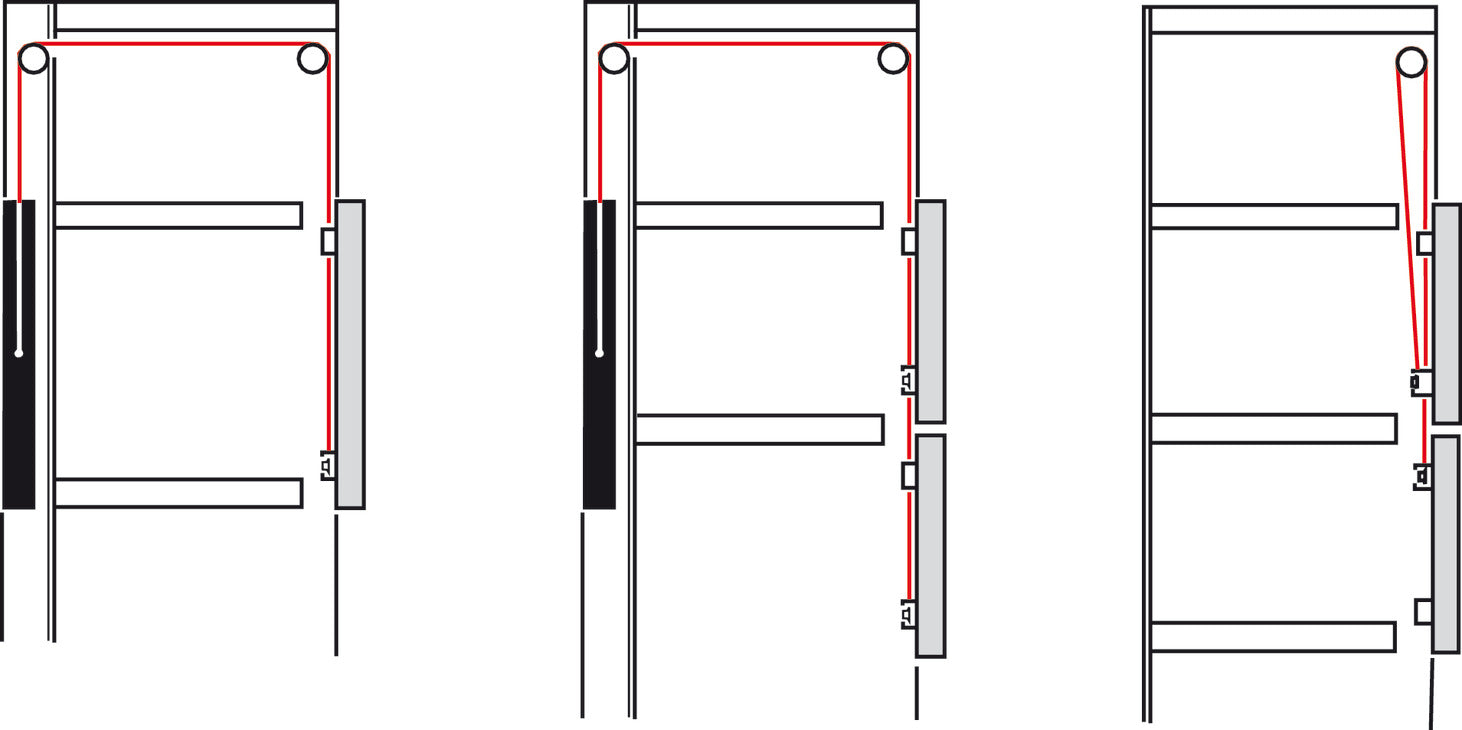

  • Counterweight : The counterweight must correspond with the door weight, and the height must be smaller than the door height

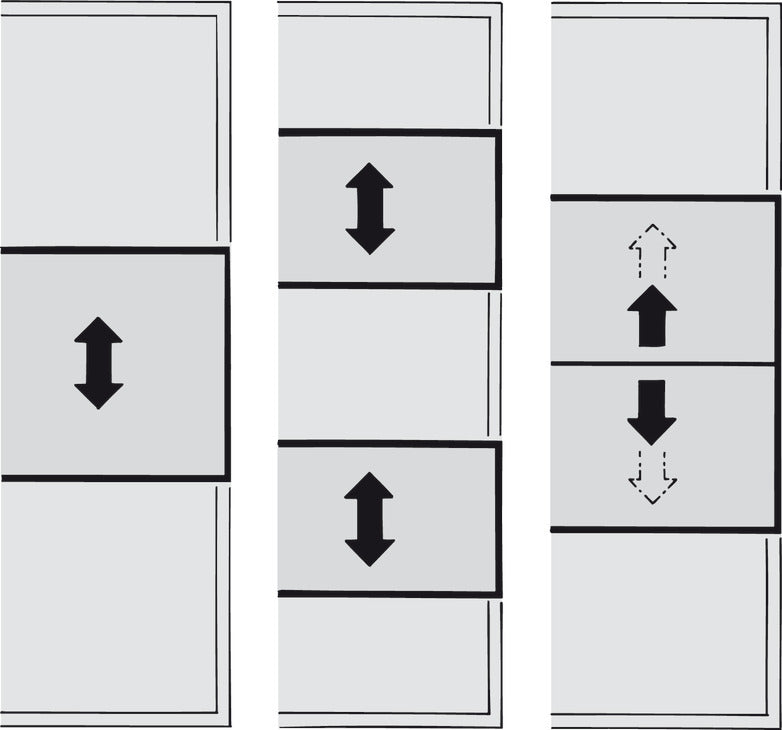

  • Number of doors per system max. : 1 to 2
  • Order reference :

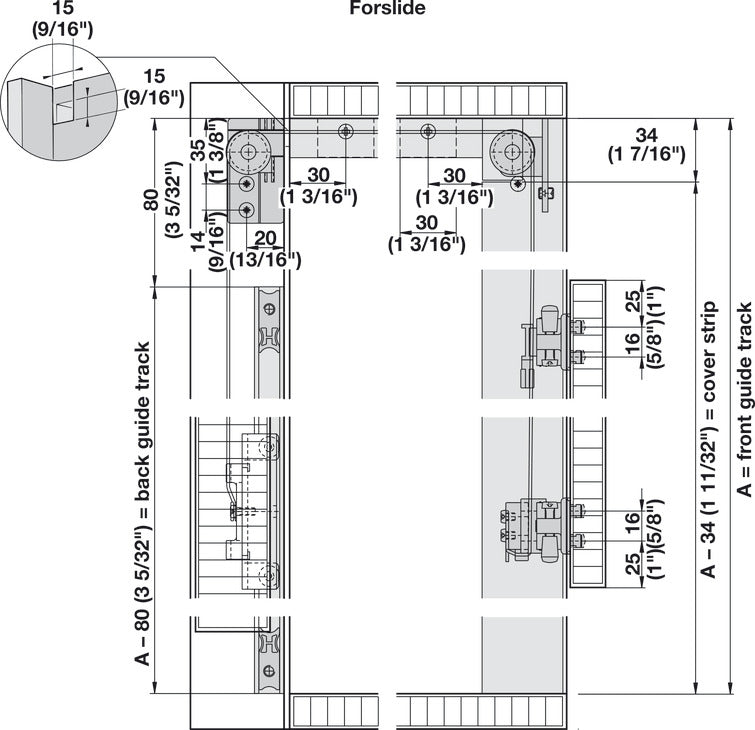

    Please order running and guide track and cover profile separately.
    Order additional guide for counterweights higher than 500 mm.

  • Supplied with :

    4 running gears (2 with spring/2 with eccentric adjustment)
    4 deflection rollers (2 front, 2 rear)
    2 door brackets
    2 cord holders
    2 clamping bolts for cord bracket
    2 cables
    4 cord cover plates
    2 guide brackets for counterweight
    2 cord guide bracket for counterweight
    4 door stoppers
    4 clips for cover profiles
    Installation instructions
