  • Running gear includes four plastic rollers
    Optional soft close mechanism can be inconspicuously integrated into the track so its is not visible and is protected from damage
    No guide rails in the bottom of the cabinet

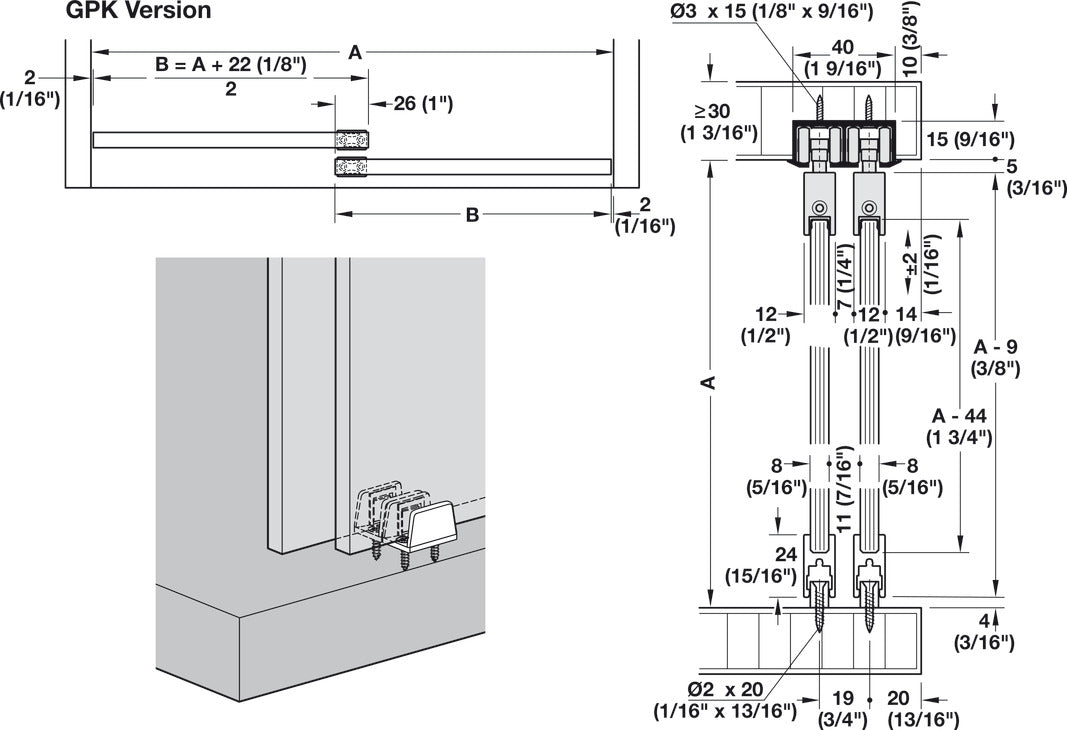

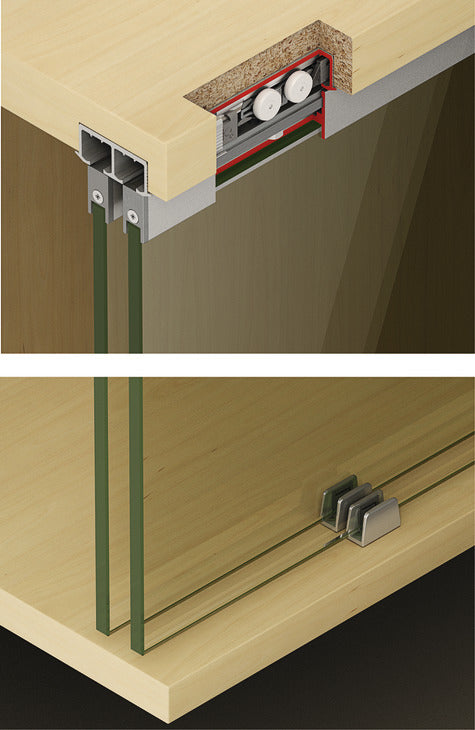

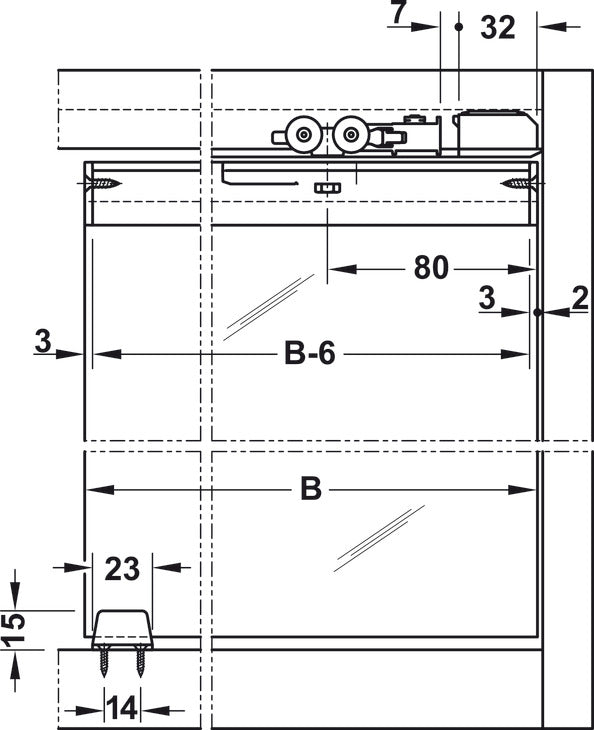

    GPK Version: Glass fixing profile is on the top of the door, floor guide located at the bottom

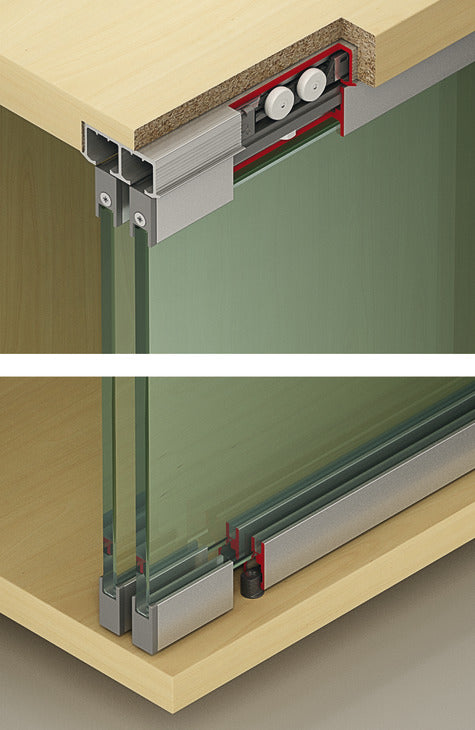

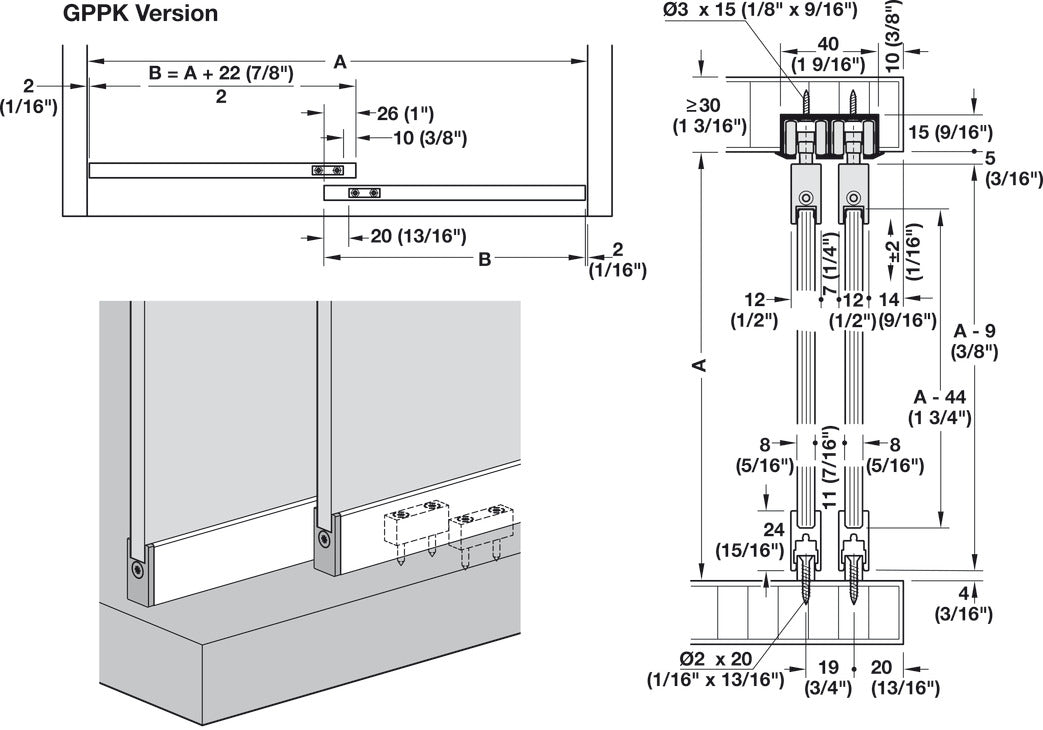

    GPPK Version: Glass fixing profile is on the top and bottom of the door, floor guide is concealed within the profile

  • Number of doors: 1
  • Soft closing mechanism: with clip-in door stopper
  • For glass thickness: 6–8 mm
  • For door width: ≤1,000 mm
  • For door weight: ≤36 kg
  • Cabinet version : with sliding doors without glass drilling

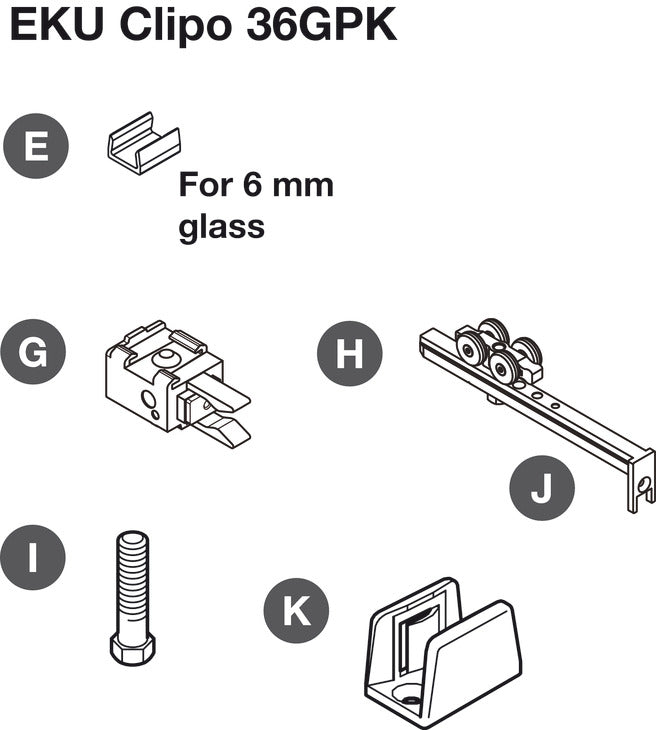

  • Model series : Clipo

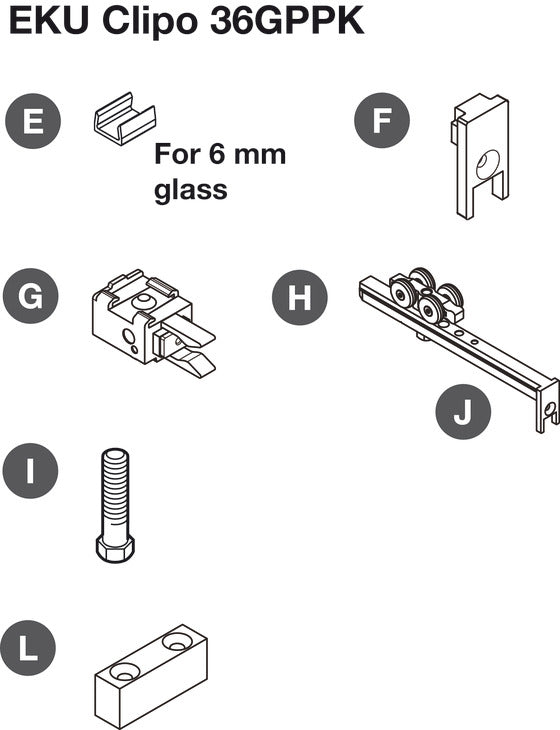

  • Set : Set without tracks
  • Area of application :

    For sliding doors without glass drillings

  • For door height : ≤2,000 mm
  • Door stopper :

    Top clip-in door stopper, for sliding into single or double top running track

  • Material/finish : Running gear: Zinc alloy Suspension: Zinc alloy Guide: Zinc alloy Guide: Plastic Rollers: Plastic Axis: Steel
  • Running position : top
  • Number of rollers : 4
  • Running gear guided by : Friction bearing
  • Adjustment facility : Height adjustment facility: ±2 mm, Height ±2 mm
  • Door processing : Without glass preparation
  • Type of opening : linear
  • Number of doors per system max. : 1
  • Running position : top
  • Note :

    Only use tempered safety glass

  • Order reference :

    Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.

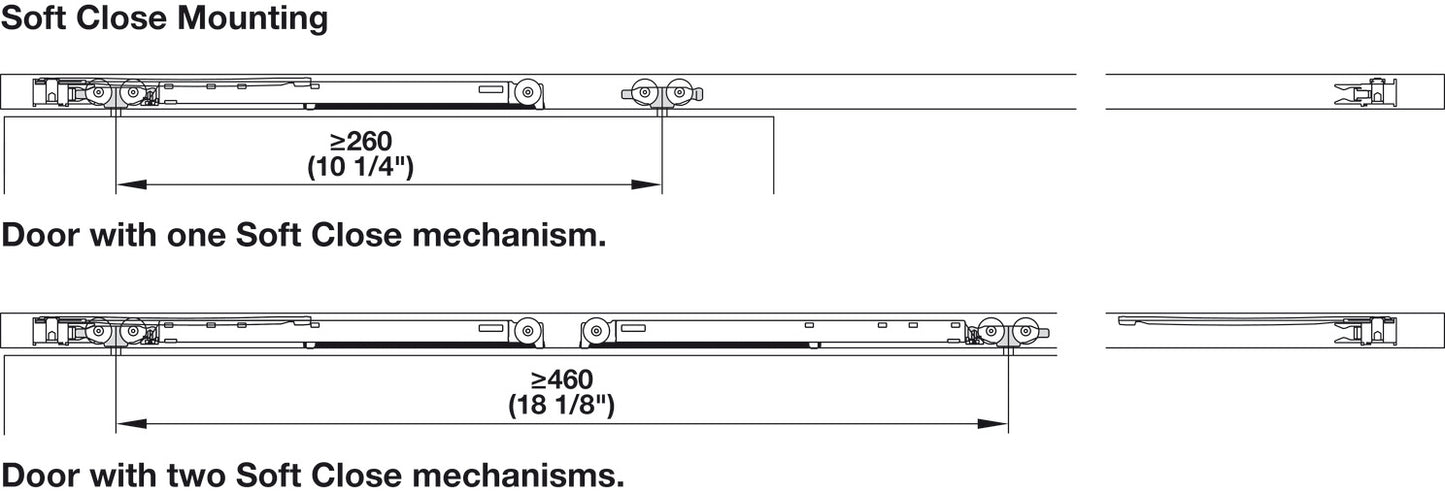

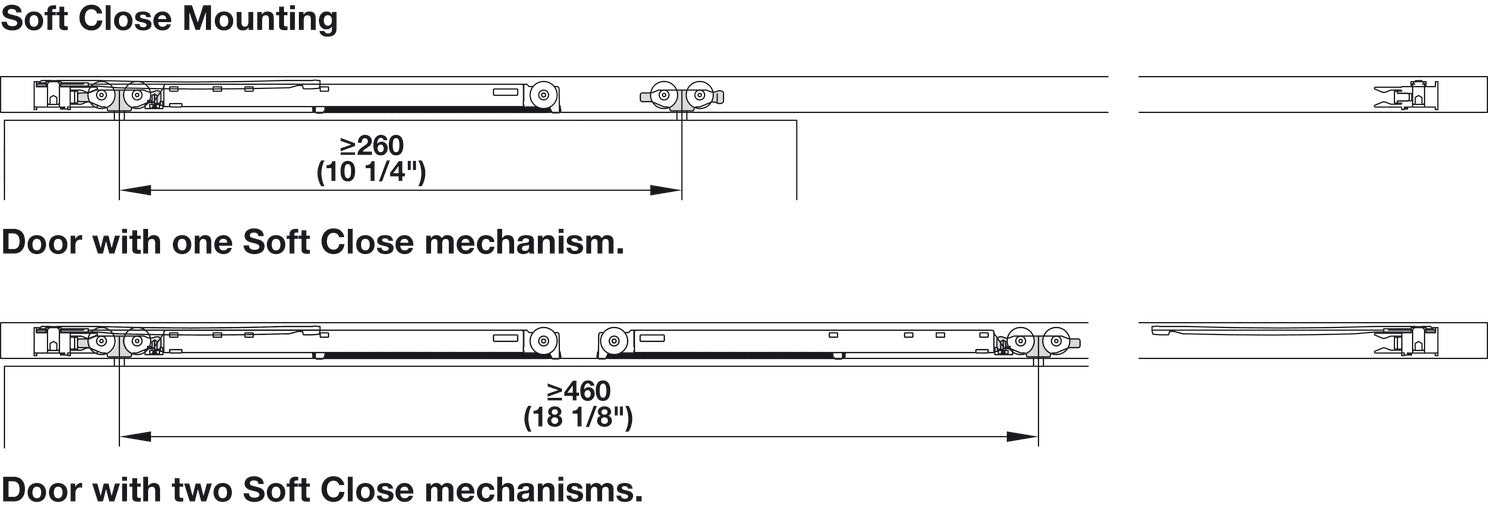

    Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
