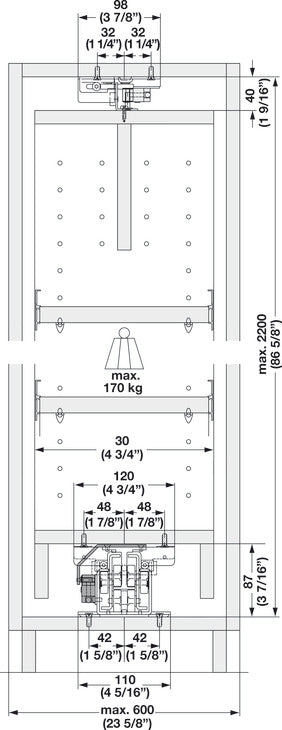

Hawa Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity
*Free Standard Ground Shipping on Orders over $199
- Load bearing capacity of pull out shelf: 170 kg
- Height: 40 – 87 mm
- Color/finish: Gray RAL 7035
- Version:
8 ball-bearing mounted plastic covered steel rollers
2 friction bearing mounted steel rollers
1 friction bearing mounted cylinder steel roller - Type of pull out : Partial extention
-
Material
:
Steel
-
Adjustment facility
:
Height adjustment 3 mm (+2/-1) with adjusting screw permitting alignment of front panel
-
Suitable for
:
8 ball-bearing mounted plastic covered steel rollers
2 friction bearing mounted steel rollers
1 friction bearing mounted cylinder steel roller -
Features
:
8 ball-bearing mounted plastic covered steel rollers
2 friction bearing mounted steel rollers
1 friction bearing mounted cylinder steel roller -
Installation reference
:
Rubber buffers on the rails and runner ensure silent action
Return guide and retainer provide for the accurate closure of the cabinet pull-out safety stop - Installation : Screw fixing
- Number of baskets : 9
-
Order reference
:
Accessories such as soft closing set and add on panel to be ordered separately
421.48.381 will not work 421.48.021 soft close -
Supplied with
:
Top runner
Mounting instructions
