Pocket Door System, Accuride 123 (35 mm hinges included)

$82.06
$82.06
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Inset Frameless ApplicationInset application for doors up to 13/16” thick.

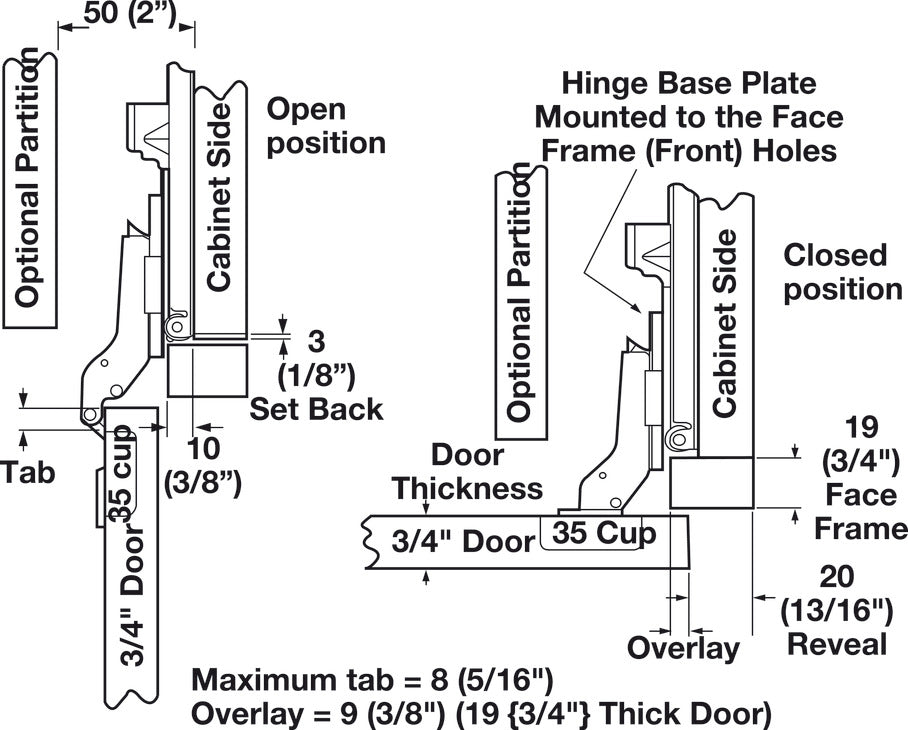

    Overlay Face Frame ApplicationMaximum door thickness up to 13/16”. Doors over 3/4” will require hinge adjustment and overlay amount will decrease. The hinge base plate must be moved forward to the two front face frame holes as indicated in the drawing.

  • Set: Set with tracks
  • For door width: ≤1,067 mm
  • Note on door width:

    Horizontal max. 42", vertical max. 24"

  • For door height: ≤1,067 mm
  • Note on door height:

    Horizontal max. 24", vertical max. 42"

  • For door weight: ≤13.6 kg

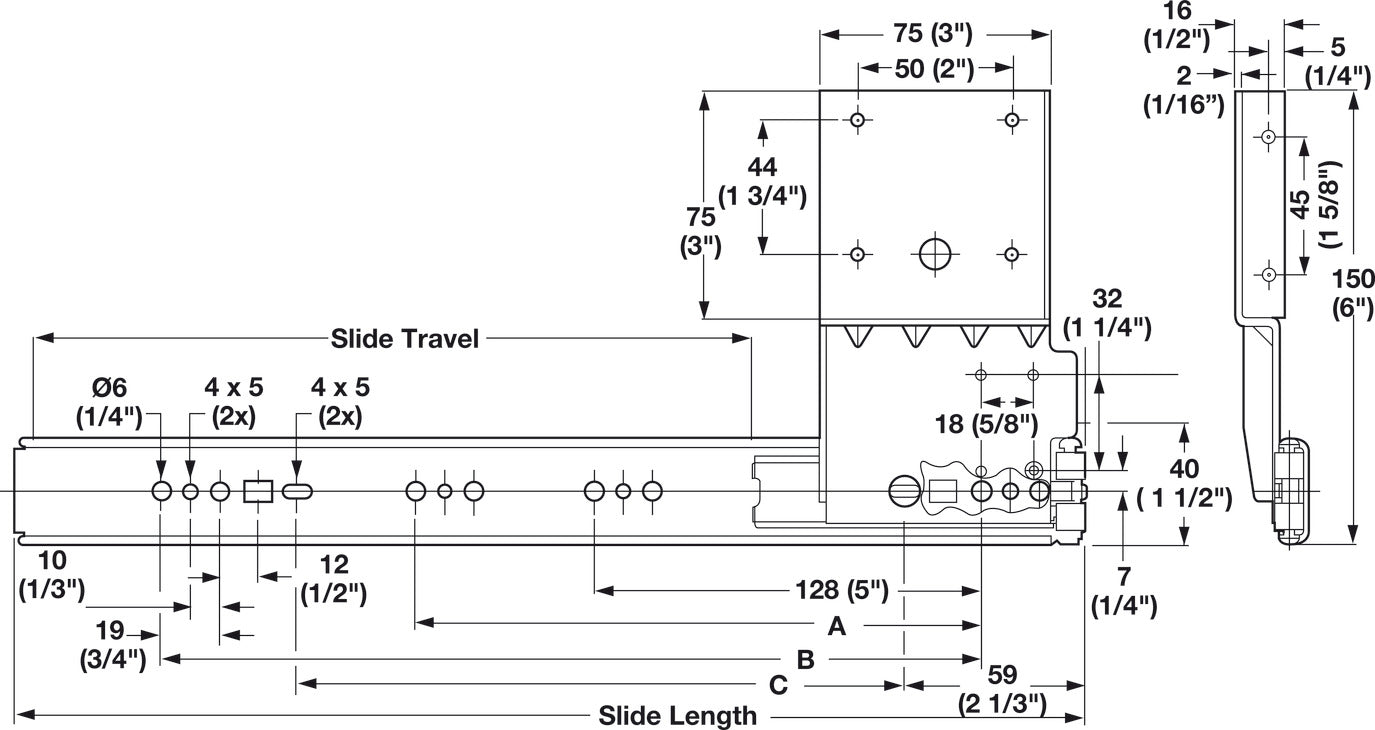

  • Dim. A: 352 mm
  • Dim. A: 13 7/8"
  • For door thickness min.: 5/8"
  • For door thickness max.: 1 1/4"

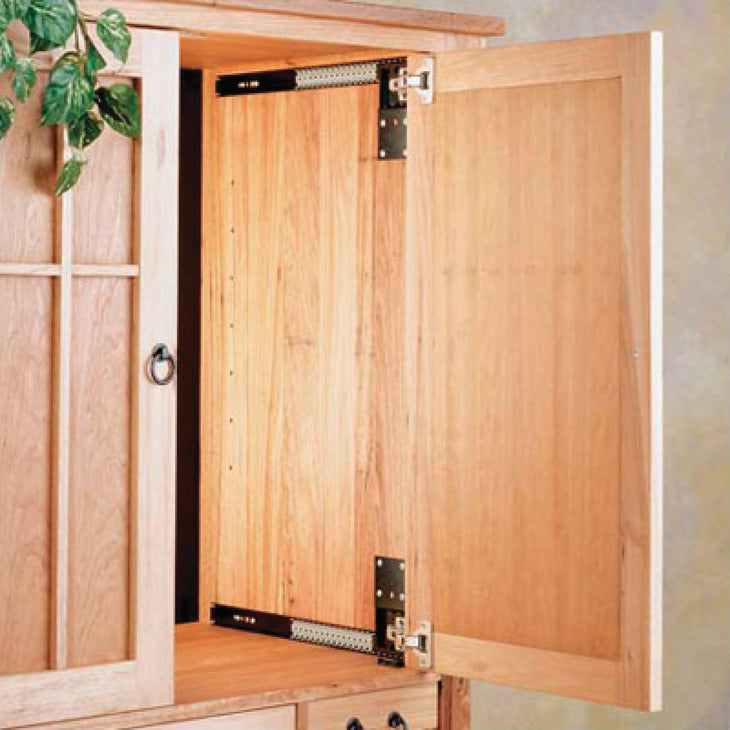

  • Area of application :

    For concealed doors in entertainment centers, wall units,
    and cabinets

  • For door material : wood
  • For door thickness : 16 – 31.75 mm
  • Material/finish : Black, Zinc
  • Installation :

    Wood follower strip is provided by the customer
    Cut follower strip is 6” shorter than door height
    Maximum thickness for follower strip is 19 mm (3/4”)
    Detent out

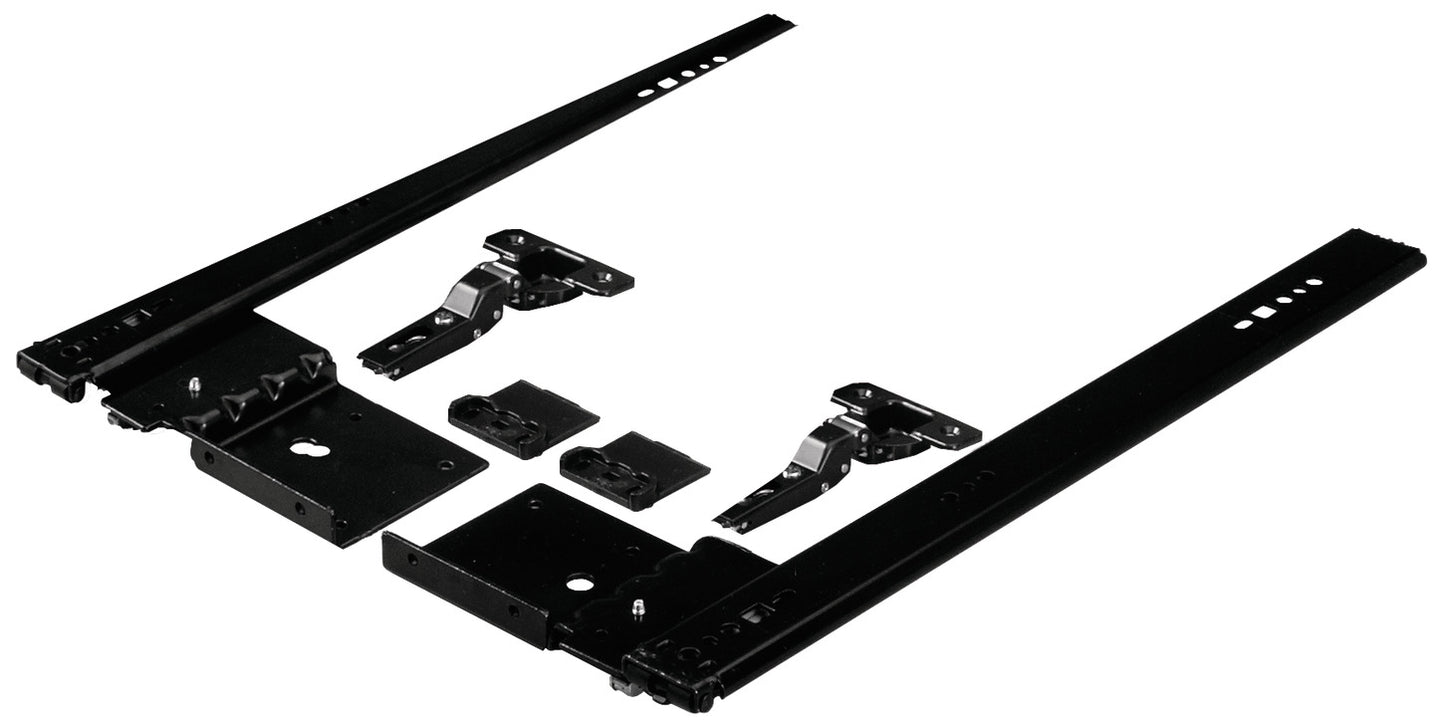

  • Supplied with :

    2 slides
    2 pivot blocks and all mounting hardware
    2 clip on hinges
