Sliding Door Hardware, Hawa Aperto 40/F, Infront
Regular price
$1,641.63
Regular price
Sale price
$1,641.63
Unit price
per
Shipping calculated at checkout.
*Free Standard Ground Shipping on Orders over $199

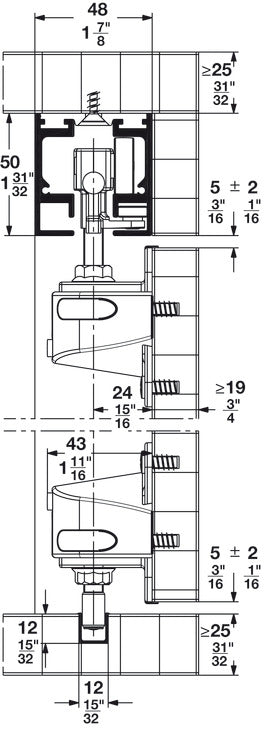

- For door thickness: 19 – 25 mm
- For door width: 400 – 900 mm
- For door weight: ≤40 kg
- Running position: top
- Number of rollers: 2
- Height adjustment facility: ±2 mm
- Running gear guided by: Friction bearing
- For door material: wood
- For door thickness max.: 1"
- For door height (inches): ≤ 102 3/8"
- For cabinet width: 15 3/4" - 35 7/16"
- For door width (inches): ≤ 102 3/8"
- For door thickness min.: 3/4"
- Height adjustment: ± 5/64"

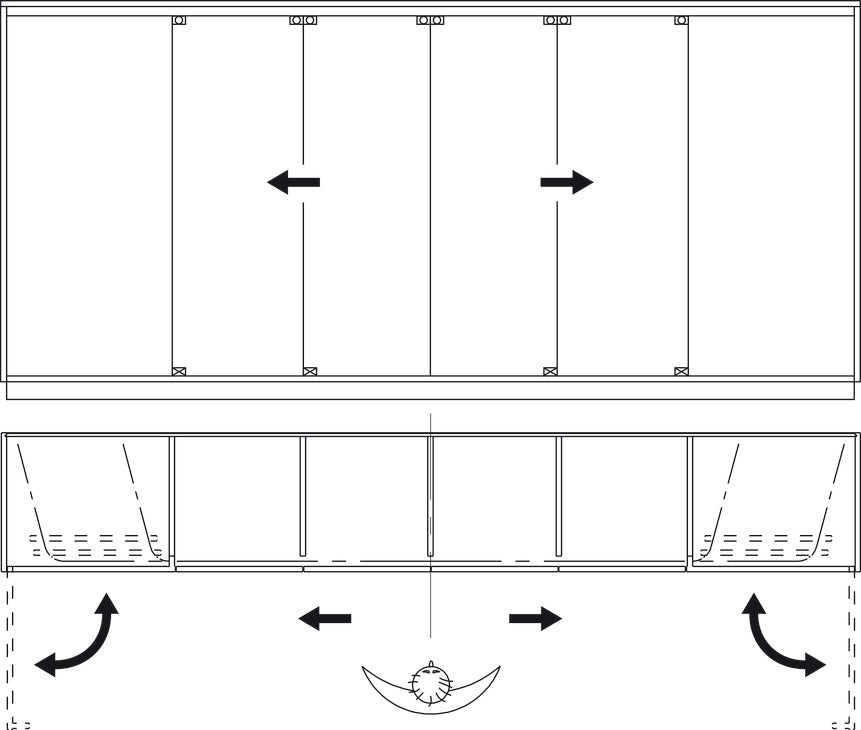

- Cabinet version : with parking area, with stackable door panels per parking area
- Model series : Aperto
- Set : Set with tracks
-
Area of application
:
for 1 parking area
- For door height : ≤2,600 mm
- Material/finish : Mounting plate: Zinc alloy Running gear: Zinc alloy Rollers: Plastic
- Adjustment facility : Height adjustment facility: ±2 mm, Height adjustment ±2 mm on running gear using screw
- Door adjustment via : screw
- Installation : Running gear and guide for screw fixing
- Door processing : for screw fixing

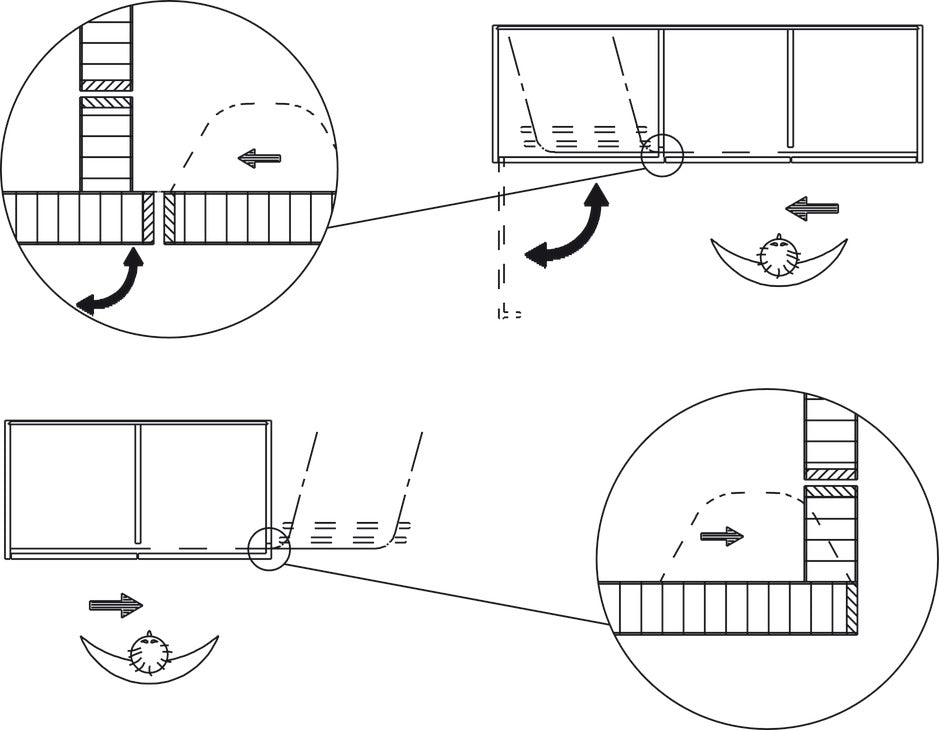

- Type of opening : Parking
- Number of doors per system max. : 7
-
Order reference
:
-
Supplied with
:

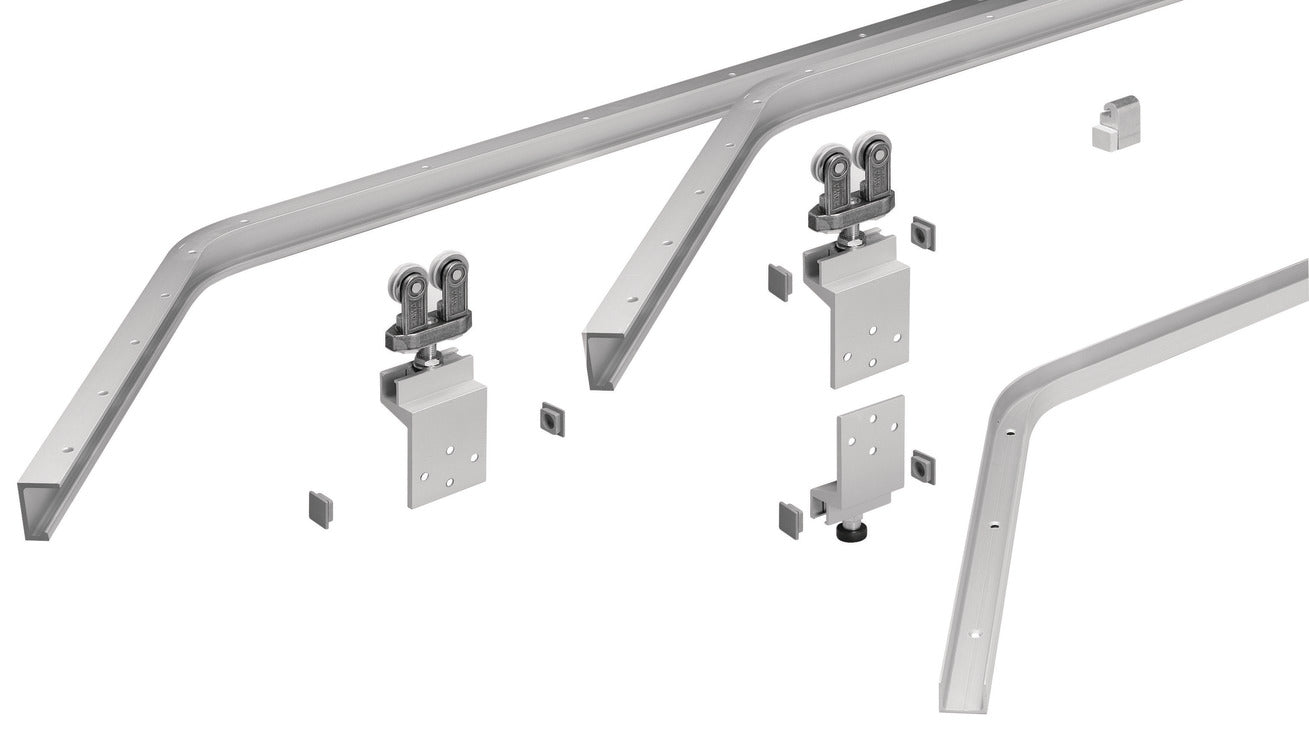

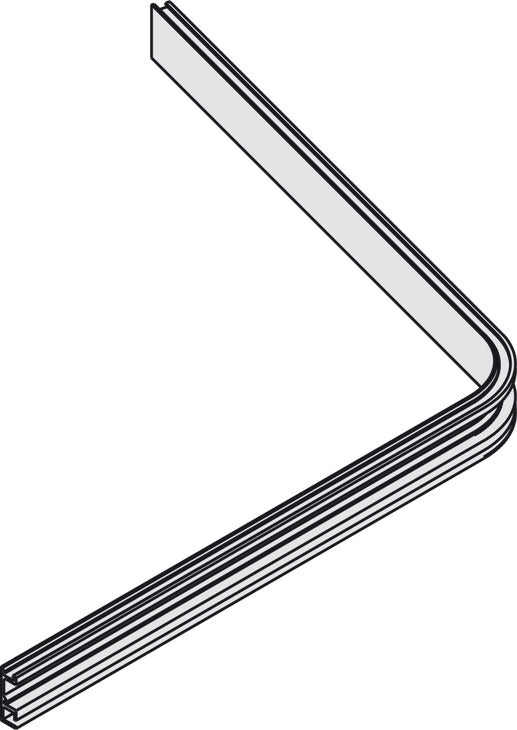

2 curved single top running tracks

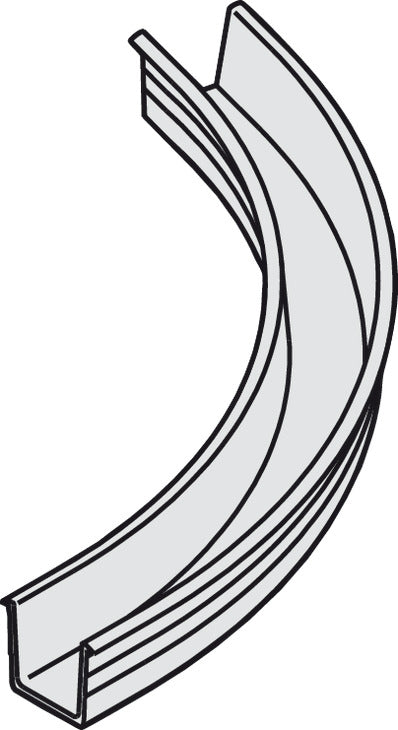

1 curved single bottom guide track

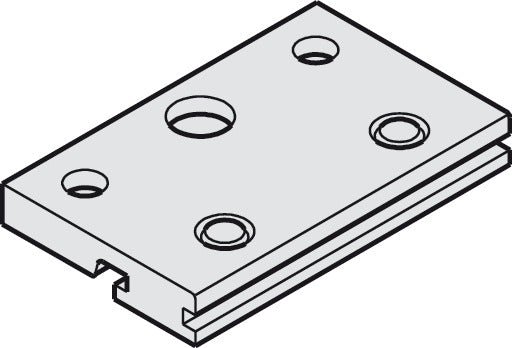

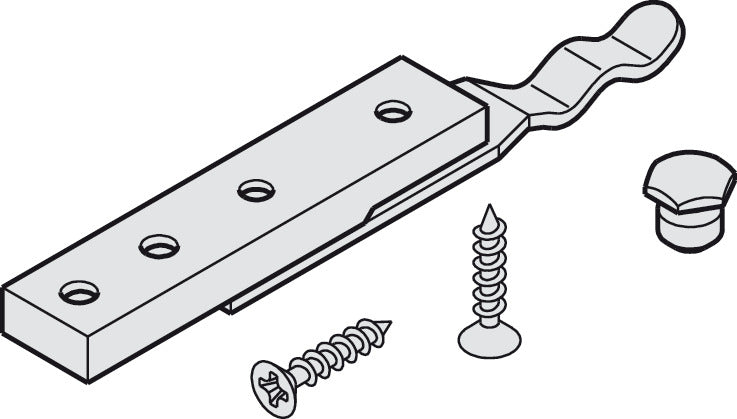

8 single fixing plates
1 double fixing plate

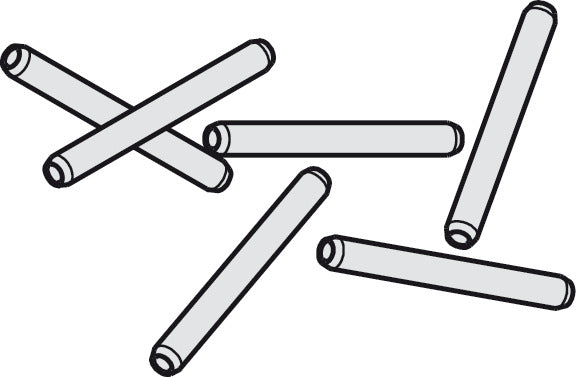

6 connecting bolts

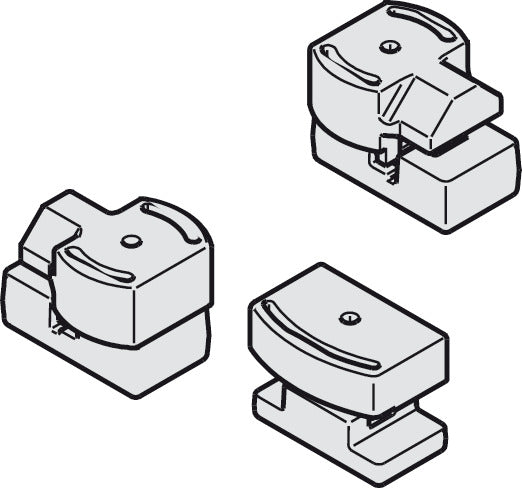

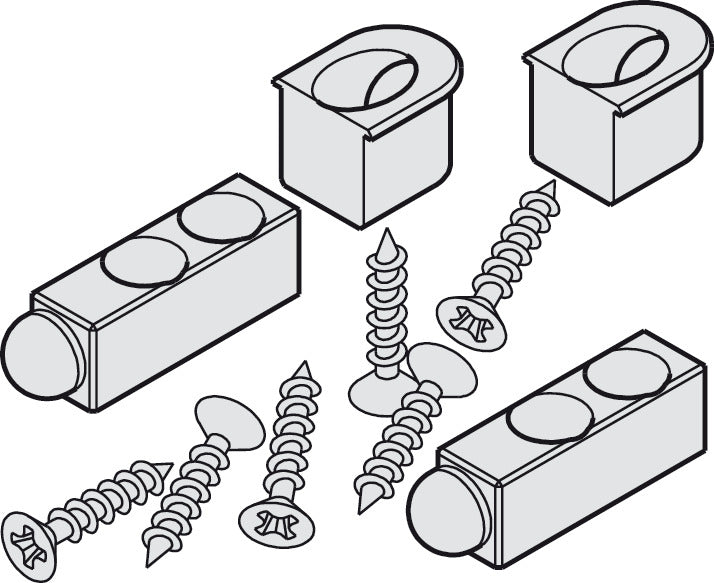

2 door stopper sets (1 top/1 bottom)
1 center door stopper

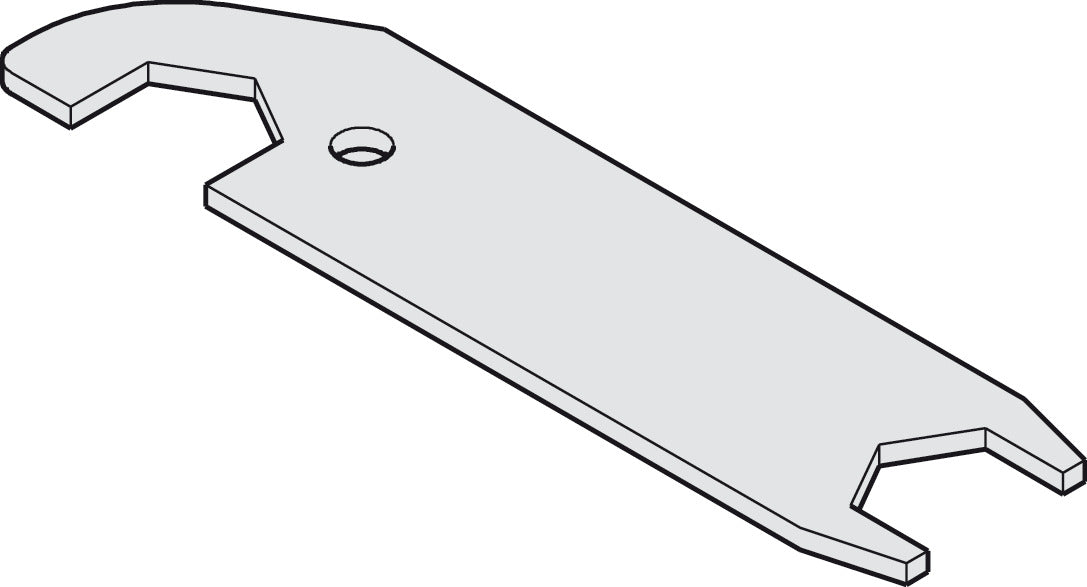

1 adjustment wrench

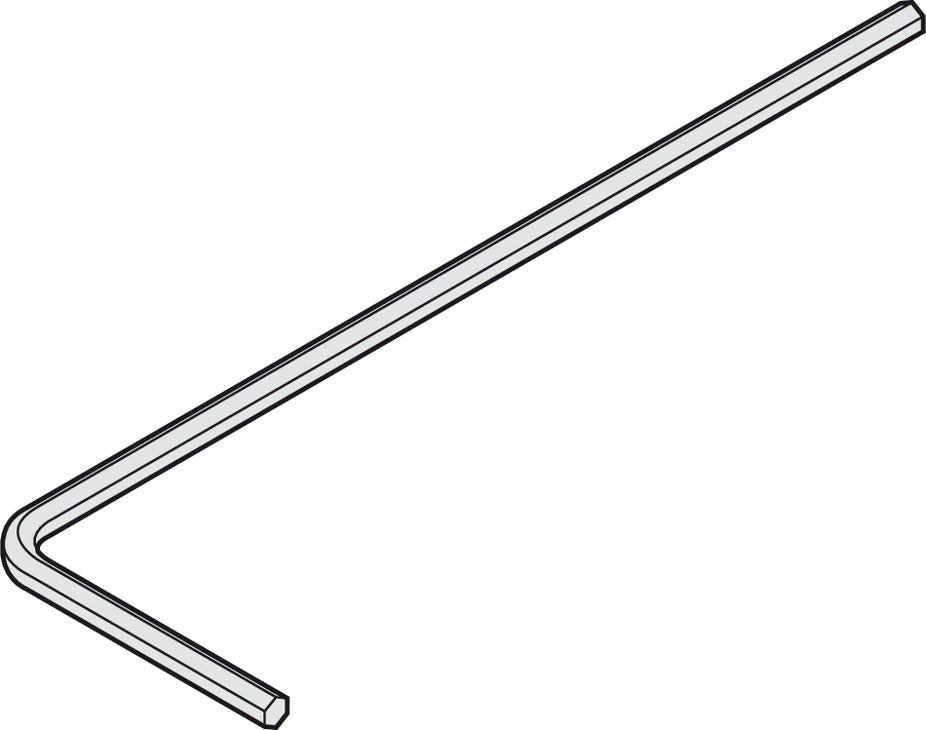

1 hex key
