Sliding

$243.07
$243.07
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • For door width: ≤1,600 mm
  • For door material: wood

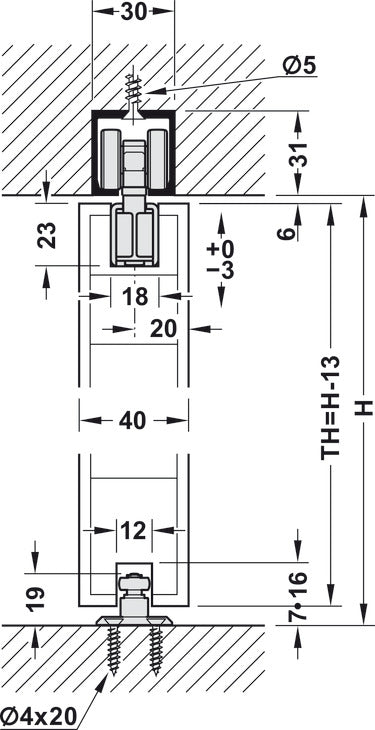

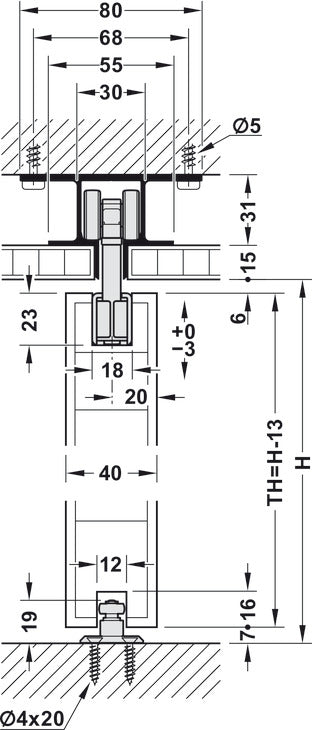

  • Controller installation options: Ceiling installation, Wall mounting
  • For door thickness: 30 – 40 mm
  • Adjustment facility: Height adjustment facility: >-3 mm, Door height adjustable 0/–3 mm (0-1/8") or 0/-2 mm (0/-1/16")
  • Number of doors: 1
  • Door width max.: ≤ 5' 3"

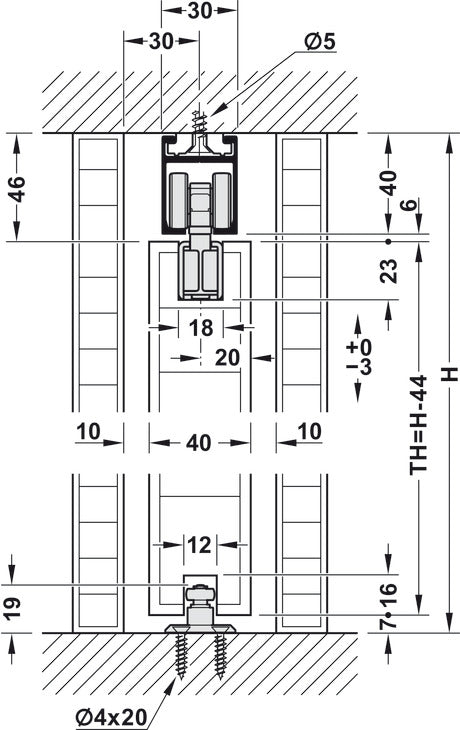

  • Suitable for : Minimum installation height, Wall pocket solution
  • Number of doors per system max. : 1
  • For door height : ≤2,700 mm

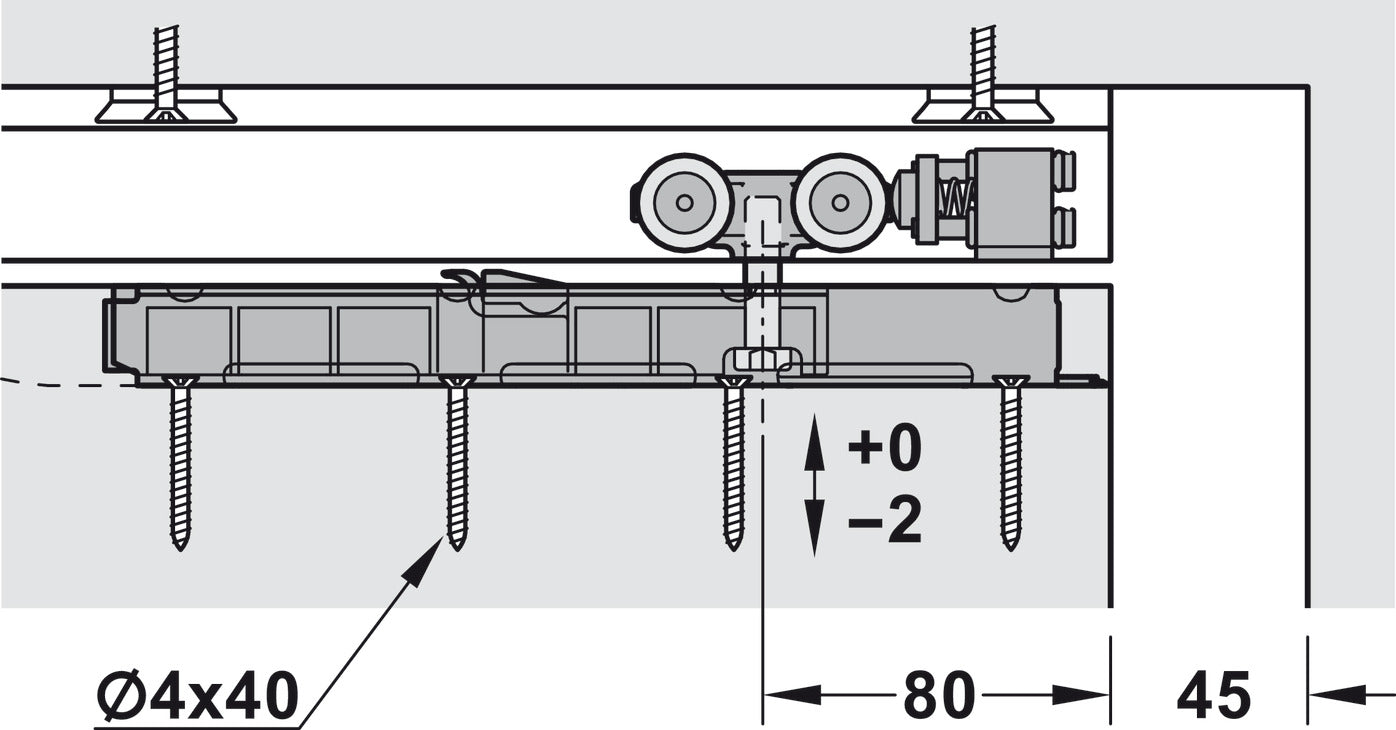

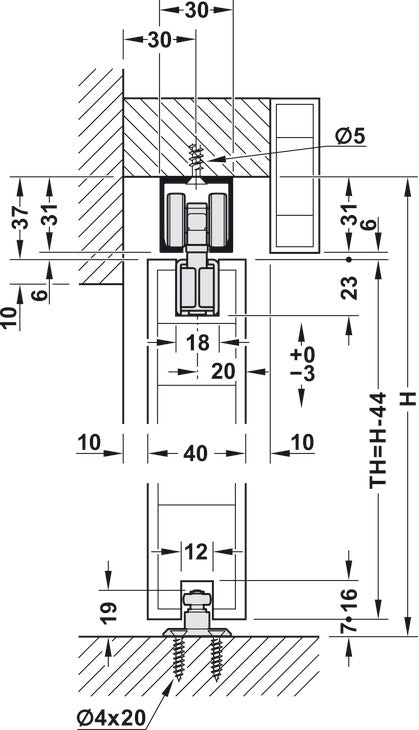

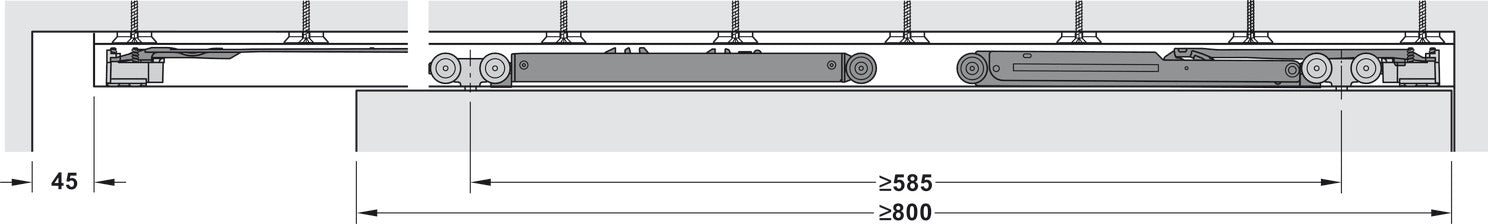

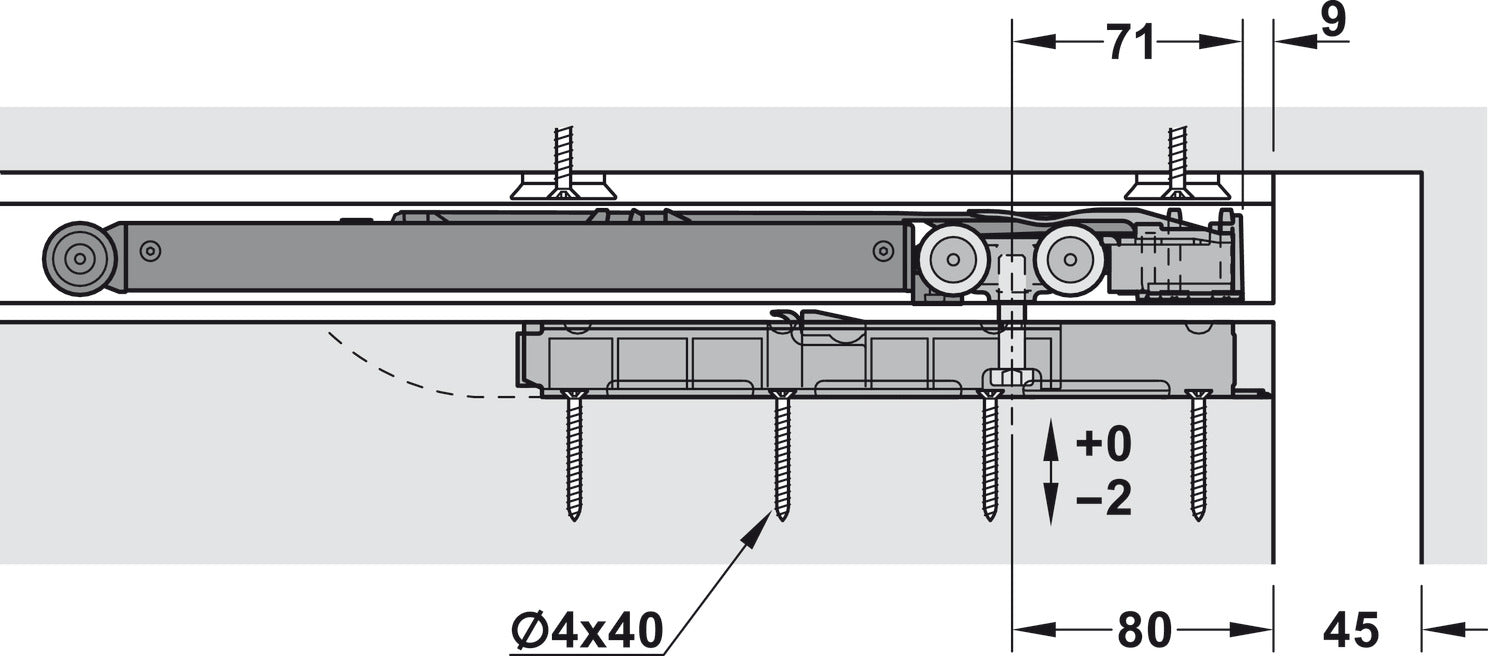

  • Installation reference :

    A panel may extend as far as the lower edge of the track for swivelling in and out.

  • Door processing : With recess
  • Standard : Certified in compliance with EN 1527:1998
  • Classification in compliance with EN 1527 : -|6|2|0|-|0|-|1|3
  • Supplied with :

    2 running gears with suspension screw and nut, M8
    2 support profiles
    1 cover cap
    2 track stopper with retaining spring
    1 floor guide, adjustable
    1 set of fixing screws
    1 cylinder screw, M8 x 35 mm
