Sliding door fitting, Hawa Junior 80/B-Pocket, set

$479.17
$479.17
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Model: 80 B Pocket
  • Soft closing mechanism: without soft and self closing mechanism
  • For door weight: ≤80 kg
  • For door width: ≤1,500 mm
  • For door material: wood

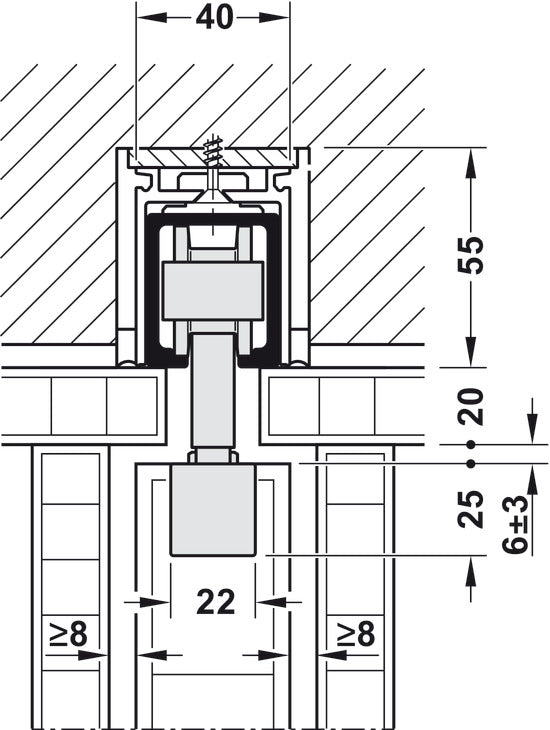

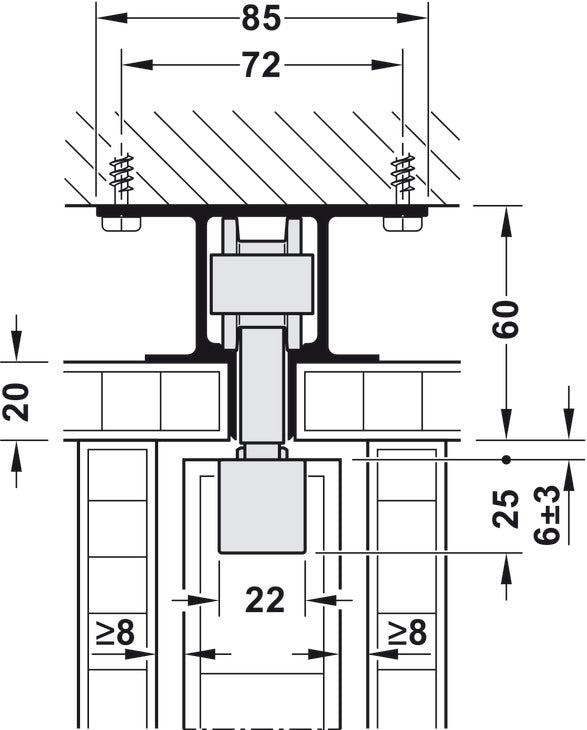

  • Controller installation options: Ceiling installation, Integrated ceiling installation, Wall pocket solution
  • For door thickness: 35 – 80 mm
  • Adjustment facility: Height adjustment facility: ±3 mm, Door height adjustable +3 mm, with integrated anti-twist protection horizontal adjusting distance in lengthways direction in bayonet mount ±8 mm
  • Number of doors: 1
  • For door thickness max.: 1 3/16"
  • Door width max.: 27 9/16 - 59 1/16"

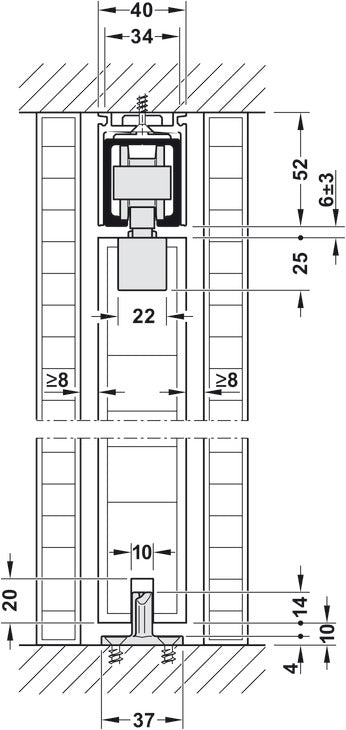

  • Suitable for : Wall pocket solution
  • Number of doors per system max. : 1
  • For door height : ≤4,000 mm
  • Functionality :

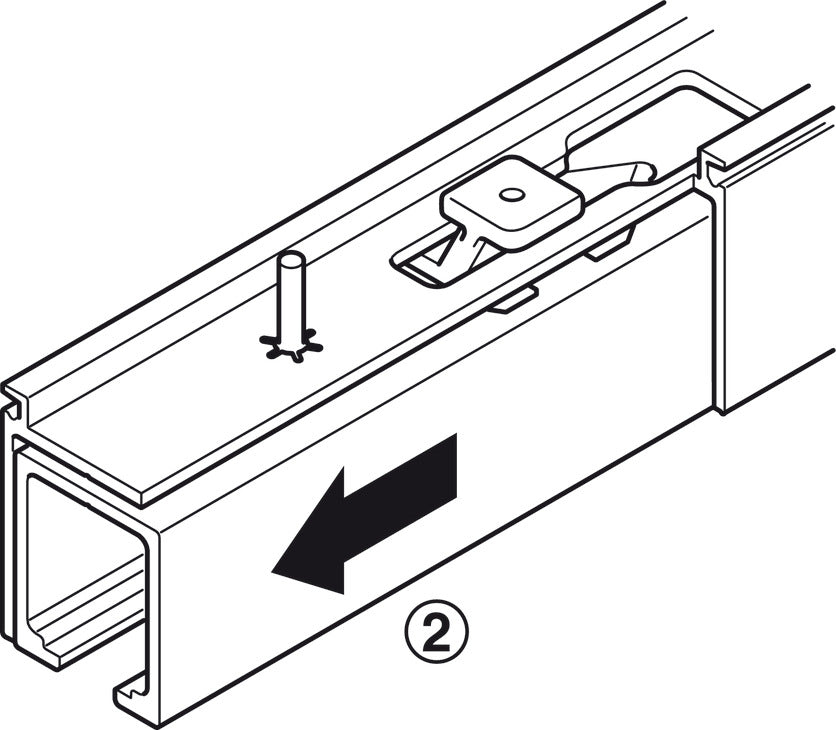

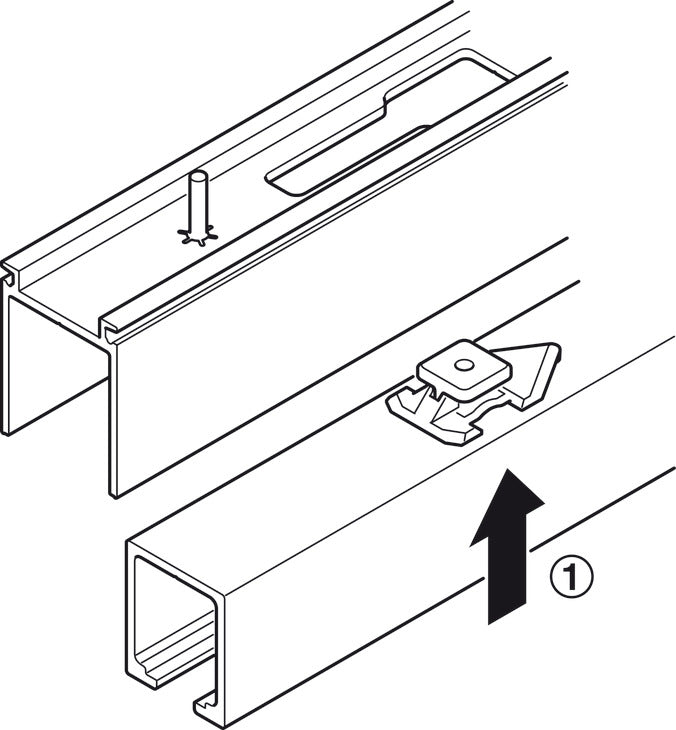

    subsequent disassembly of the running track without opening the wall is possible, the running gear and the soft and self closing mechanism can be removed, stopper position can be readjusted in wall pocket

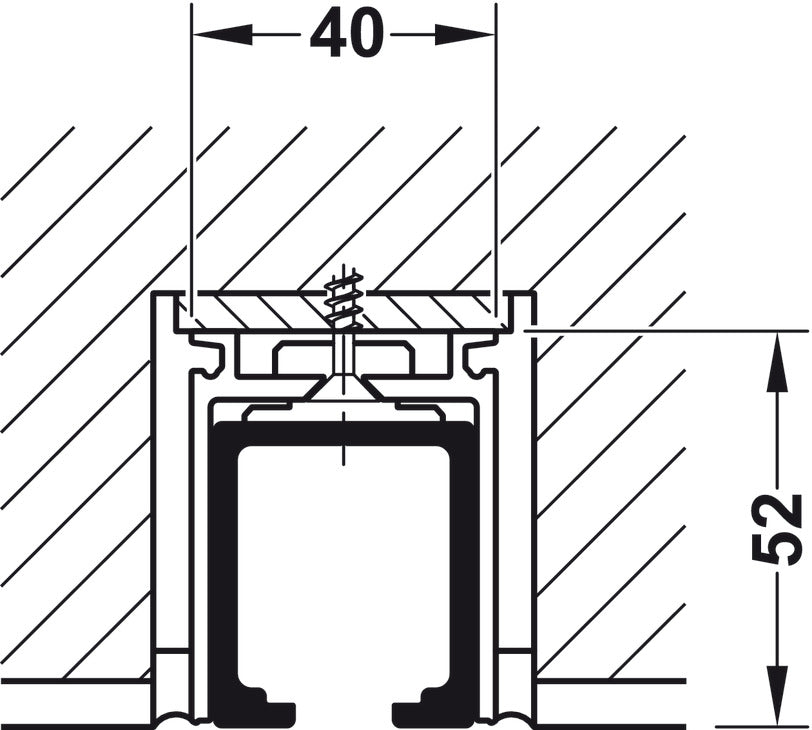

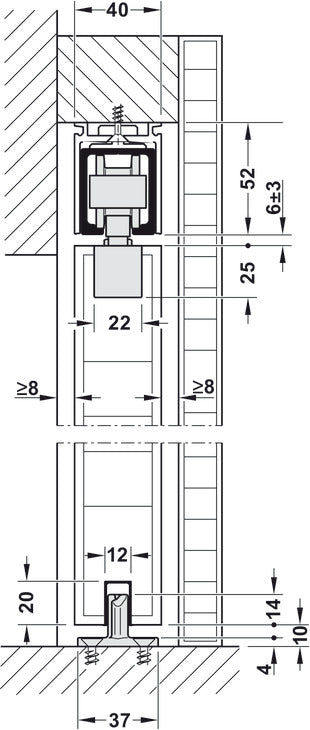

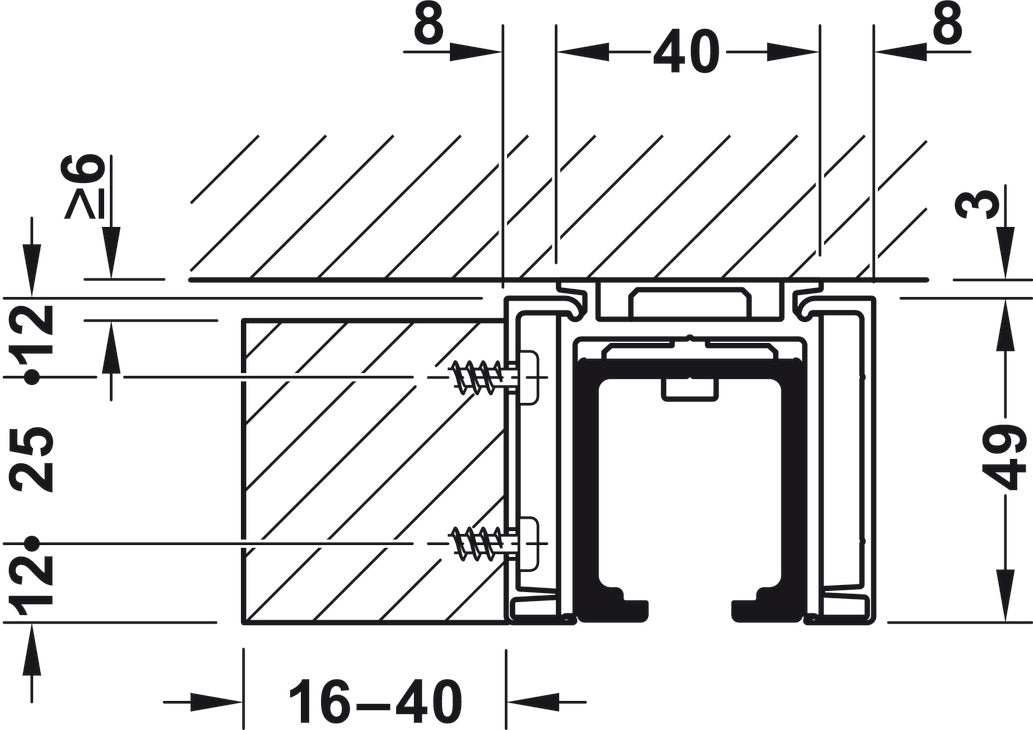

  • Installation : Suspension with recessed support profile and integrated suspension carriage
  • Installation reference :

    subsequent disassembly of the running track is possible without opening the wall,
    running gear and soft and self closing mechanism can be removed,

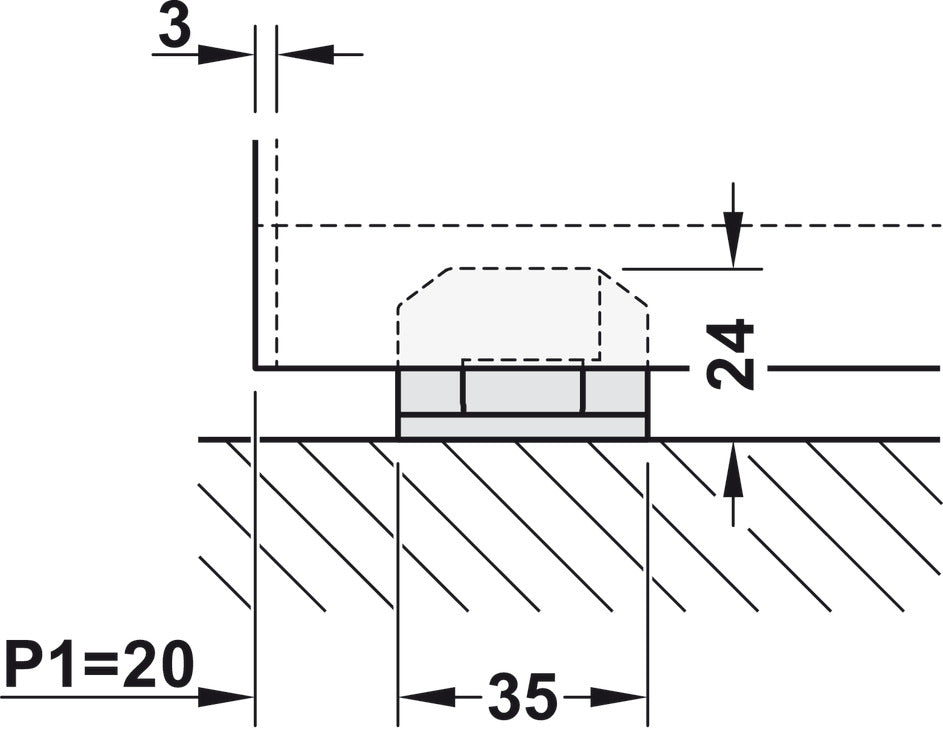

    stopper position in the wall pocket is readjustable

  • Door processing : With recess
  • Standard : Certified in compliance with EN 1527:2013
  • Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3
