• Sliding Door Hardware, HAWA Junior 80/B, set
1 20

Sliding Door Hardware, HAWA Junior 80/B, set

$521.68
$521.68
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

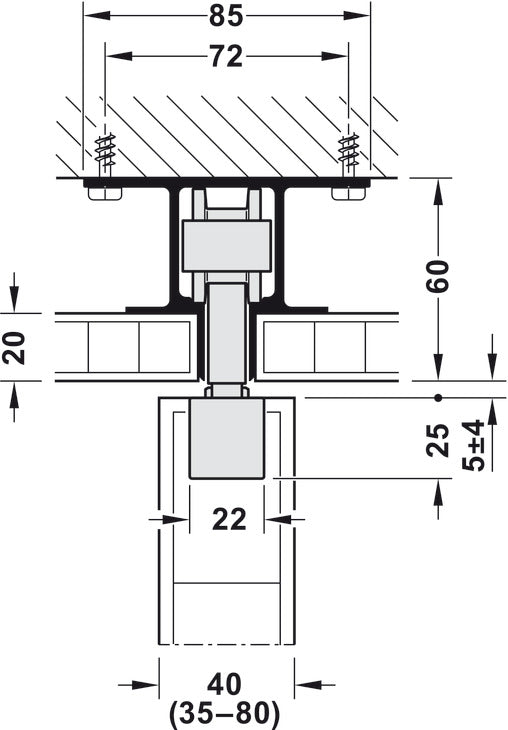

  • For low headroom applications, gap between the door and upper track can be as small as 1 mm (1/32”)

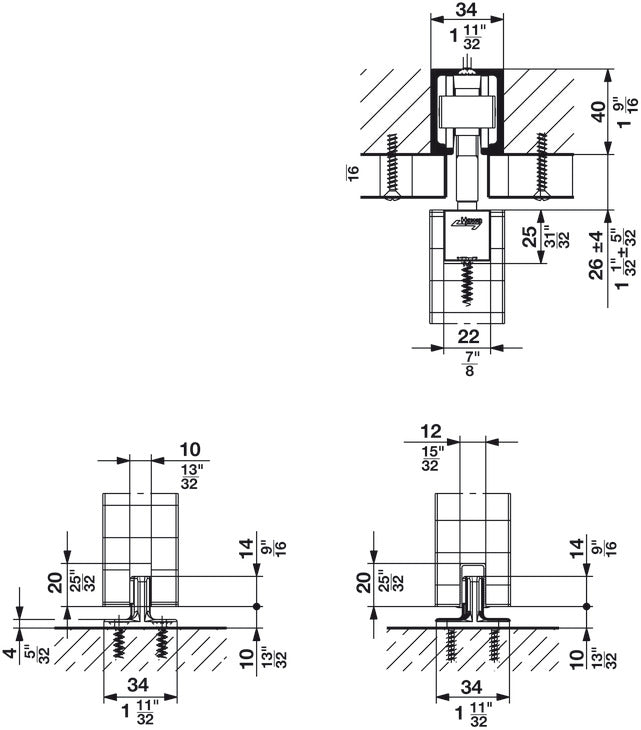

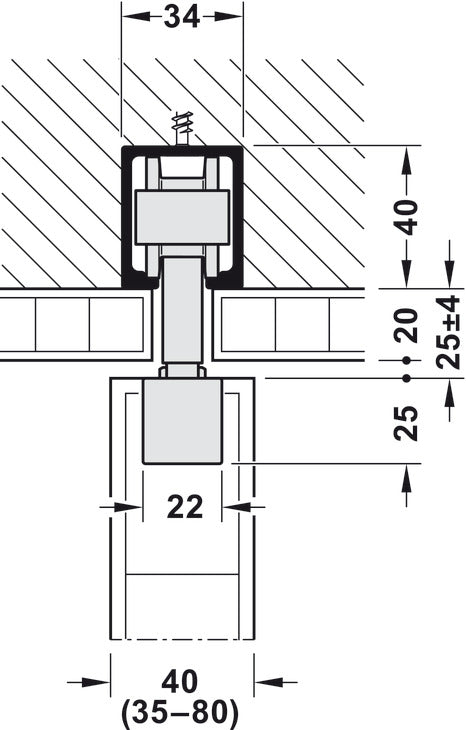

    Set with 20 mm (25/32”) longer suspension bolt available which allows up to 22 mm (7/8”) thick ceiling tiles to overlap the upper track

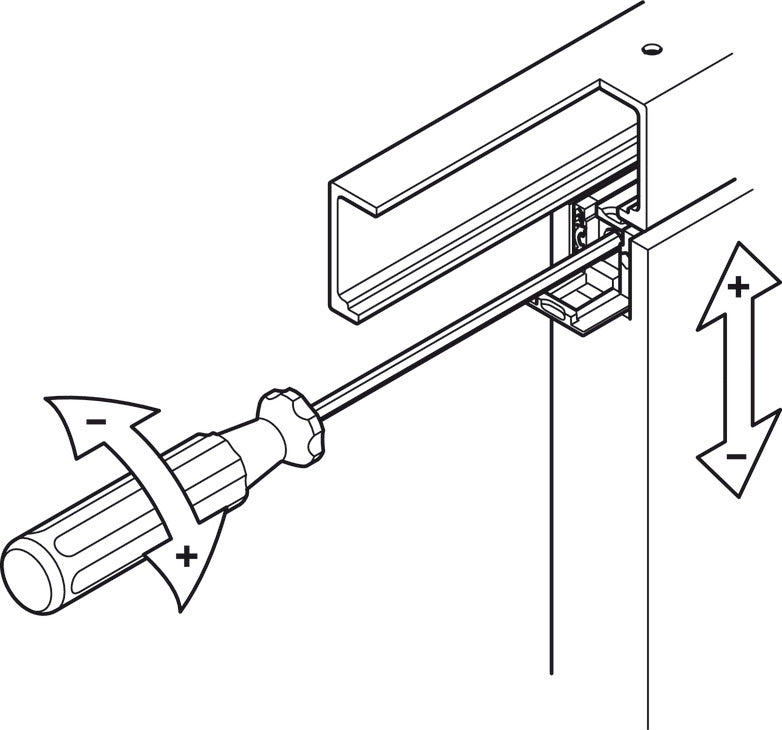

    Height adjustable: +/- 7 mm (9/32”)
    Coarse adjustment +/- 3 mm (1/8”)
    Fine adjustment +/- 4 mm (5/32”)

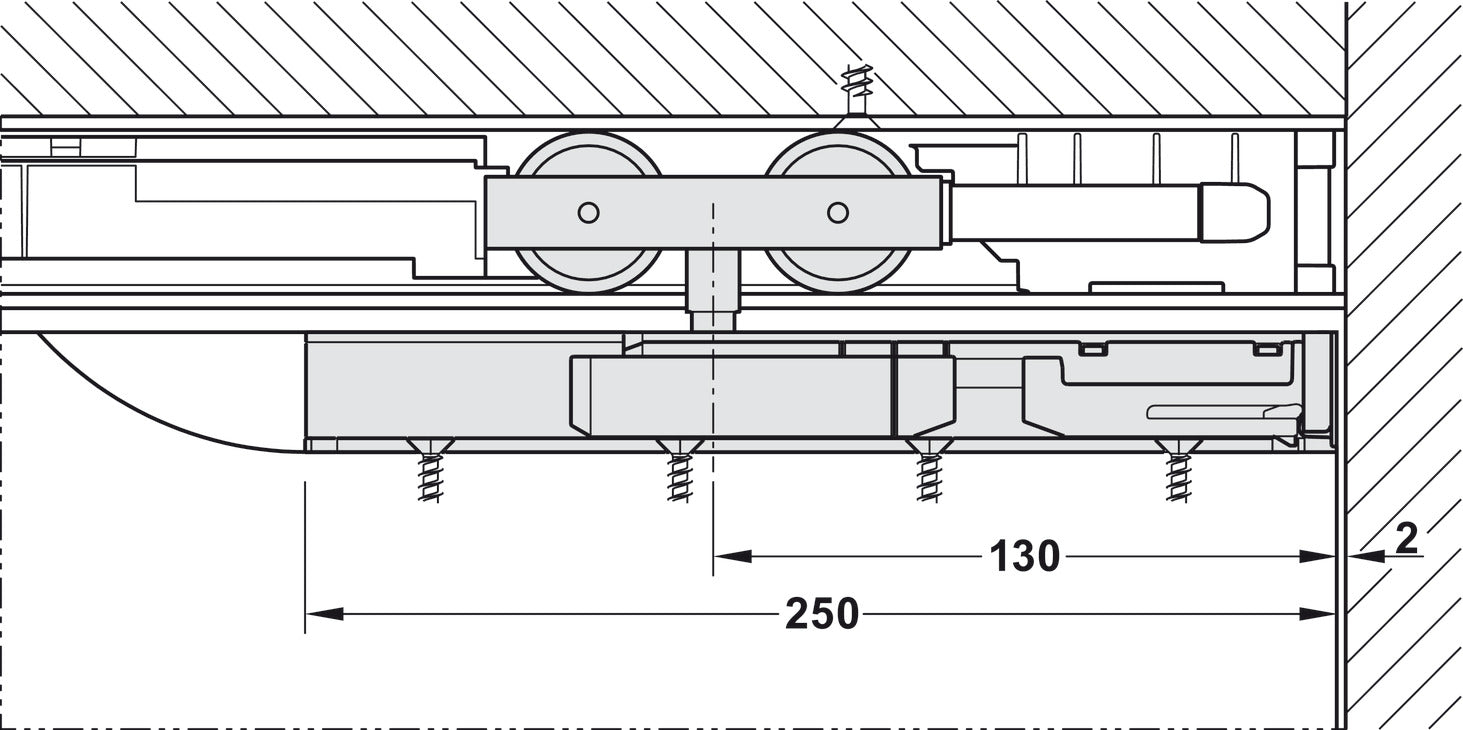

    Track stopper with adjustable retention spring

  • Soft closing mechanism: without soft and self closing mechanism
  • For door weight: ≤80 kg
  • For door width: ≤3,000 mm
  • For door material: wood

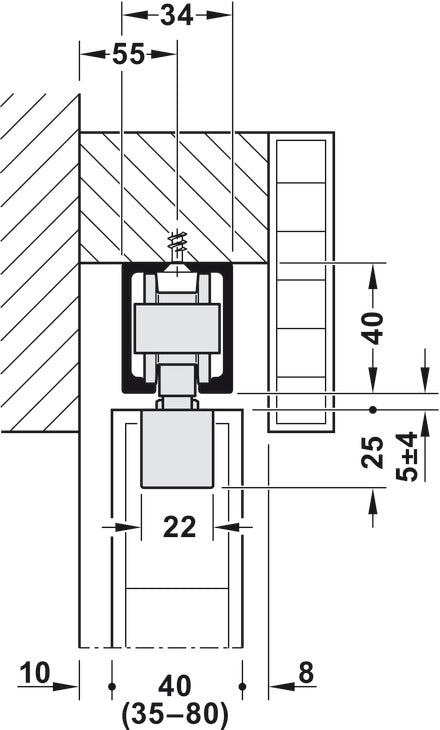

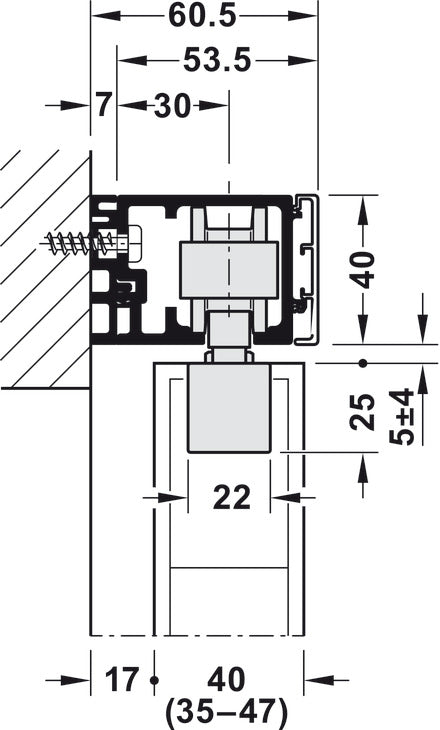

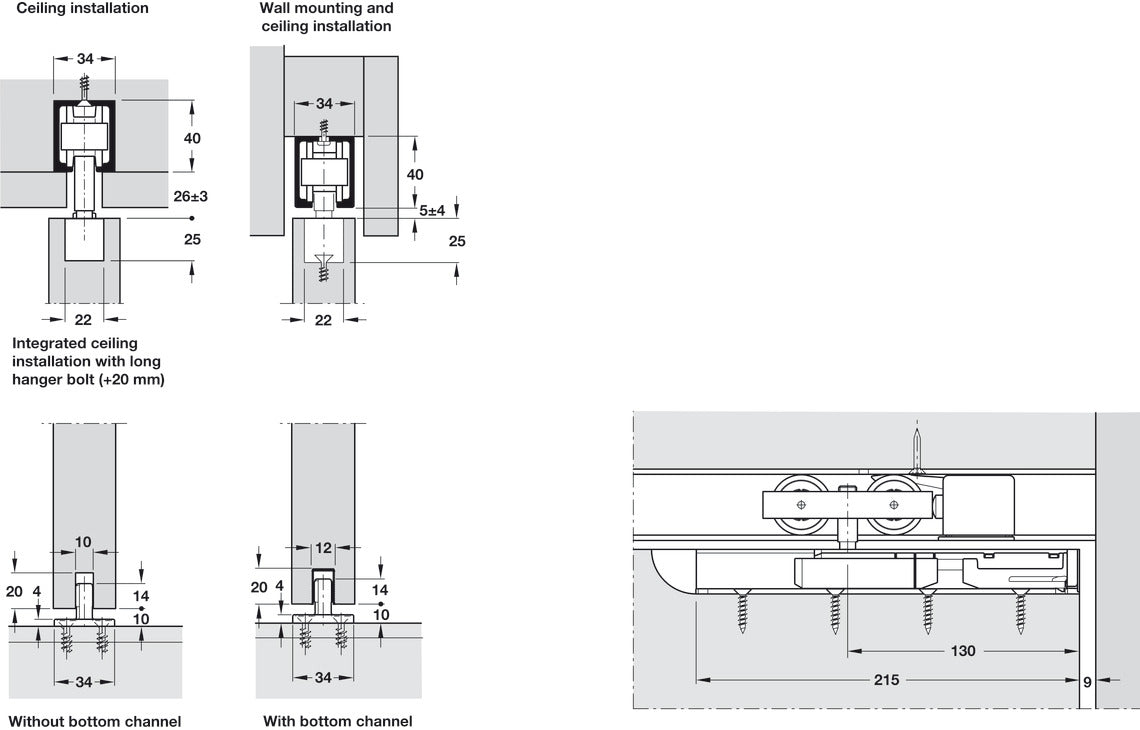

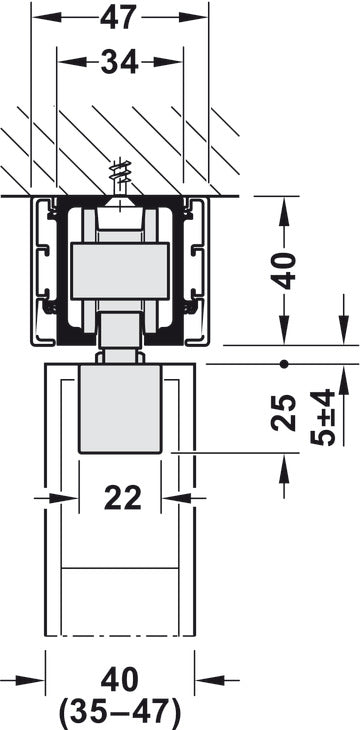

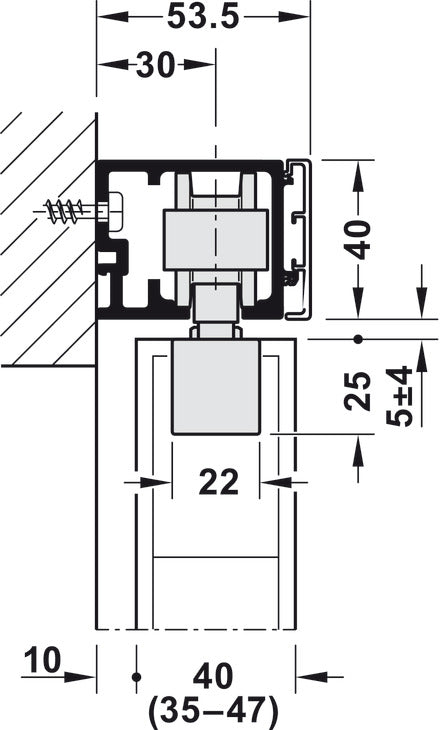

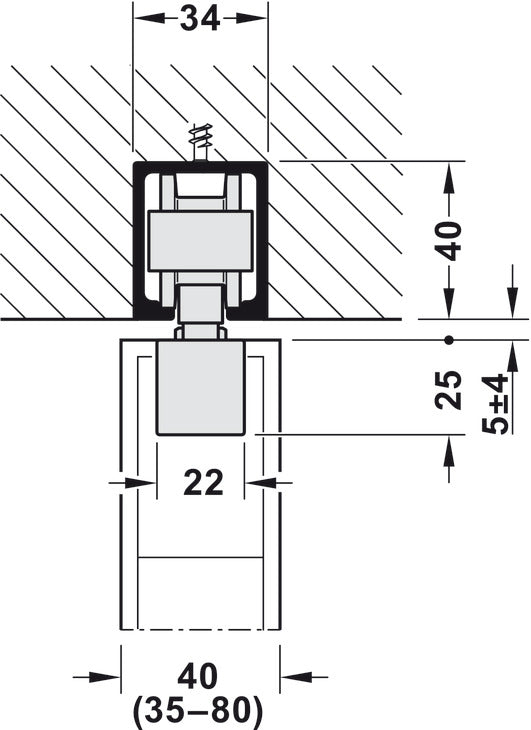

  • Controller installation options: Ceiling installation, Wall mounting, Integrated ceiling installation
  • For door thickness: 35 – 80 mm
  • Adjustment facility: Height adjustment facility: ±3 mm, Height ±4 mm track buffer with adjustable retaining spring and cover cap
  • Number of doors: 1
  • For door thickness min.: 1 3/16"
  • Suitable for : Minimum installation height
  • Number of doors per system max. : 1 to 2
  • For door height : ≤4,000 mm

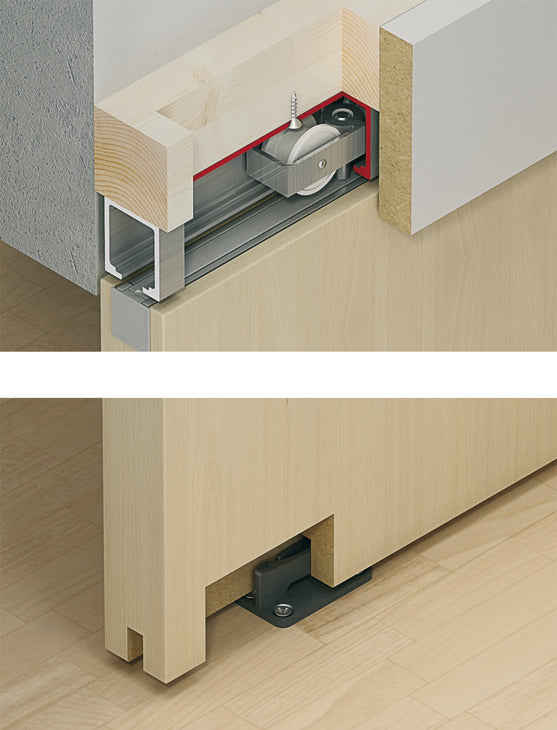

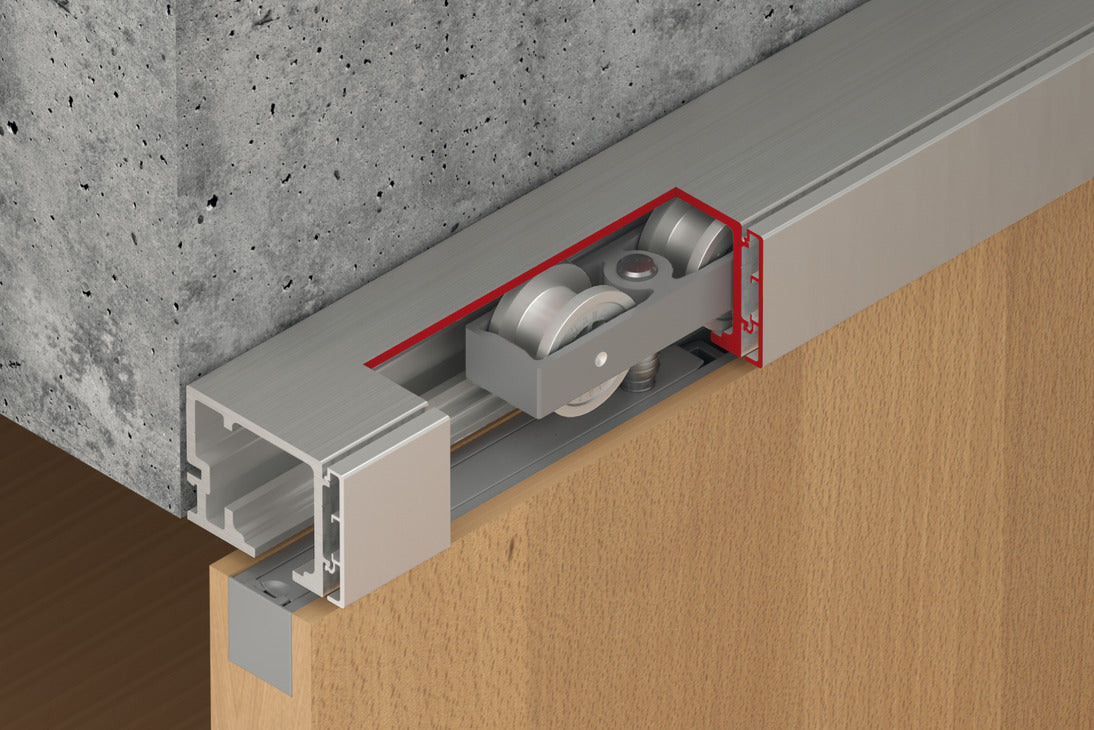

  • Installation : Suspension with recessed support profile and installation-friendly suspension carriage with integrated metal cover cap

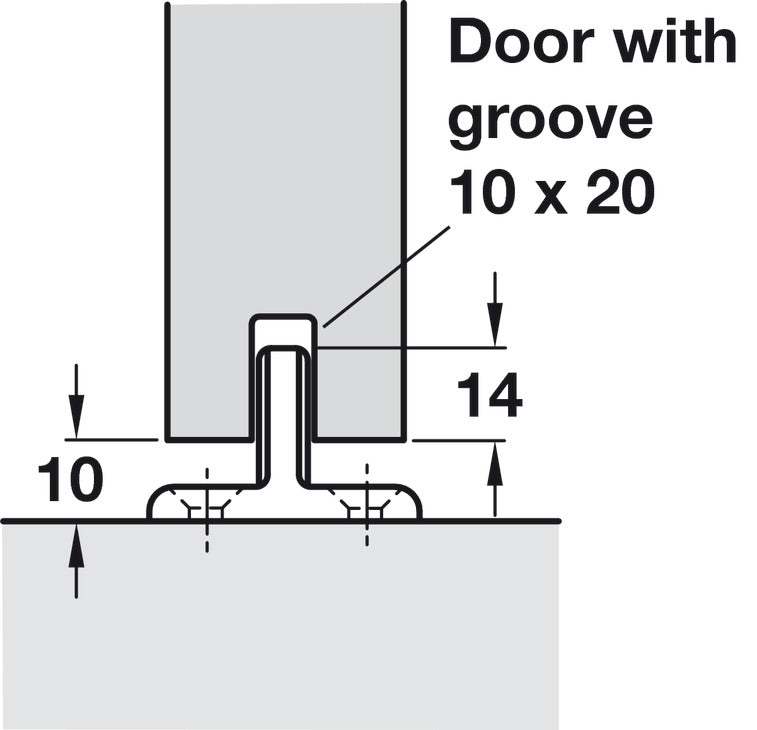

  • Door processing : With recess
  • Standard : Certified in compliance with EN 1527:2013
  • Classification in compliance with EN 1527 : -|6|2|-|1|0|-|1|3
  • Order reference :

    Order 2 sets for 2‐leaf sliding doors.
