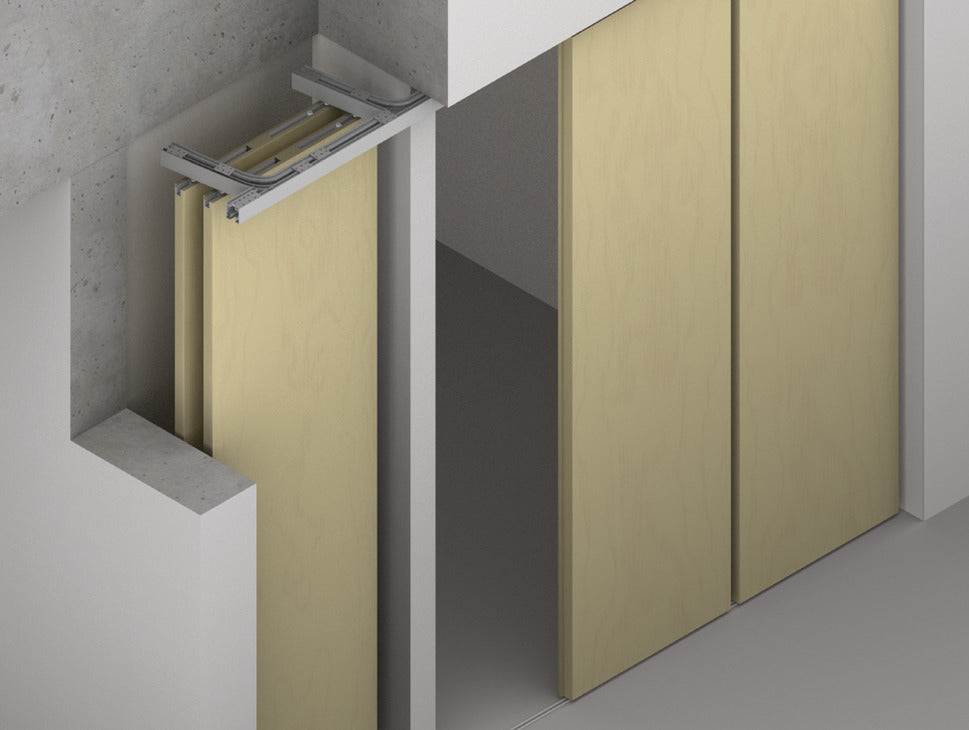

Sliding door fitting, HAWA Aperto 60 H, hinged door set

$1,231.97
$1,231.97
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

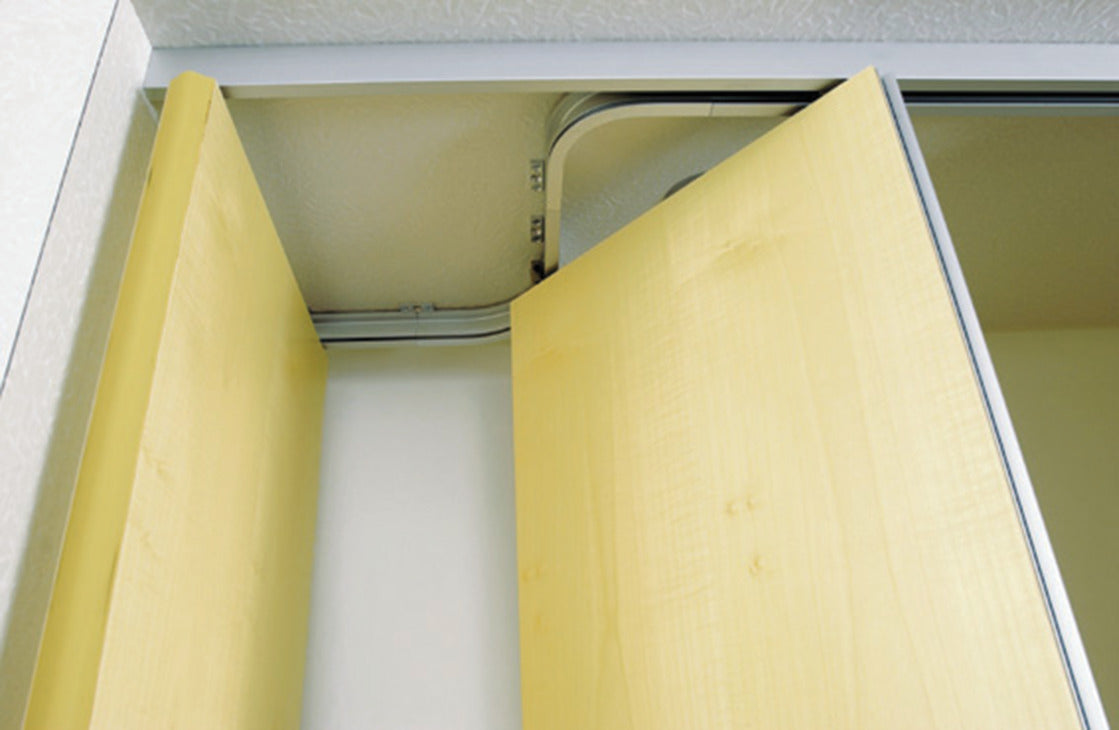

  • Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90º or parallel to the sliding axis

  • For door thickness min.: 1 1/2"
  • For door thickness max.: 2"
  • For door material : glass
  • Area of application :

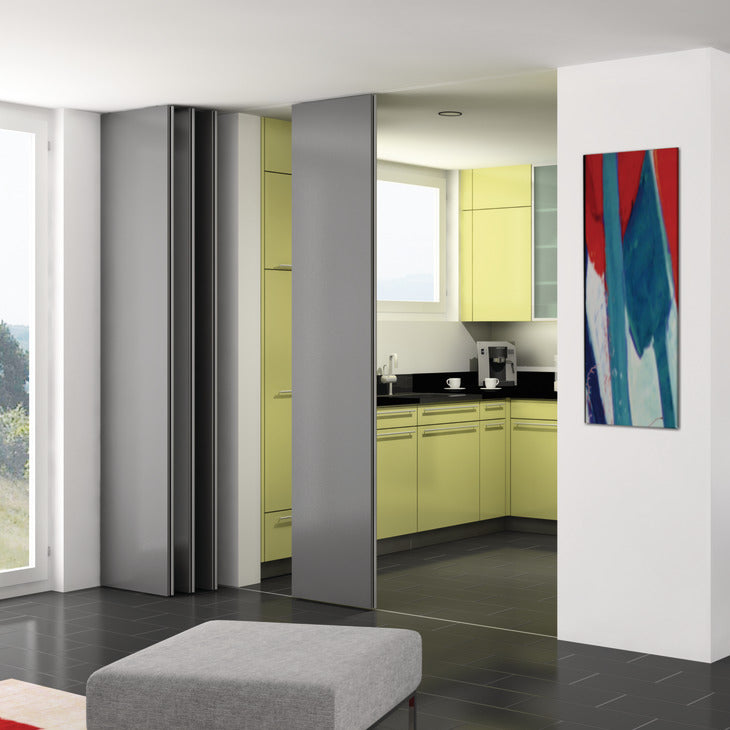

    Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings
    locking of the system with one lock

  • Suitable for : Flexible room or visual separation
  • Number of doors per system max. : >4
  • For glass type : Tempered safety glass
  • For glass thickness with tempered safety glass : 8 mm, 10 mm, 9,5 mm
  • For door height : ≤2,600 mm
  • For door weight : ≤60 kg

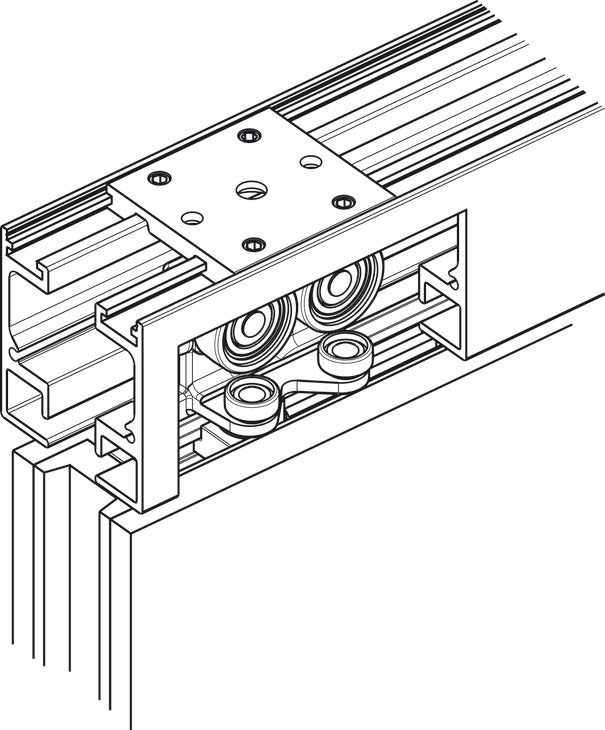

  • Running system : Concealed in track
  • Controller installation options : Ceiling installation
  • Adjustment facility : Height adjustment facility: ±3 mm, Door height adjustable ±3 mm
  • Support flange connection : point support, Carriage
  • Type of Opening : Manual
  • Order reference :

    Item numbers refer to only 1 pc or 1 set. Please specify required quantity when ordering individual parts.
