Sliding Door Hardware, Hawa Aperto 60/H, set

$882.99
$882.99
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

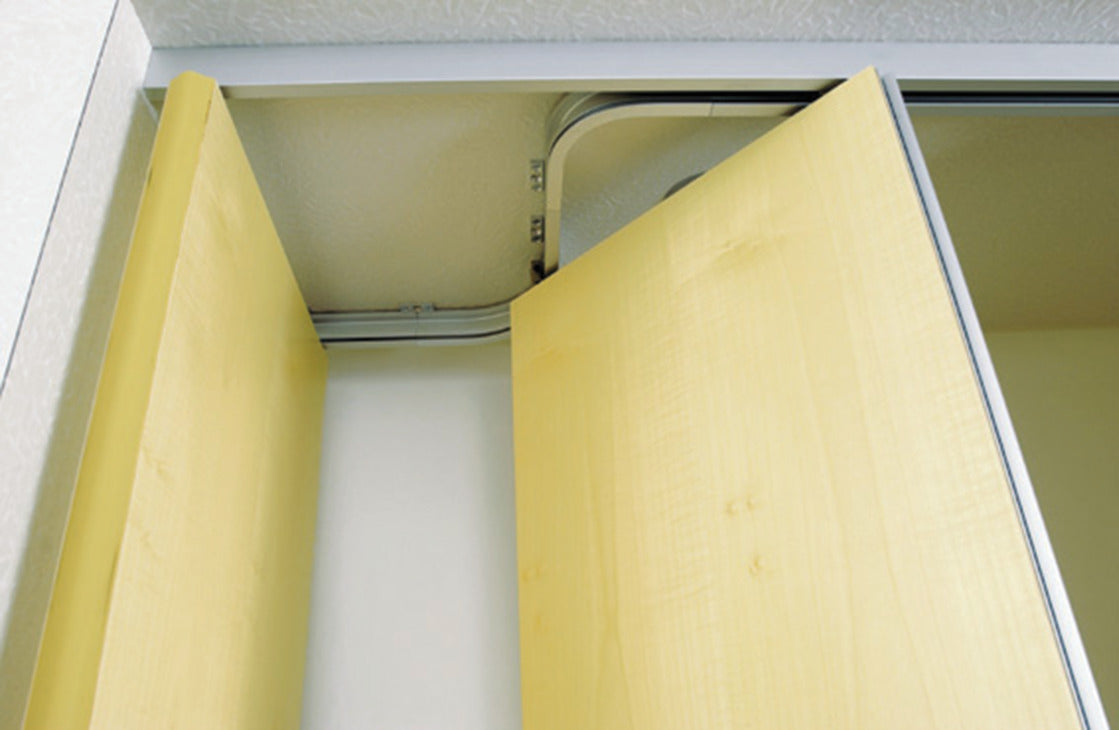

  • Modular running track system for room dividers and screensSuspension with support profileHeight adjustable sliding door leavesExtremely light and silent running in curvesA single lock secures the entire installationInstallations without a bottom guide channel are possibleCenter stop with adjustable retention spring catchStandard parking area sets accommodate up to 9 door panelsParking at 90º or parallel to the sliding axis

  • For door width: 550 – 1,500 mm
  • For door thickness min.: 1 1/2"
  • For door thickness max.: 2"
  • For door material : wood
  • Area of application :

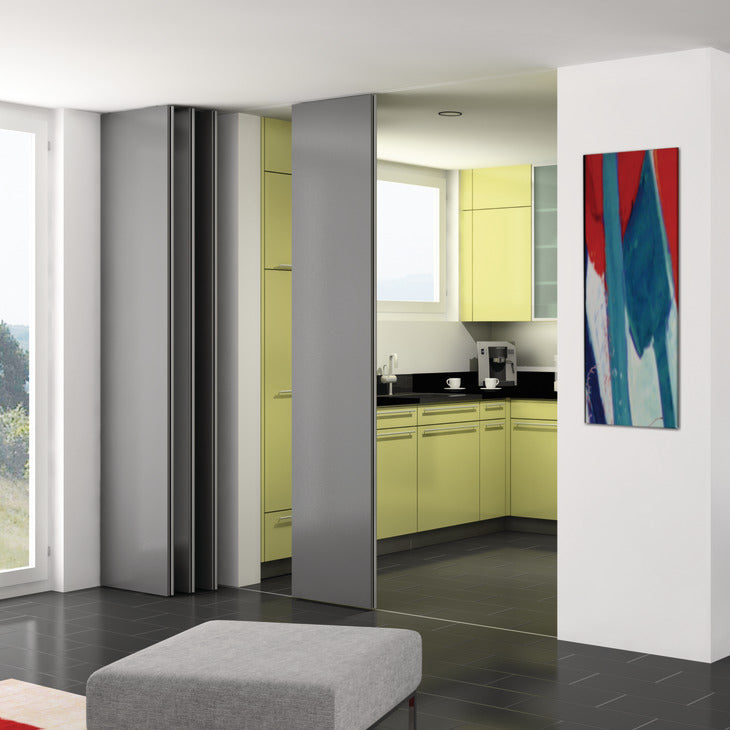

    Suitable for flexible room partitioning or screens with up to 8 sliding doors and 1 access door in commercial and public buildings
    locking of the system with one lock

  • Suitable for : Flexible room or visual separation, Commercial and public buildings, Locking of the installation with a lock
  • Number of doors per system max. : ≤8
  • For door height : ≤2,600 mm
  • For door thickness : 35 – 50 mm
  • For door weight : ≤60 kg
  • Note on door width :

    Parking area 90°: 550–950 mm, parallel parking area: 550–1500 mm

  • Version :

    Door can be optionally stacked parallel or 90° to the running direction in the open position
    Partial sets for sliding doors, hinged doors and parking areas
    with guide track, optionally without guide track with low load
    System flush in closed position
    light and quiet curve running

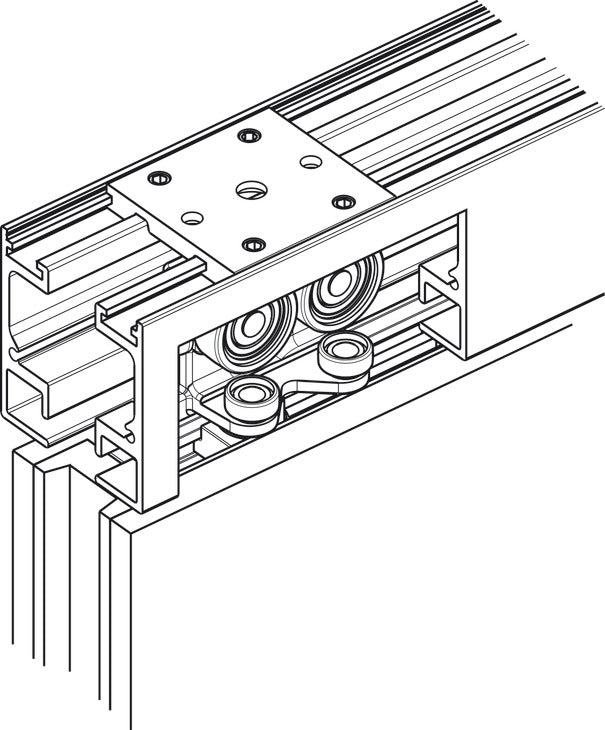

  • Running system : Concealed in track

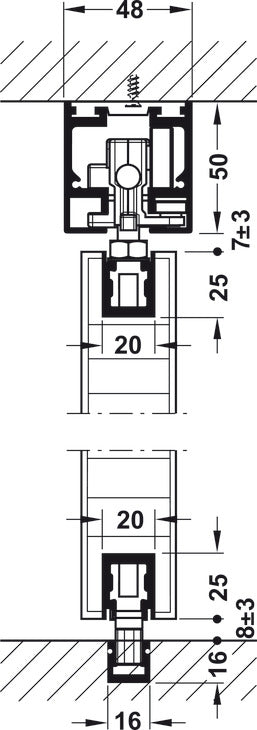

  • Controller installation options : Ceiling installation
  • Adjustment facility : Height adjustment facility: ±3 mm, Vertically: (+/- 1/8") +/- 3 mm
  • Material/finish : Silver colored, anodized
  • Order reference :

    Several individual elements must be ordered in order to achieve a functional system with the Aperto 60/H sliding door fitting.
    The following must be determined before ordering:

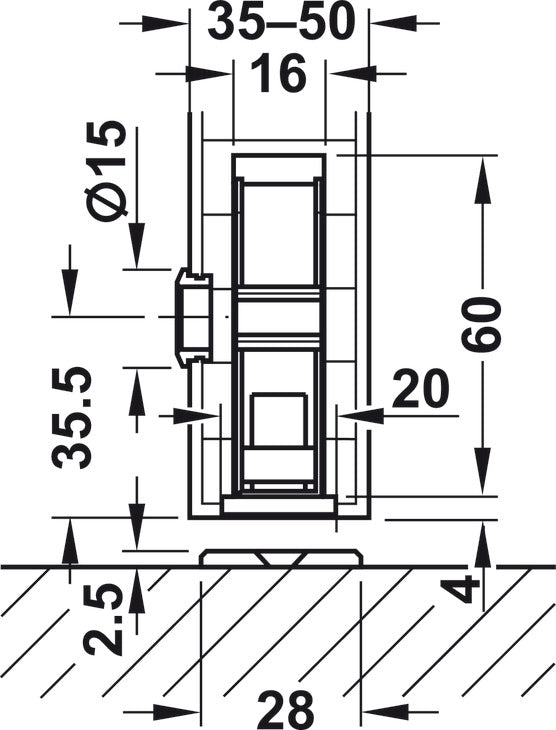

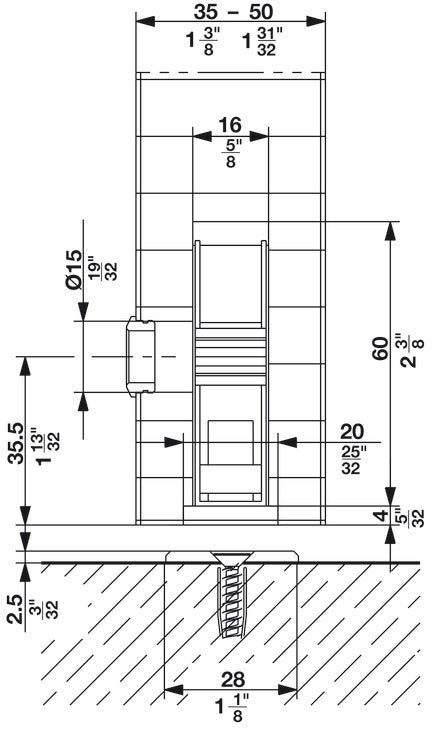

    > Type of guidance (with or without bottom guide track)
    > Hinged door (suitable for parking area, for use with or without bottom track)

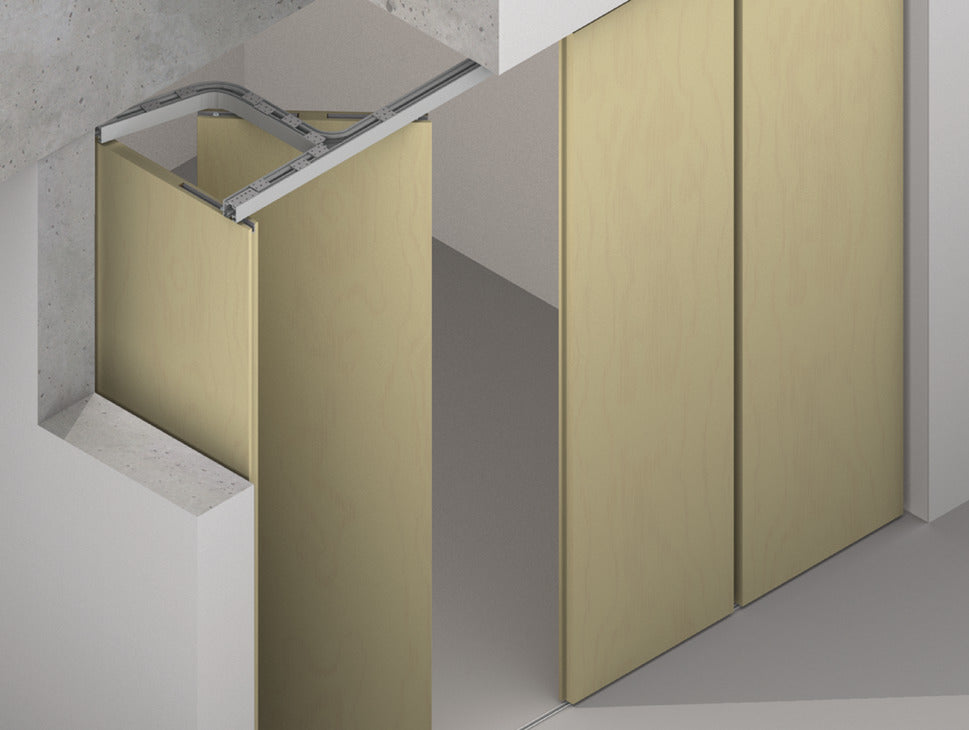

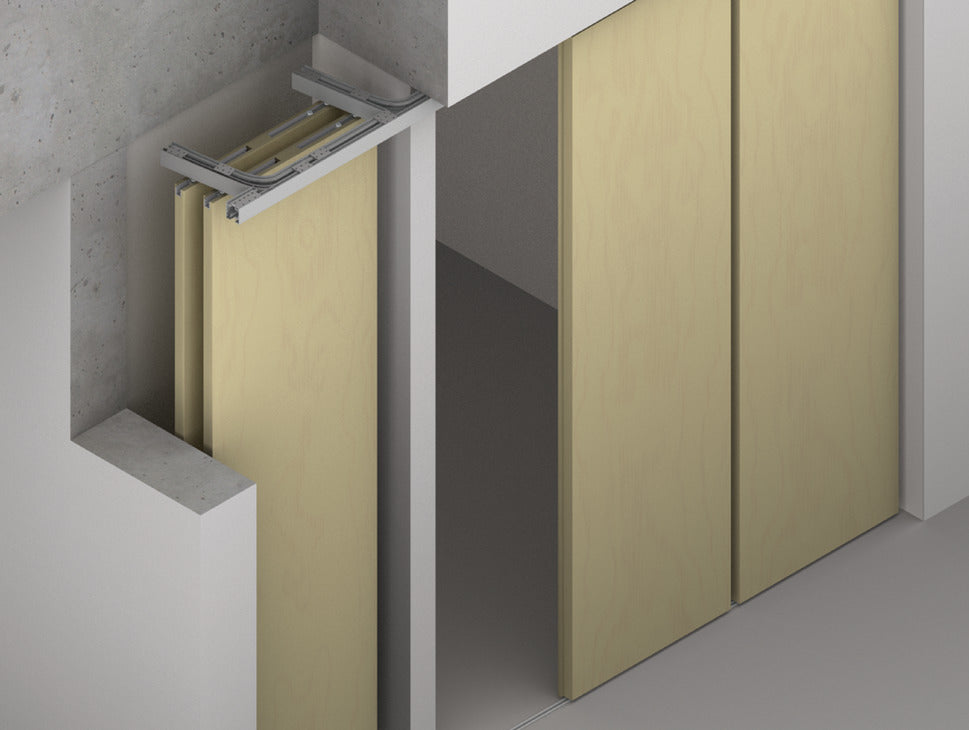

    > Type of parking area (parallel or 90° to sliding direction)
    > Single bolt lock with square/hexagonal nut or profile cylinder
    > Width of system, determines number of individual elements
    The required individual elements can be determined from these specifications:
    > Door types (A – I)
    > Stacking (parallel or 90°)
    8 different system types can be created by combining the individual elements, see system types.
    To order a system type, the individual elements that are listed as sets must be selected.
    The following must also be ordered:
    > the top running tracks
    > the bottom guide tracks (optional)
    > the internal track covering for the parking area (optional)
    > Quantity and length of sealing and rubber profiles (optional)
    > Quantity, length and type of Hawa edge protection profile (optional)
