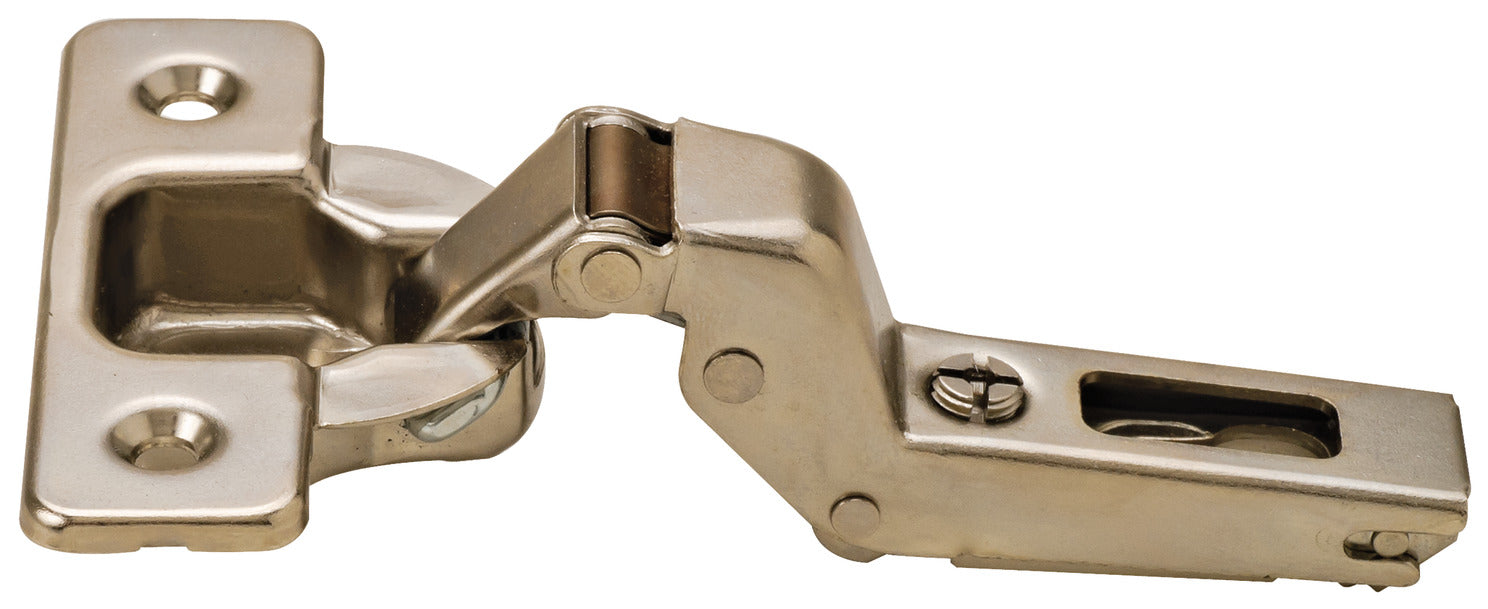

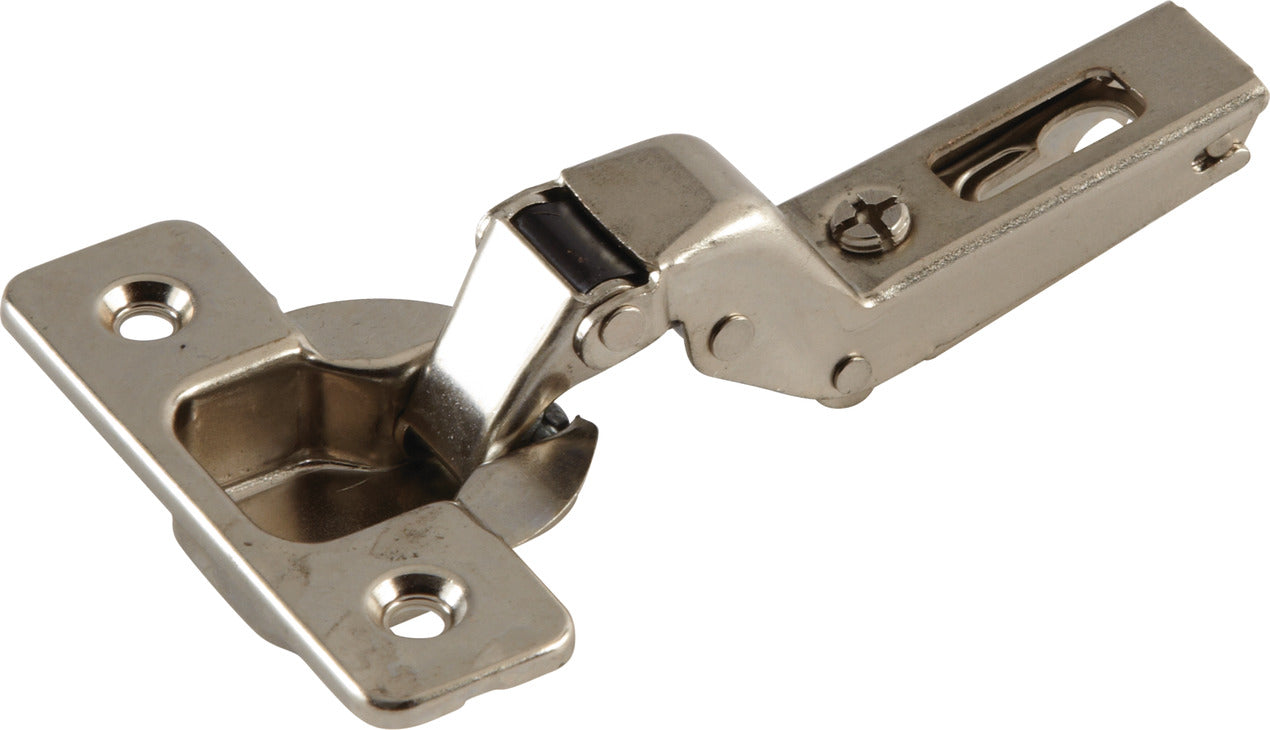

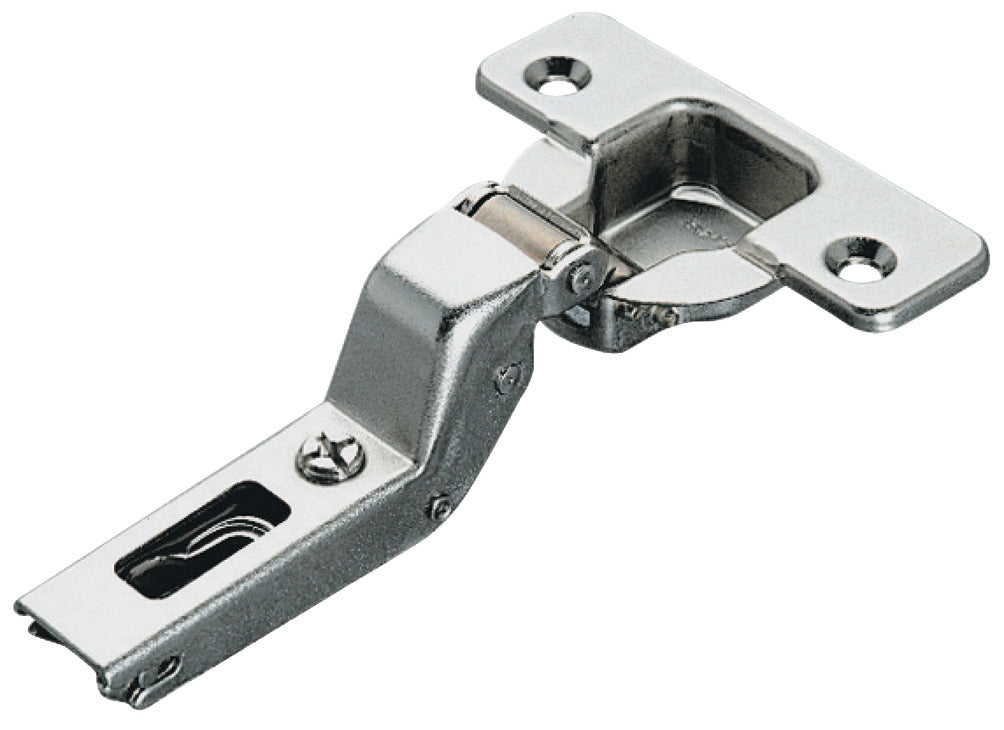

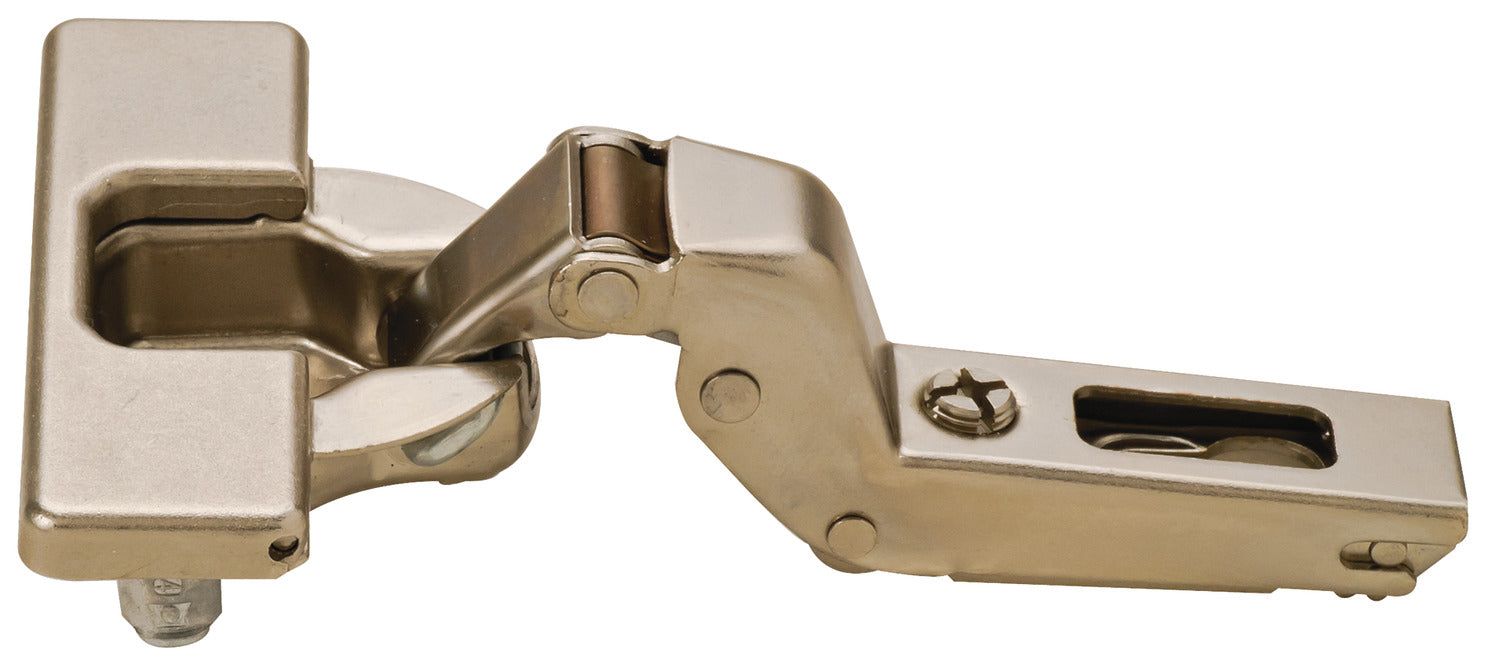

  • Version: With automatic closing spring
  • Drilling pattern: 45/9,5
  • Color/finish: Nickel plated
  • Model series : Duomatic
  • For door material : wood
  • Concealed hinge version : inset
  • Crank type : Cranked
  • Opening angle : 110 °
  • Suitable for :

    Standard applications

  • Material : Steel, Hinge arm: Steel
  • Installation :

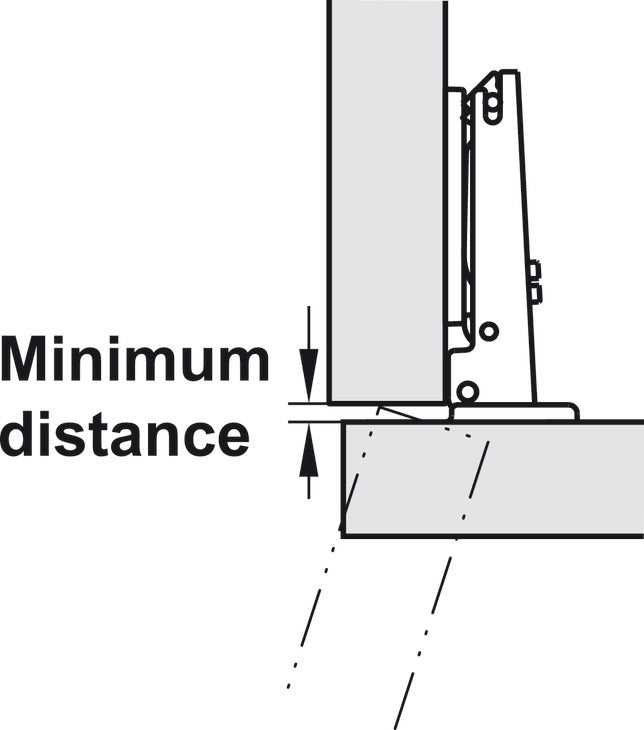

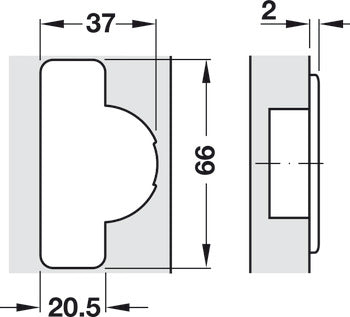

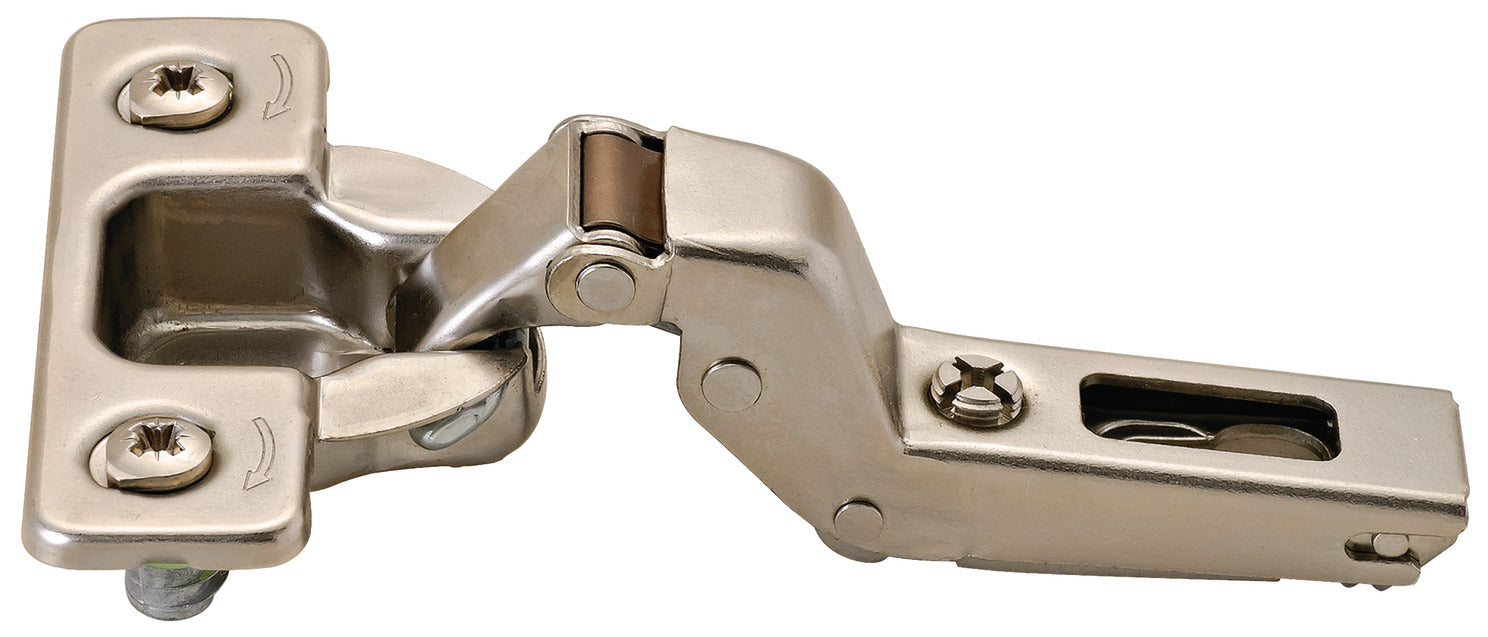

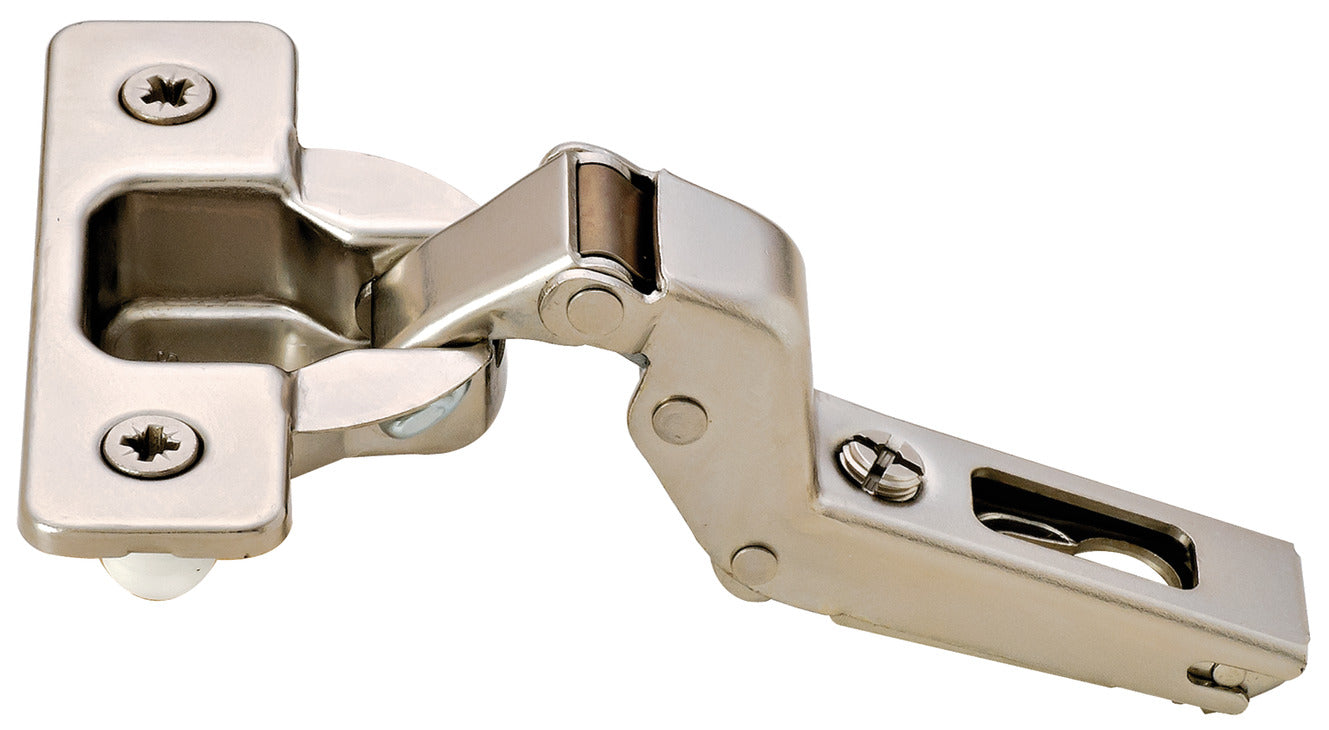

    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

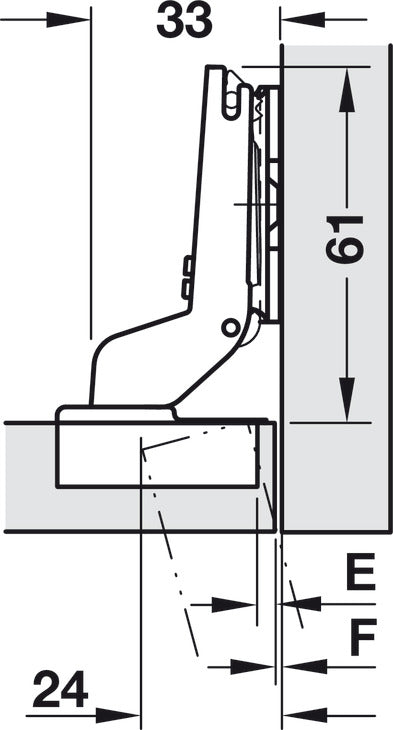

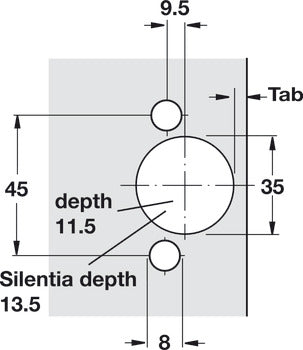

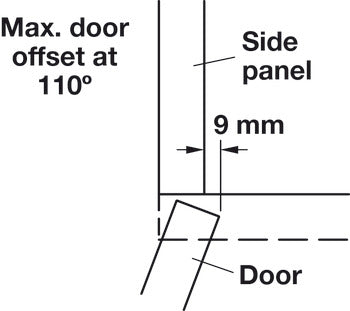

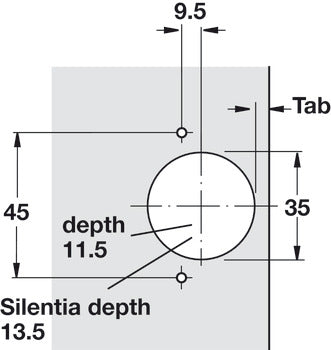

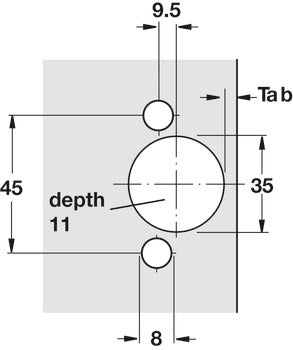

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 16 – 26 mm
  • Cup drilling depth : 11 mm
