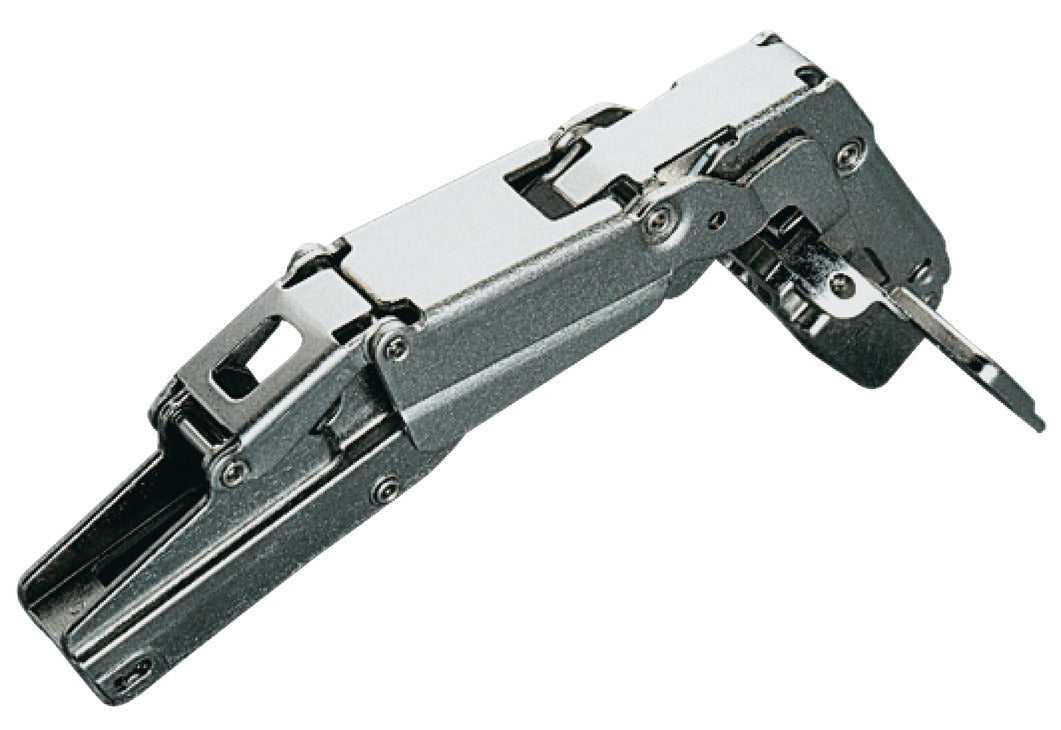

Concealed Hinge, Salice 200 Series, 165°, half overlay mounting/twin mounting

$6.82
$6.82
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • 0-door offset for use with internal pull outs î ‚or extending trays

  • Version: With automatic closing spring
  • Drilling pattern: 45/9.5
  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated
  • Side panel thickness min.: 5/8"
  • Model series : 200
  • For door material : wood

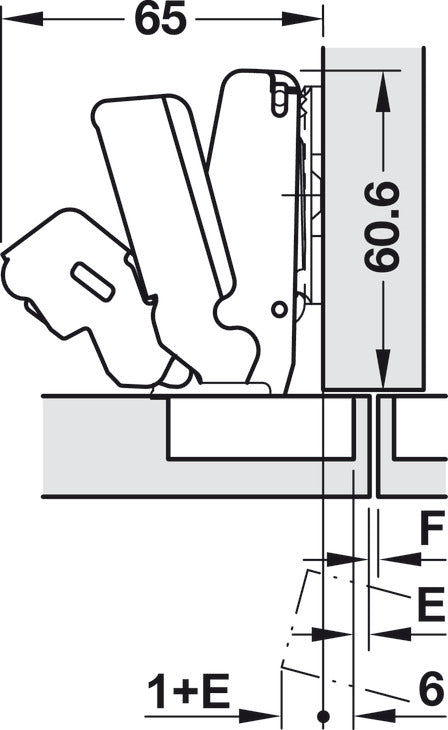

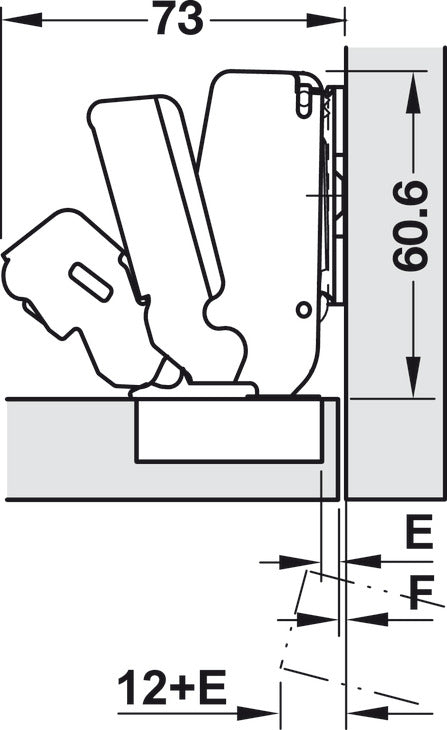

  • Concealed hinge version : Half overlay mounting/twin mounting
  • Crank type : Cranked

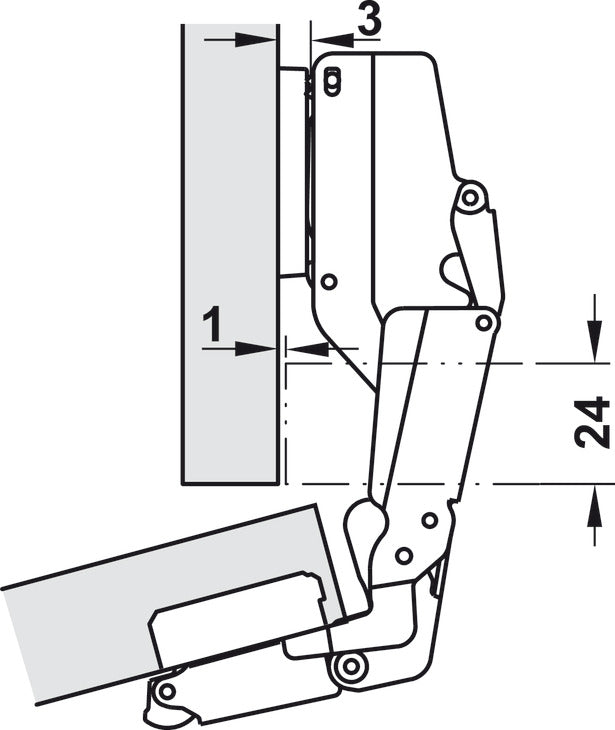

  • Opening angle : 165 °
  • Suitable for :

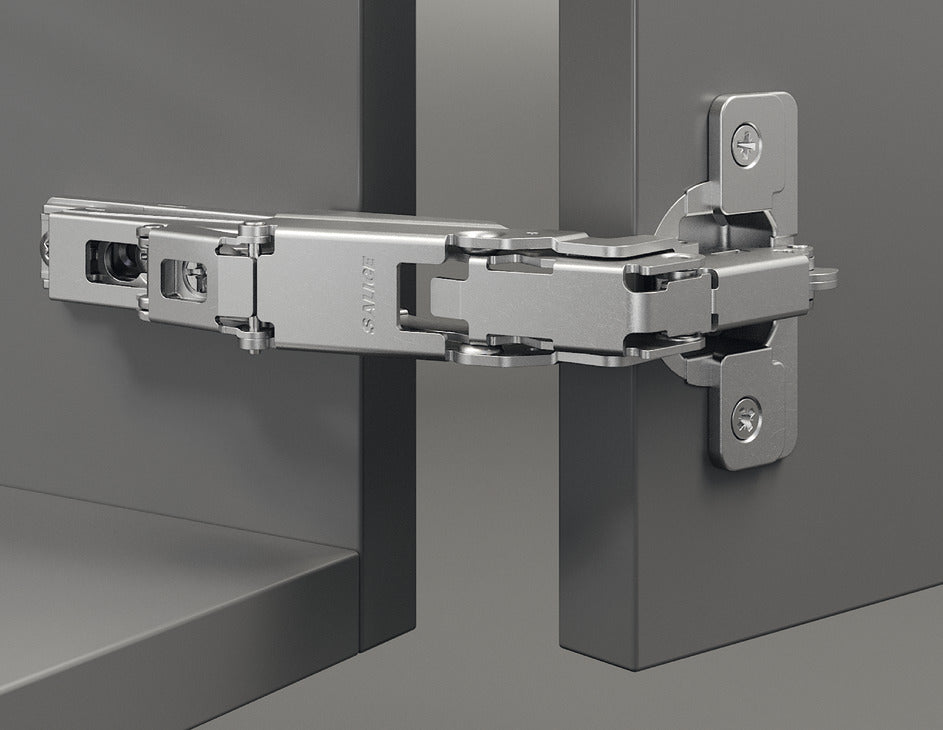

    Cabinets with internal pull outs or extending trays

  • Material : Zinc alloy, Hinge arm: Steel
  • Installation :

    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

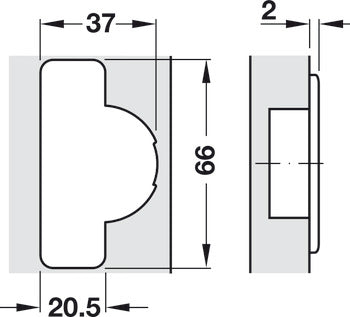

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 16 – 28 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
