• Concealed Thick Door Hinge, Salice 200 Series, 94° Opening Angle, Full Overlay
1 10

Concealed Thick Door Hinge, Salice 200 Series, 94° Opening Angle, Full Overlay

$4.98
$4.98
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version: With automatic closing spring

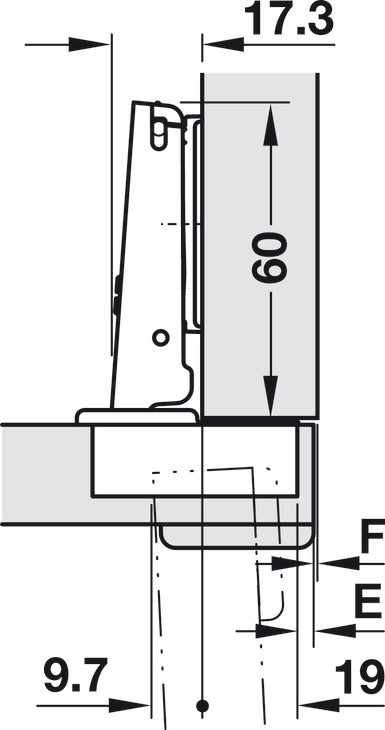

  • Drilling pattern: 52/7,5
  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • For door material : wood
  • Concealed hinge version : full overlay
  • Crank type : Straight
  • Opening angle : 94 °
  • Suitable for :

    Profile doors up to 40 mm

  • Material : Steel, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -0.5 – 5.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM quick fixing mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 20 – 40 mm
  • For door thickness min. : 3/4"
  • Cup drilling depth : 13 mm
