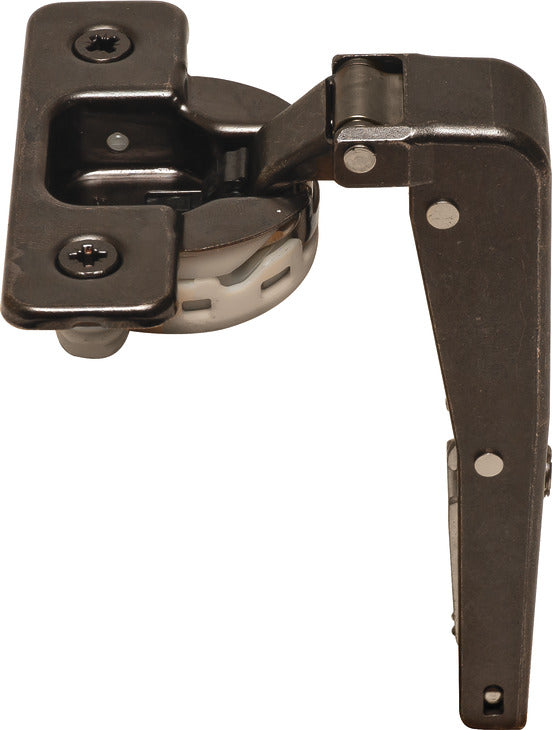

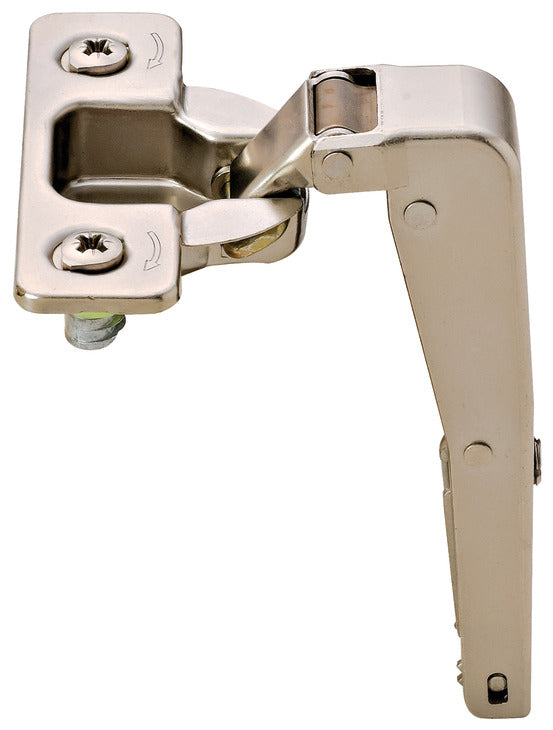

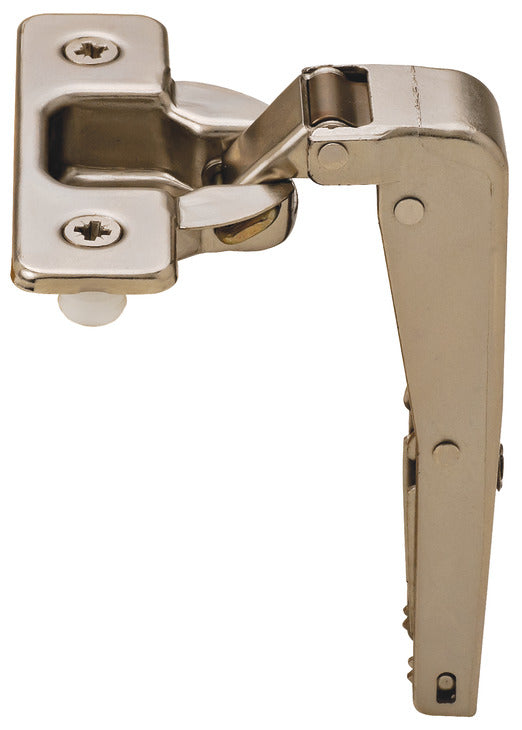

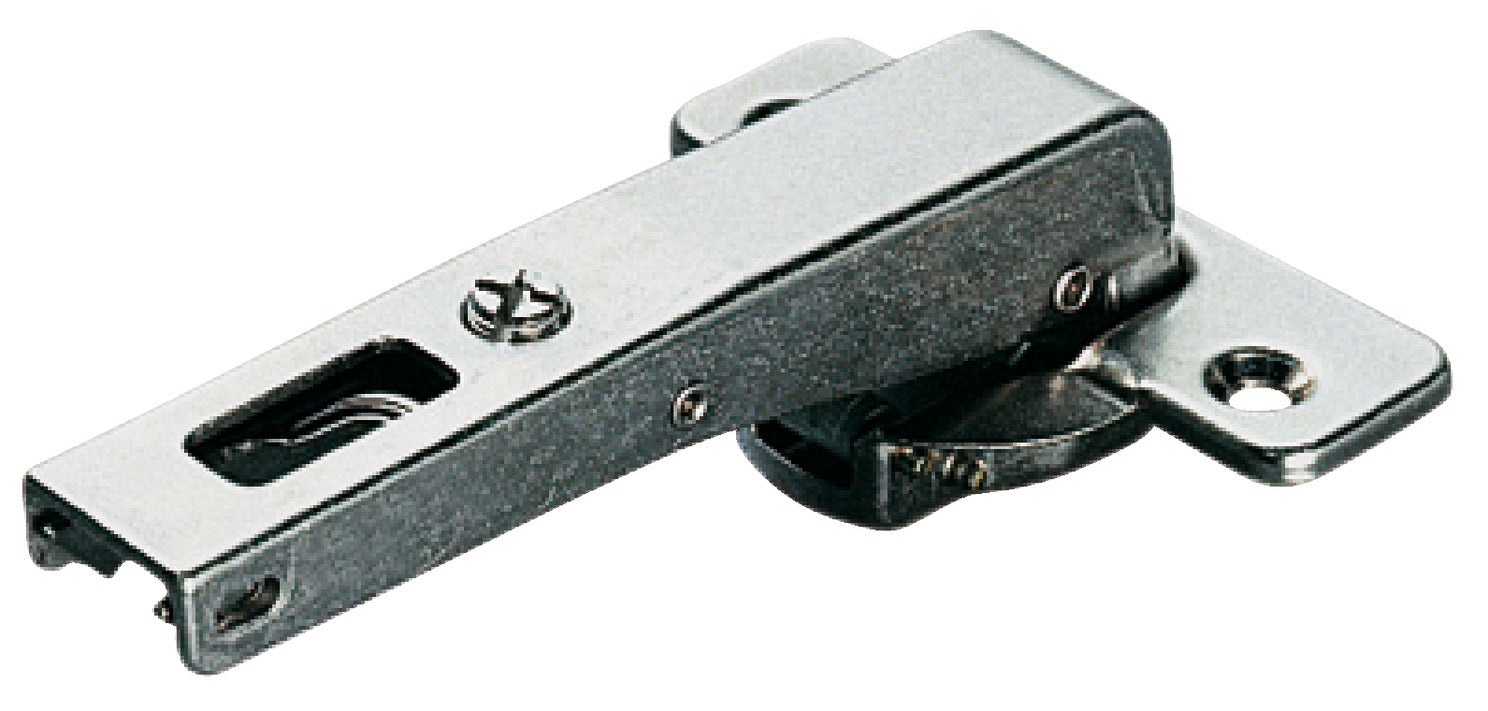

Blind Corner Concealed Hinge, Salice, 94° Opening Angle, Self Close, Inset Mounting, Nickel-Plated

$5.42
$5.42
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version: With automatic closing spring

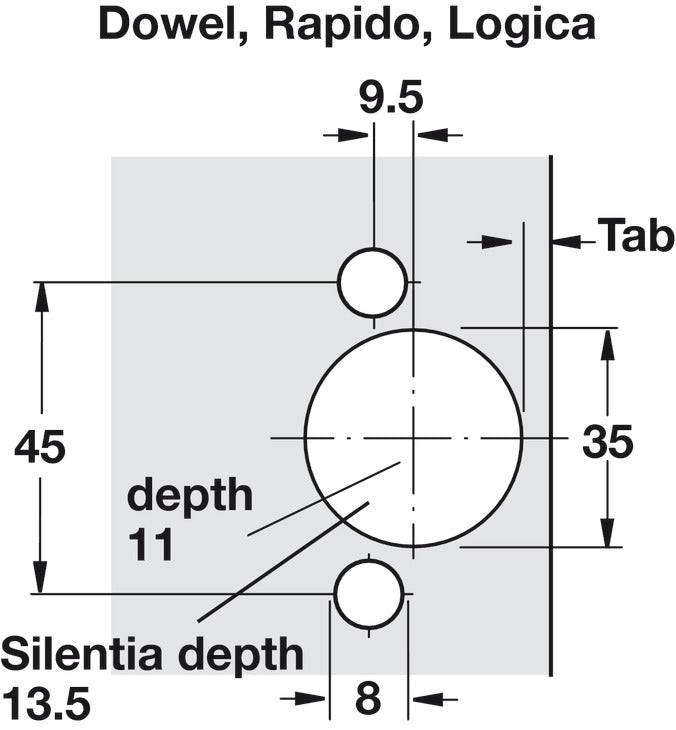

  • Drilling pattern: 45/9,5

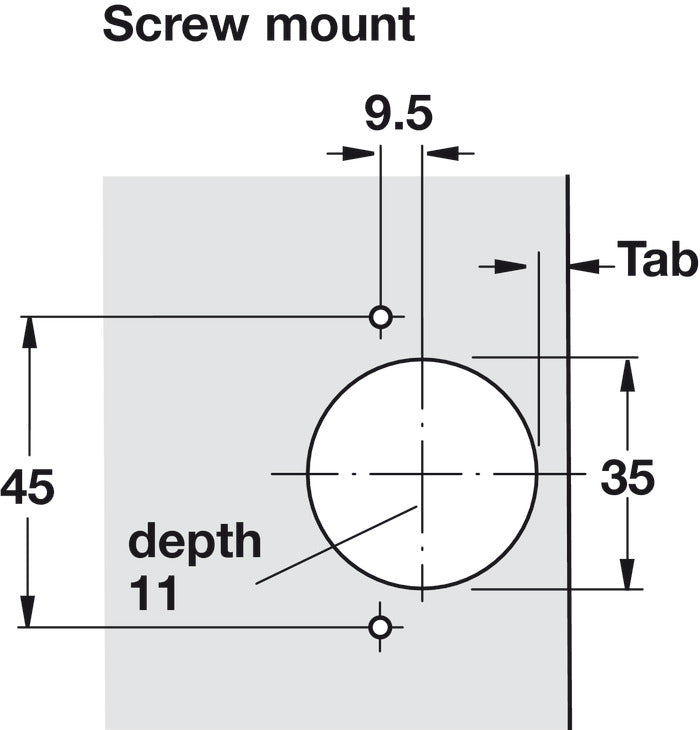

  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated
  • Model series : 200
  • For door material : wood
  • Concealed hinge version : blind corner application
  • Crank type : Straight
  • Opening angle : 94 °
  • Suitable for :

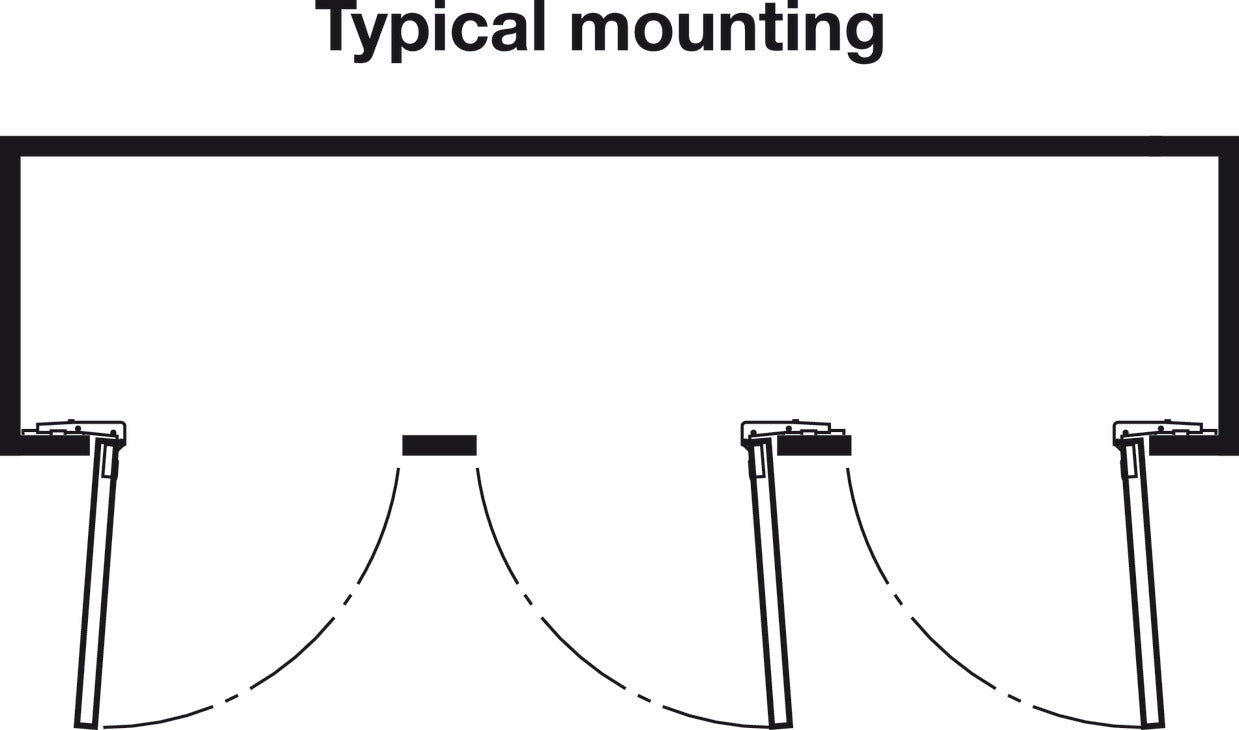

    standard blind corners

  • Material : Steel, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

  • Door processing for assembly : cup drilling

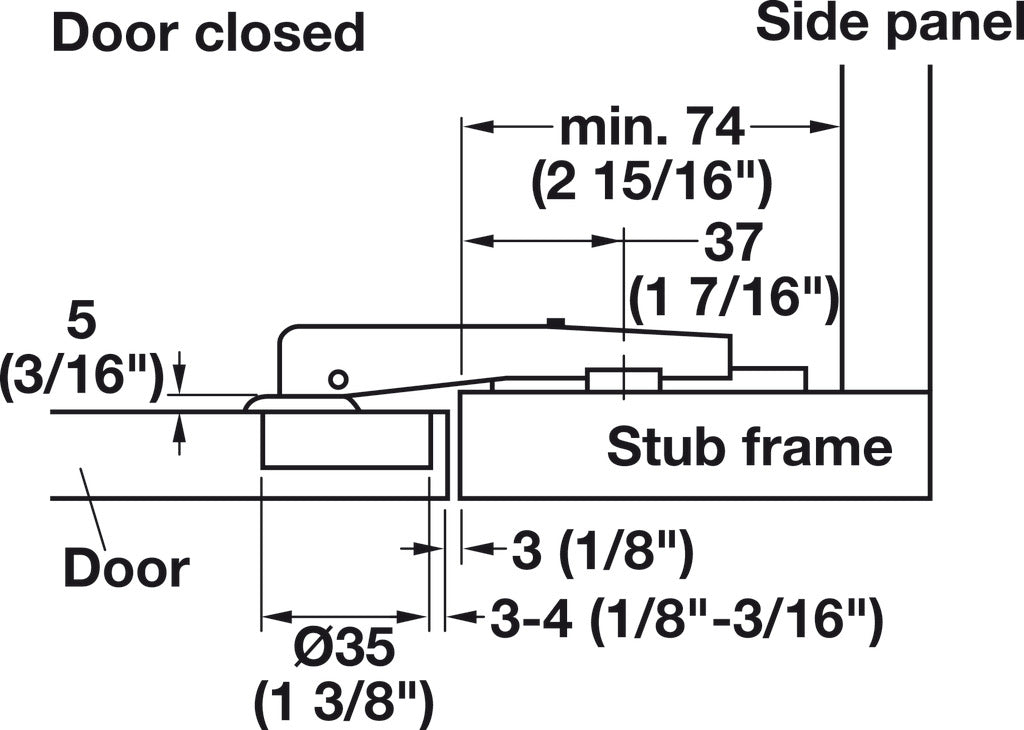

  • Adjustment facility : Side adjustment facility: <4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 35 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
  • Note :

    Suitable for all Duomatic A and Duomatic SM mounting plates

  • Order reference :

    Suitable for all Duomatic A and Duomatic SM mounting plates
