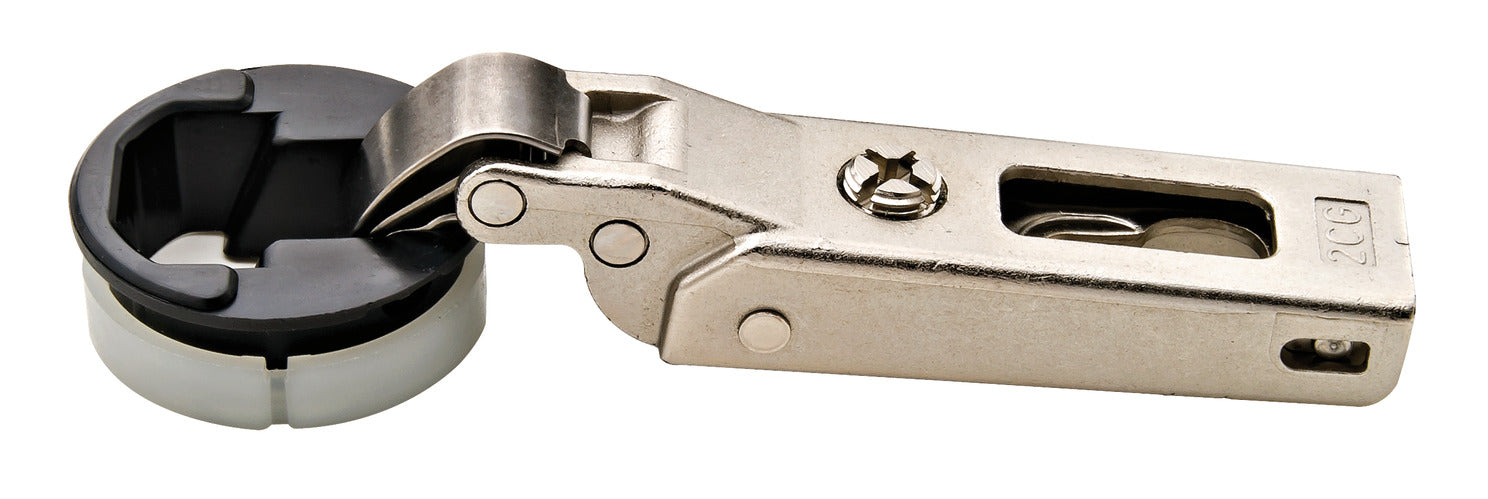

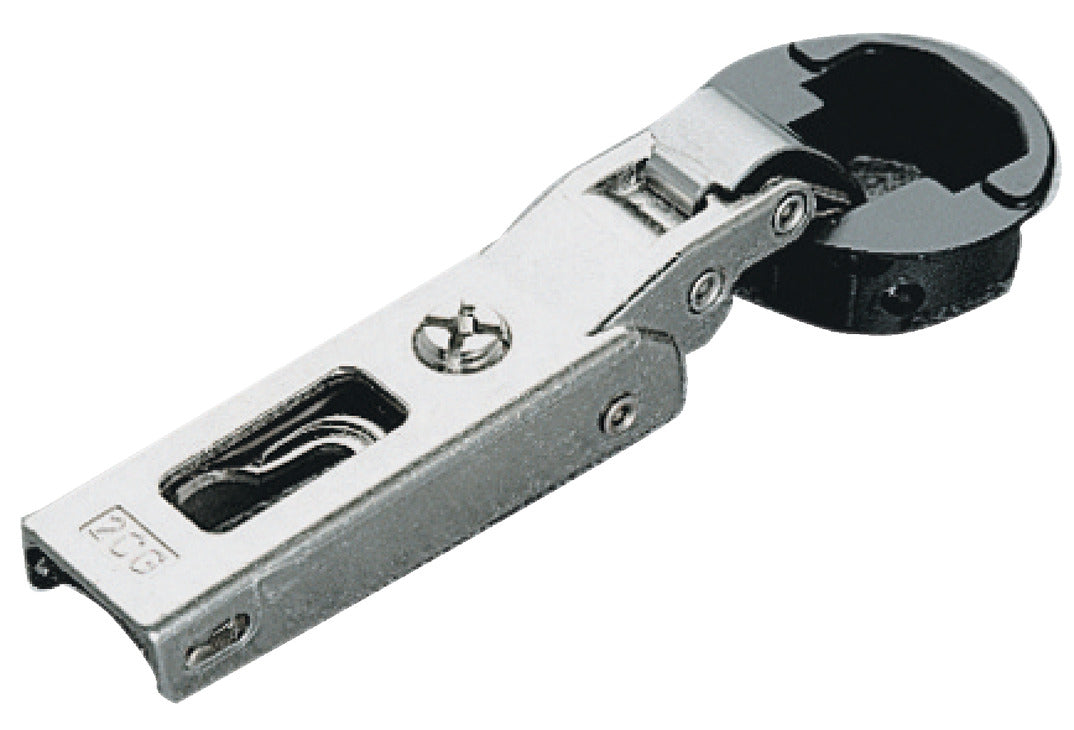

Glass Door Concealed Hinge, Salice, 94° Opening Angle, Self Closing, Half Overlay

$6.42
$6.42
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Version: With automatic closing spring
  • Cup fixing: for screw fixing
  • Color/finish: Pan colour/finish: Black; Hinge arm color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Model: C2C7G39
  • Side panel thickness min.: 5/8"
  • For min. glass thickness (inches): 3/16"
  • For max. glass thickness (inches): 1/4"
  • Model series : Salice
  • For door material : glass
  • Concealed hinge version : Half overlay mounting/twin mounting
  • Crank type : Straight
  • Opening angle : 94 °
  • Suitable for :

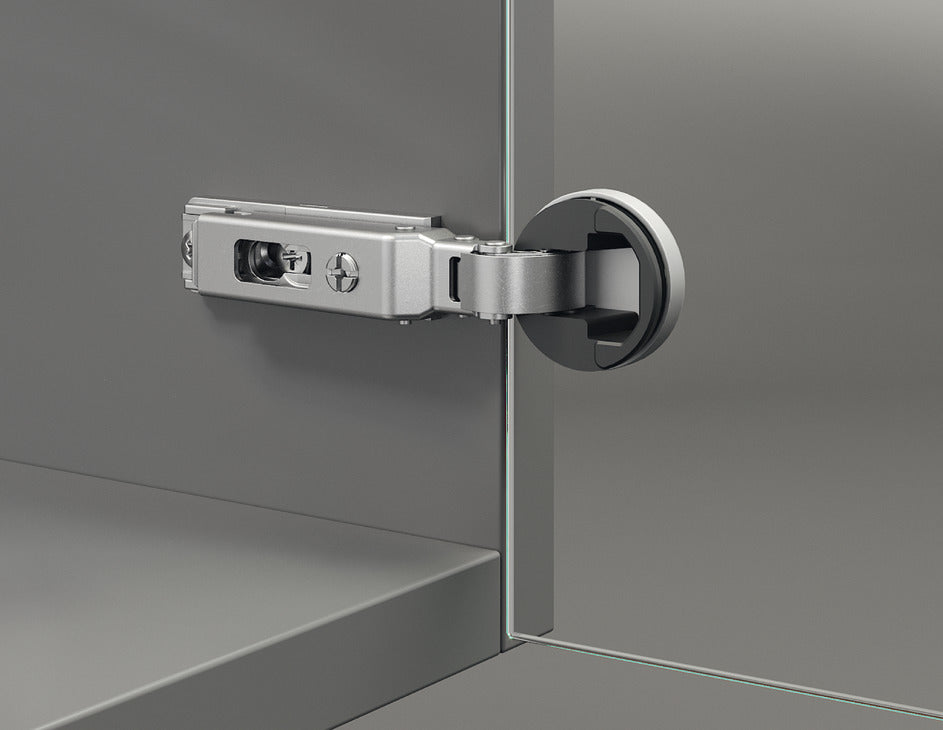

    Glass doors

  • Material : Plastic, Hinge arm: Steel
  • Installation :

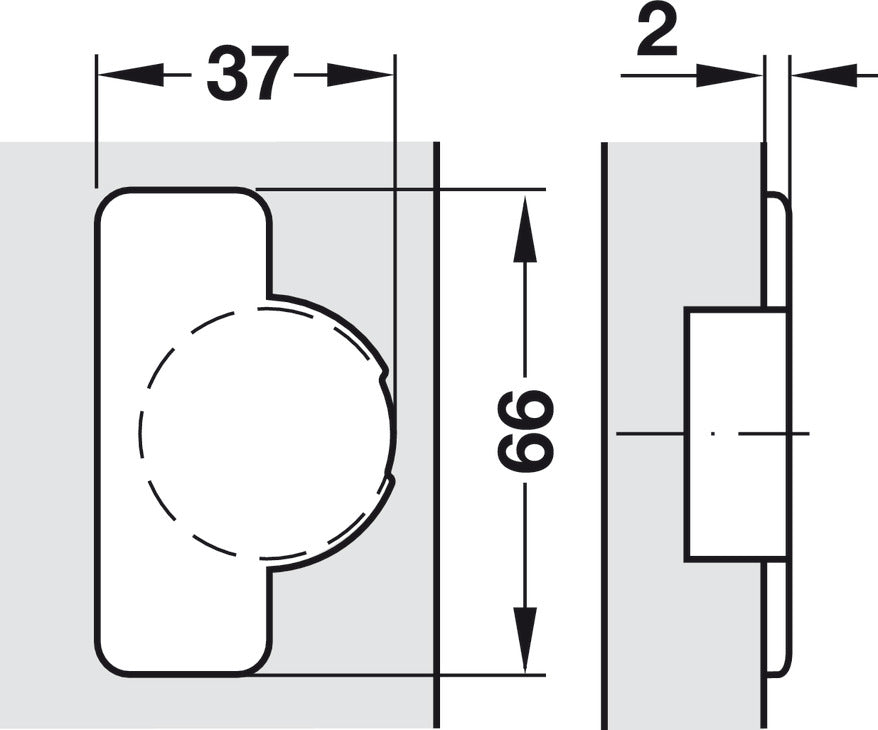

    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

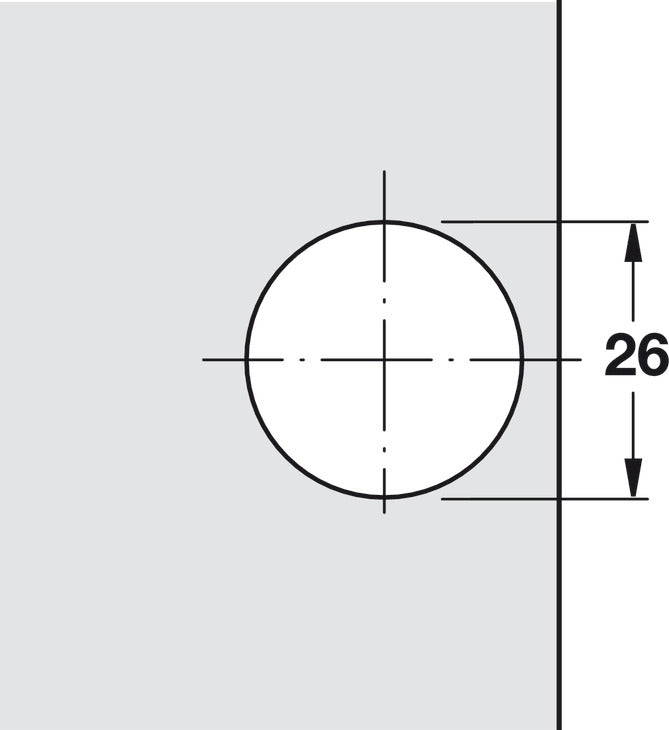

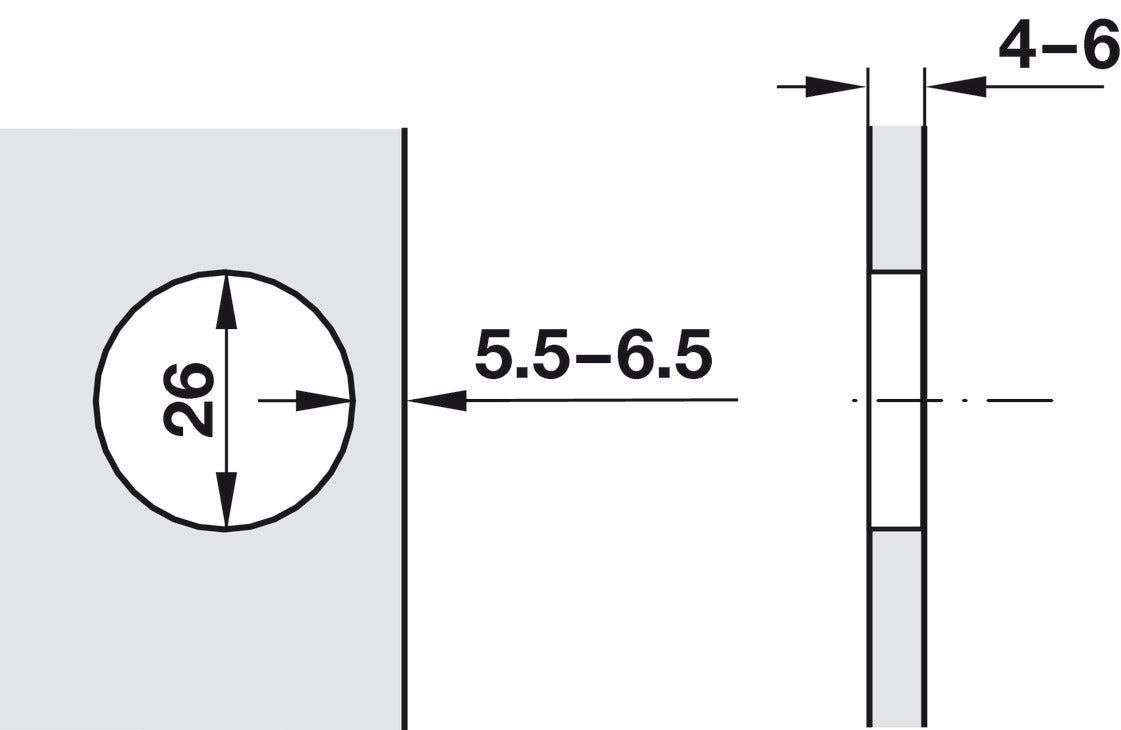

  • Door processing for assembly : glass drilling
  • Adjustment facility : Side adjustment facility: -0.5 – 5.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For glass thickness : 4 – 6 mm
  • For glass thickness (inches) : 3/16" – 1/4"
  • Supplied with :

    Trim shim and screws included
