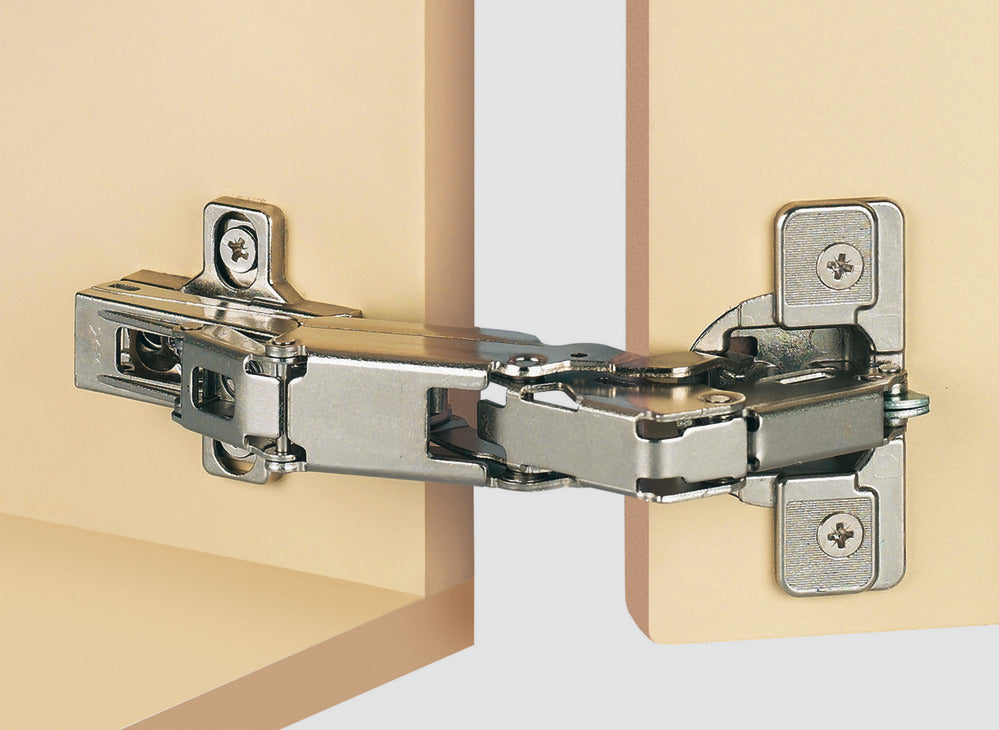

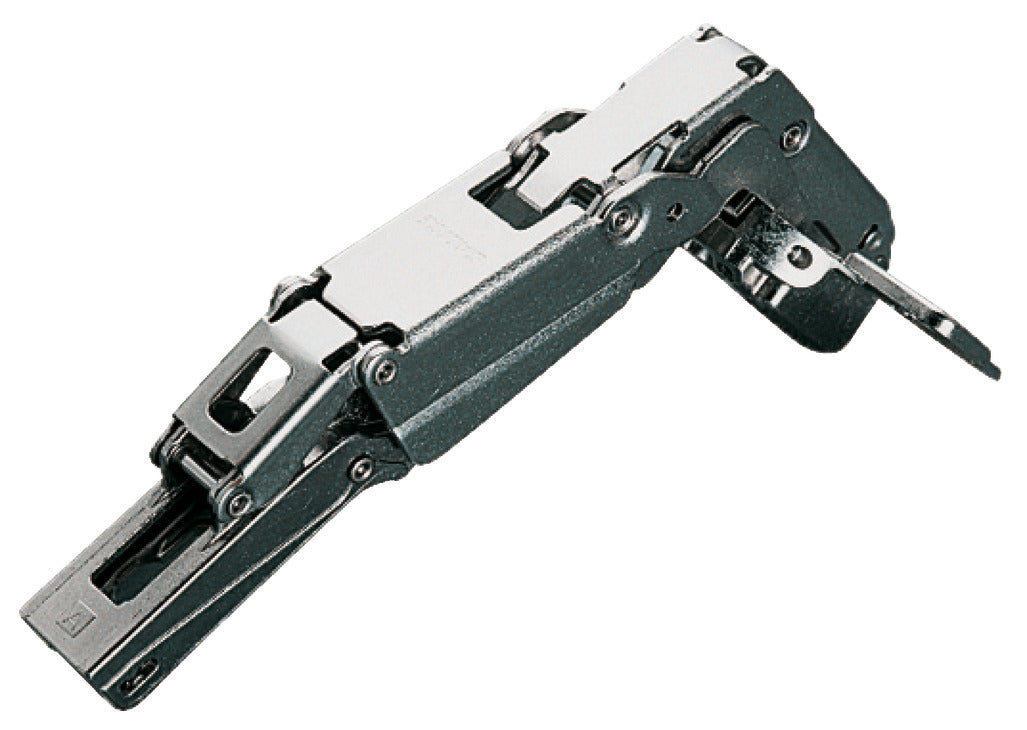

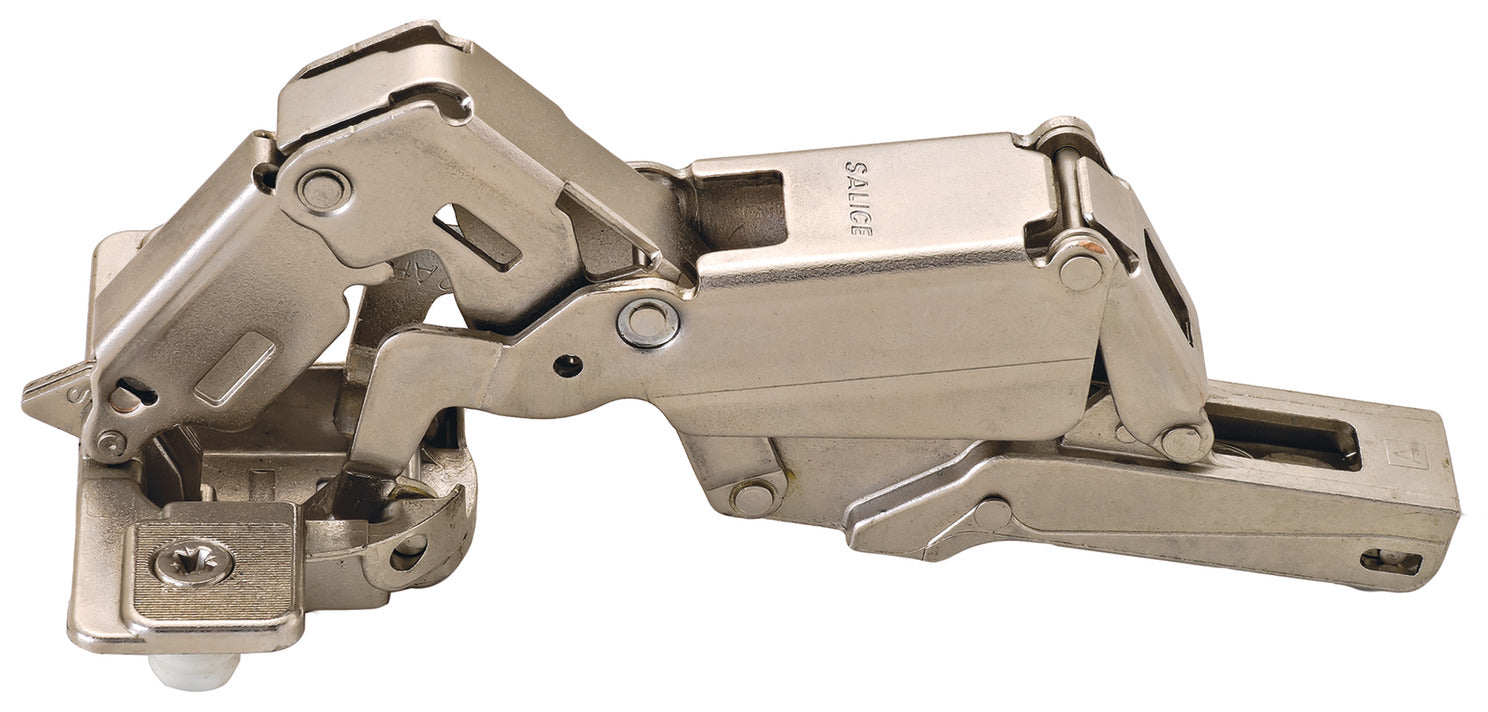

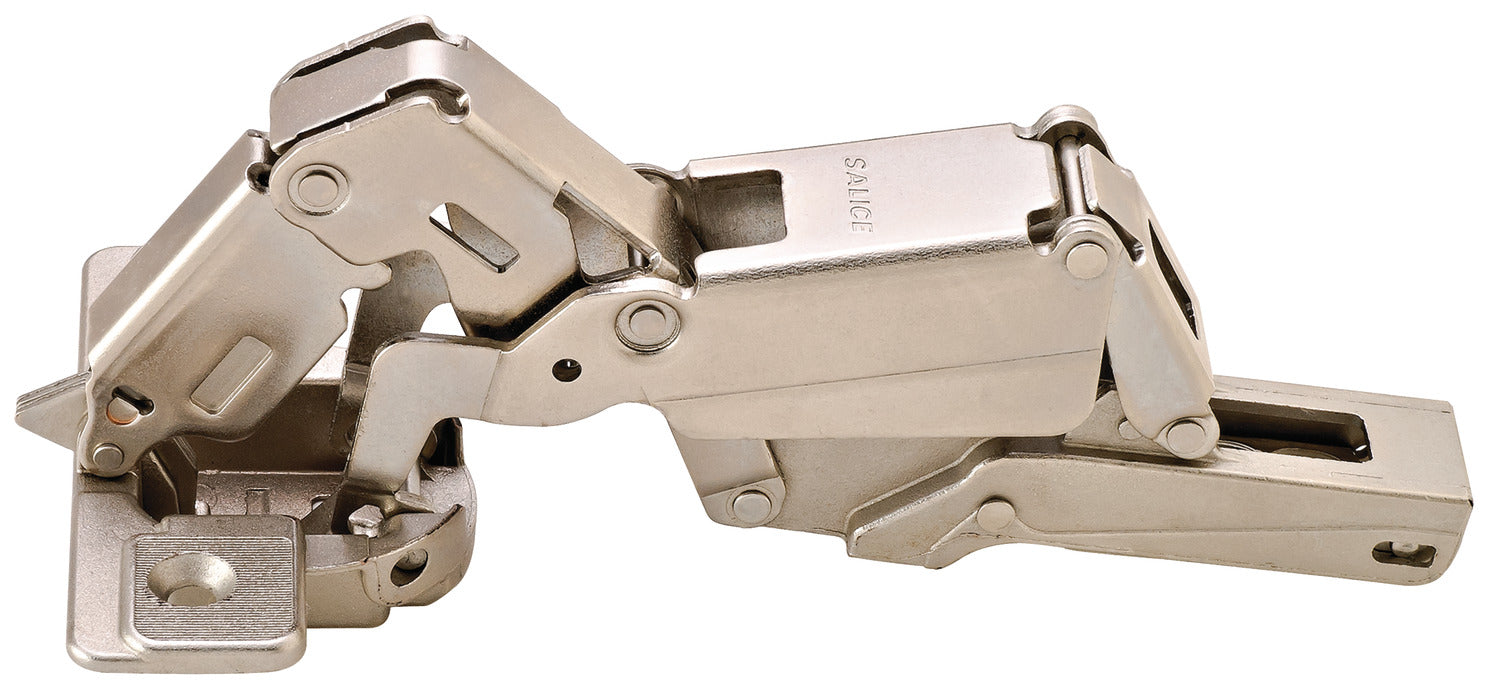

Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Full Overlay

$11.13
$11.13
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Automatic, almost complete opening of the door
    0-door offset for use with internal pull outs or extending trays

  • Version: With automatic opening mechanism (Push)

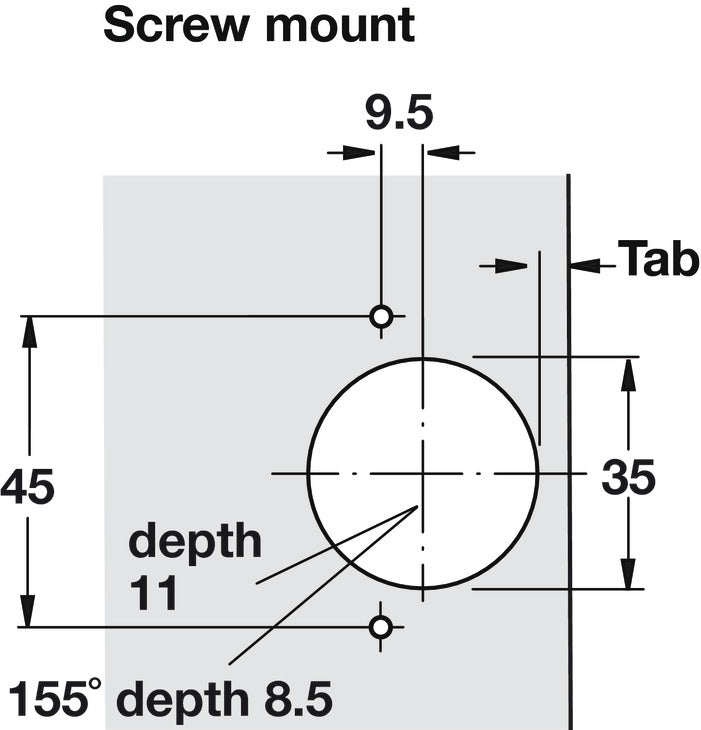

  • Drilling pattern: 45/9.5
  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • Model series : Push 165°
  • For door material : wood
  • Concealed hinge version : full overlay
  • Crank type : High Cranked
  • Opening angle : 165 °
  • Suitable for :

    Touch to open, cabinets with internal pull outs or extending tray

  • Material : Zinc alloy, Hinge arm: Steel
  • Installation :

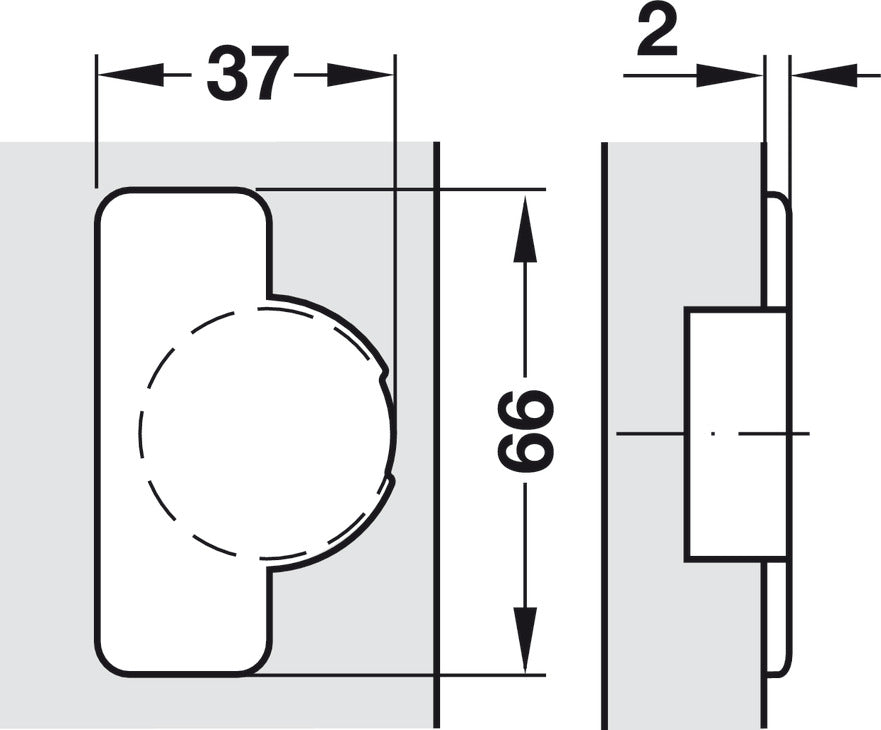

    Door to cabinet for sliding on using Duomatic A mounting plates or with Duomatic SM mounting plates with quick fixing system

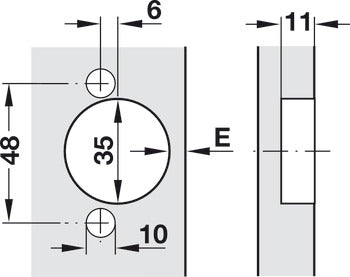

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 16 – 28 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
  • Note :

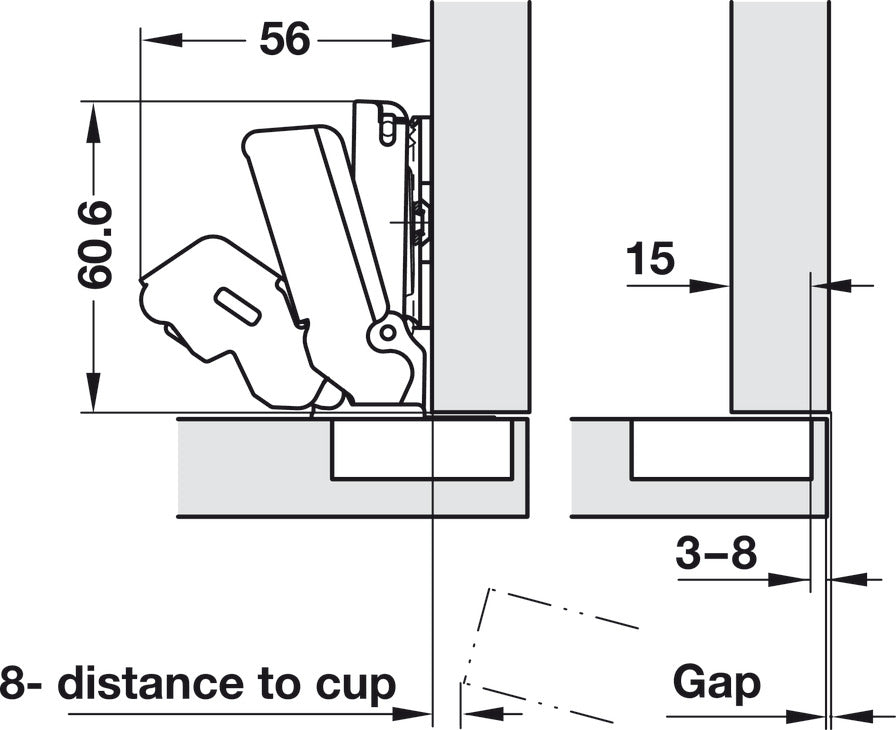

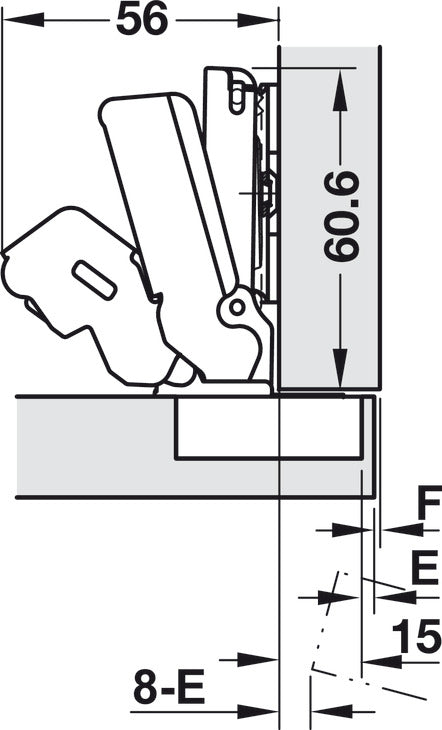

    Dimensions and gap specifications in drawings and tables are calculated:
    Using factory settings
    For mounting plate distance 0 mm
    For door offset with max. opening angle
