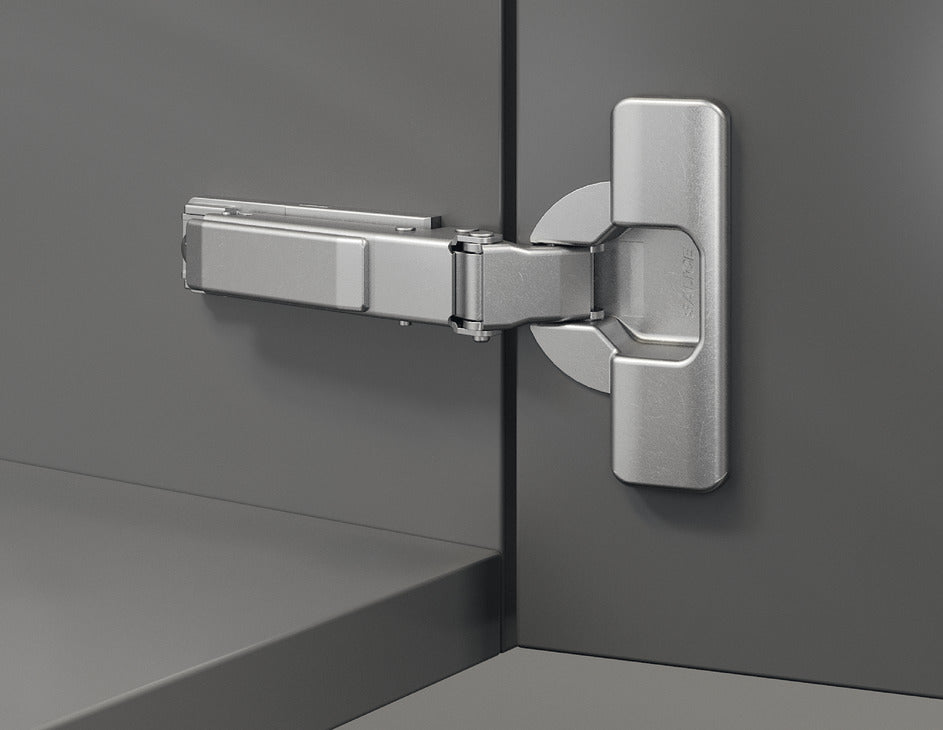

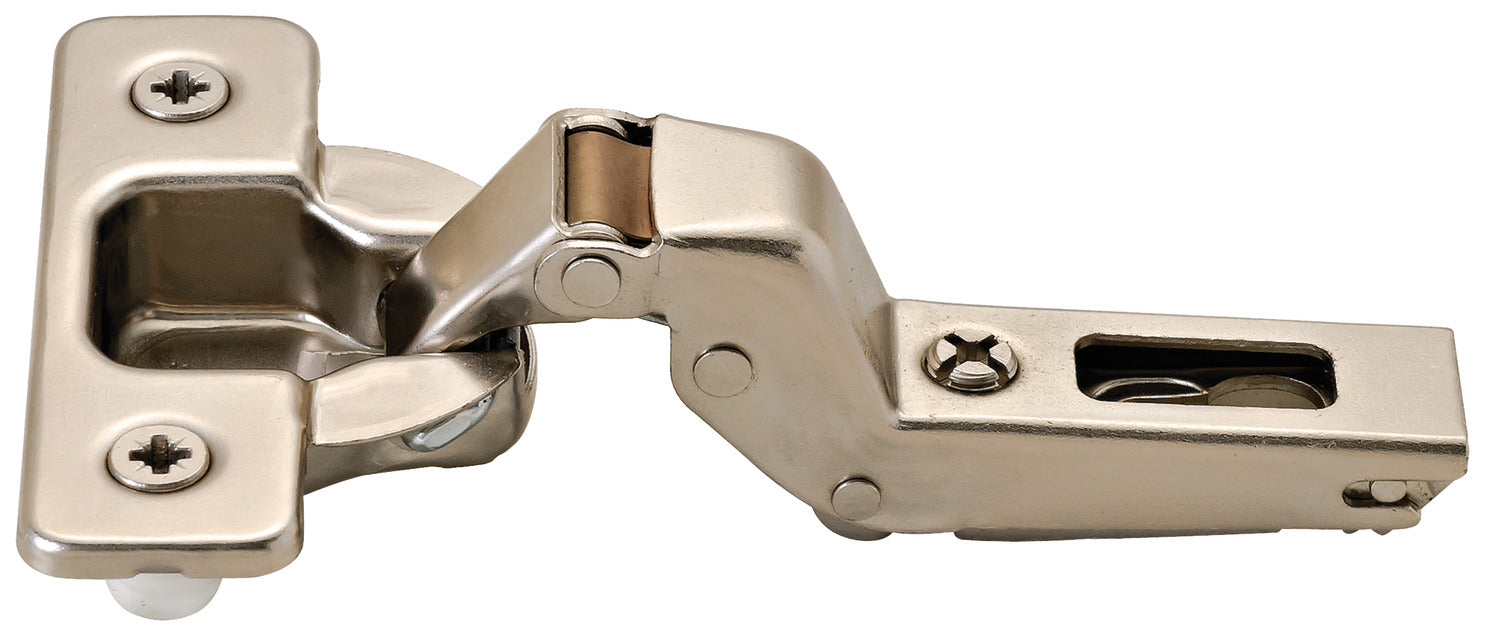

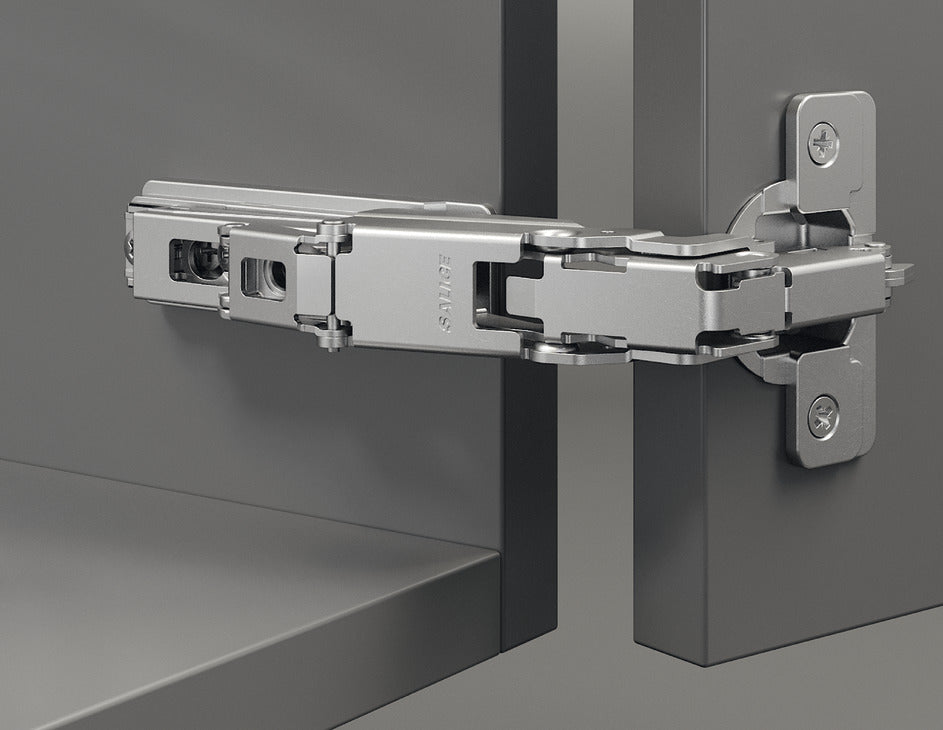

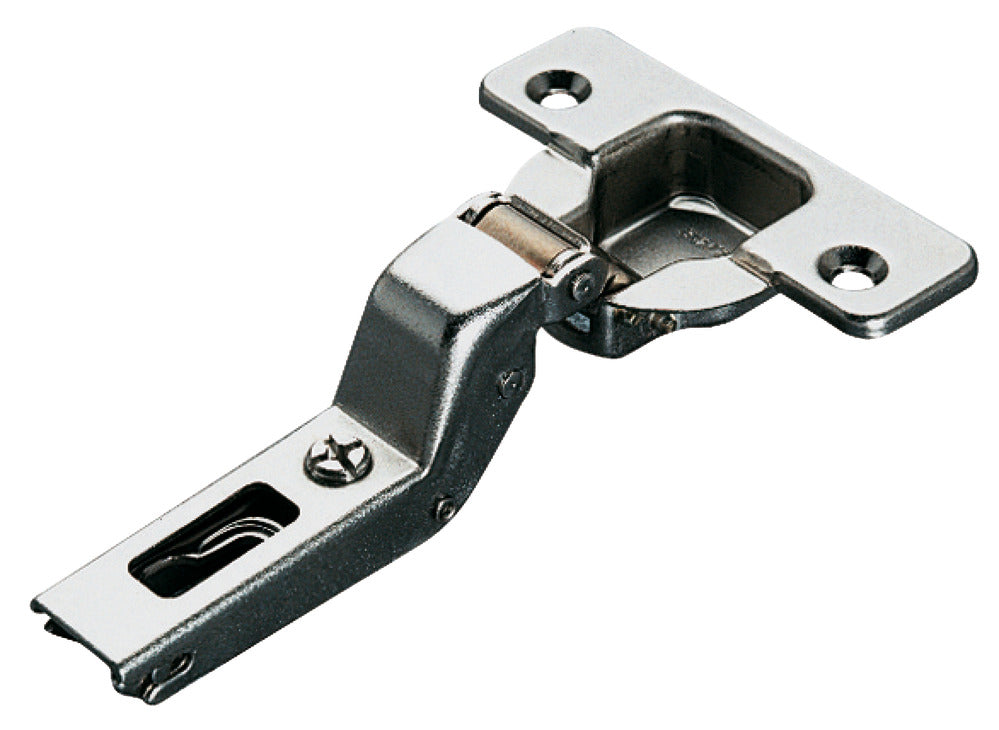

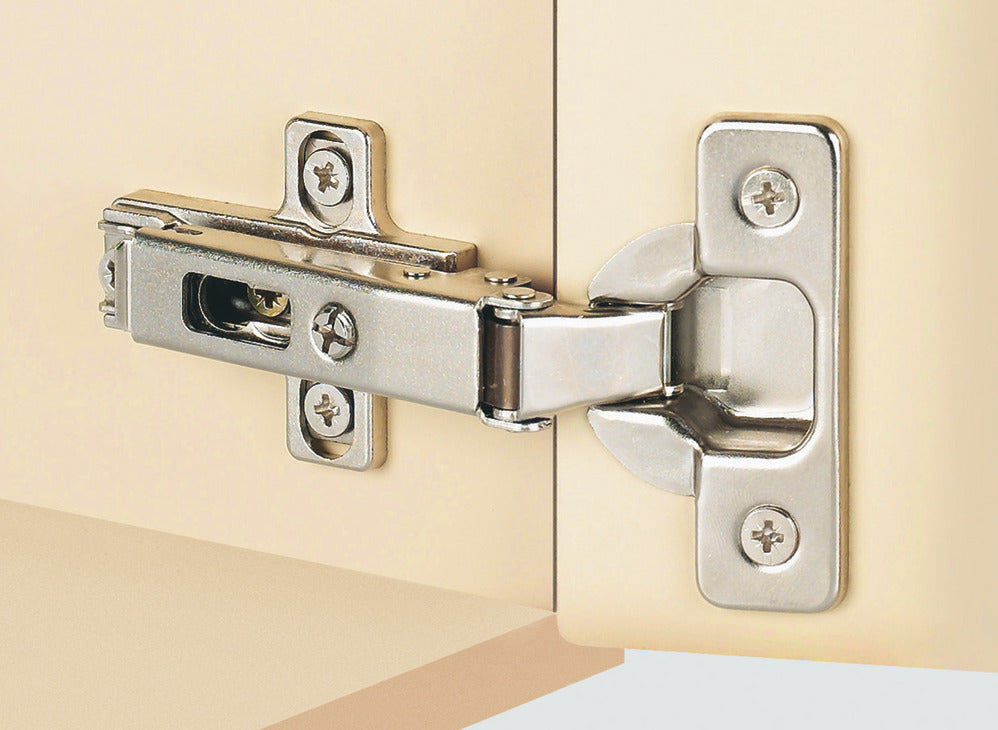

Concealed Hinge, Salice PUSH 110° Opening Angle, Self-Opening, Inset Mounting

$6.22
$6.22
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Automatic, almost complete opening of the door

  • Developed to meet the market trend of handle-less furniture
    Self-opening hinges and release devices that can easily be mounted to your furniture
    Allows for a very “clean” design appearance
    Reverse-spring hinges help “PUSH” the door open

  • Version: With automatic opening mechanism (Push)

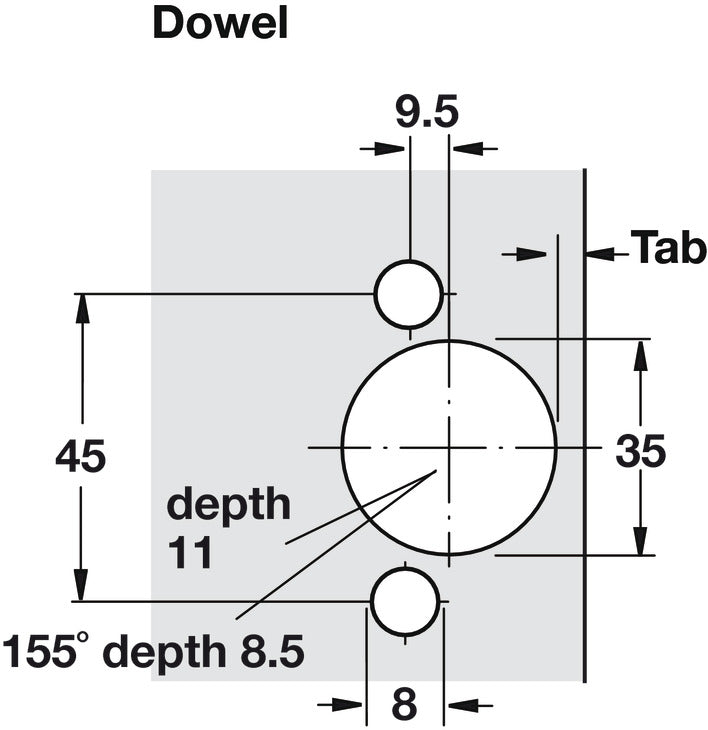

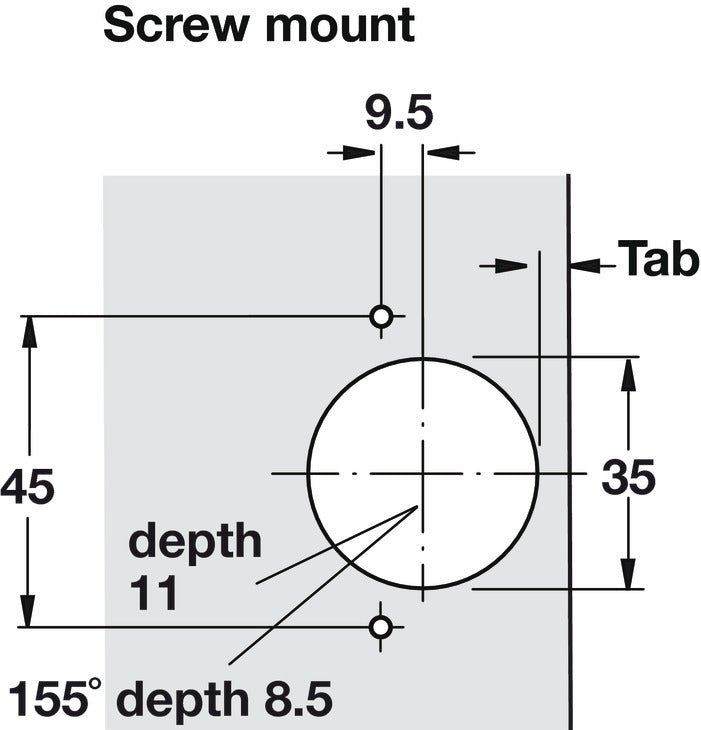

  • Drilling pattern: 45/9.5
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • Model series : Push 110°
  • For door material : wood
  • Concealed hinge version : inset
  • Crank type : High Cranked
  • Opening angle : 110 °
  • Suitable for :

    Touch to open

  • Material : Steel, Hinge arm: Steel
  • Installation :

    Front panel to cabinet for sliding on using Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates
    Door to cabinet for sliding on with Duomatic A mounting plates or with quick fixing system using Duomatic SM mounting plates

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: -1.5 – 4.5 mm, Height adjustment facility: ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
  • For wooden door thickness : 16 – 26 mm
  • For door thickness min. : 5/8"
  • Cup drilling depth : 11 mm
