• Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting
1 10

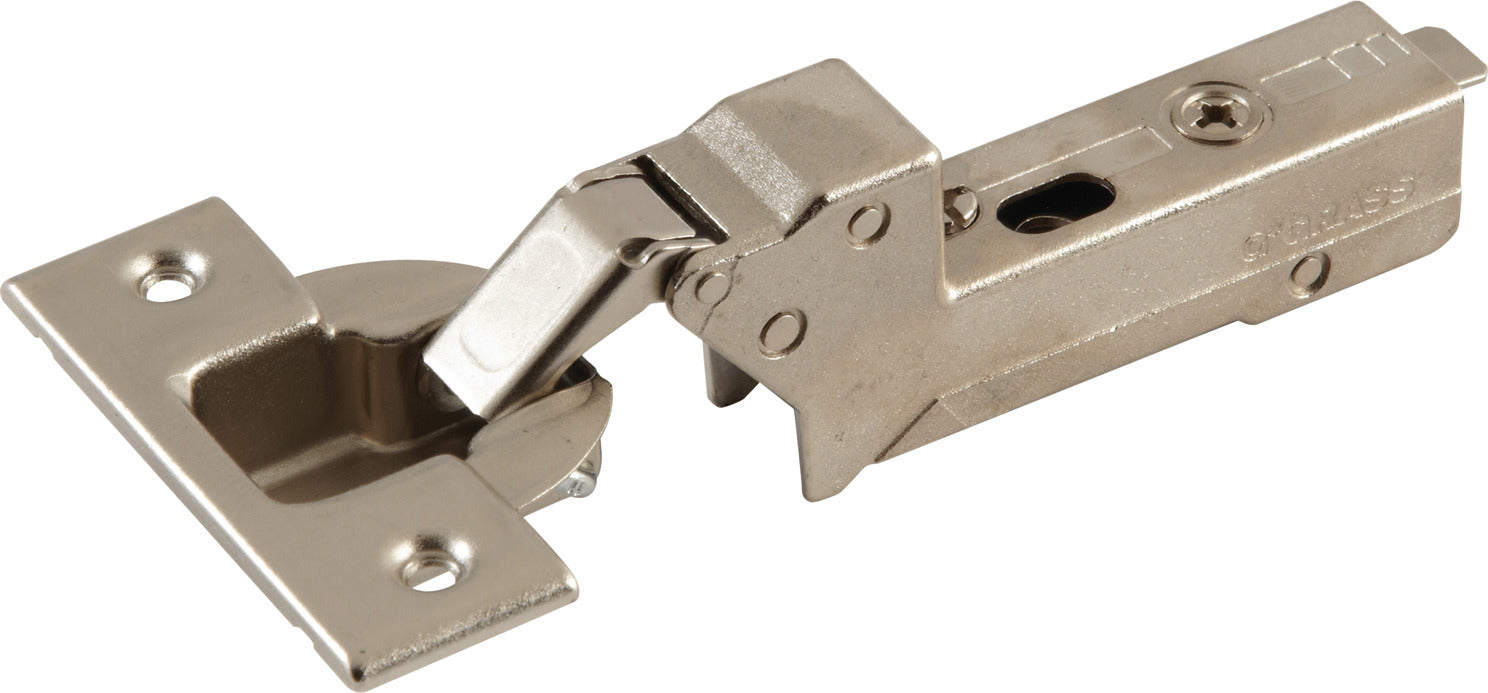

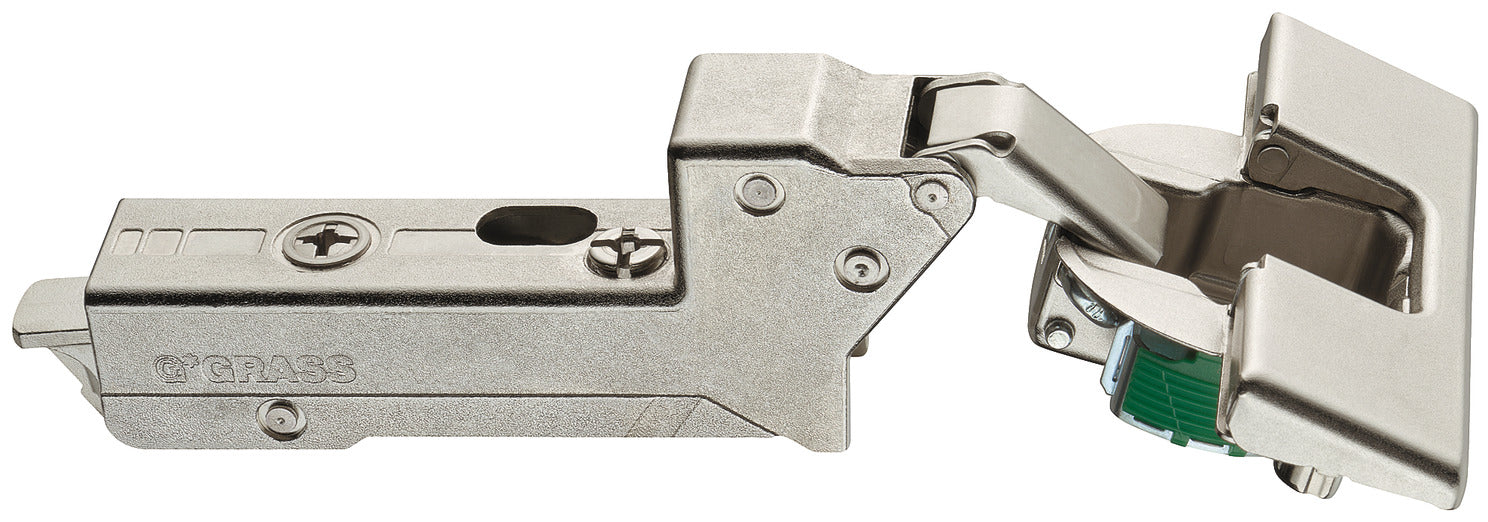

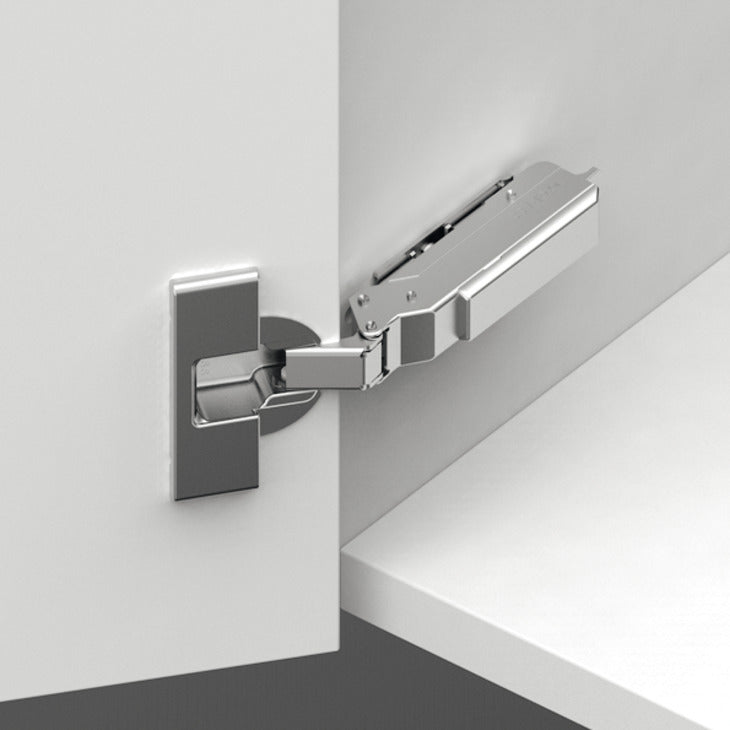

Concealed Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting

$5.78
$5.78
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
    With opening mechanism for comfortable opening of front panels without handles
    Optimum gap dimensions up to 24 mm door thickness

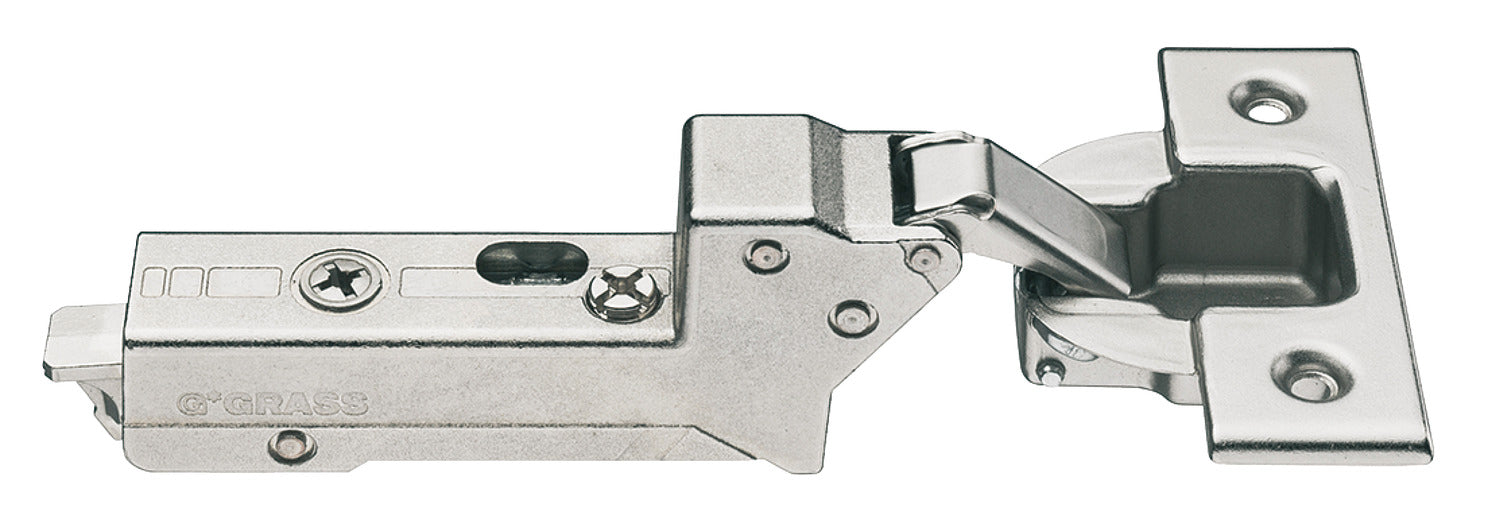

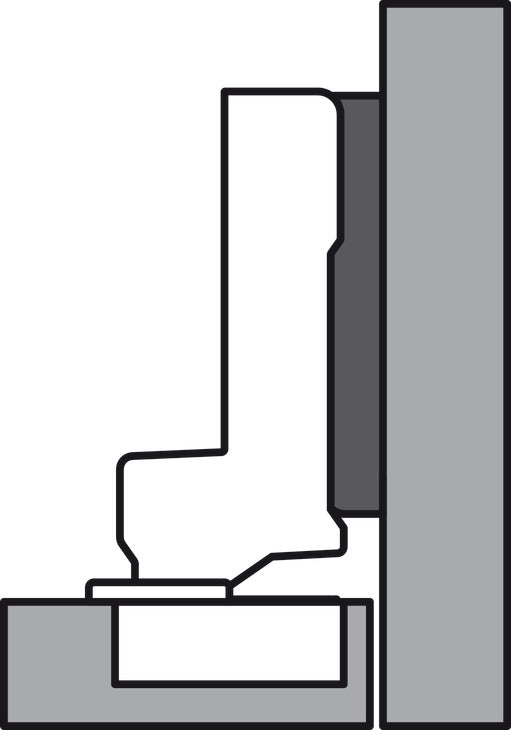

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.

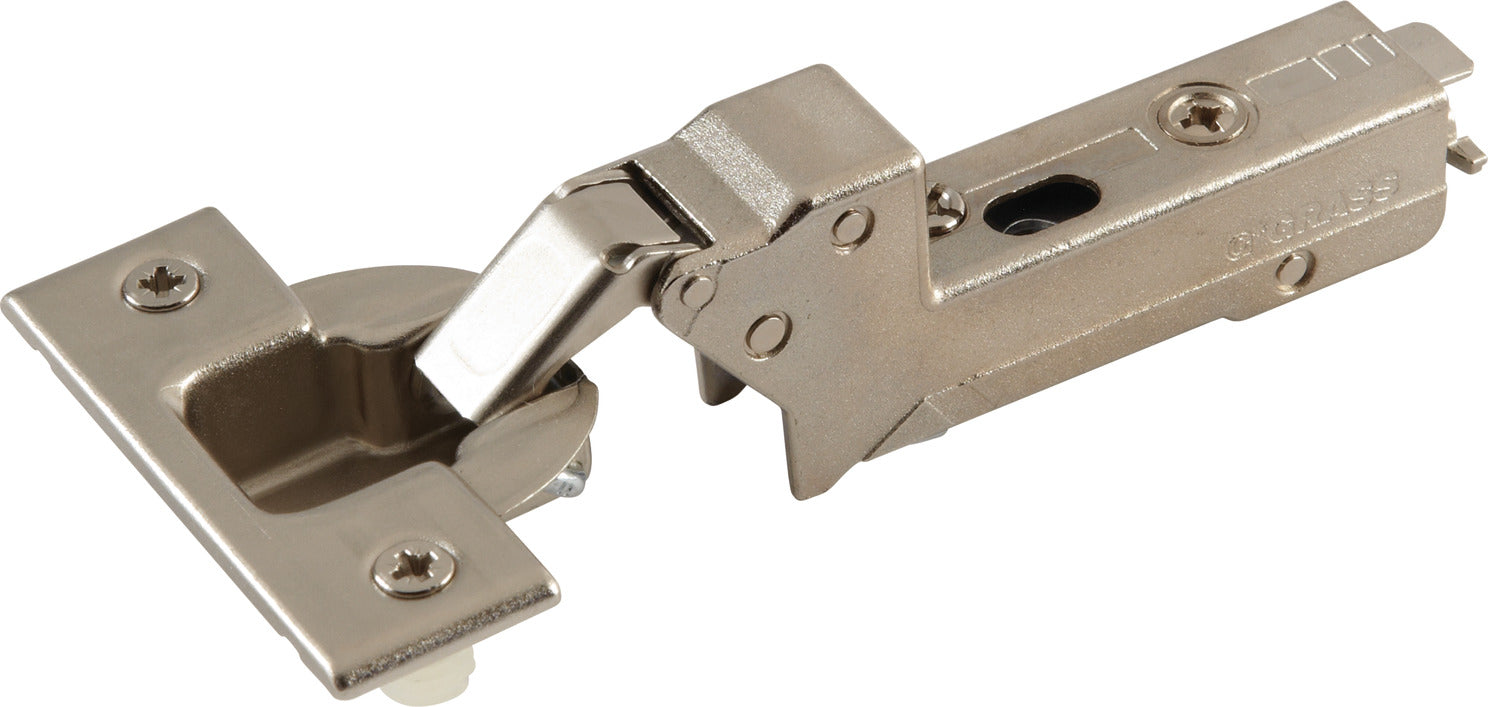

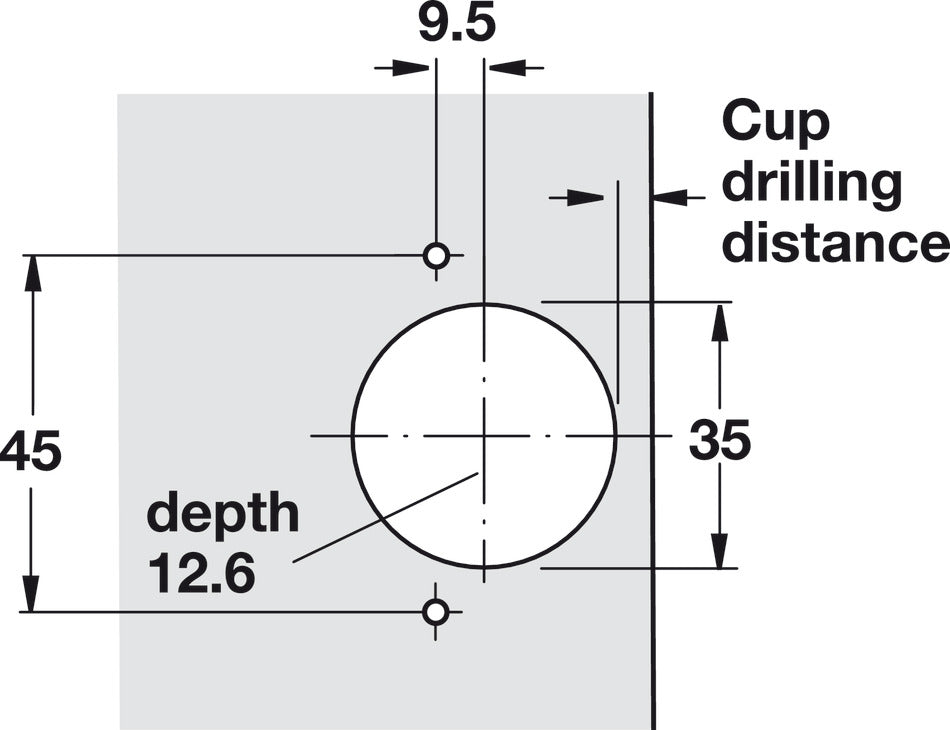

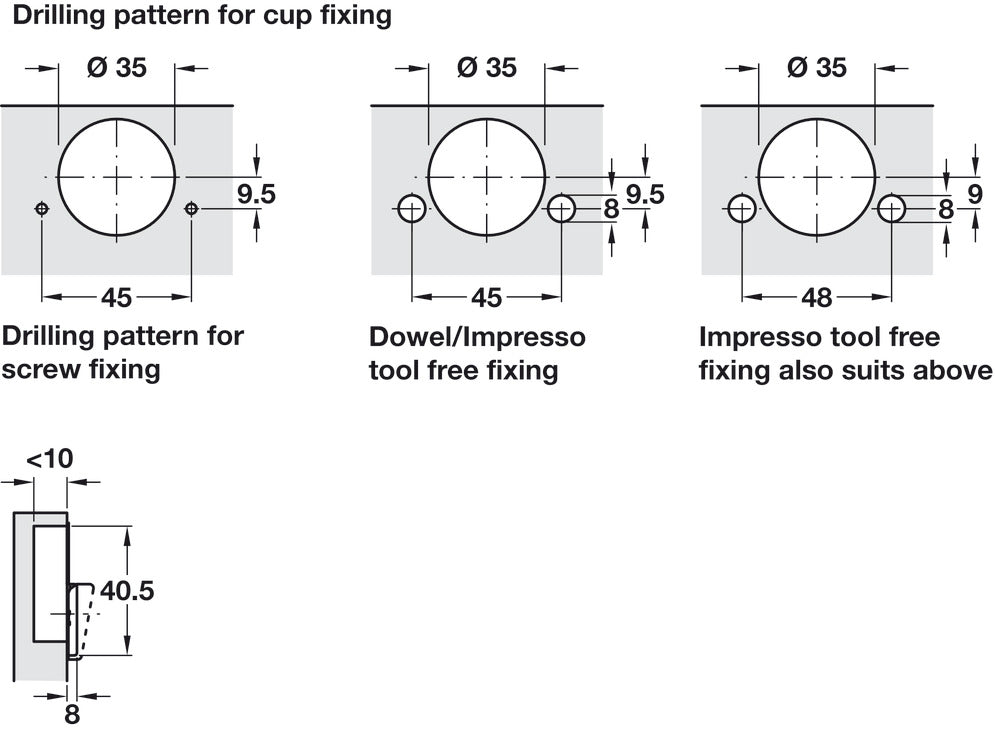

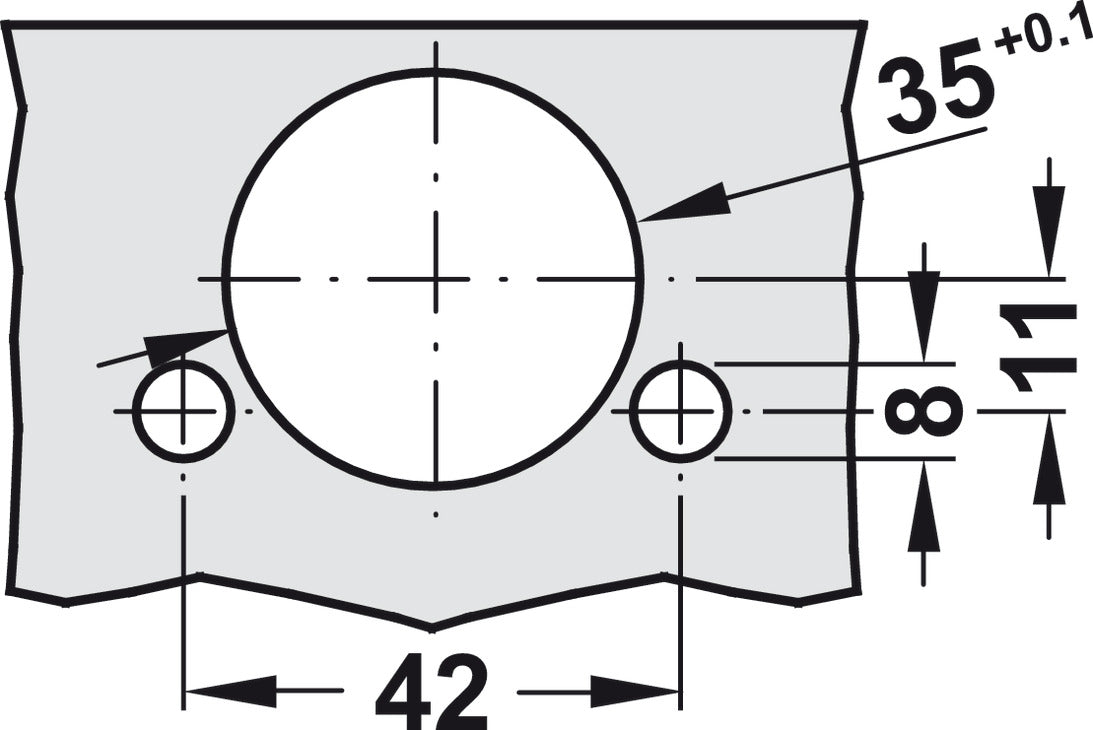

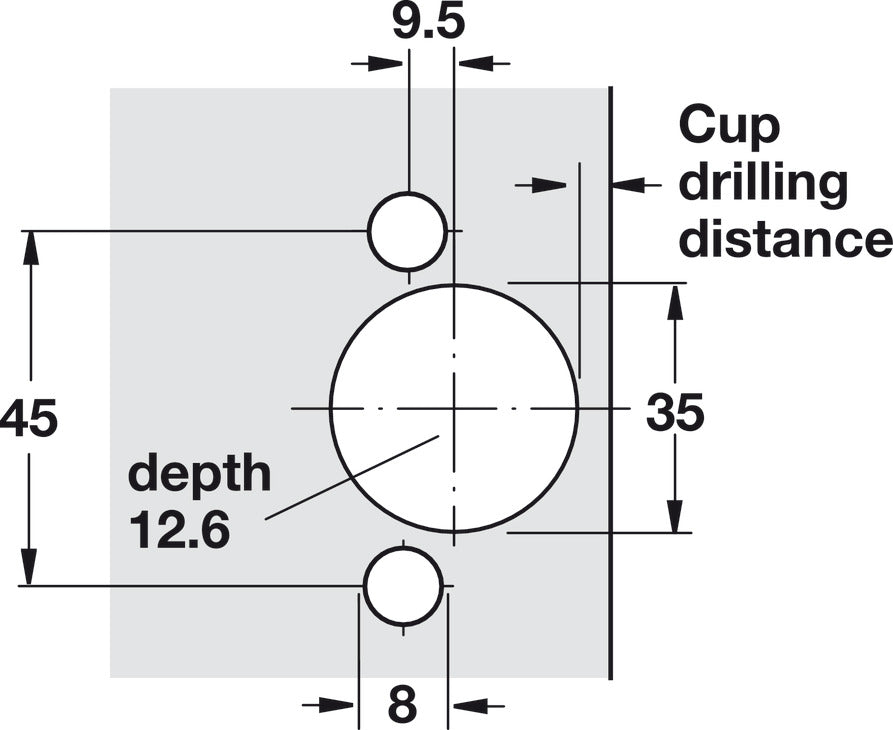

  • Drilling pattern: 42/11
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Model series : Tiomos 110°
  • For door material : wood
  • Concealed hinge version : inset
  • Crank type : High Cranked
  • Opening angle : 110 °
  • Suitable for :

    Standard applications

  • Material : Steel, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet without tools (clip system)

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm, Height adjustment depending on mounting plate
  • For wooden door thickness : 16 – 24 mm
  • Cup drilling depth : 12.6 mm
  • Note :

    The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
    For hinges with opening mechanism please order Grass Tipmatic separately.
