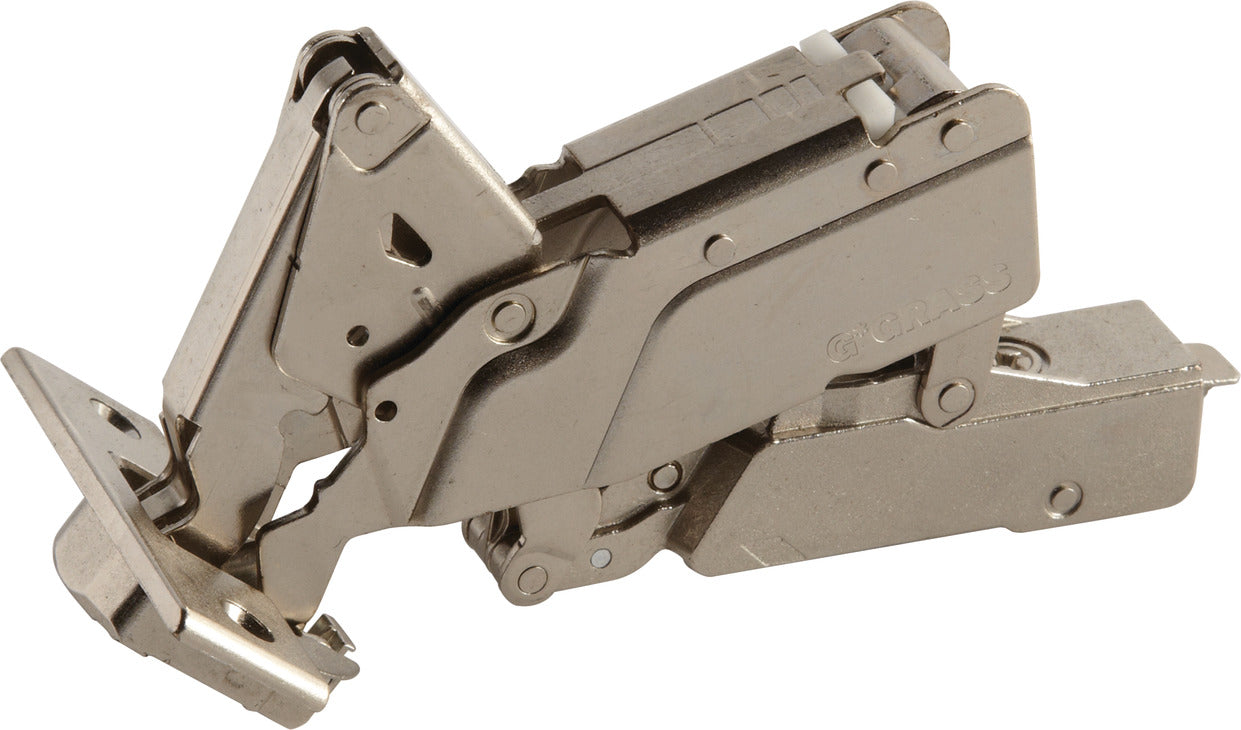

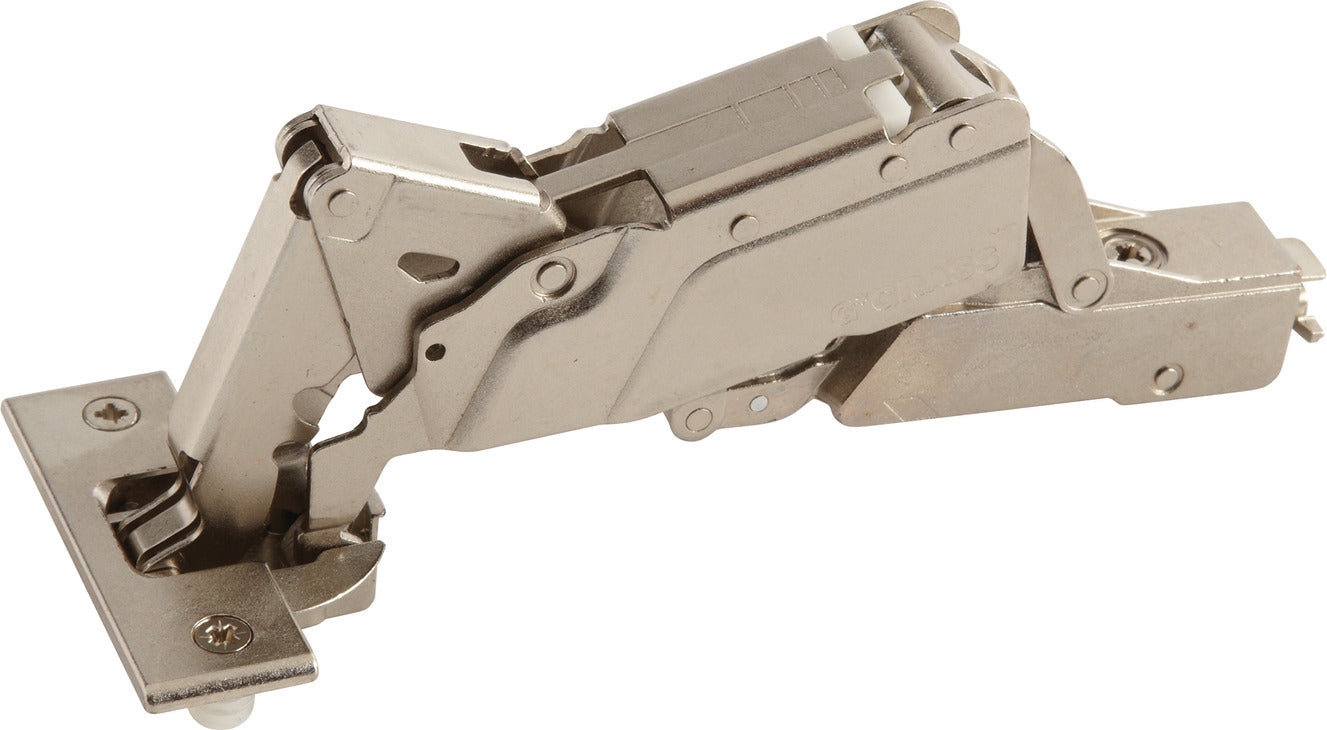

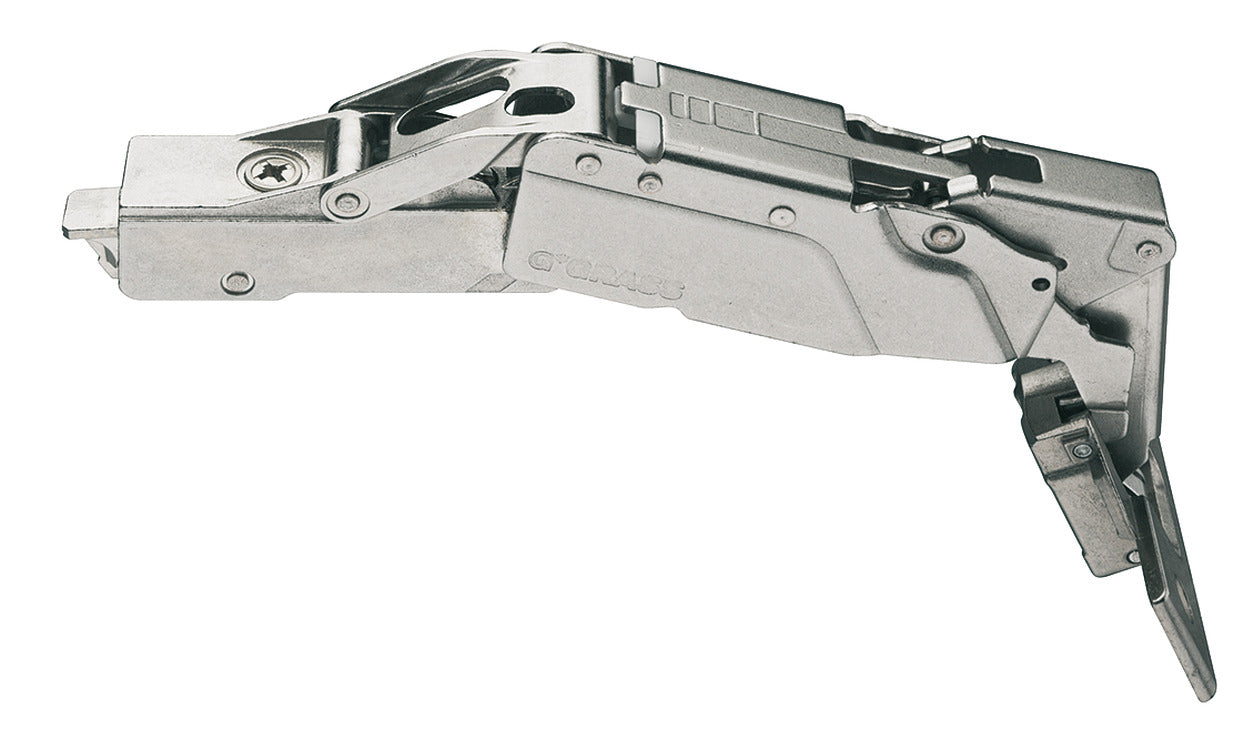

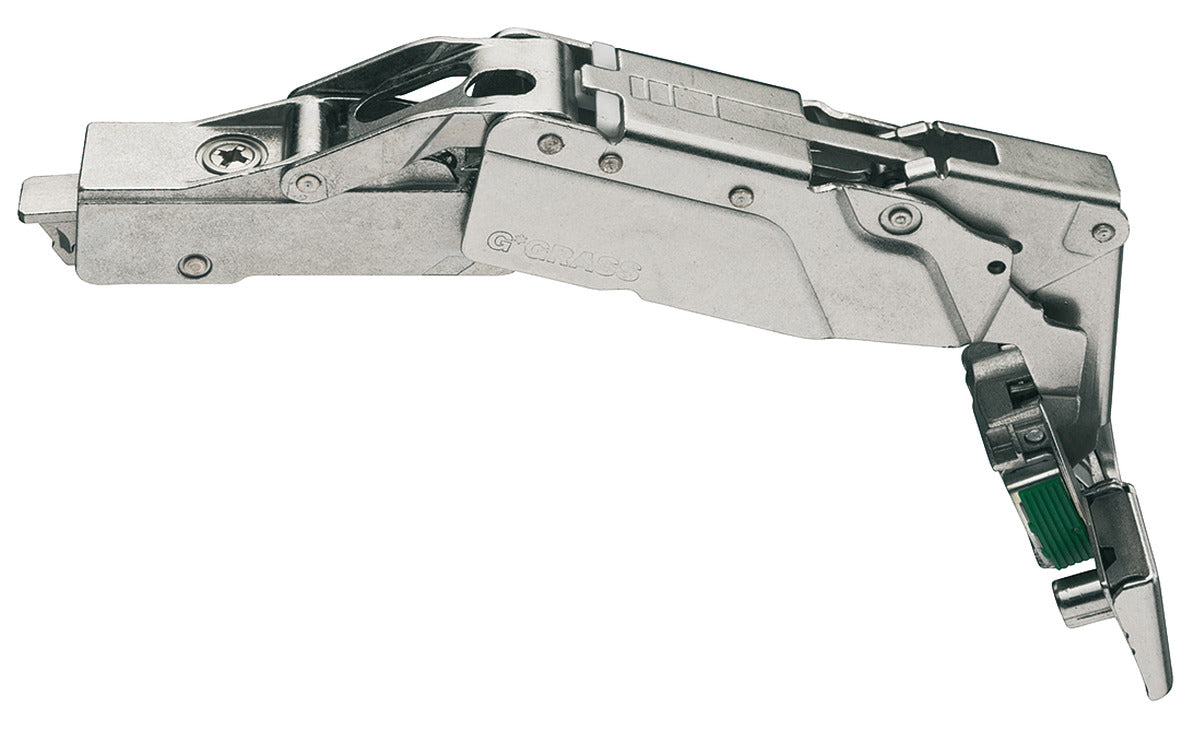

• Concealed Hinge, Grass Tiomos 160°, full overlay mounting
1 19

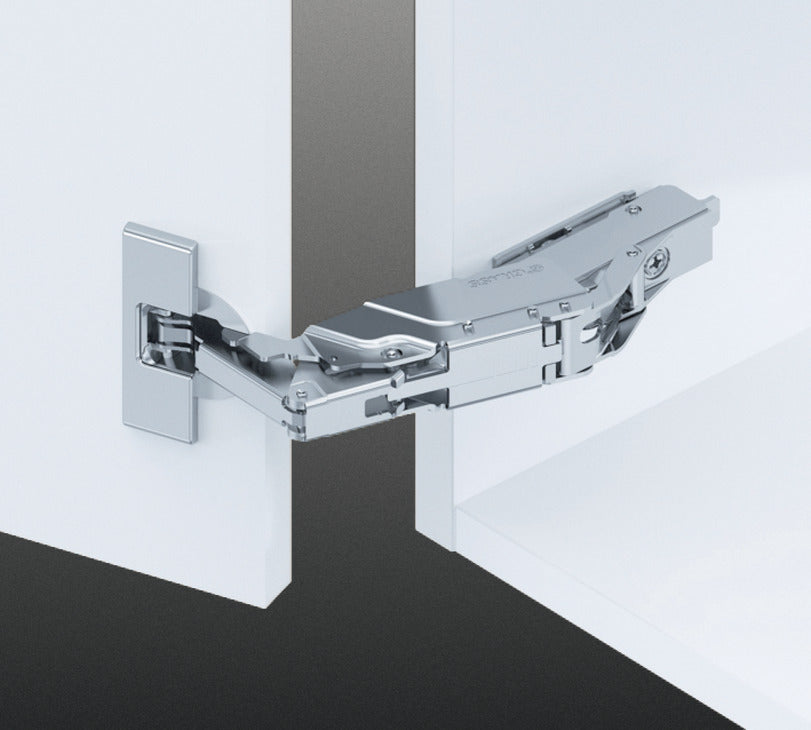

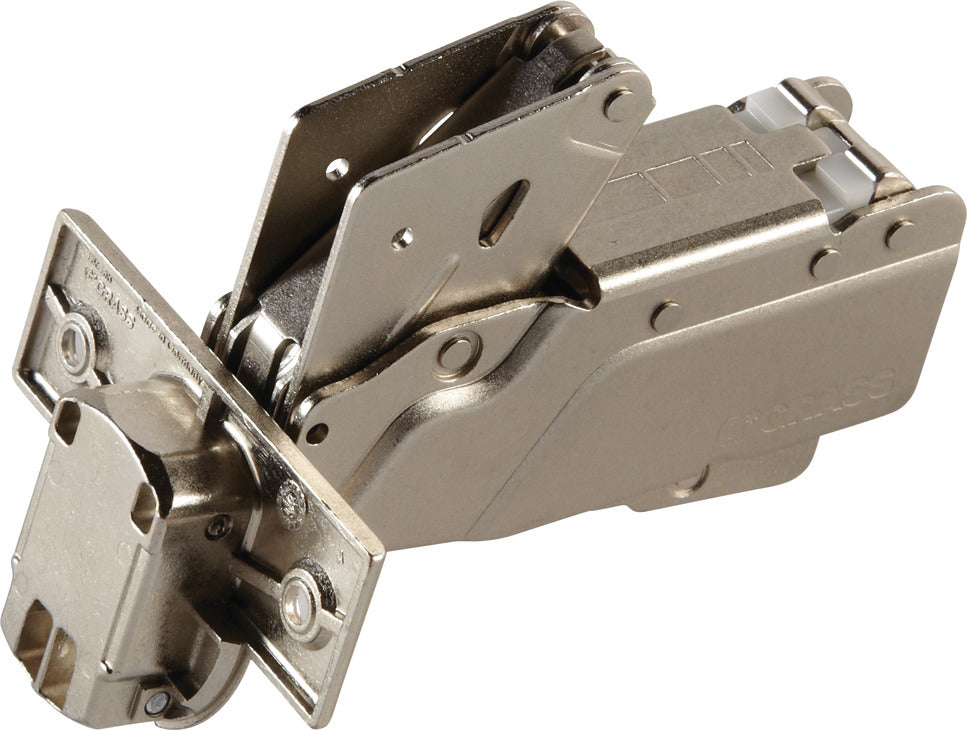

Concealed Hinge, Grass Tiomos 160°, full overlay mounting

$12.72
$12.72
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)
    No offset, for use with internal pull outs or extending trays
    Low cup depth 10 mm
    Surrounding mitred mounting possible

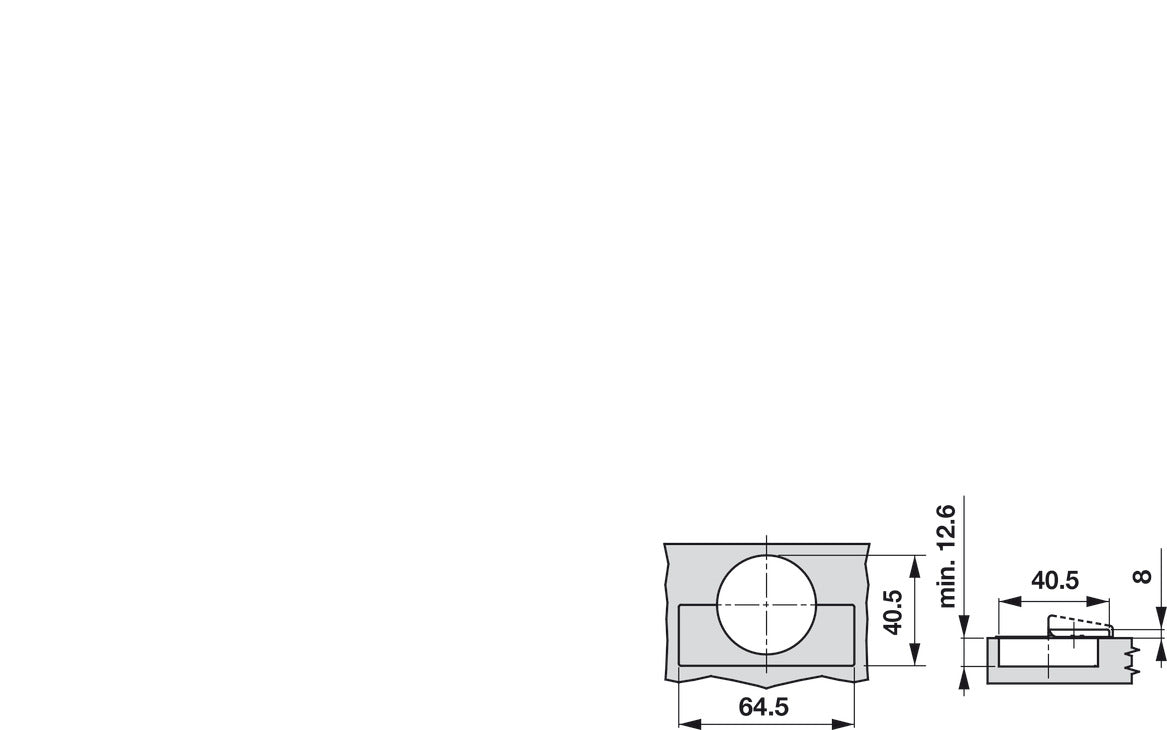

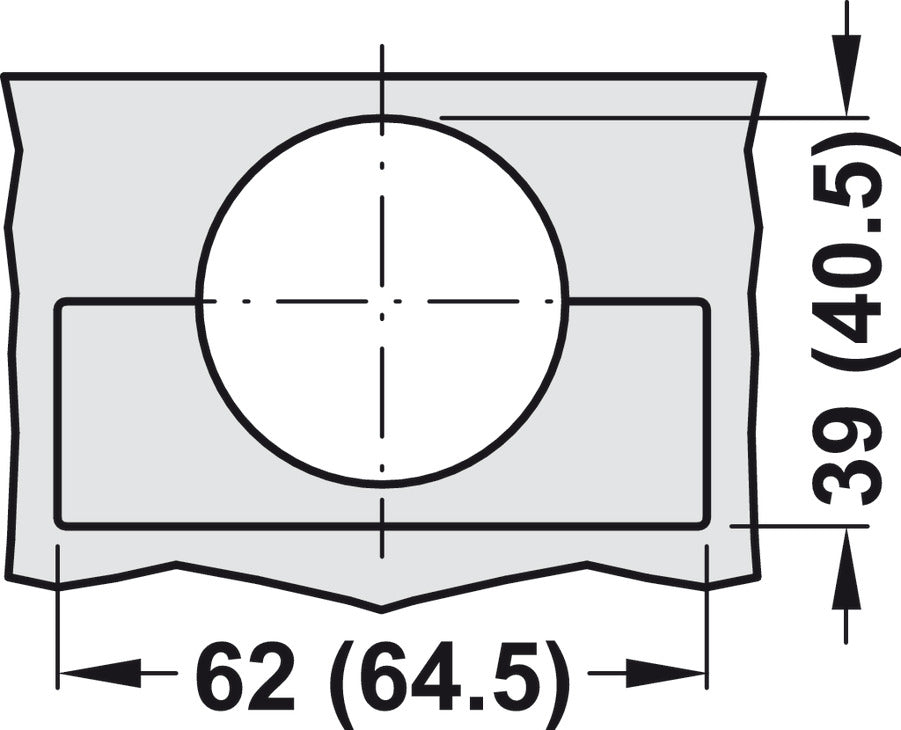

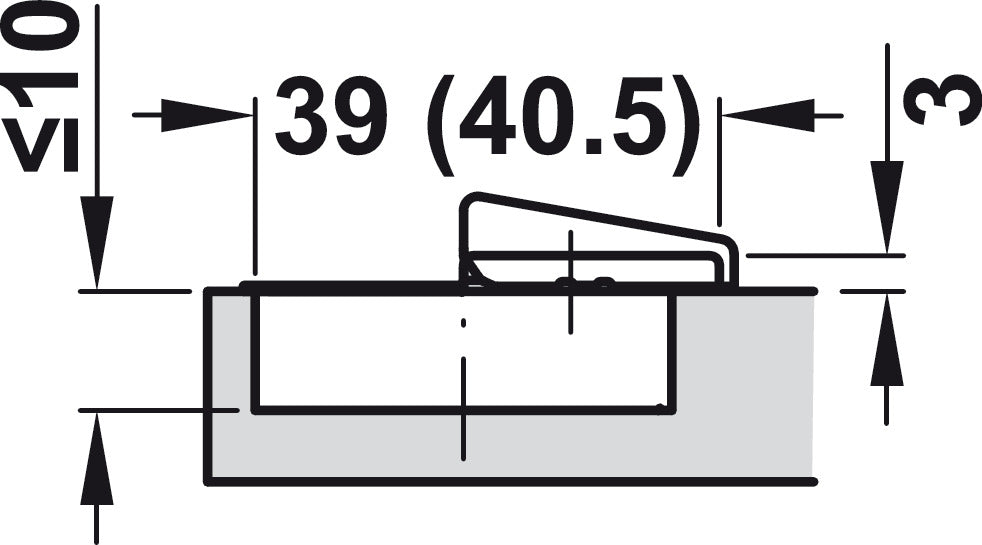

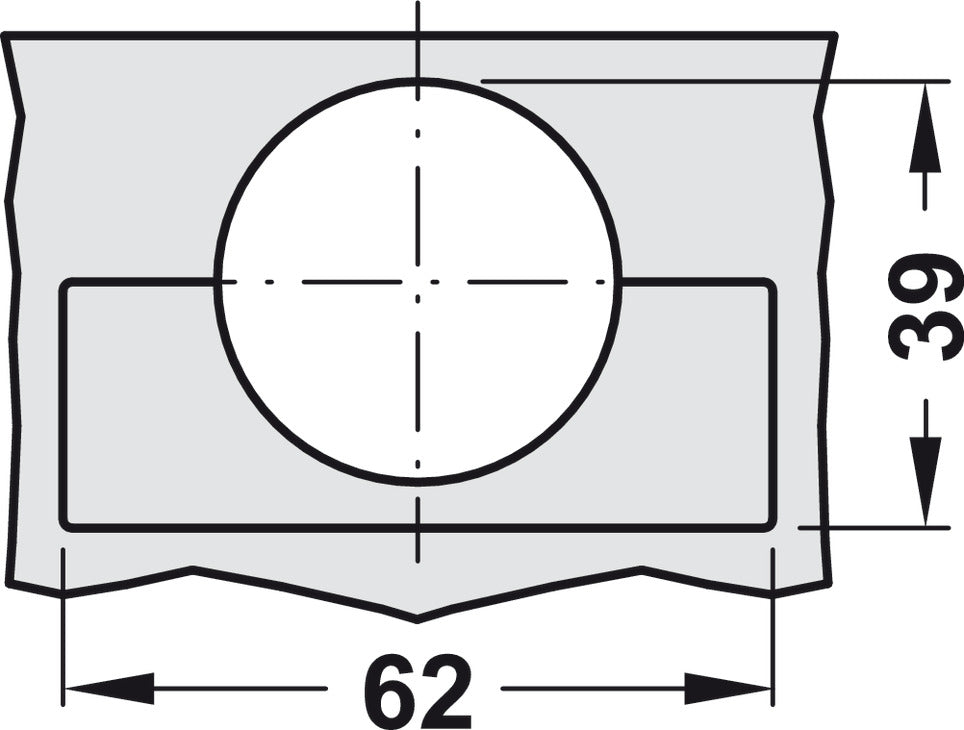

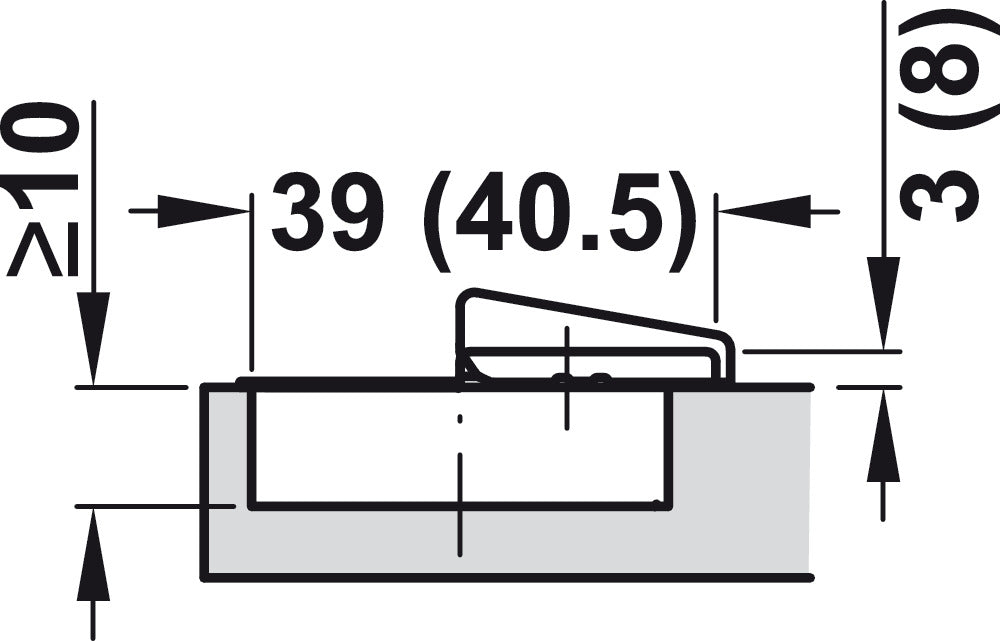

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.
    For inset mounting use 19 mm mounting plate. Set mounting plate back by door thickness + 1.5 mm.

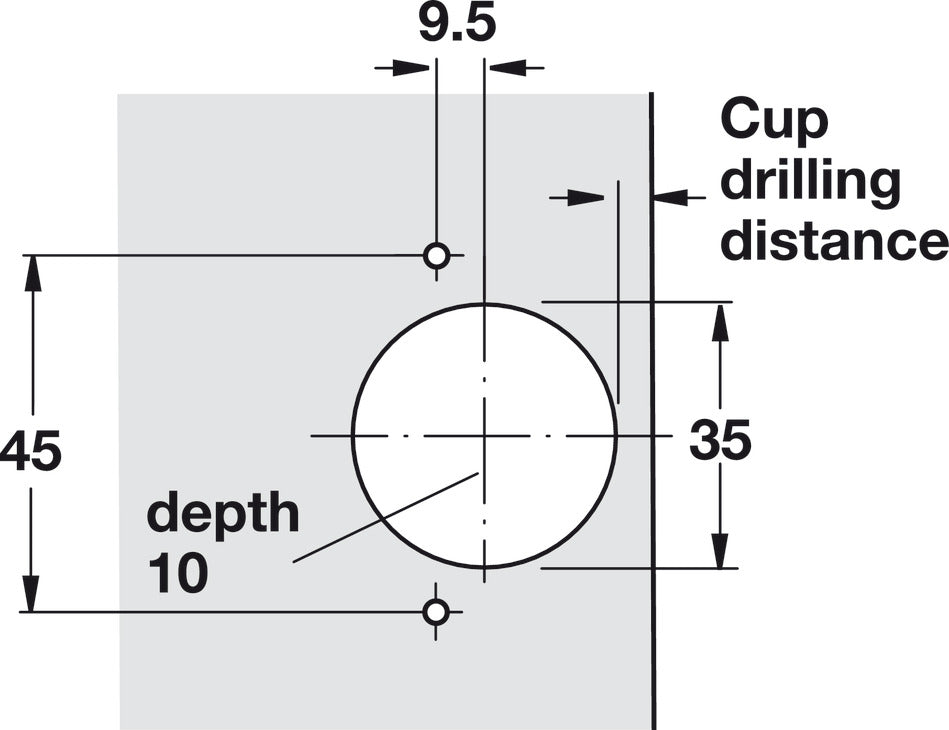

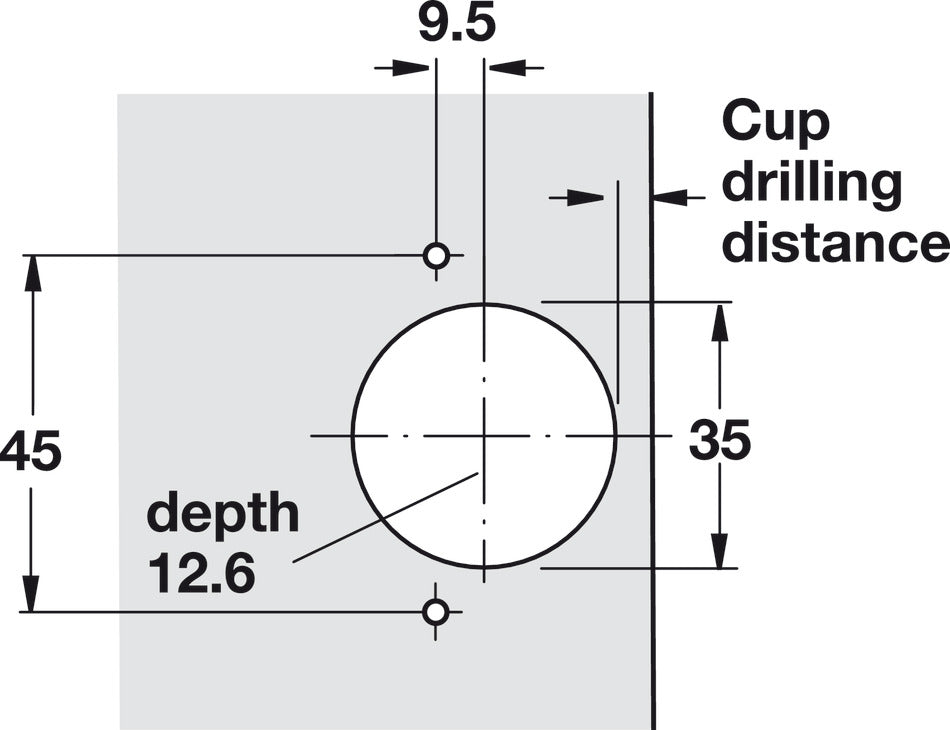

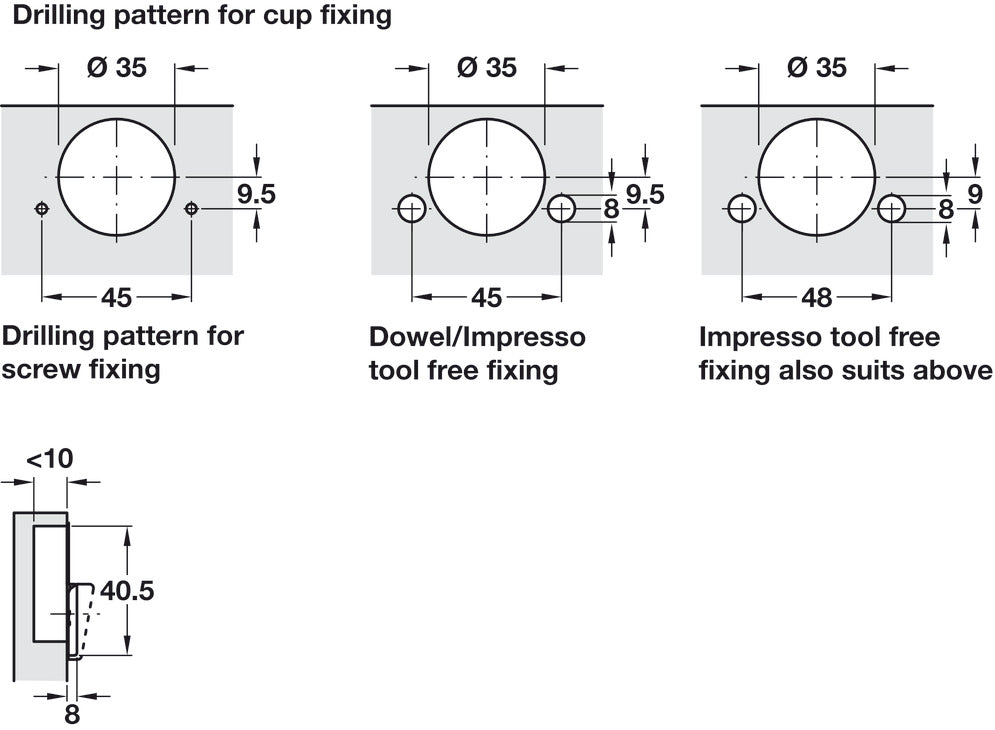

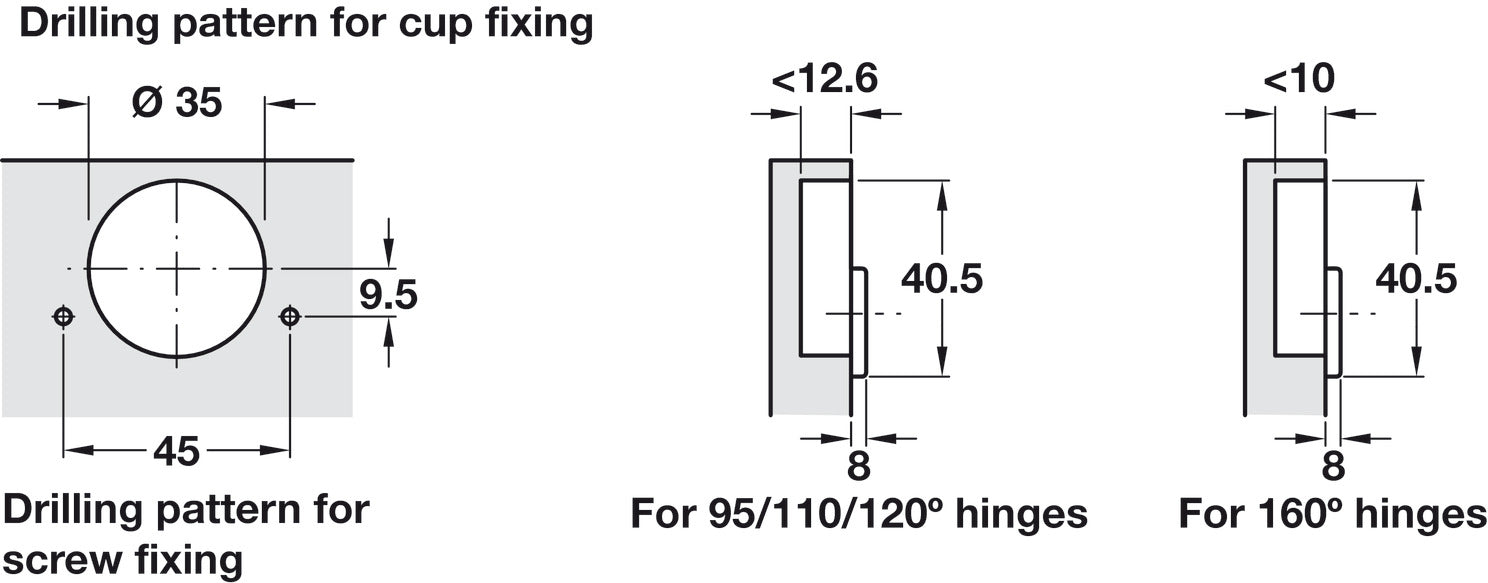

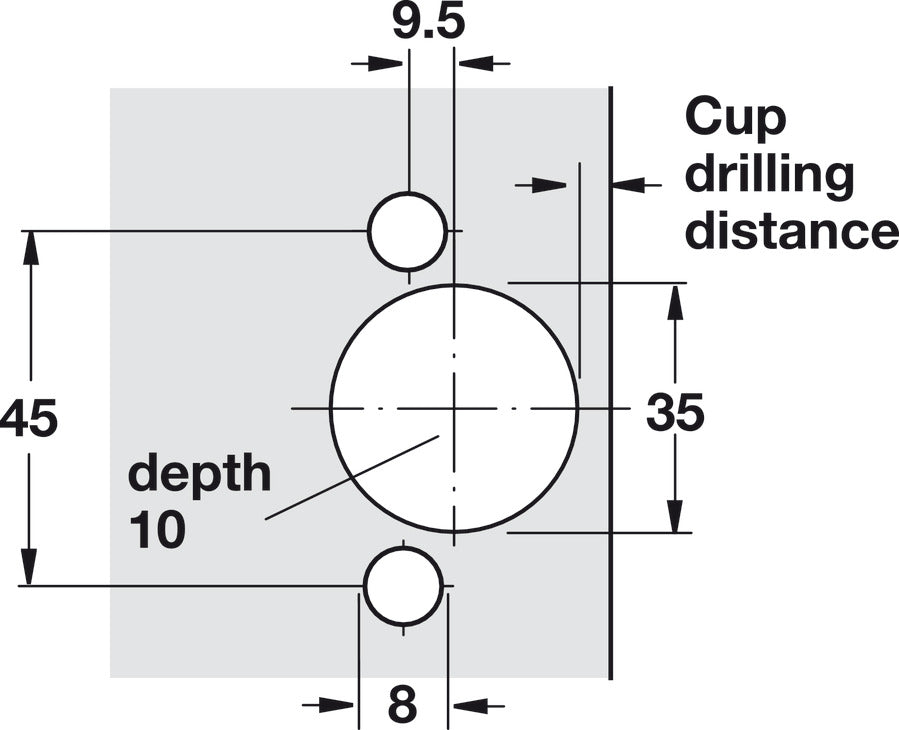

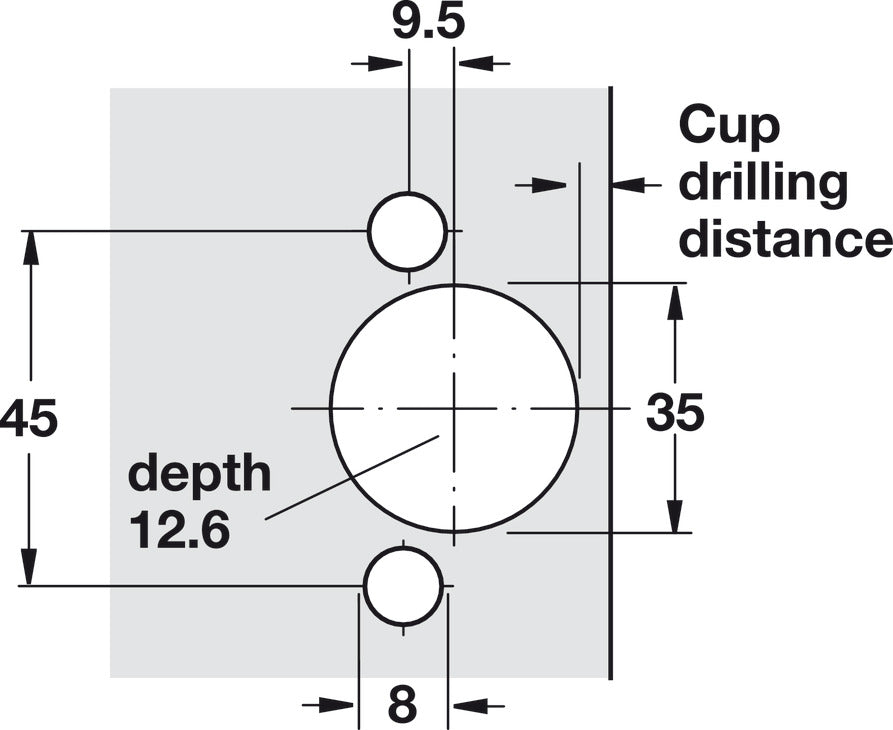

  • Drilling pattern: 42/11
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Drilling depth: Shallow cup: 3/8"
  • Model series : Tiomos 160°
  • For door material : wood

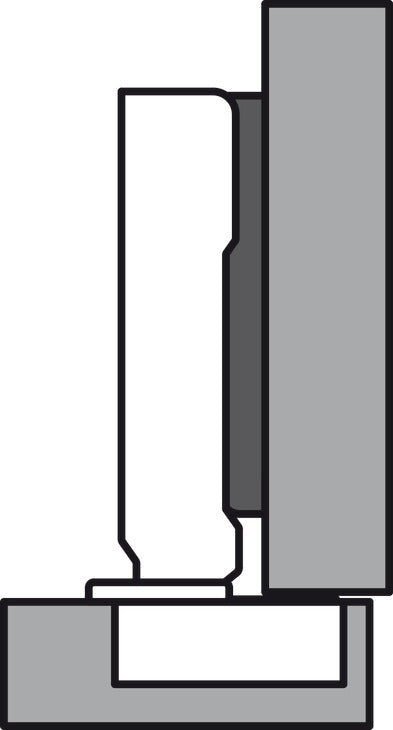

  • Concealed hinge version : full overlay
  • Crank type : High Cranked
  • Opening angle : 160 °
  • Suitable for :

    Cabinets with internal pull outs or extending trays

  • Material : Zinc alloy, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet without tools (clip system)

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm, Height adjustment depending on mounting plate
  • For wooden door thickness : 16 – 32 mm
  • For door thickness min. : Max. up to 1 1/4"
  • Cup drilling depth : 10 mm
  • Note :

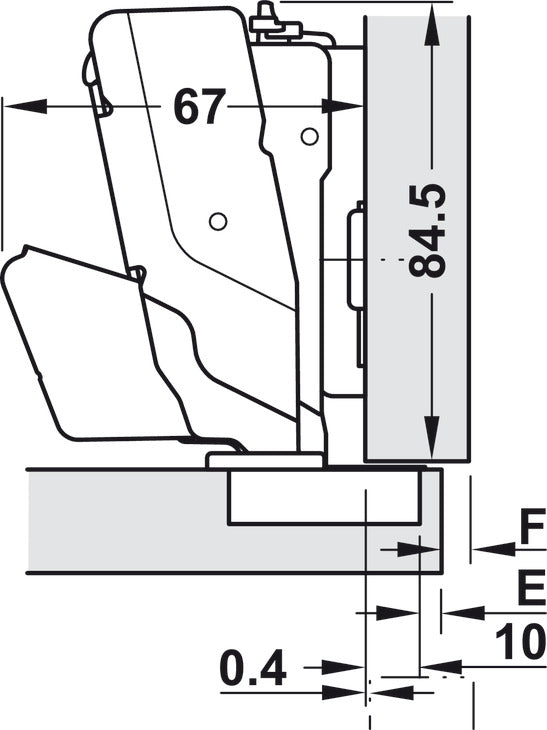

    Door Overlay1213141516171819202122E - cup drilling distance0 baseplate3456789102 baseplate345678910
    For inset mounting use 19mm mounting plate. Set mounting plate back by door thickness + 1.5mm.
