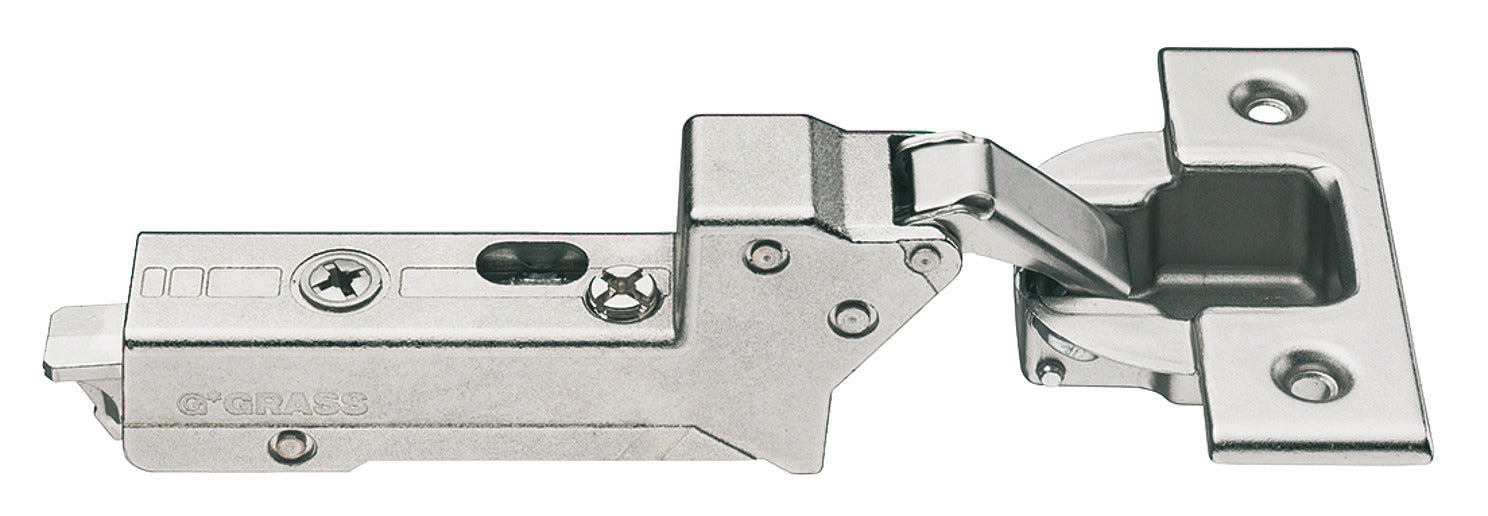

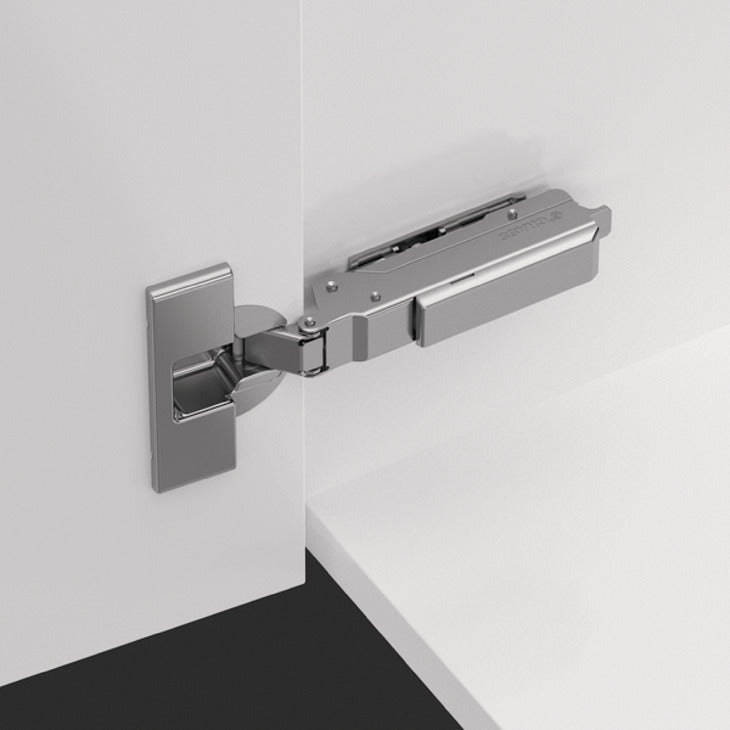

• Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Inset Mounting
1 13

Concealed Hinge, Grass TIOMOS, 94º Opening Angle, Inset Mounting

$11.78
$11.78
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With soft closing mechanism integrated in hinge arm, with 3 settings
    Optimum gap dimensions up to 28 mm door thickness

  • Optimal reveal up to (1 7/16") 36 mm thickness

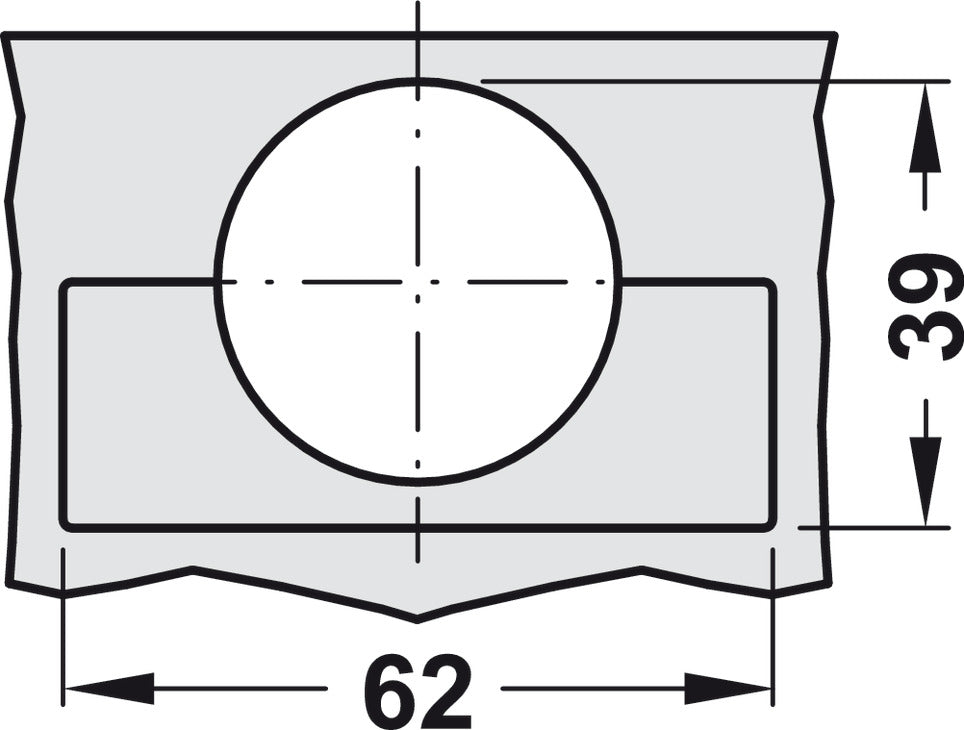

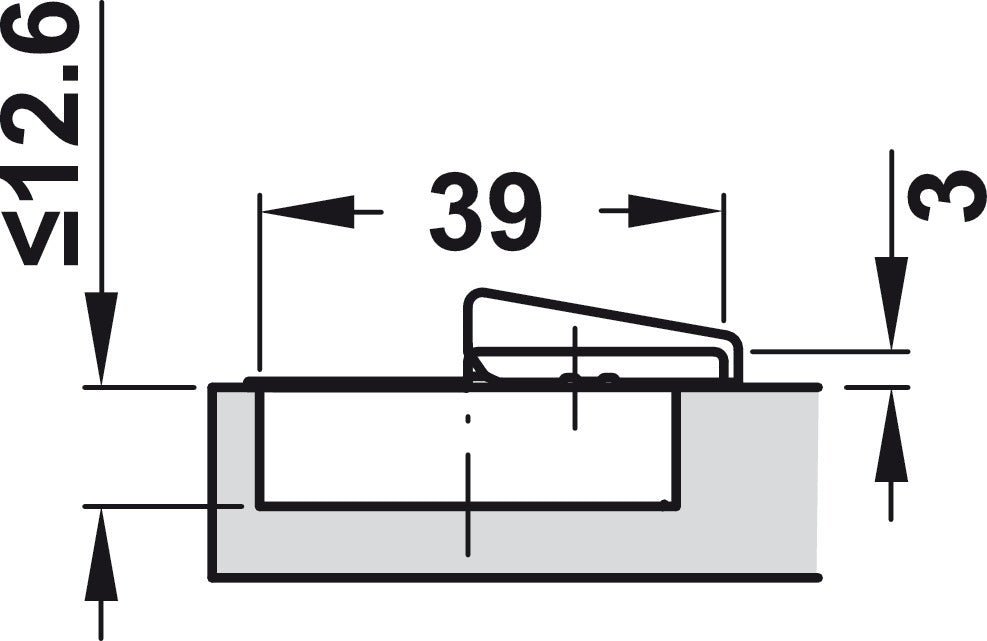

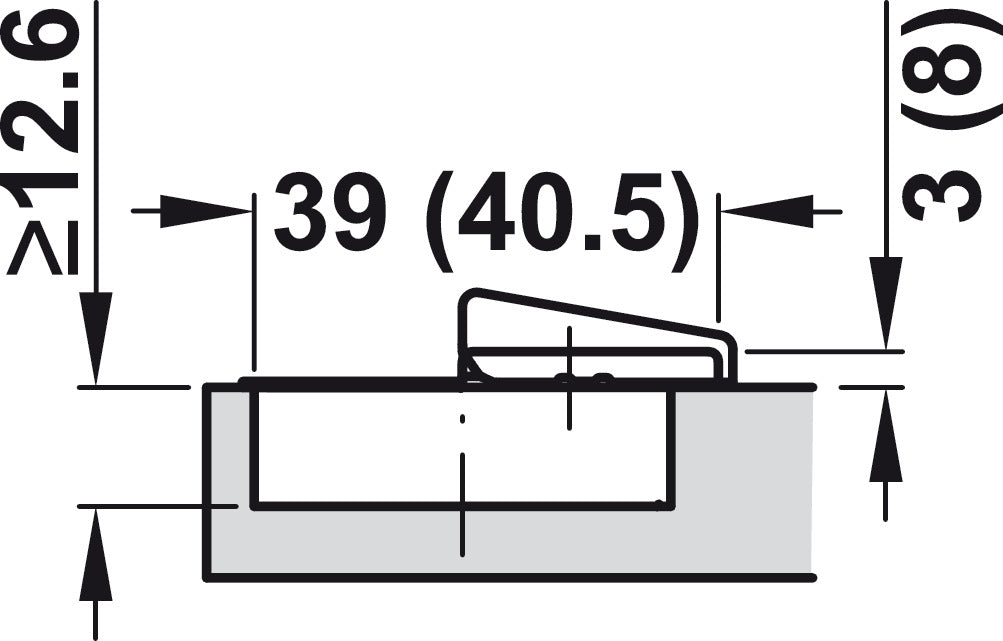

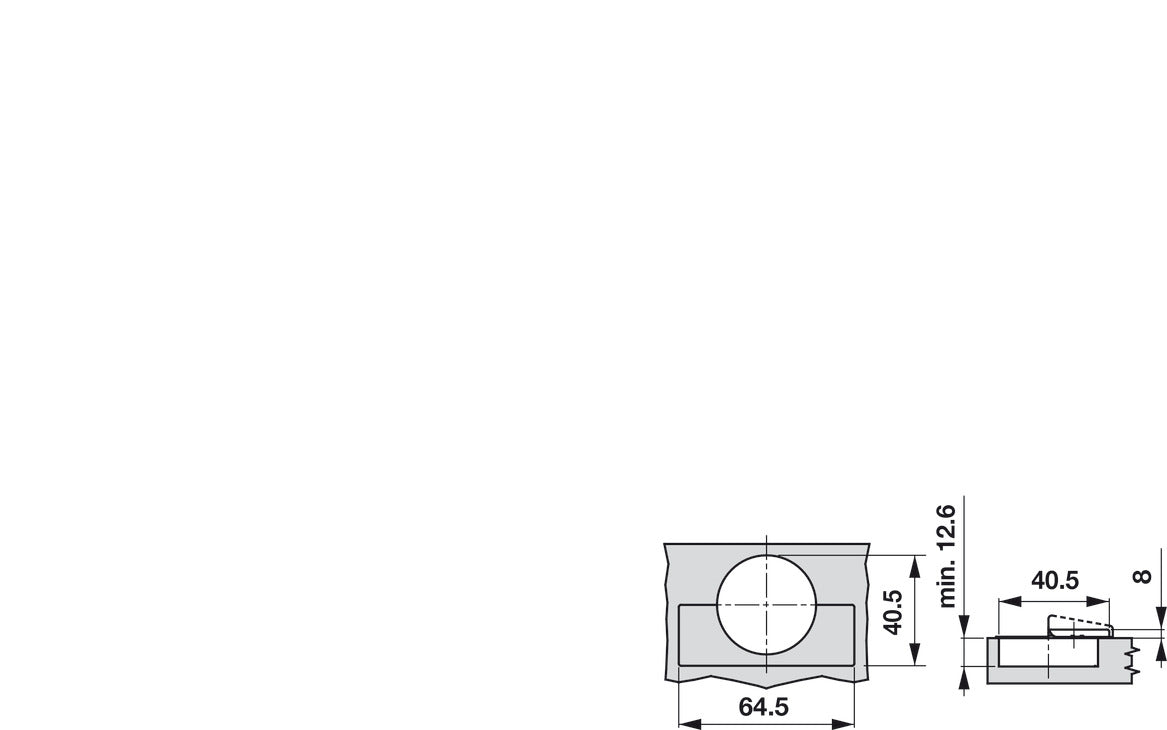

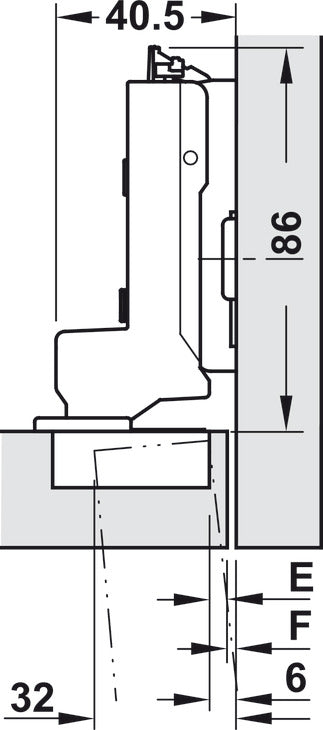

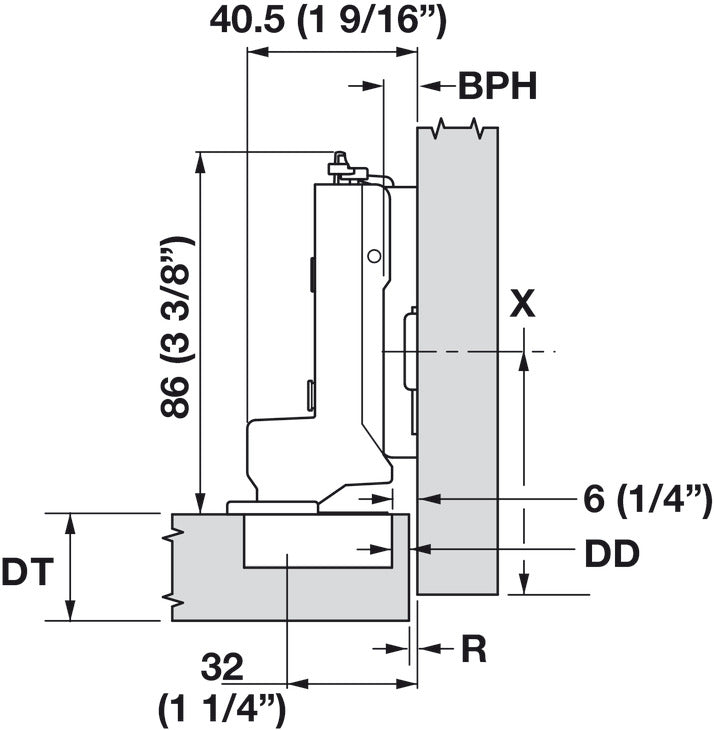

    Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32") 2mm

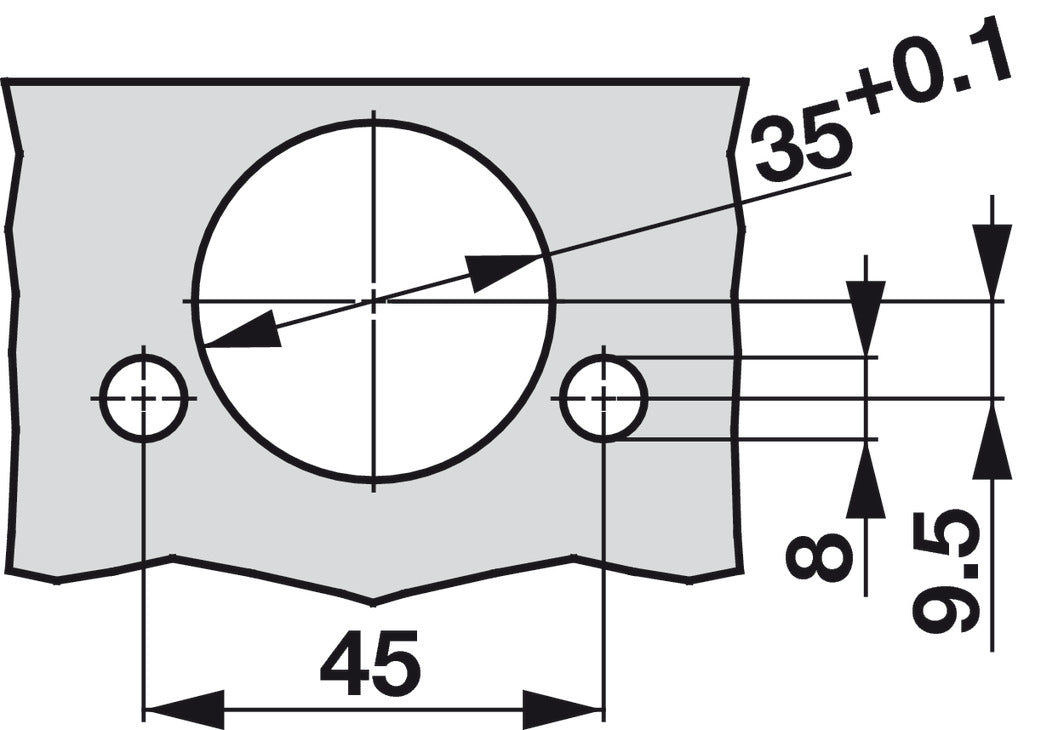

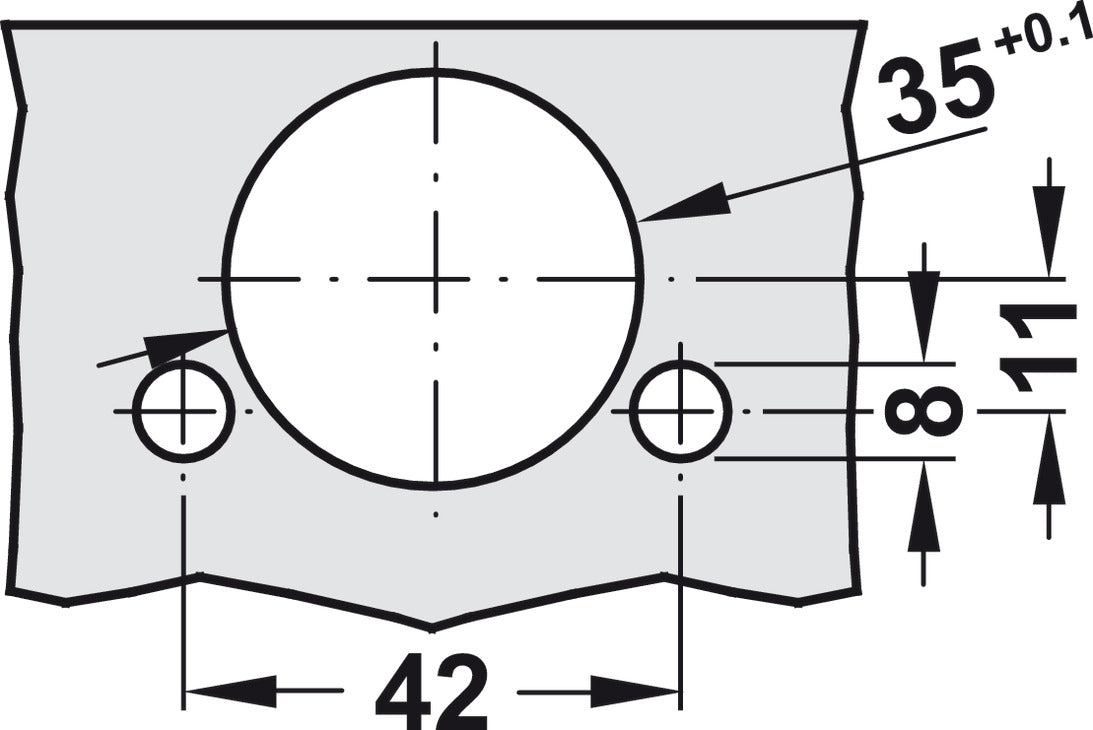

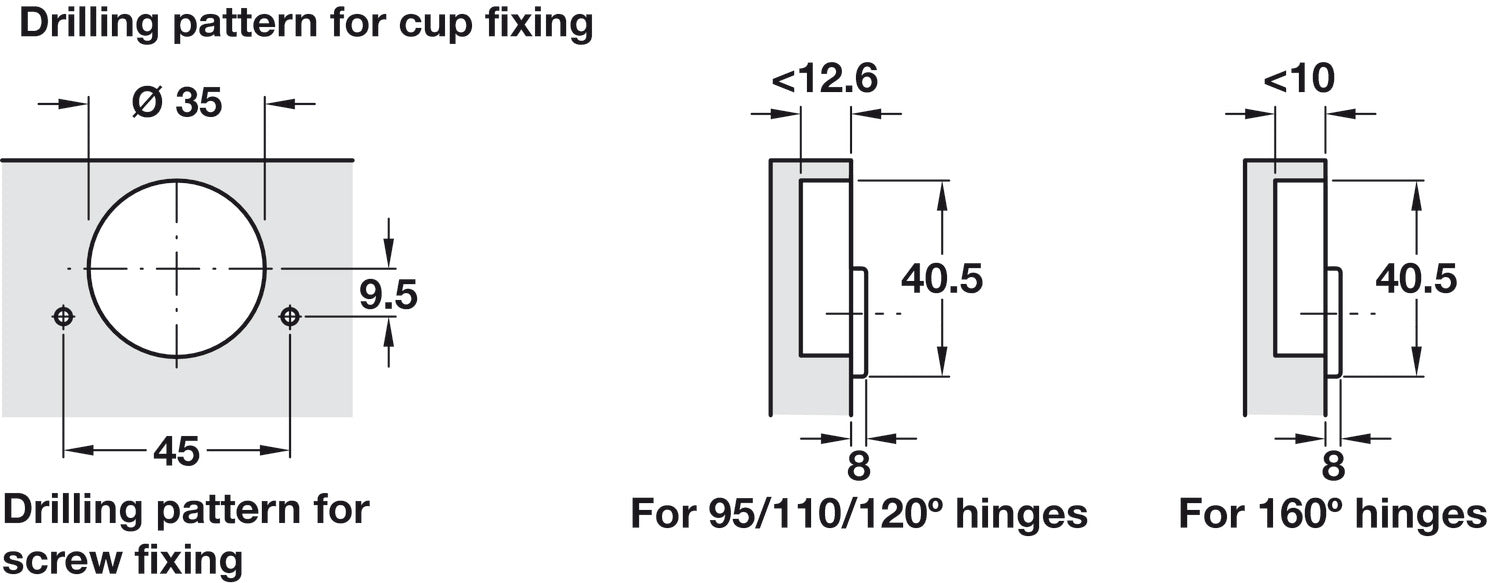

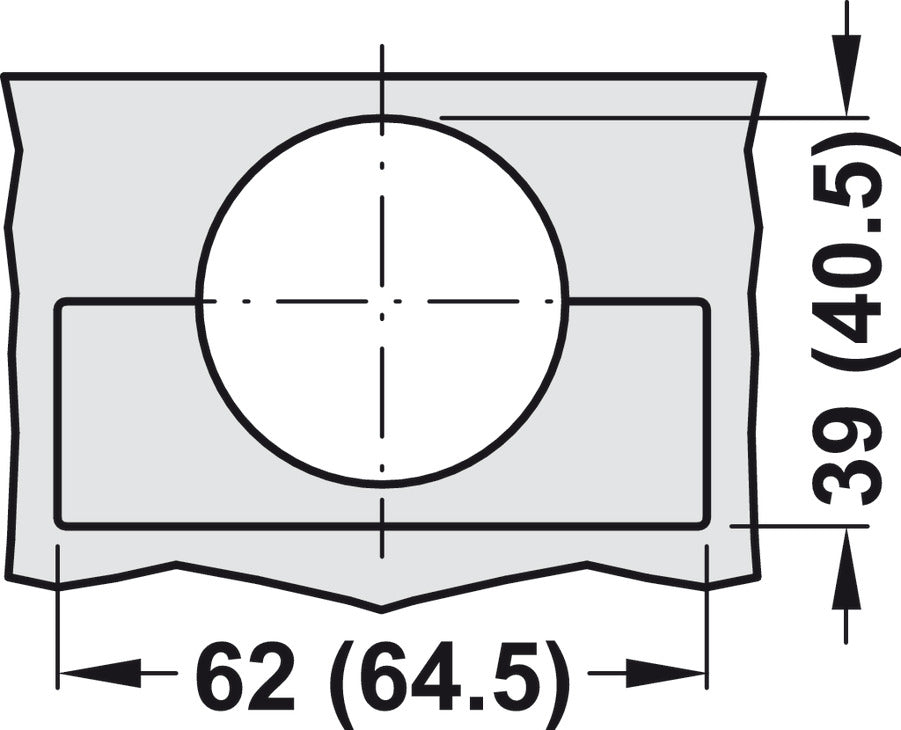

  • Drilling pattern: 42/11
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Model: -
  • Model series : Tiomos 95°
  • For door material : wood

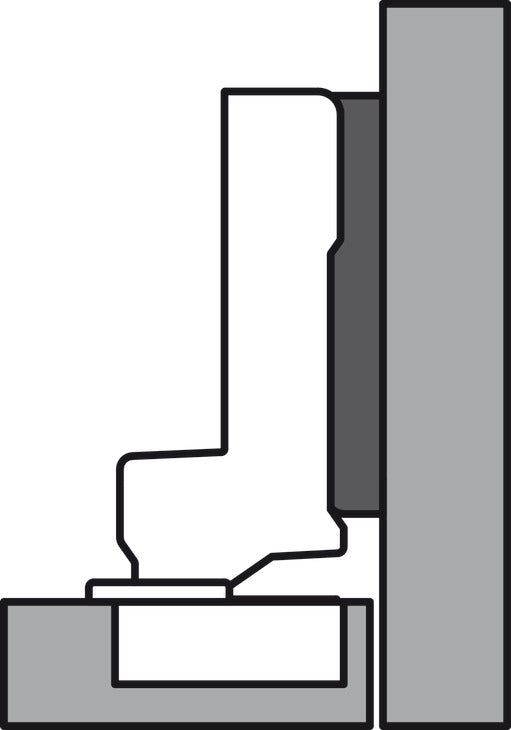

  • Concealed hinge version : inset
  • Crank type : High Cranked
  • Opening angle : 95 °
  • Suitable for :

    Thick doors and profile doors up to 36 mm

  • Material : Steel, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet without tools (clip system)

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm, Height adjustment depending on mounting plate
  • For wooden door thickness : 16 – 36 mm
  • Cup drilling depth : 12.6 mm
  • Note :

    Door overlay over 24mm possible, with side adjustments by ±2 mm.
