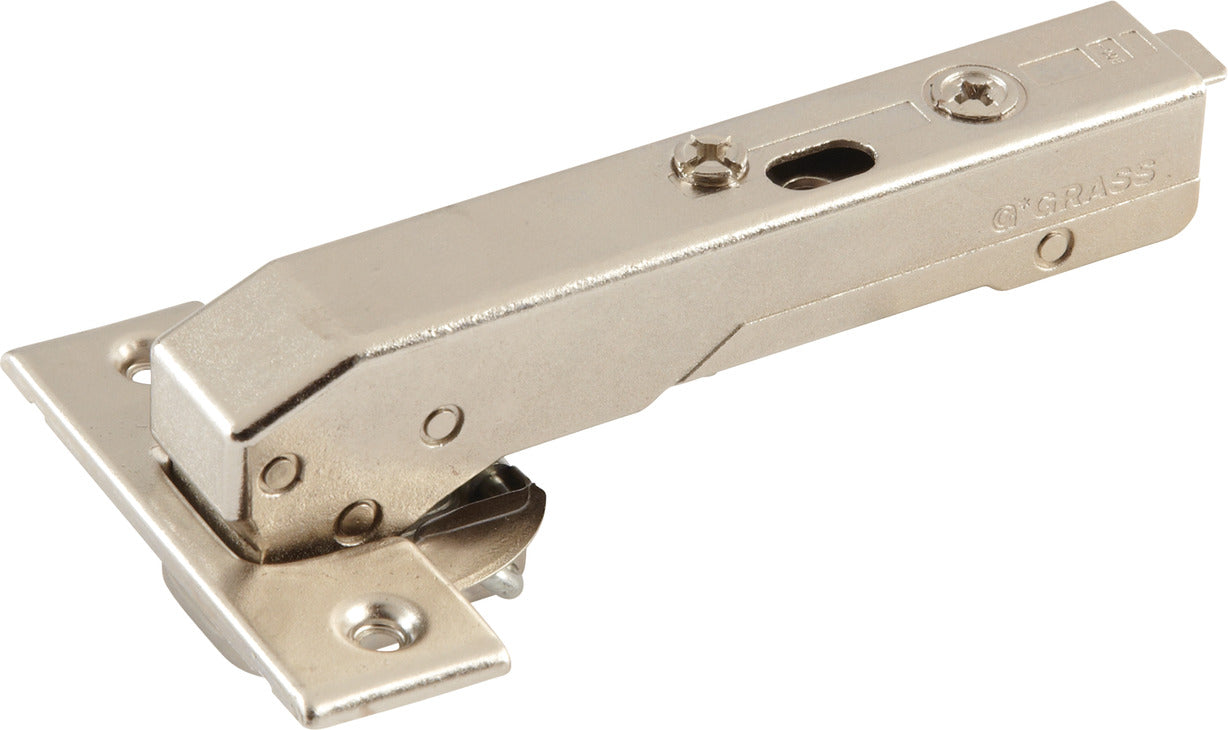

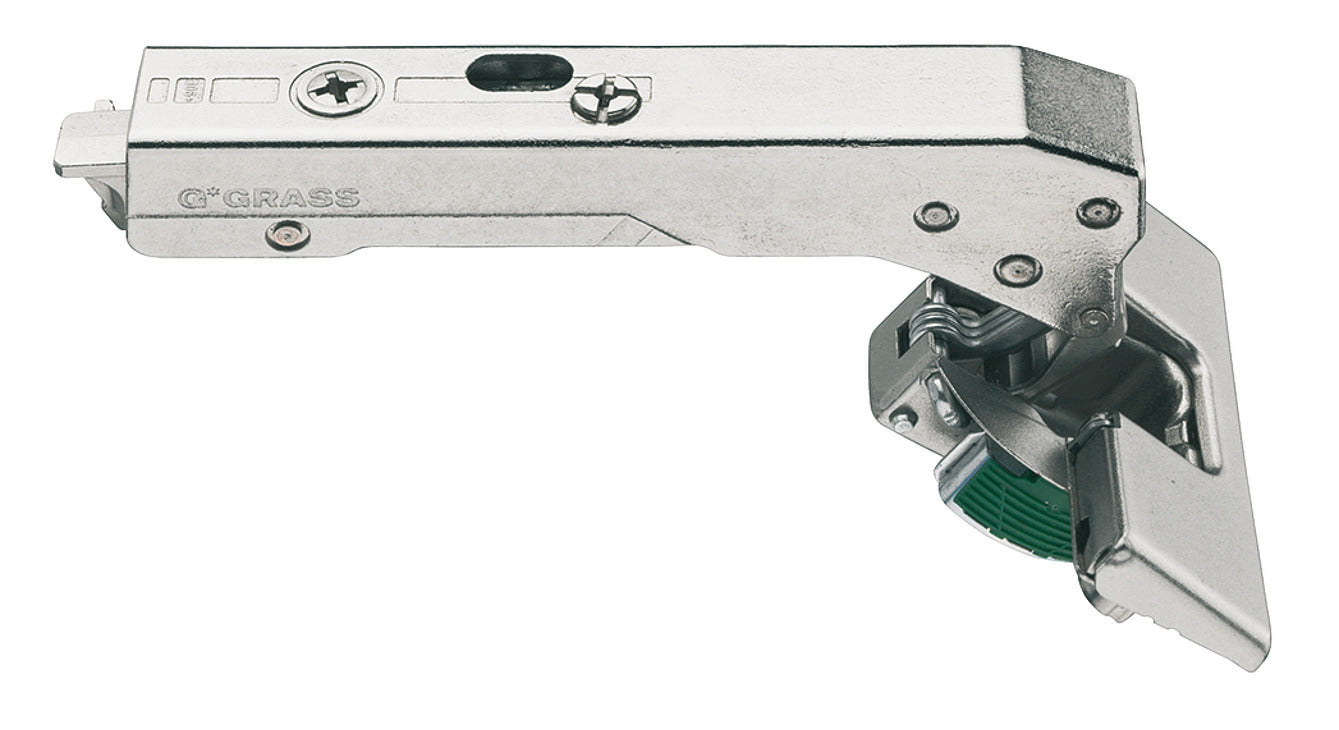

• Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting
1 21

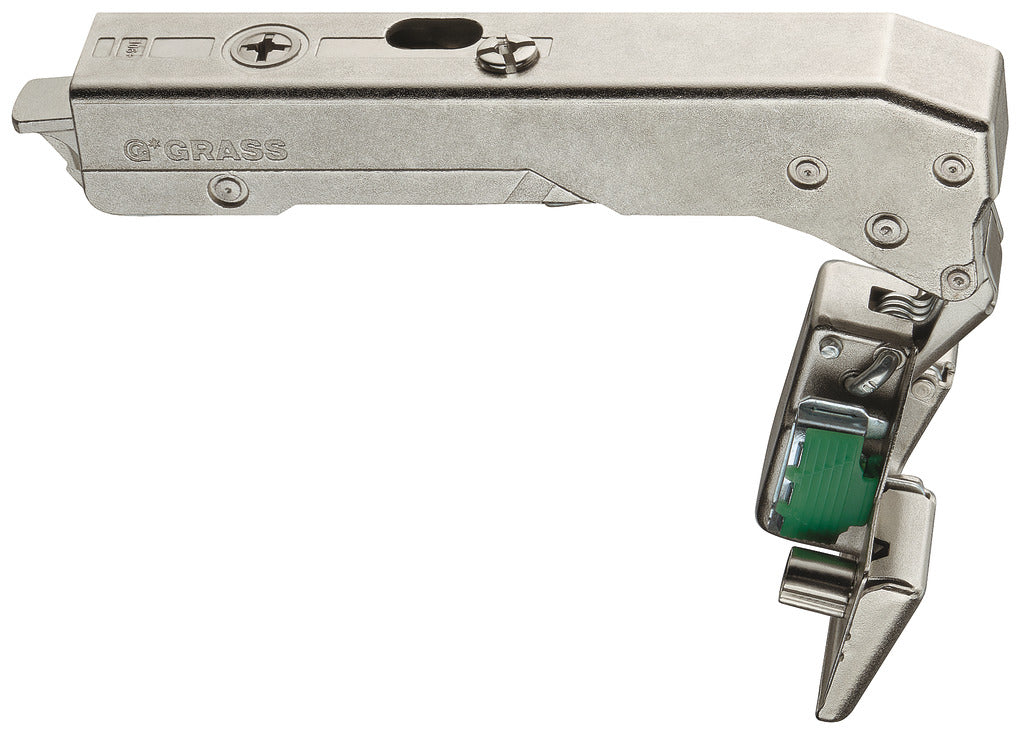

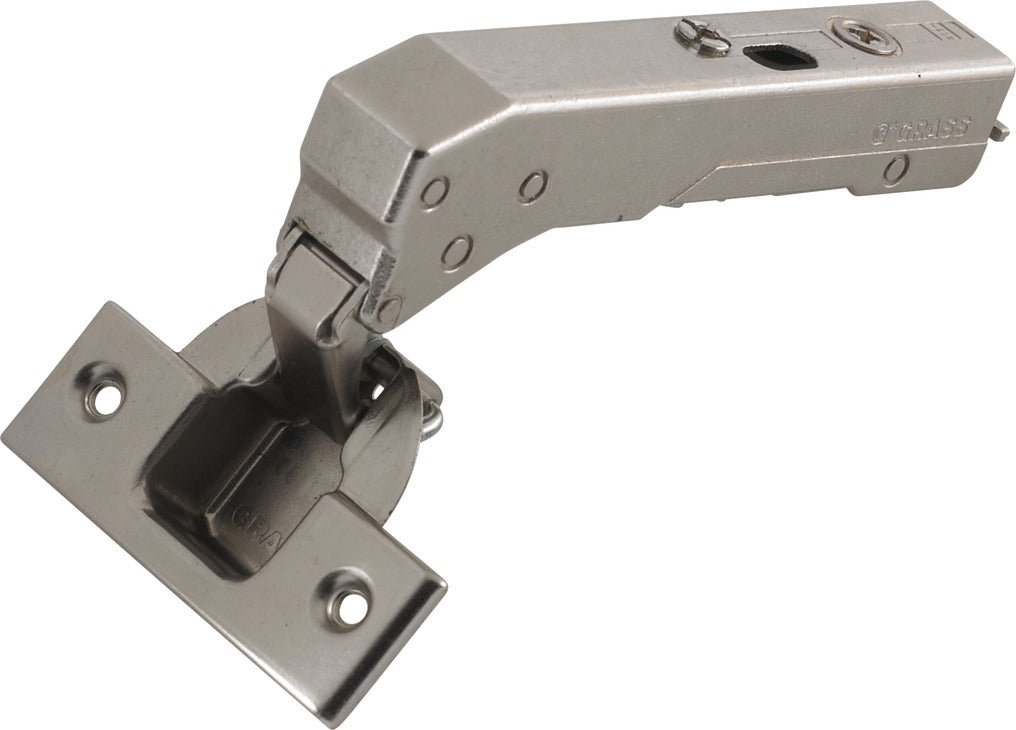

Concealed Blind Corner Hinge, Grass TIOMOS, 110° Opening Angle, Inset Mounting

$11.50
$11.50
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft closing mechanism integrated in hinge arm, with 3 settings (optional)

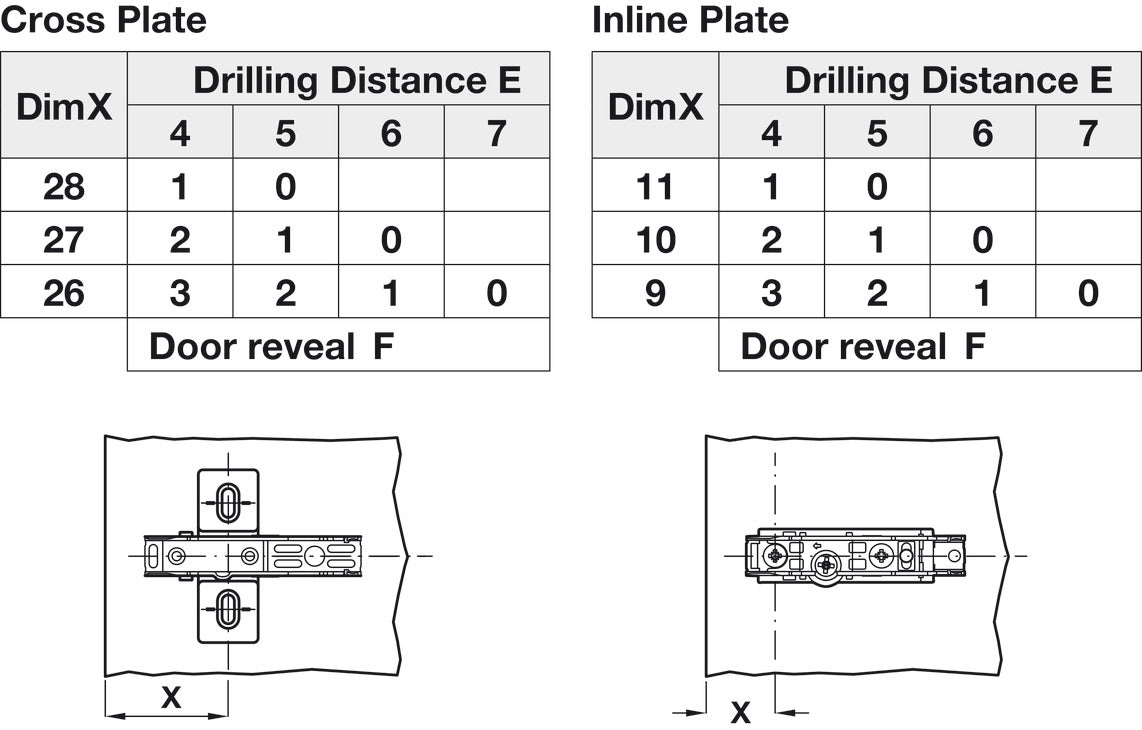

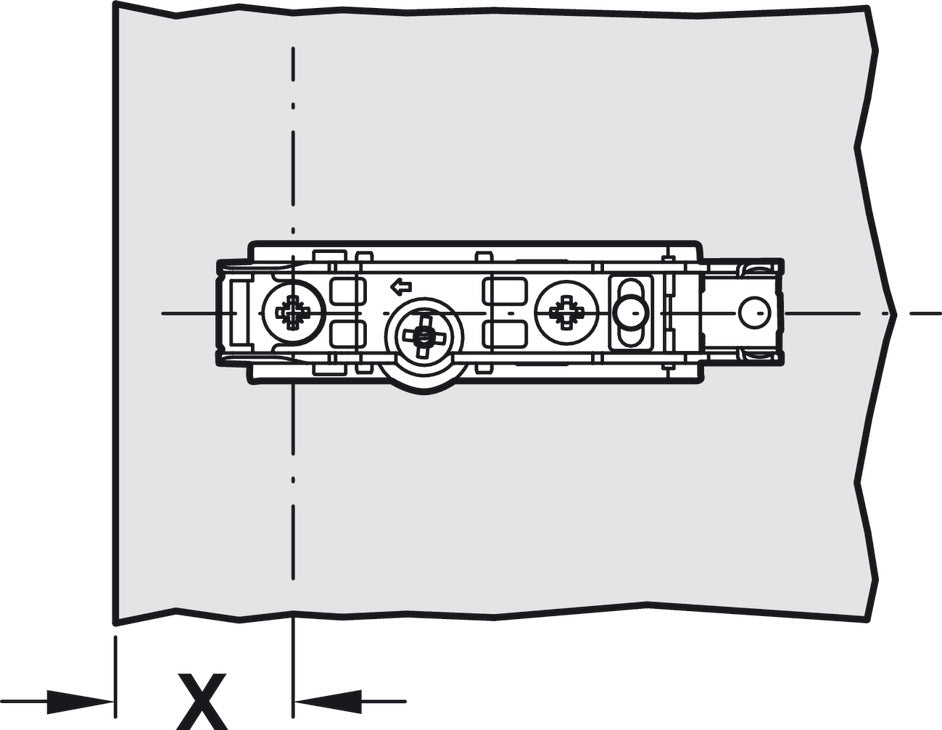

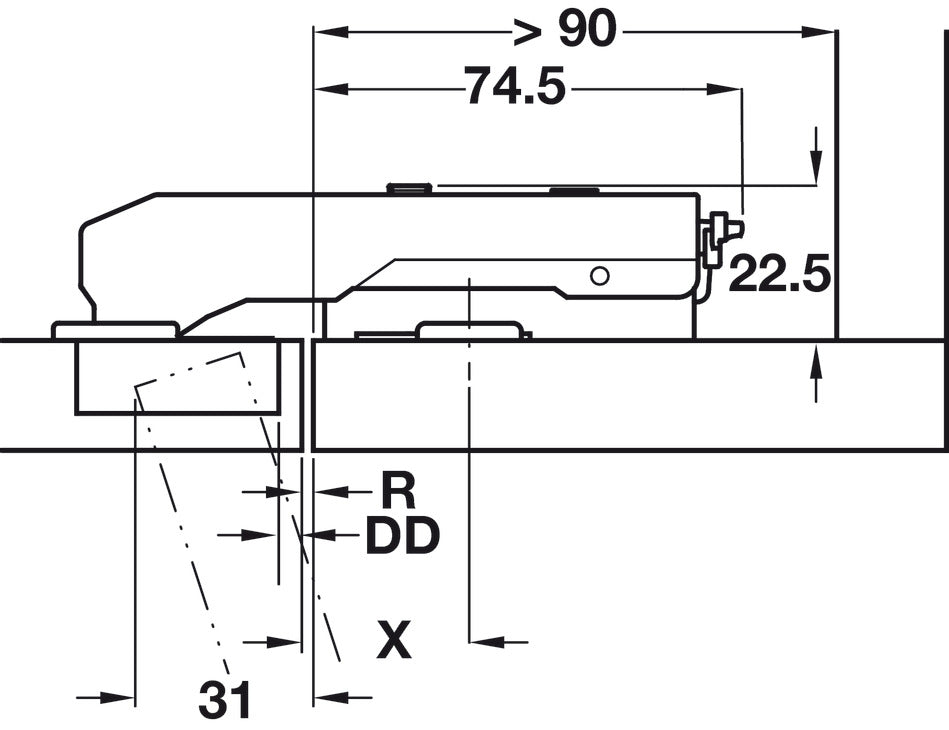

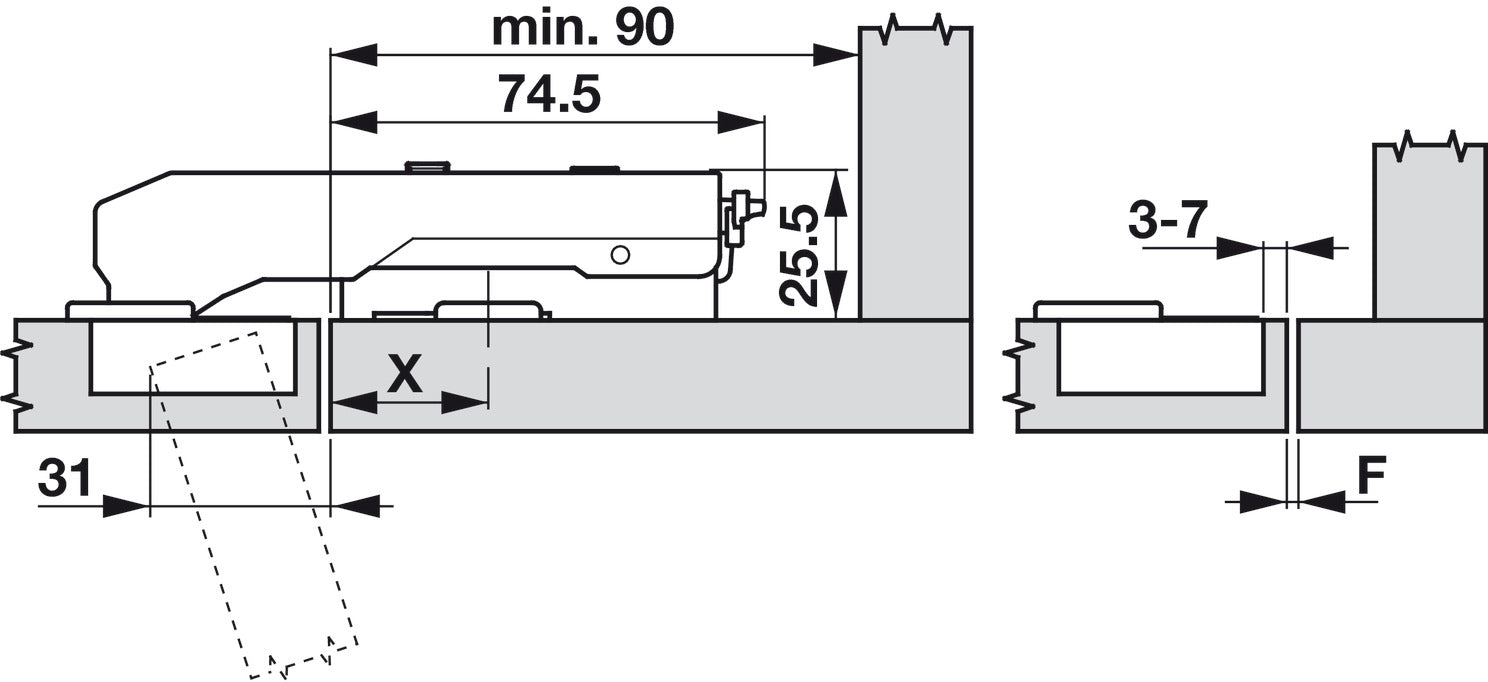

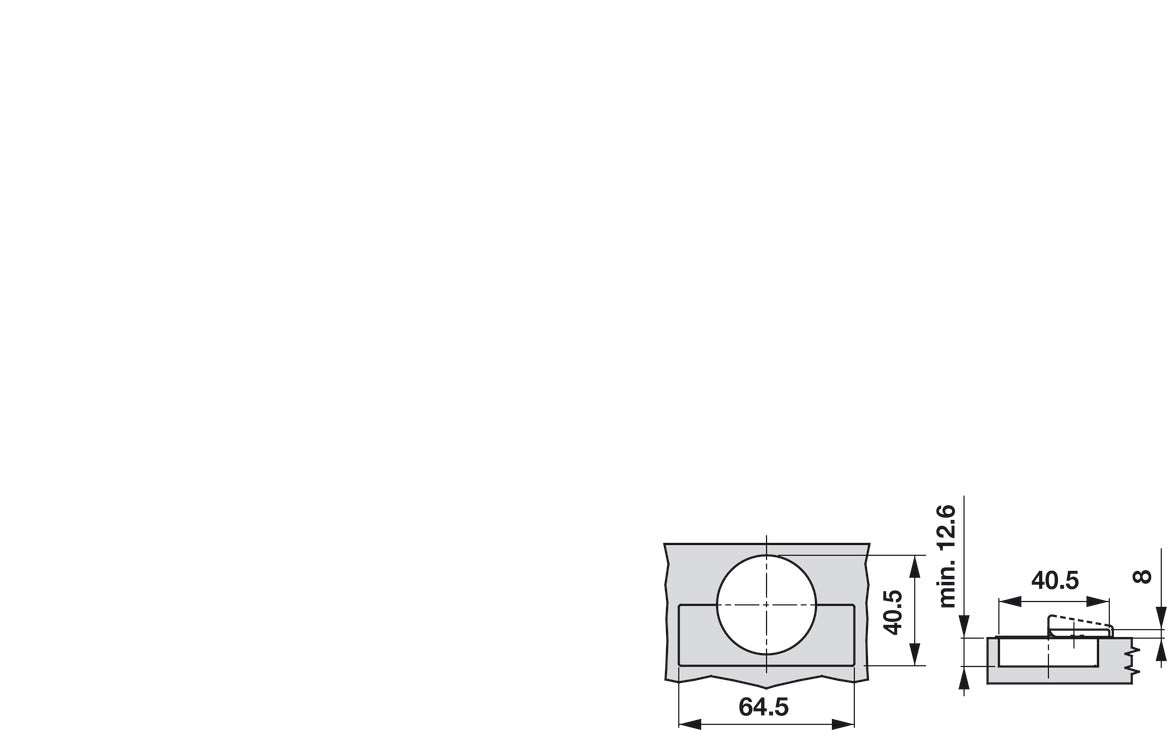

  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height 3 mm (1/8”).

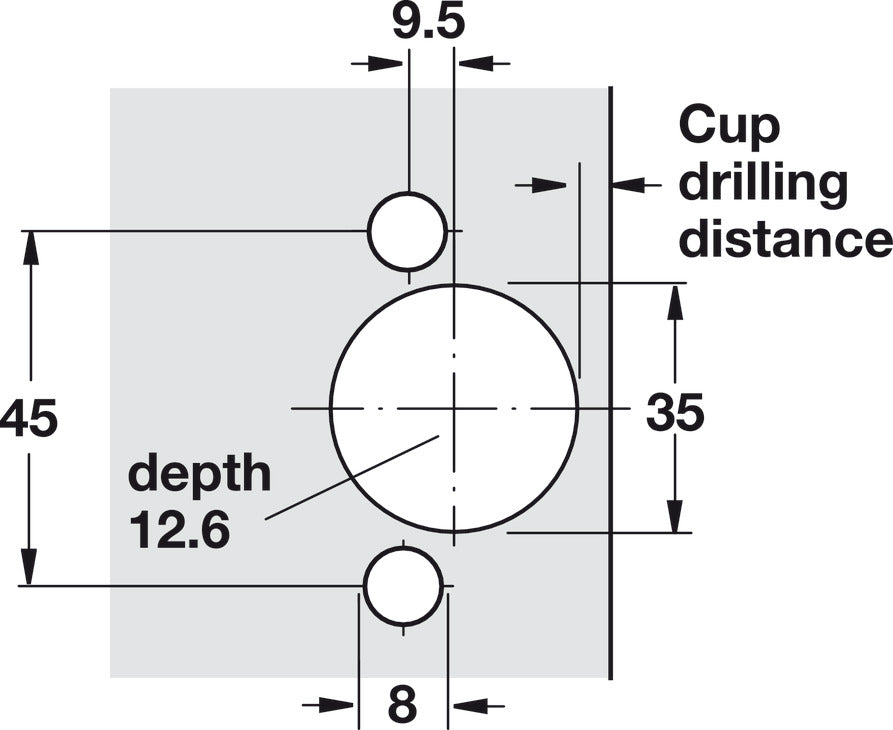

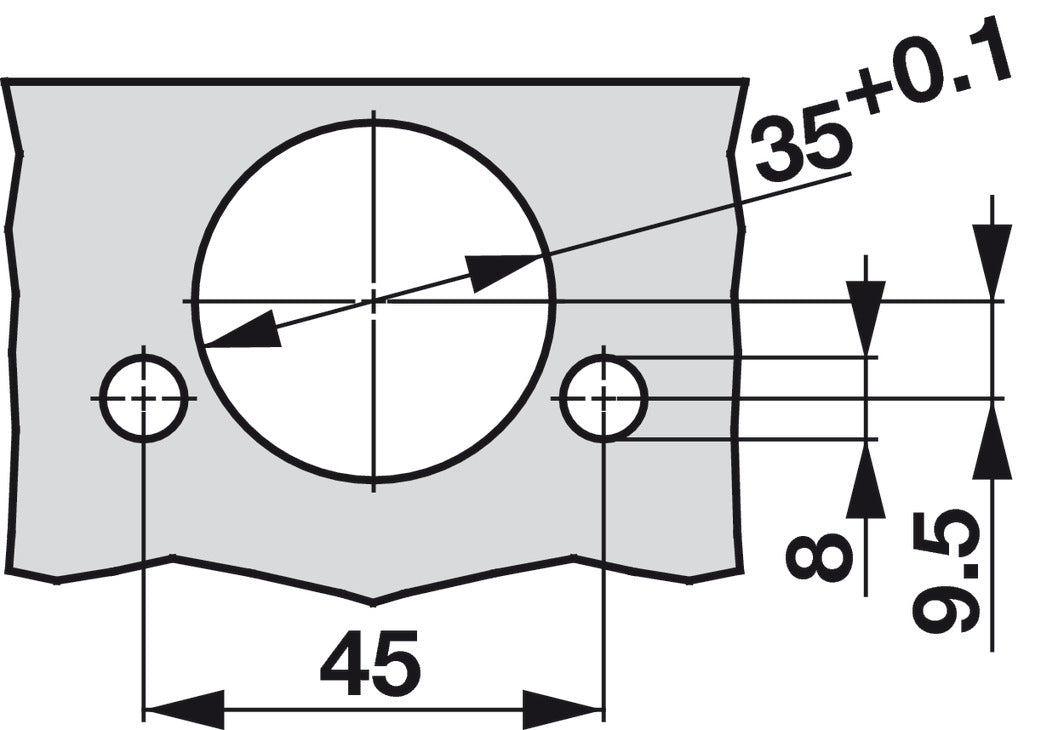

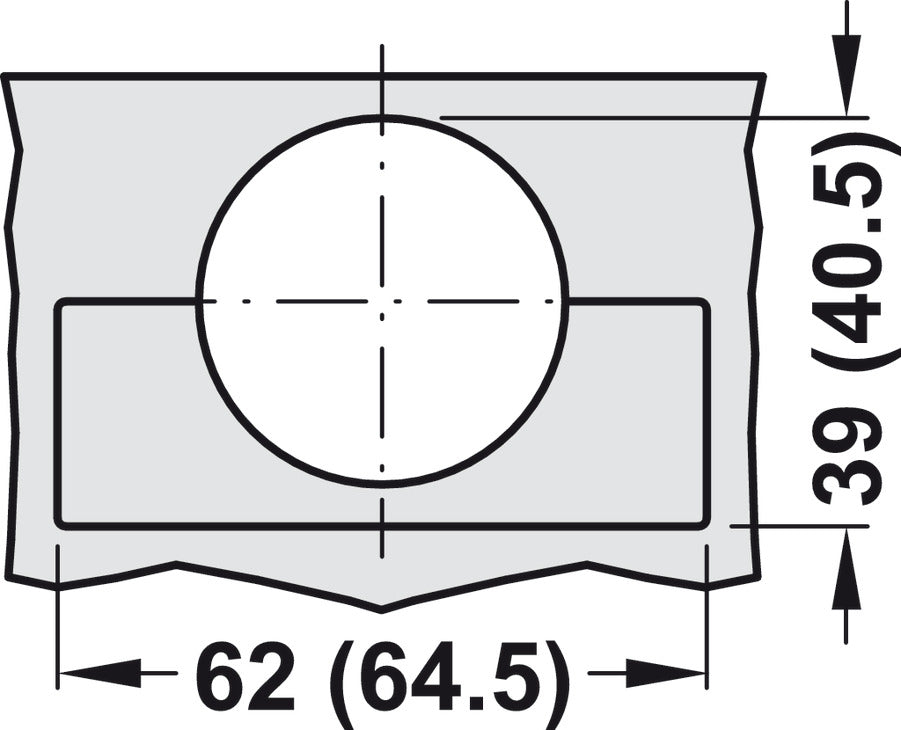

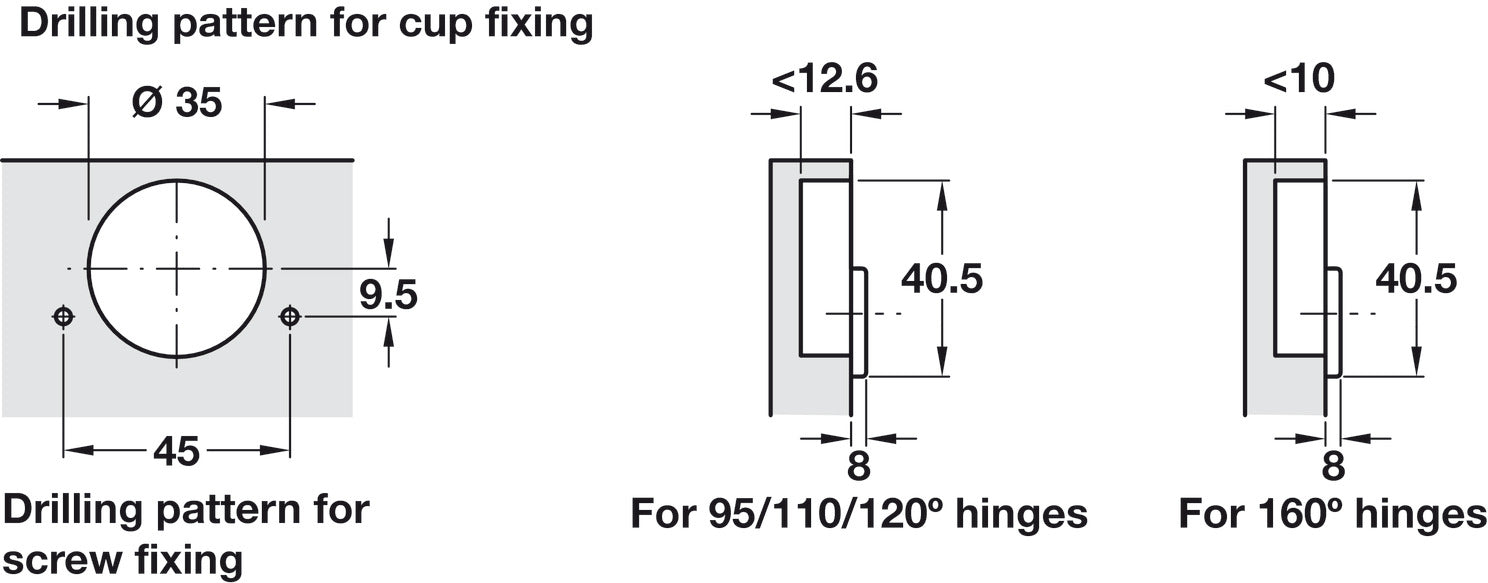

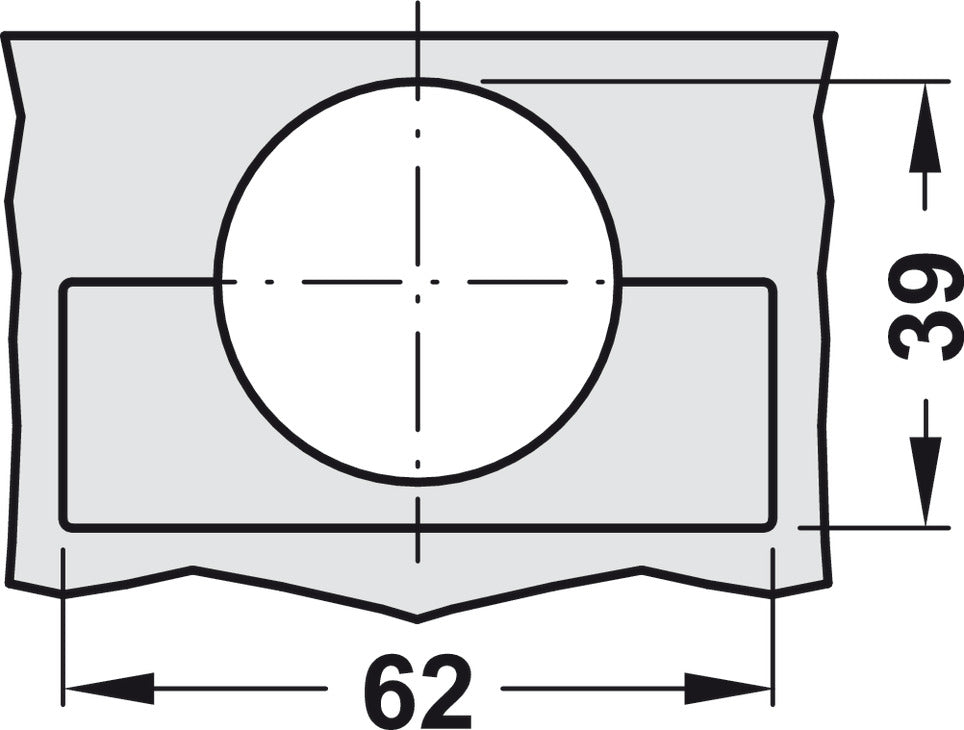

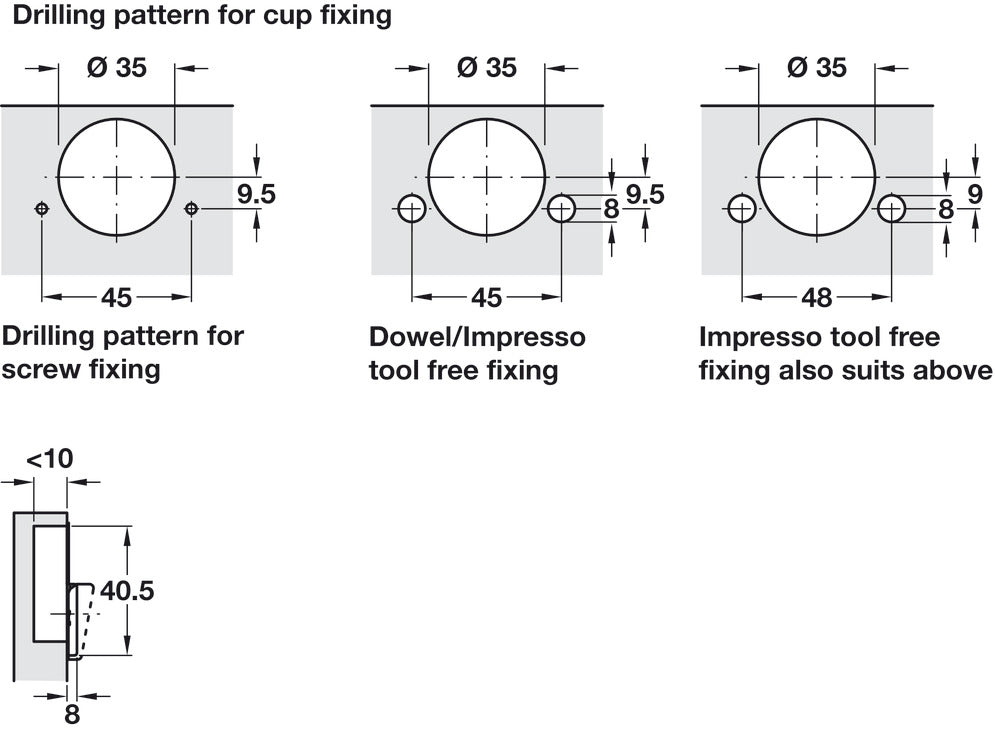

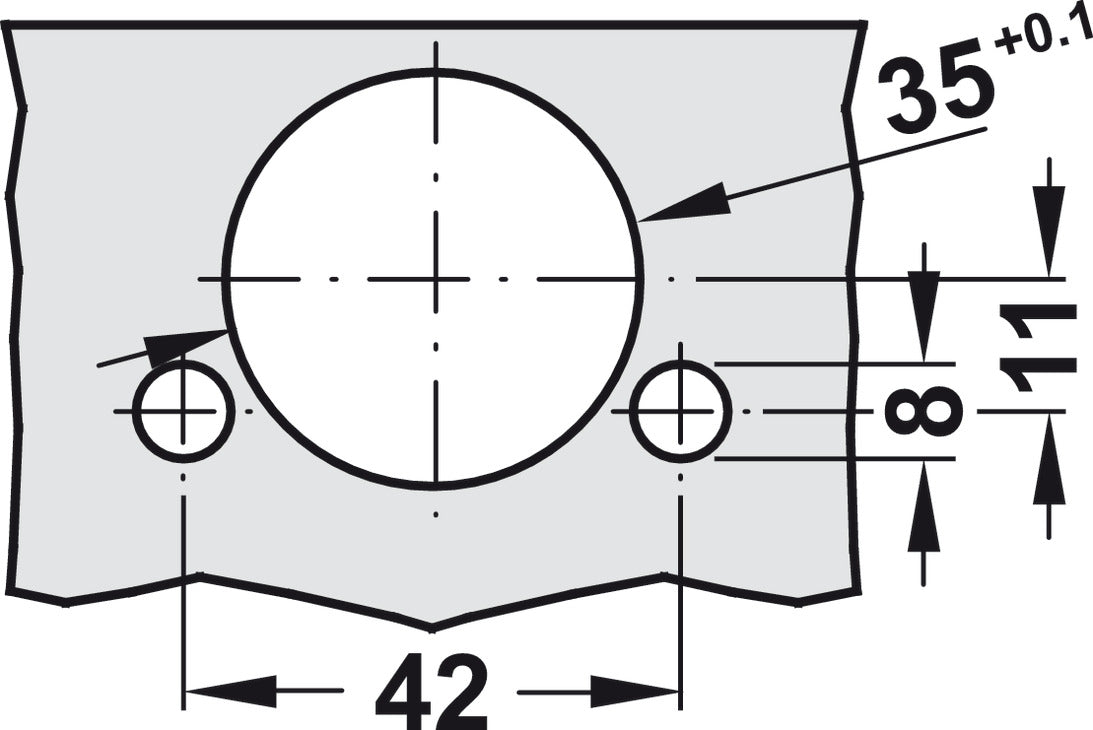

  • Drilling pattern: 42/11
  • Color/finish: Nickel plated

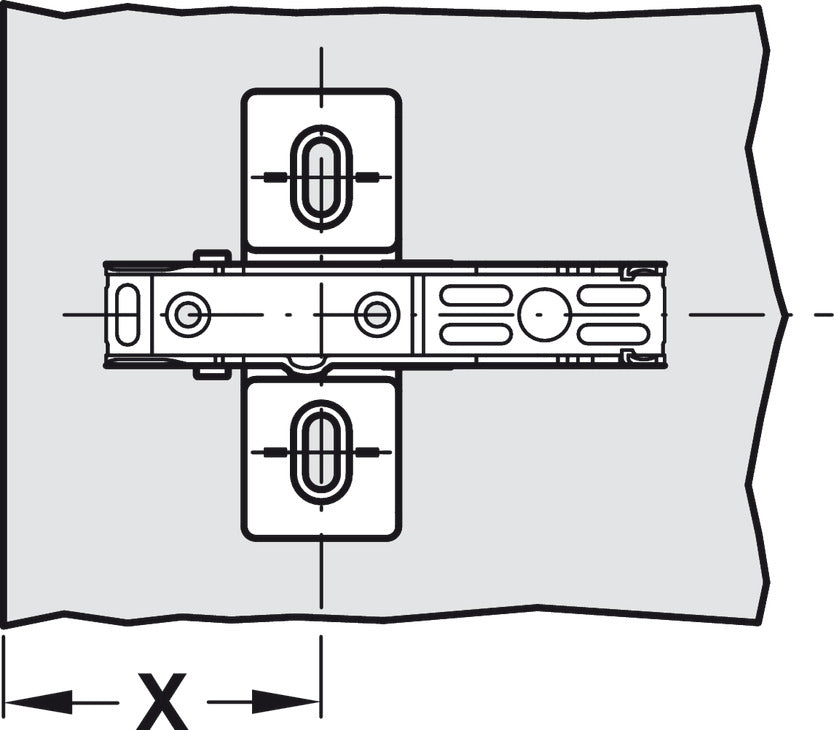

  • Mounting: mounting in drilled hole, screw fixing, clip fixing, without tools
  • Model series : Tiomos 110°
  • For door material : wood

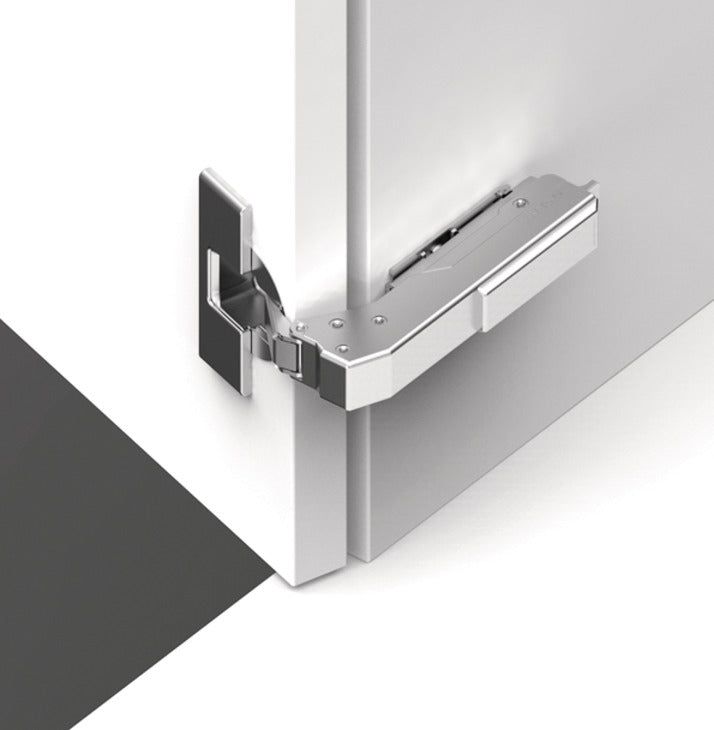

  • Concealed hinge version : blind corner application
  • Crank type : Straight
  • Opening angle : 110 °
  • Suitable for :

    Blind corner applications (inset)

  • Material : Steel, Hinge arm: Zinc alloy
  • Installation :

    Door to cabinet without tools (clip system)

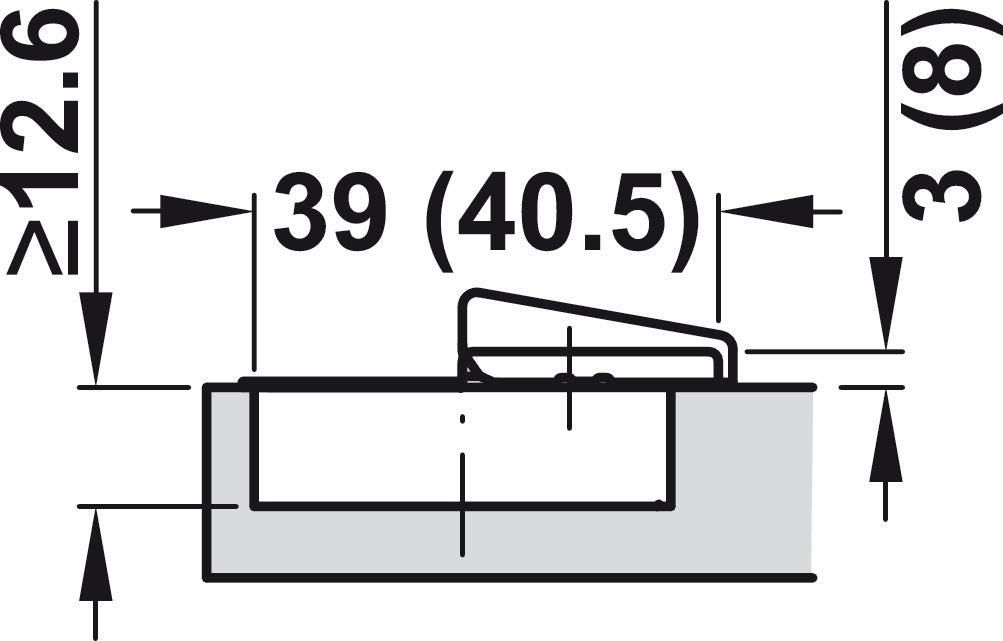

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm, Height adjustment depending on mounting plate
  • For wooden door thickness : 16 – 24 mm
  • For door thickness min. : Max. 15/16" - Anything thicker, a trial mounting is recommended

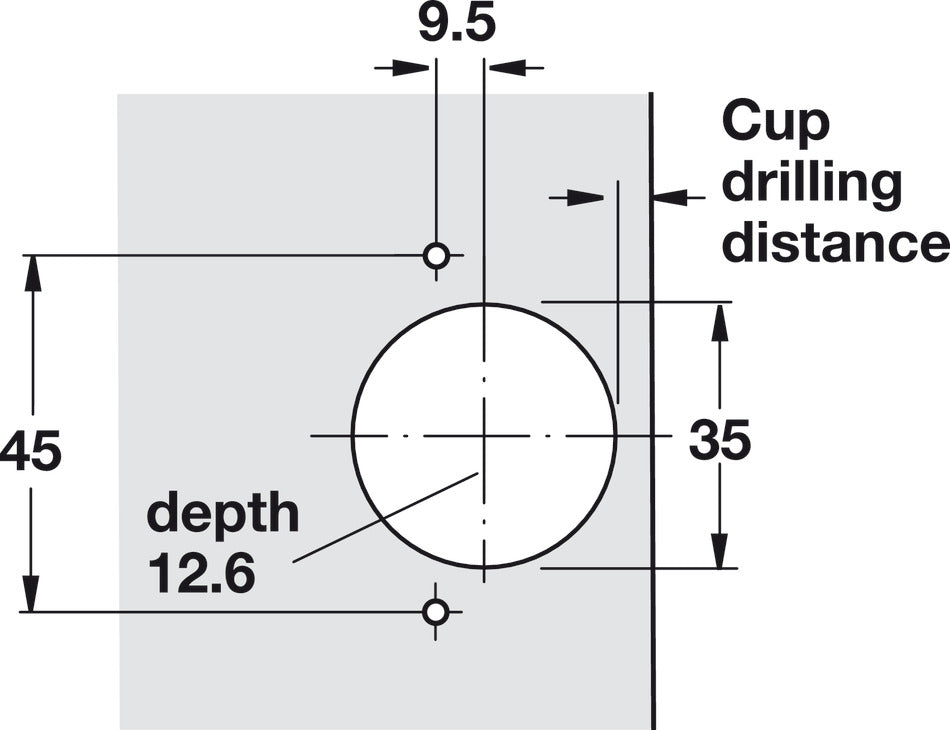

  • Cup drilling depth : 12.6 mm
  • Note :

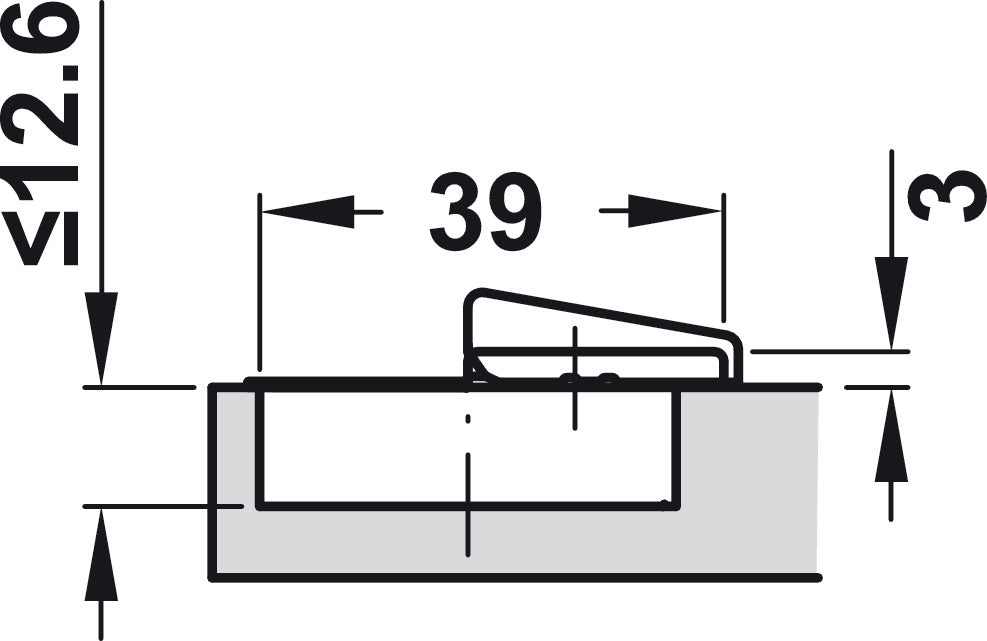

    Use mounting plate with 3 mm for flush front design of door and blind corner.
