• Concealed hinge, Tiomos 120°, overlay, for –45° corner applications
1 9

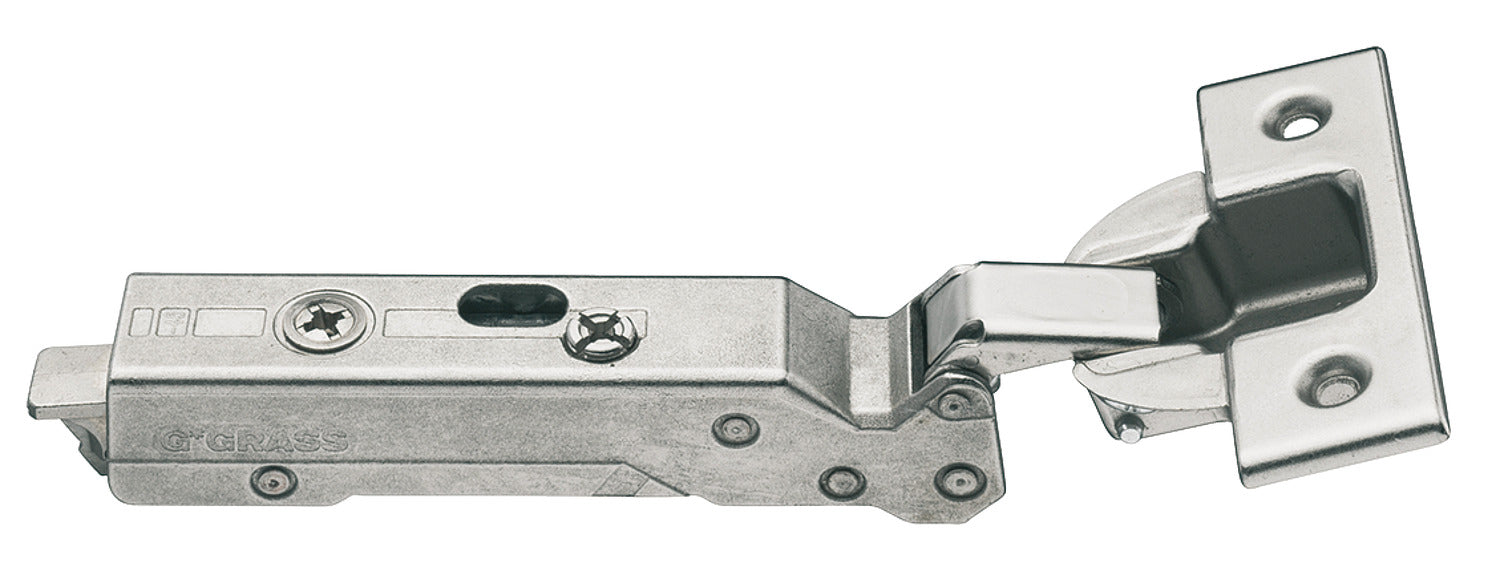

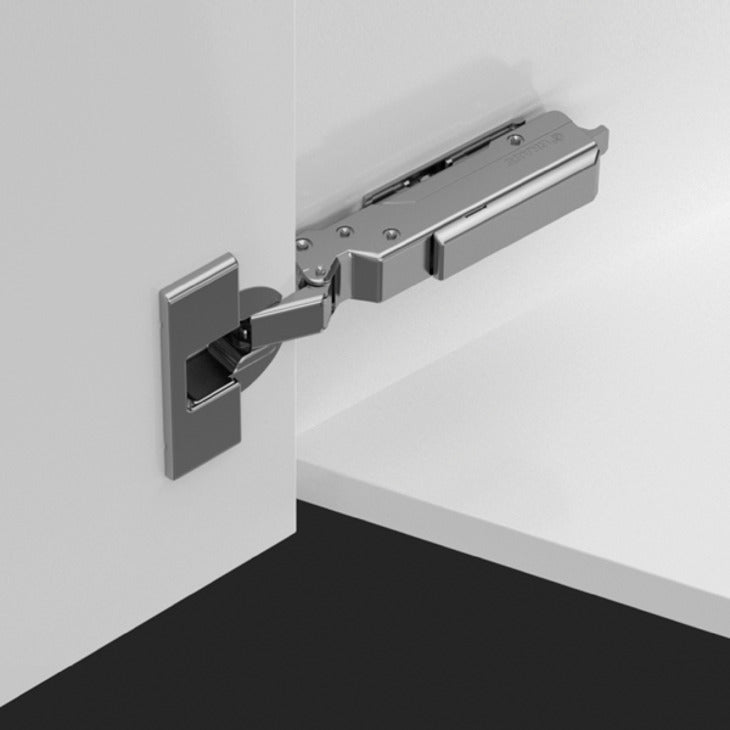

Concealed hinge, Tiomos 120°, overlay, for –45° corner applications

$14.52
$14.52
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • With or without soft close integrated in hinge arm, with 3 settings (optional)

  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing, without tools
  • Model: -
  • Model series : Tiomos 120/–45A
  • For door material : wood
  • Concealed hinge version : blind corner application
  • Crank type : Straight
  • Opening angle : 120 °
  • Material : Steel, Hinge arm: Zinc alloy

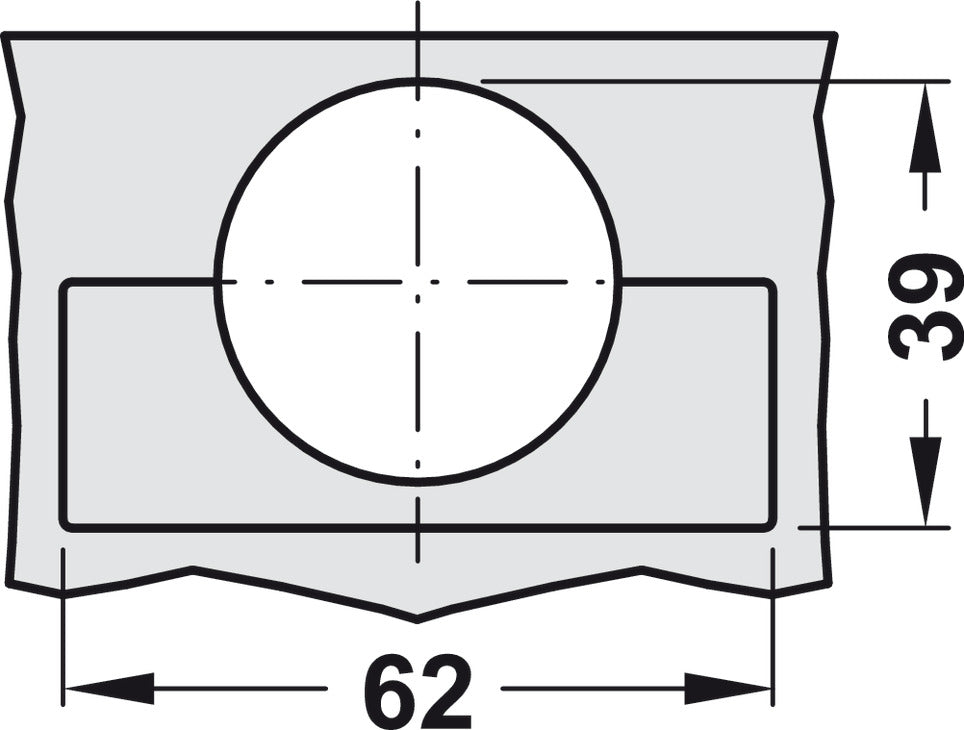

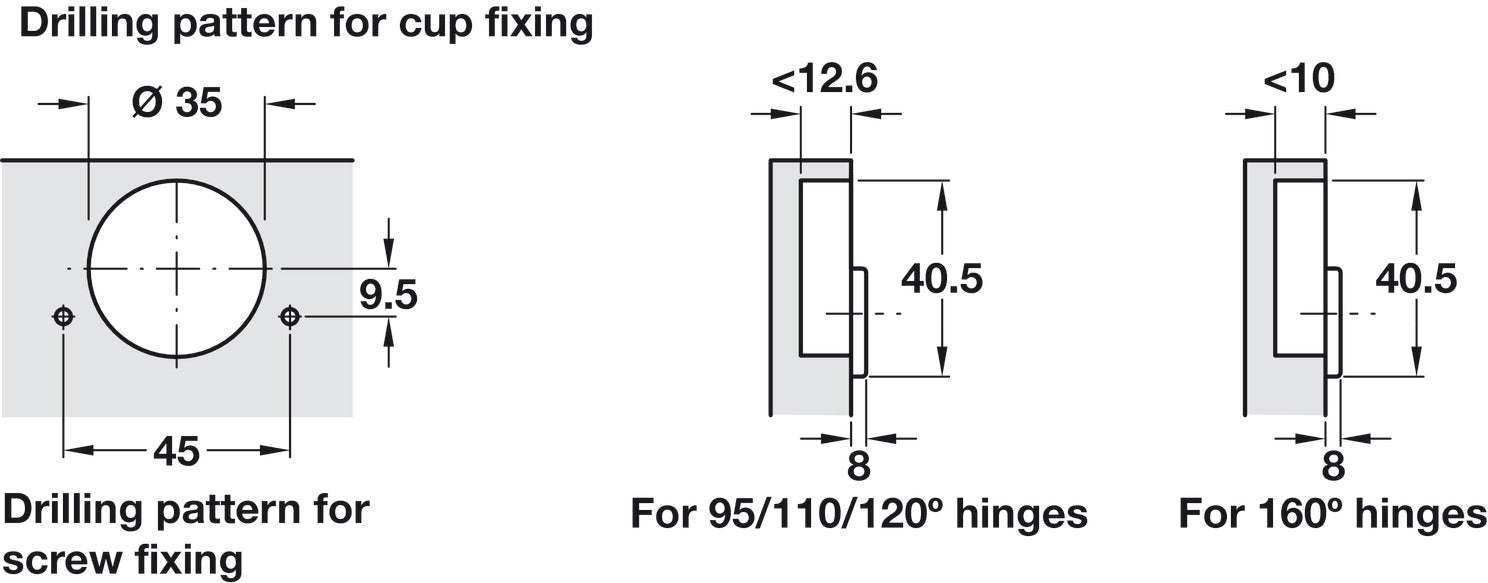

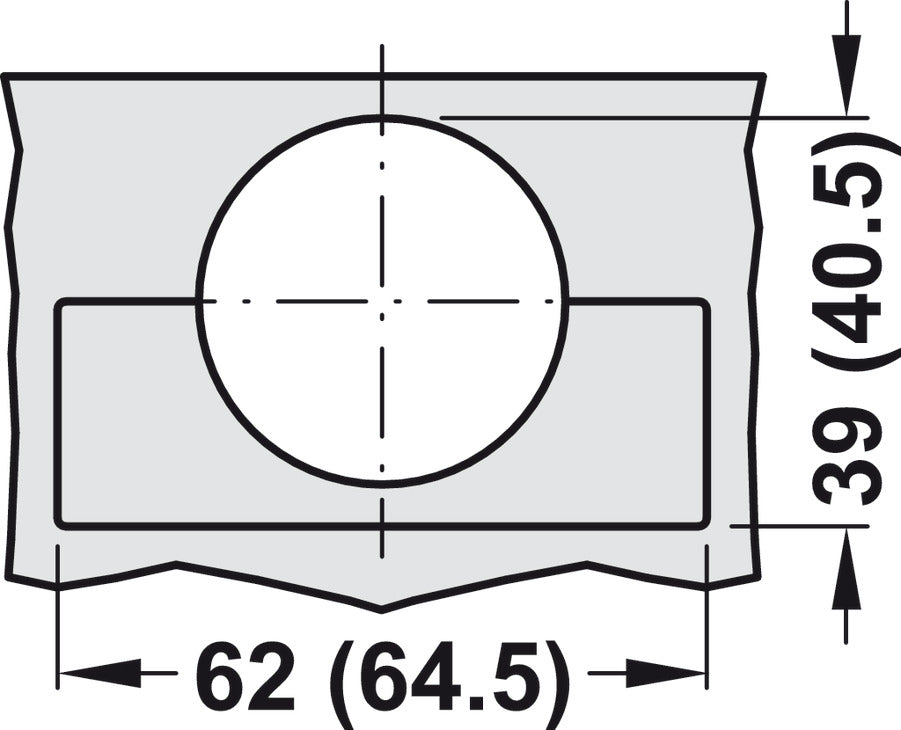

  • Door processing for assembly : cup drilling
  • Adjustment facility : Side adjustment facility: ±2 mm, Height adjustment facility: ±2.5 mm, Depth adjustment facility: -2 – 3 mm
  • For wooden door thickness : 16 – 24 mm

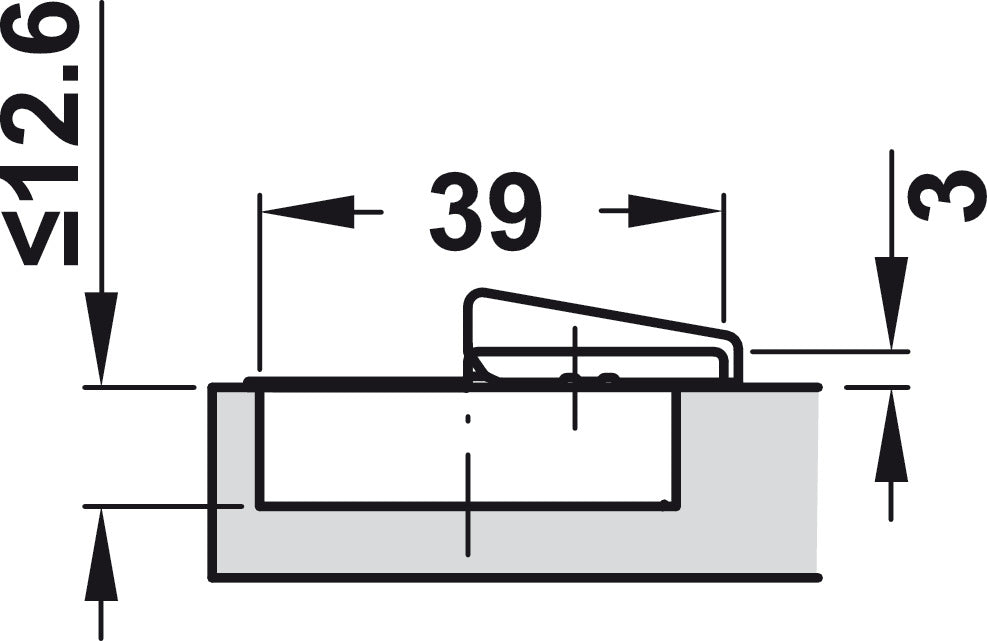

  • Cup drilling depth : 12.6 mm
  • Note :

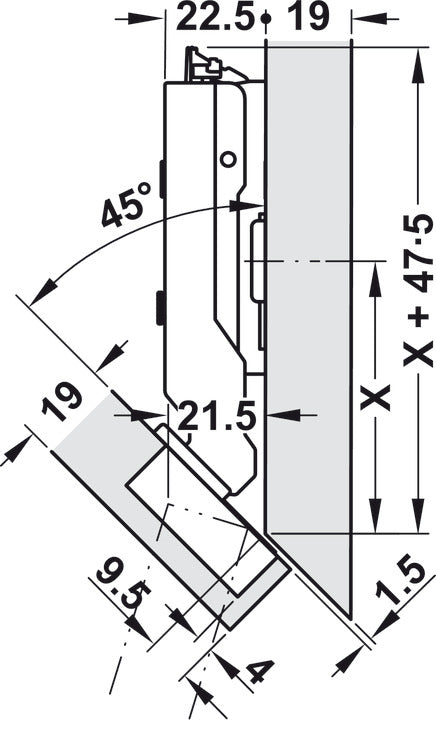

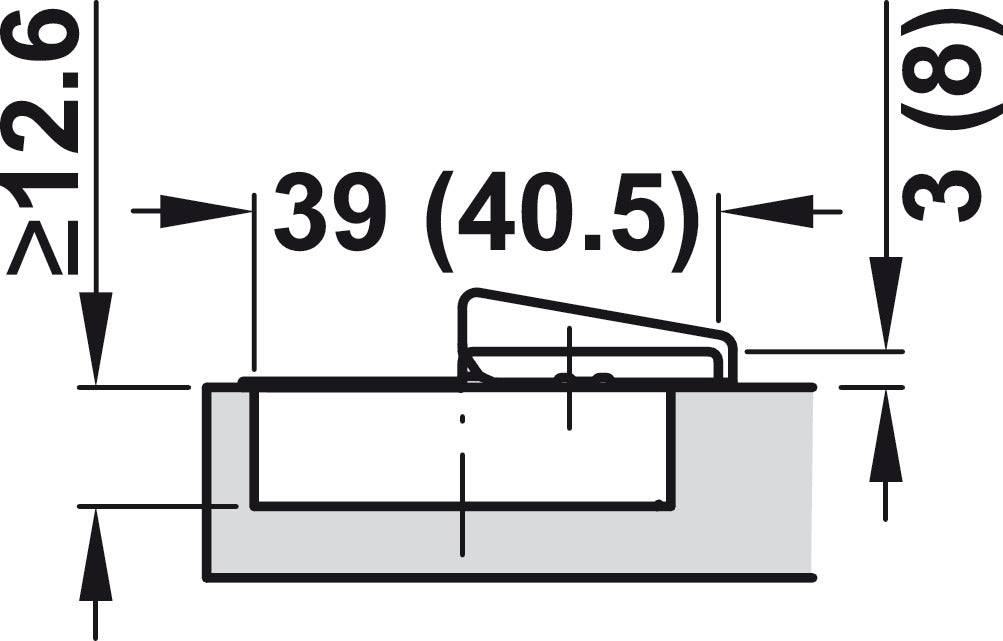

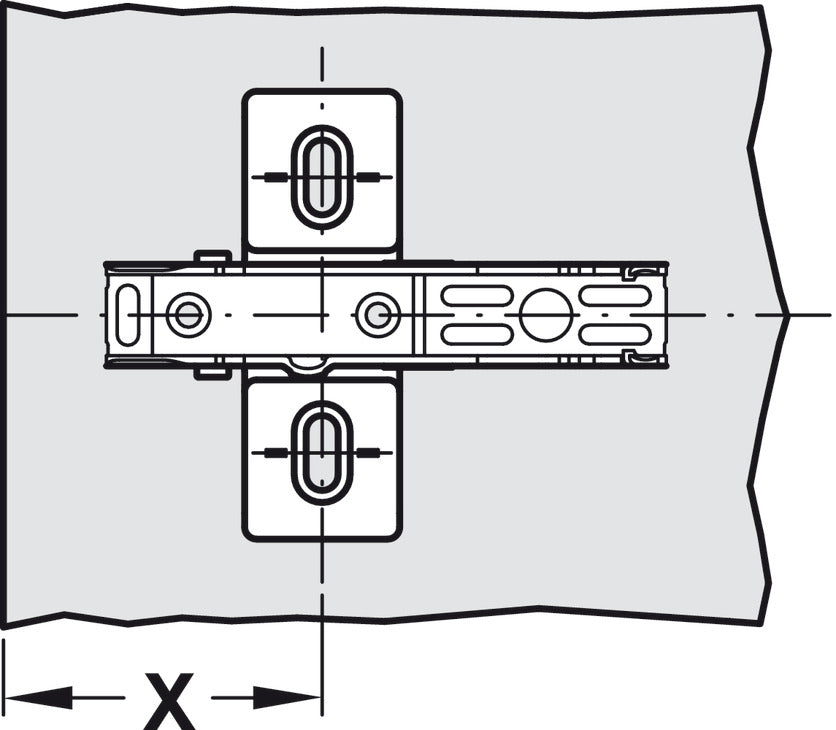

    The dimensions specified in the drawings are calculated with a mounting plate distance of 2 mm.
    Trial mounting is recommended.
