• Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy
1 15

Thin Panel Institutional Hinge, Aximat® 300, Grade 1, Zinc Alloy

$17.39
$17.39
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • Maximum project quality in compliance with ANSI grade 1 (100,000 cycles)

  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • For door material : laminate
  • Concealed hinge version : Full overlay/half overlay mounting
  • Opening angle : 270 °
  • Suitable for :

    Thin doors

  • Material : Zinc alloy, Hinge arm: Zinc alloy
  • Door processing for assembly : without

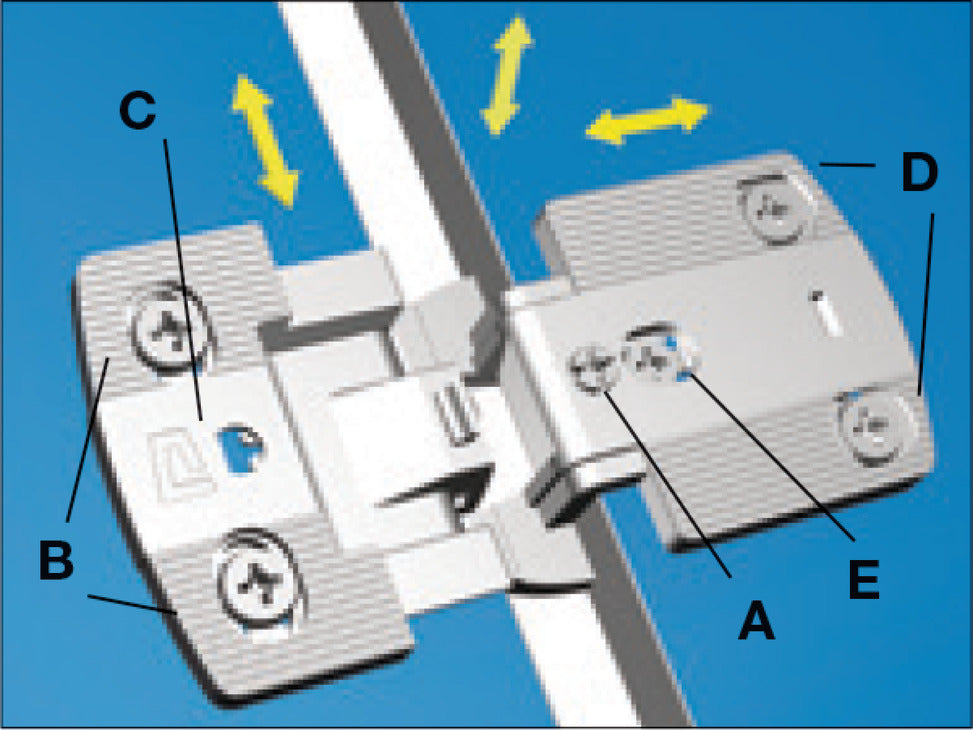

  • Adjustment facility : Side adjustment facility: -2 – 1 mm, Height adjustment facility: ±2 mm, Depth adjustment facility: ±1 mm, Height adjustment in cup part via eccentric Depth adjustment via horizontal slots in side component

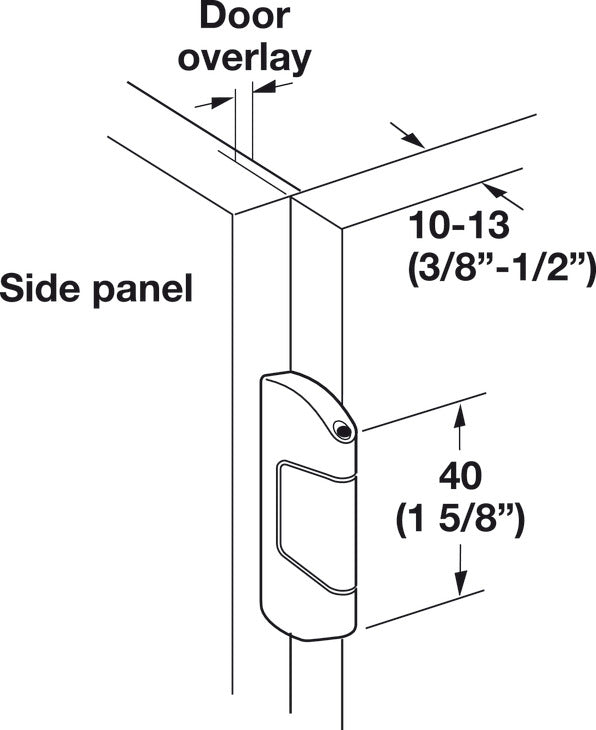

  • For wooden door thickness : 10 – 13 mm
  • Side panel thickness : 10 – 13 mm
  • Note :

    When inserting screws into Phenolic material, they may corrode because of the material’s internal properties.
    Screw holes should be slightly tapered in Phenolic material to assure a tight fit.

  • Supplied with :

    Hinge
    Fixing material (specially coated self-tapping screws)

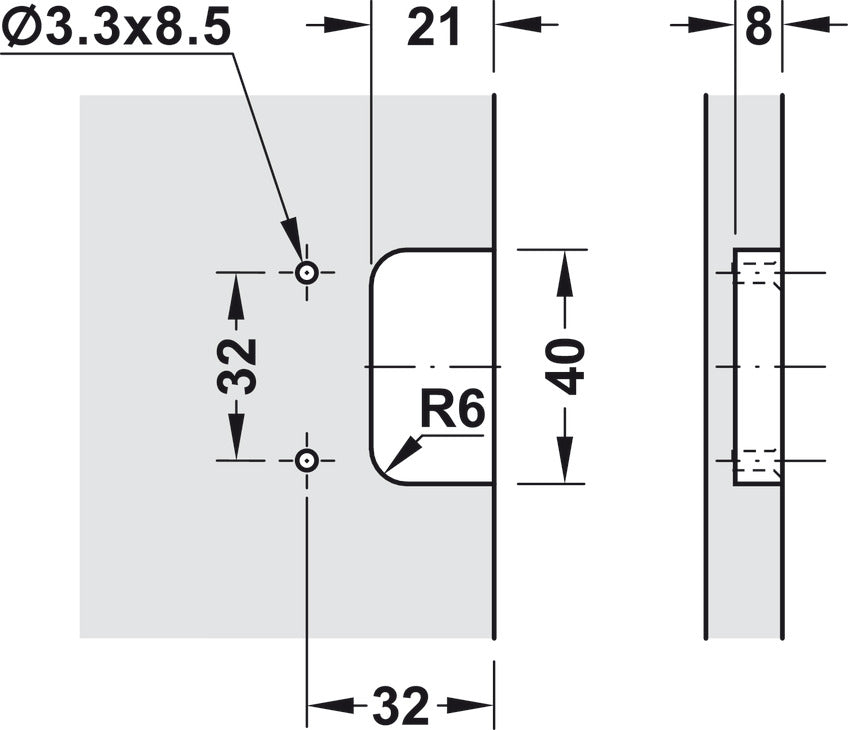

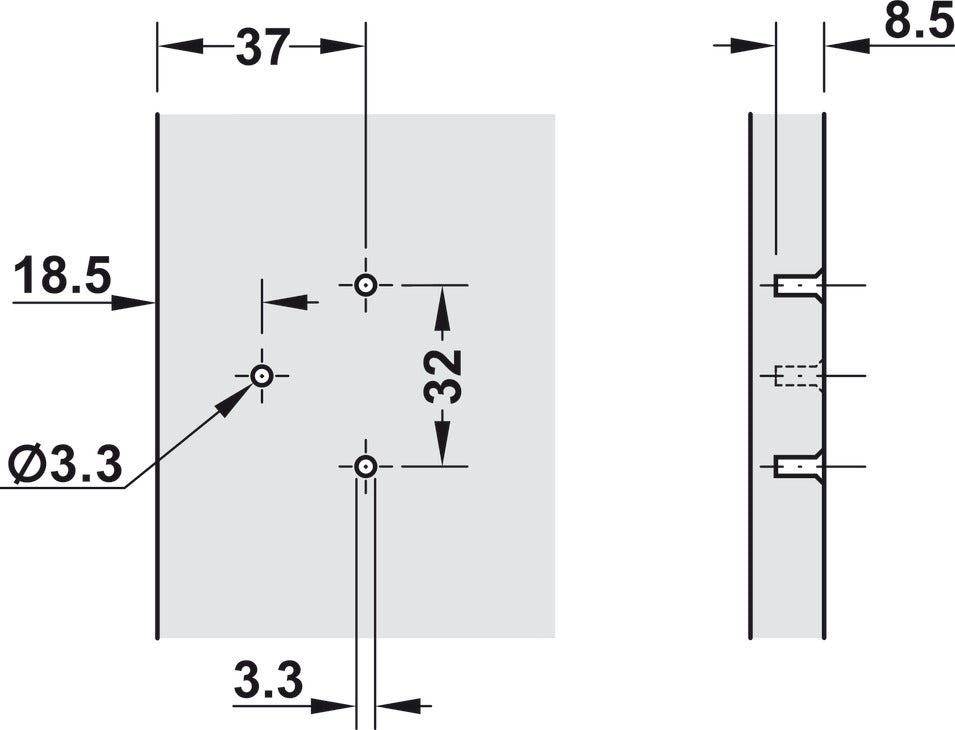

    1 twist drill bit ⌀3.3 mm, 50 pieces per packing unit
