Miter Hinge, GS 45/90, 135° Opening Angle

$20.22
$20.22
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

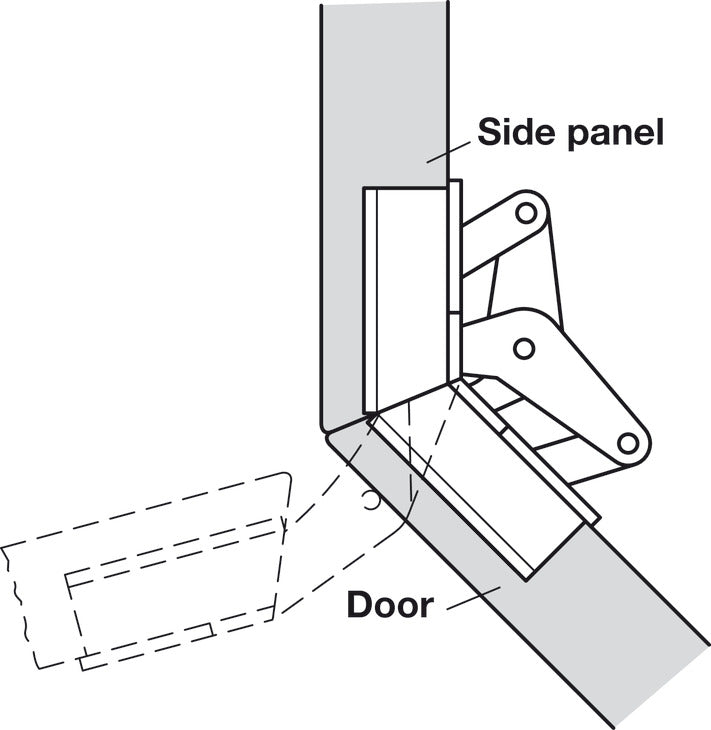

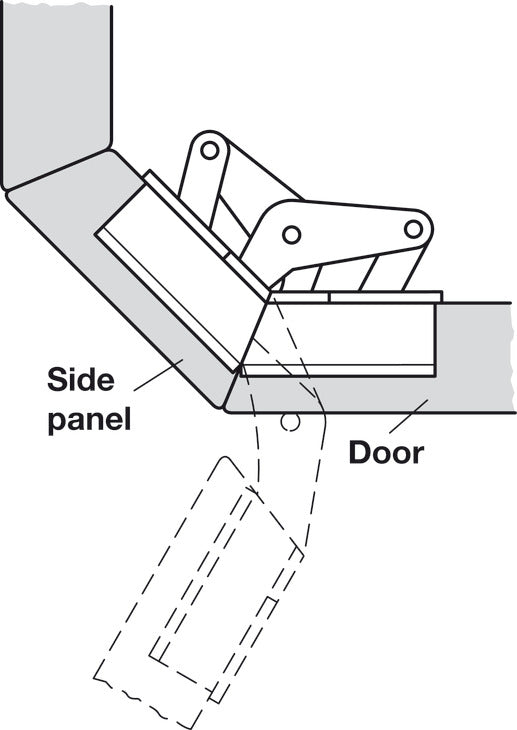

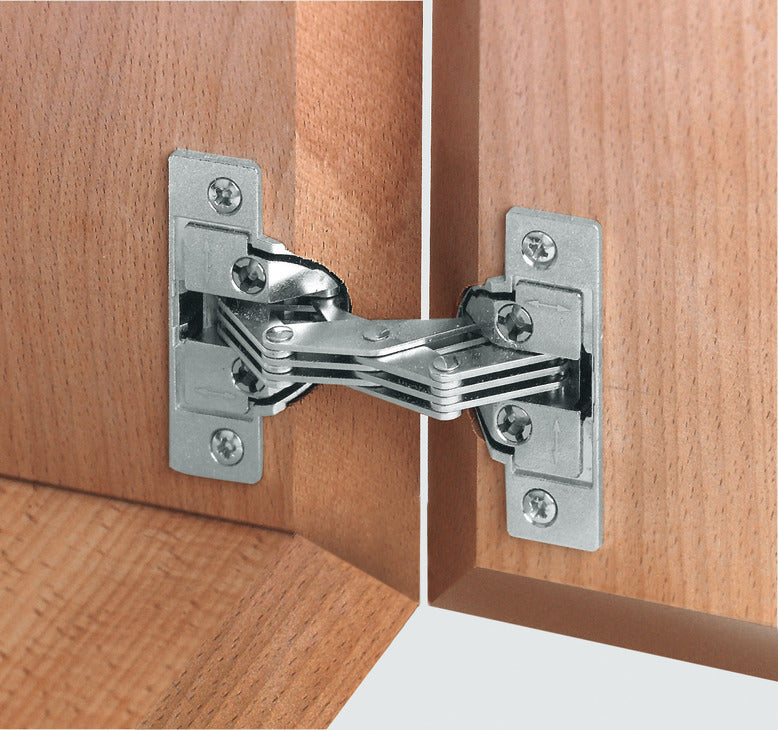

  • The only hinge that can be used for furniture structures with mitred cabinet corners and door.

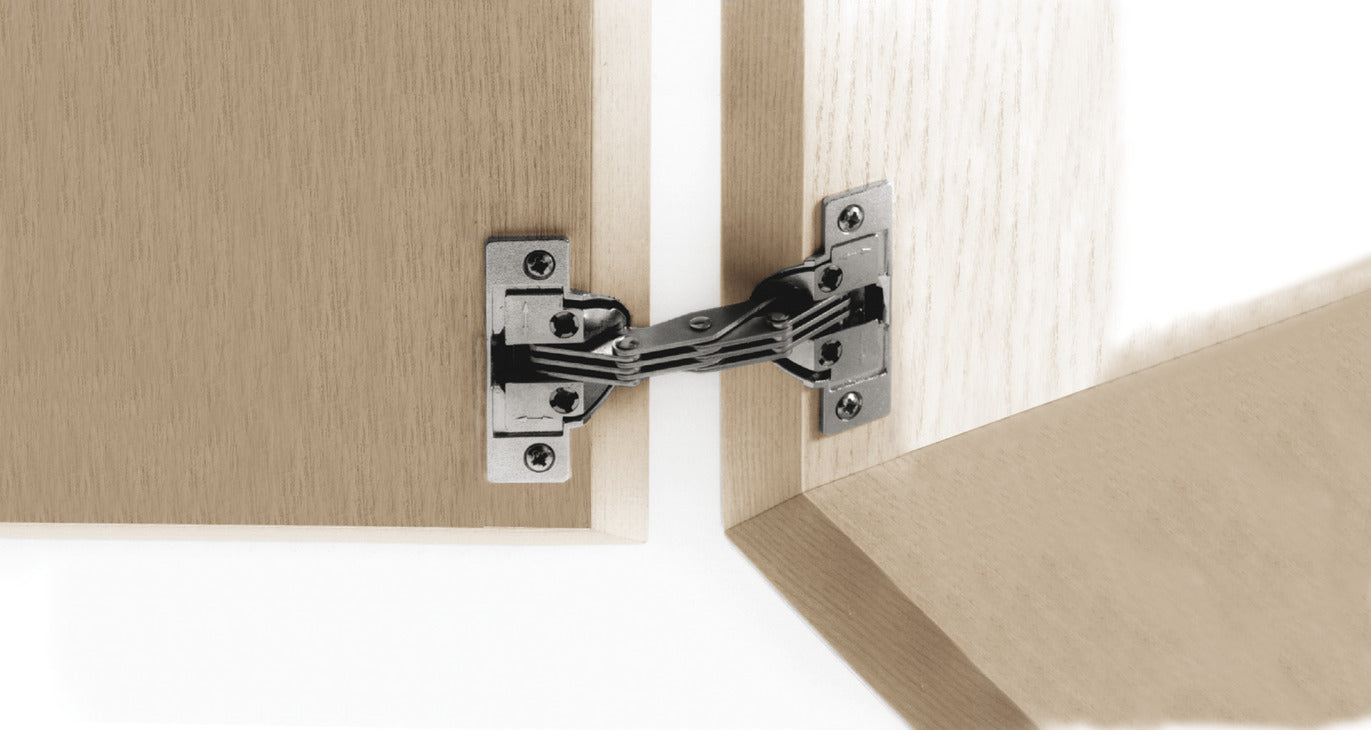

    The mitred hinge is not visible from outside when the door is closed.

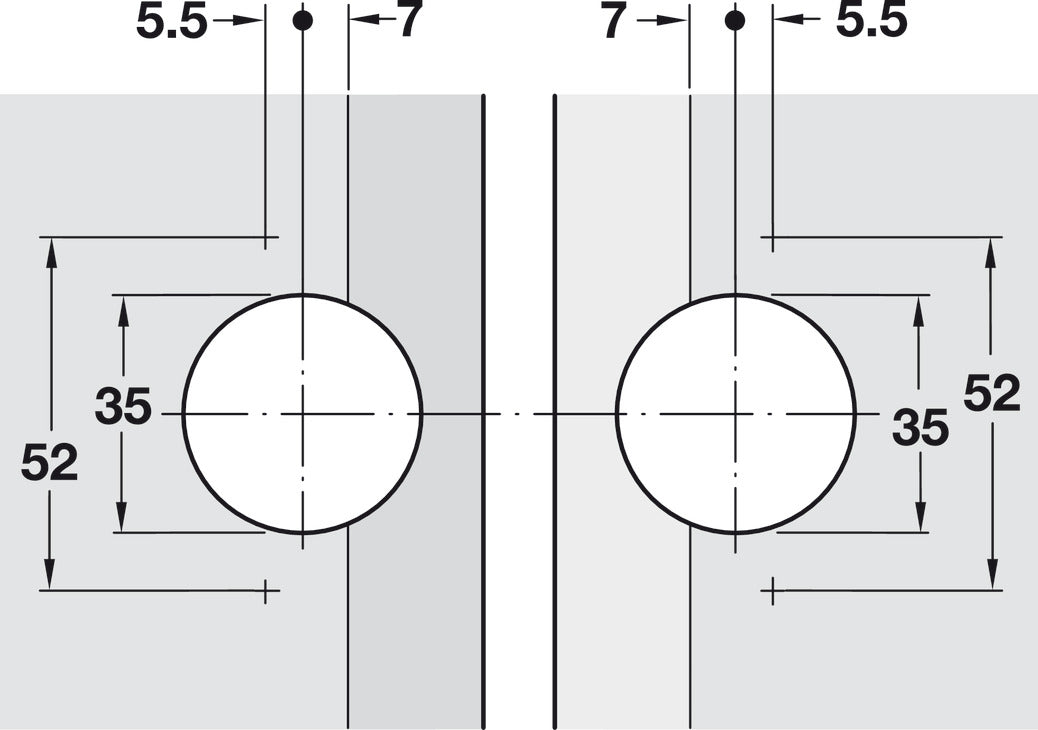

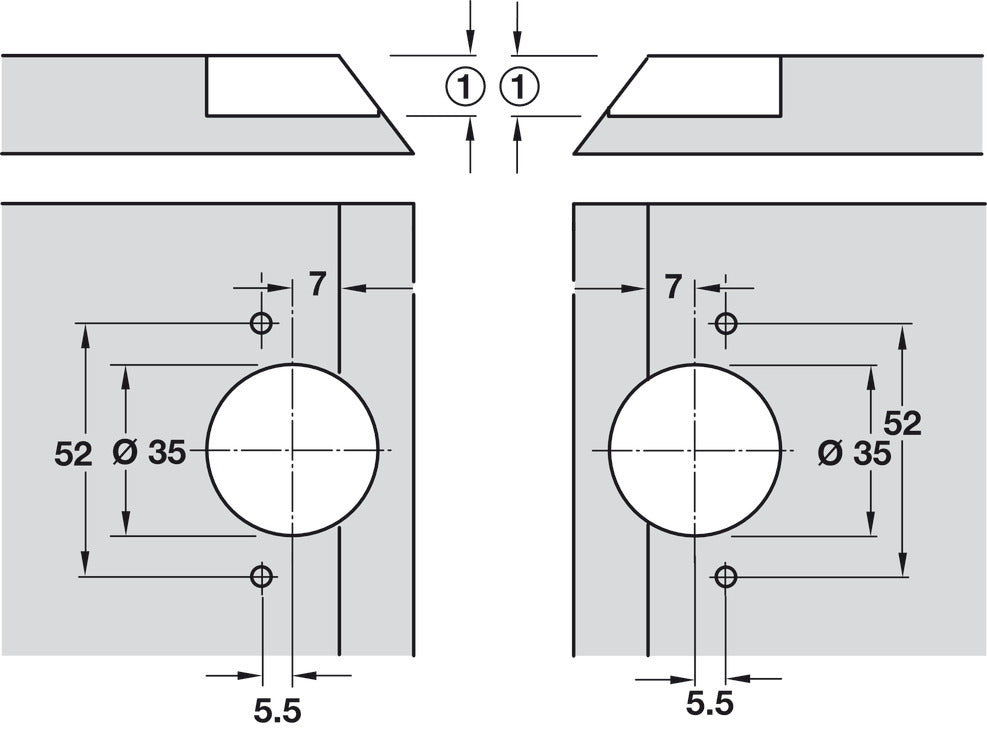

  • Drilling pattern: 52/5,5
  • Cup fixing: for screw fixing
  • Color/finish: Nickel plated
  • Mounting: mounting in drilled hole, screw fixing
  • Model series : GS 45
  • For door material : wood
  • Concealed hinge version : miter
  • Opening angle : 135 °
  • Suitable for :

    45° mitre applications

  • Material : Zinc alloy, Hinge arm: Steel
  • Installation :

    For screw fixing

  • Door processing for assembly : cup drilling

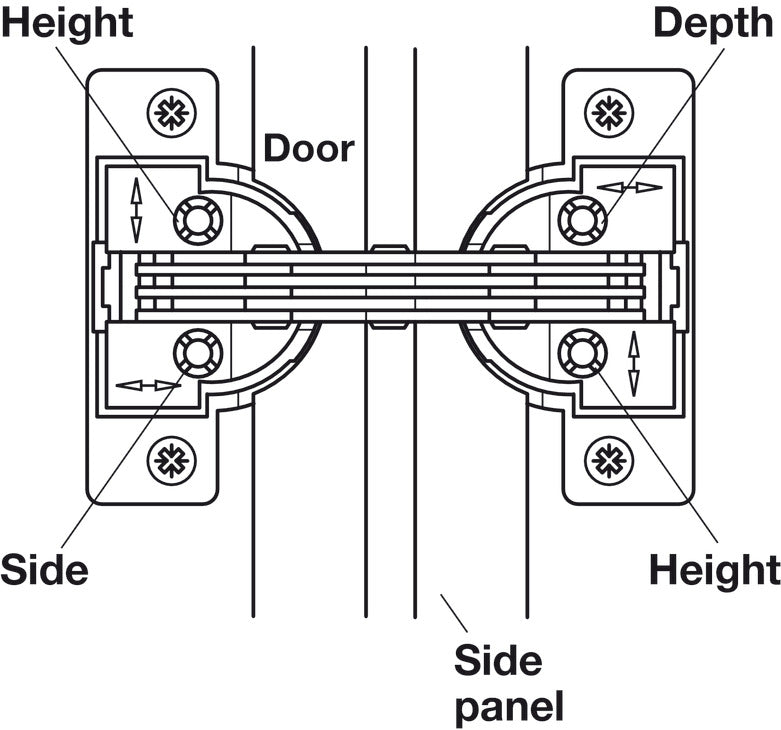

  • Adjustment facility : 3-dimensional
  • For wooden door thickness : 16 – 22 mm

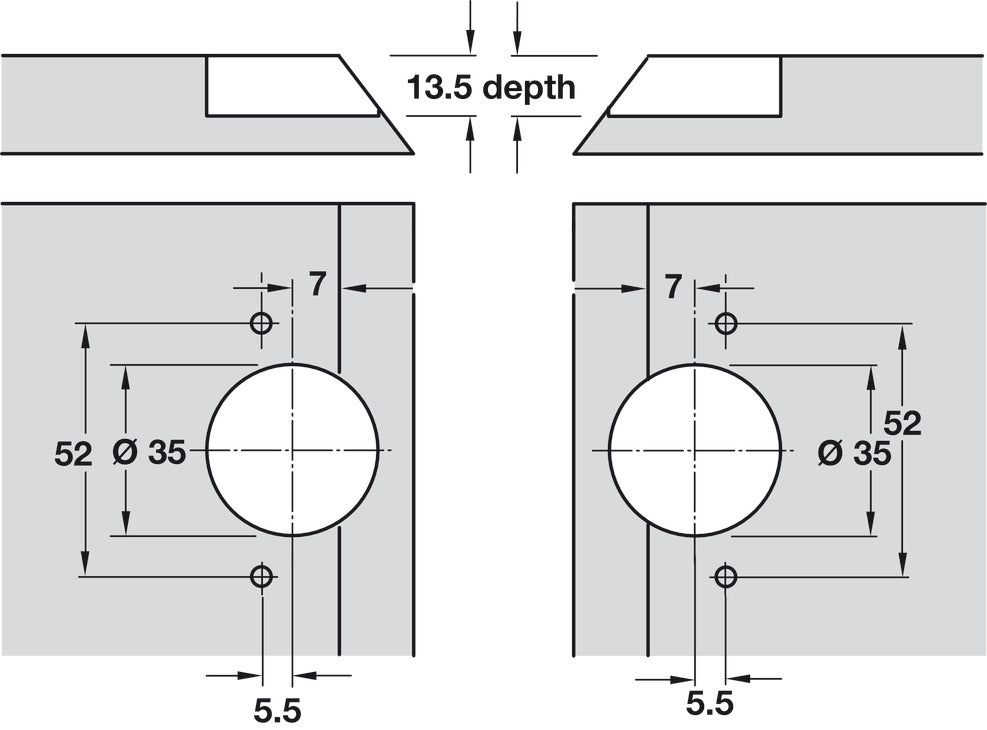

  • Cup drilling depth : 13.5 mm
  • Side panel thickness : 16 – 20 mm
