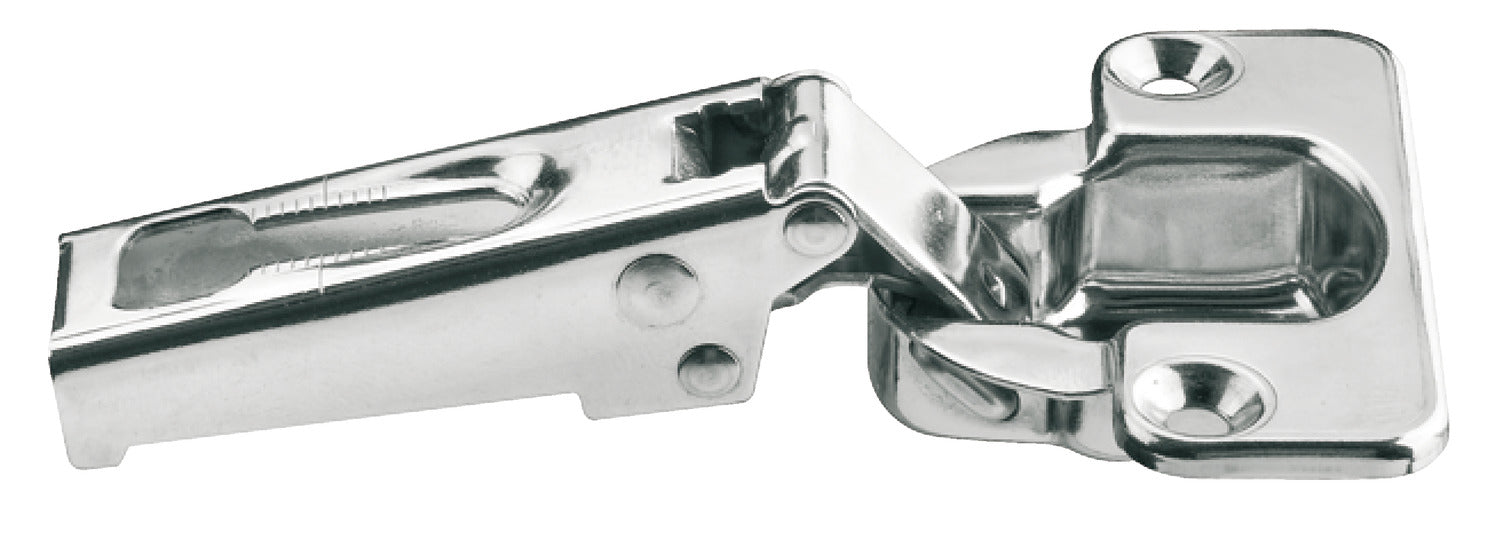

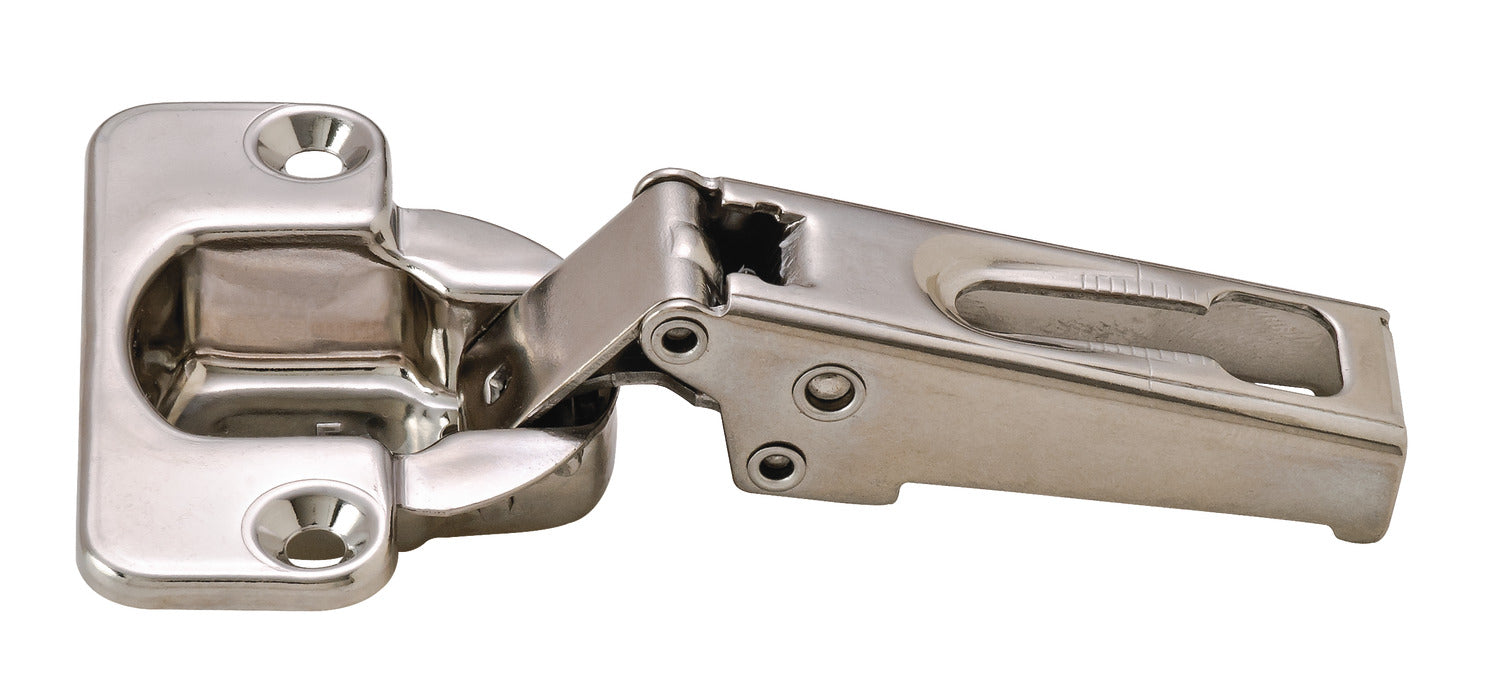

• S-Series Concealed Hinge, Opening Angle 100°, Full Overlay
1 7

S-Series Concealed Hinge, Opening Angle 100°, Full Overlay

$8.74
$8.74
Sale Sold out
Shipping calculated at checkout.

*Free Standard Ground Shipping on Orders over $199

  • S-Series hinges will only work with S-Series mounting plates
    Pivot pin for hinge arm is steel, sealed against corrosion

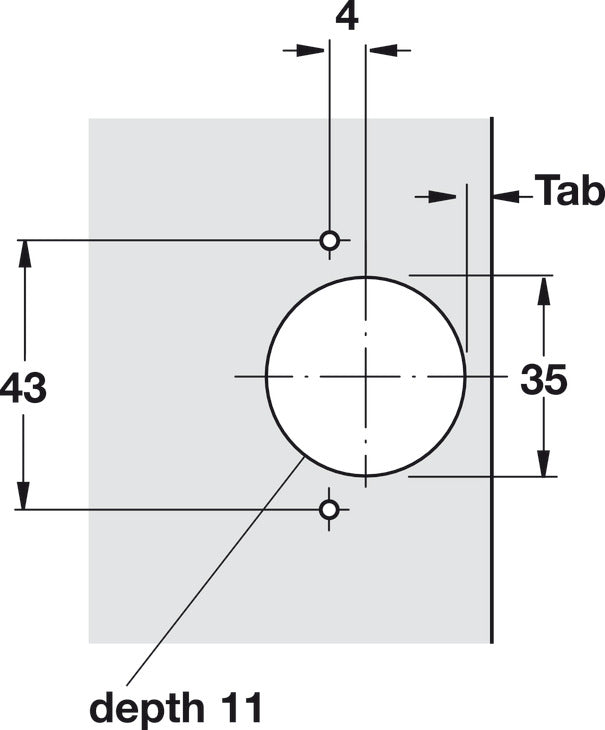

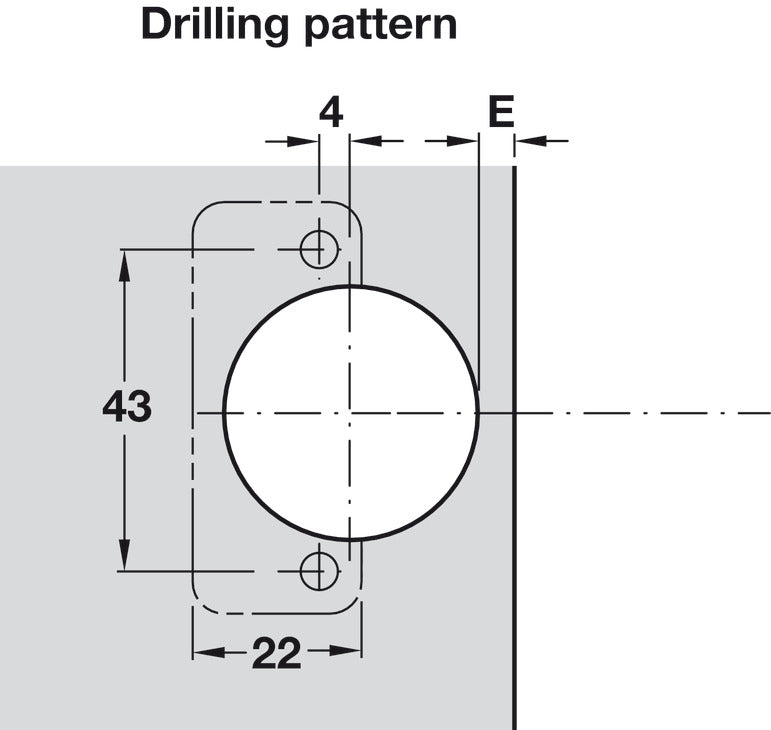

  • Drilling pattern: 43/4
  • Cup fixing: for screw fixing
  • Color/finish: polished
  • Mounting: mounting in drilled hole, screw fixing
  • Side panel thickness min.: 5/8"
  • For door material : wood

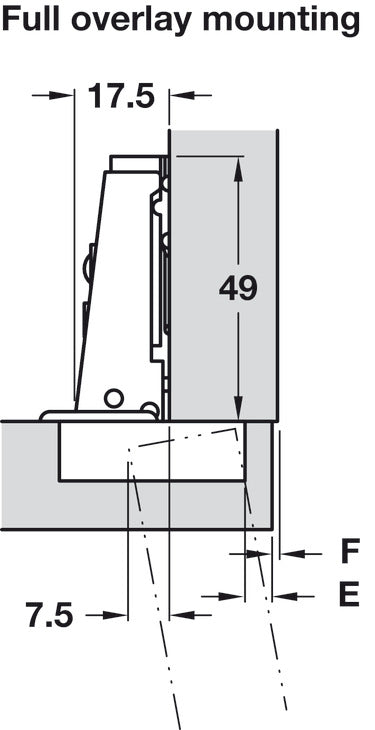

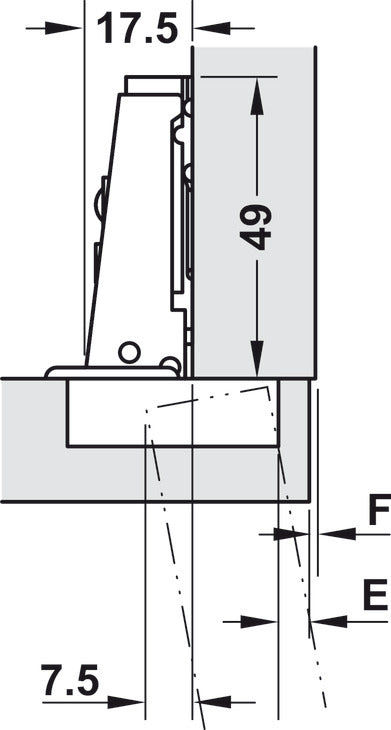

  • Concealed hinge version : full overlay
  • Crank type : Cranked
  • Opening angle : 100 °
  • Suitable for :

    Increased corrosion requirements

  • Material : Stainless steel, quality 1.4301 (V2A), Hinge arm: Stainless steel, quality 1.4301 (V2A)
  • Installation :

    Door to cabinet by sliding on

  • Door processing for assembly : cup drilling
  • Adjustment facility : 3-dimensional (with appropriate mounting plate)
  • For wooden door thickness : 15 – 20 mm
  • For door thickness min. : 9/16"
  • Cup drilling depth : 11 mm
  • Supplied with :

    Stainless Steel screws
